Light Rail Product Documents
LightRail® moves your lights over the tops of the plants, reducing shadow patterns and getting the correct intensity of light on the leaves for optimum Leaf Area Index – the single most important factor in increasing your yield. You’ll get much better yields plus up to 20% more area covered – you save energy and money, and with much better results. LightRail® is the single best way to get more from your grow lights. LightRail® – solidly made in the USA since 1986.
| Brand | Light Rail |
|---|---|
| SKU | LRAALHDWARE |
| Weight (lb.) | 1.0000 |
| Lead Time | This item ships in 1-2 Business Days |
| Prop 65 | false |
| Height (in.) | |
| Width (in.) | |
| Length (in.) | |
| Hazardous Material | false |
| UPC | 689001390015 |
| UL Listed | No |
| ETL Listed | No |
| Weight Capacity | Up to 75 Lbs. |

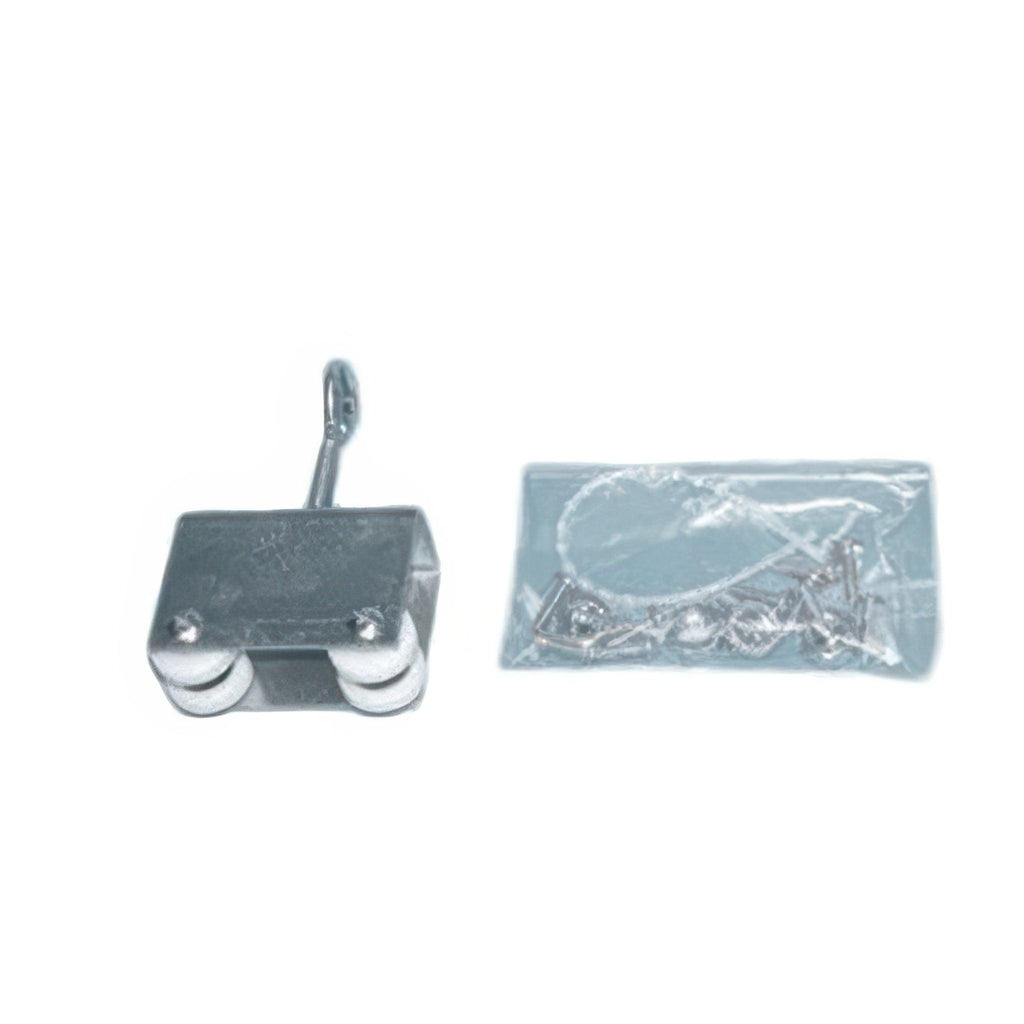

Light Rail 3.5/4.0 Add-A-Lamp Hardware Kit (Trolley + Mounting Hardware) Questions & Answers
How much weight will LightRail Carrry?
The answer to this is twofold. For LightRail 3.5 and 4.0 let’s first talk about the strength of the rail then we’ll talk about LightRail Drive Motor that moves your grow light. If only mounted by the mounting holes at the ends of the rail, the rail will begin to deflect when 35 lbs. (16kg) is in the middle of the rail. If all the rails mounting holes are used when mounting the rail first to a board, and then the board to the structure above your garden, it will easily handle 75 lbs.
Next, the LightRail 3.5 or 4.0 Drive Motor can easily move 75 lbs (34kg). However, more weight equals accelerated wear and tear mostly on the Trolley Wheels. LightRail's testing has shown that the Trolley Wheels on a LightRail 3.5 or 4.0 Drive Motor will last between 12 and 16 months moving a load of 35 pounds (16kg). Their Extreme Duty Trolley Wheels have a lifetime warranty at 60 pounds per set of four. Plus they have very low drag co-efficiency so they are the best choice for moving heavy or multiple reflectors
LightRail 5.0 will hold and move 100 lbs (45kgs) per cross arm (limit 3 cross arms) but again, needs to be mounted to a structure properly. Note: The greater the weight, the more frequently trolley wheels will need to be replaced. Trolley wheel kits are available for LightRail 3.5, 4.0 and the older 3.0, but for LightRail 5.0 needs LightRail must be contacted for any serviceable work and they make that easy and with a quick turnaround time.
