King Electric W Economy Wall Heater, 2000/1500 Watt, 208/240 Volt

The W Heater was designed to be the highest quality economy heater on the market

It is commonly used in apartment construction or as supplemental heat in single-family homes. By combining an efficient impeller-style fan with a NiChrome heating element, the W heater delivers instant heat in even the draftiest locations.

For use with a wall thermostat or in-built thermostat. A powder-coated, surface mounted wall-can may be purchased separately. When the W series is installed in a WSC surface can it adds UL ratings for Wet Location Applications.

Features & Benefits

• Economically Built for Maximum Comfort
• NiChrome Open Coil Element for Quick Heat Transfer
• Dual Wattage Design
• C-Frame Motor
• 4-Blade Aluminum Fan
• Patented Smart Limit Protection®
• Wall Can w/ QuickSet™ Stud Tabs
• Proudly Made in the USA with U.S. & Global Materials
• 1-Year Limited Warranty

Affordable Comfort for Multi-Family Buildings

An efficient and affordable solution to add warmth to living spaces. By combining an efficient impeller-style fan with a NiChrome heating element, the W heater delivers instant heat in even the draftiest locations.

Have peace of mind that the heater Includes our patented Smart Limit Protection safety shutoff feature.

Patented Smart Limit Protection automatically shuts power off to the heater in an abnormal event and must be manually reset for safety.

Select from a range of compatibile thermostats

Engineering Specs

Ratings

Wattages of 500 to 2,000 at 120, 208 or 240 Volts are available. Heaters provide air movement at 85 CFM.

Fan and Motor

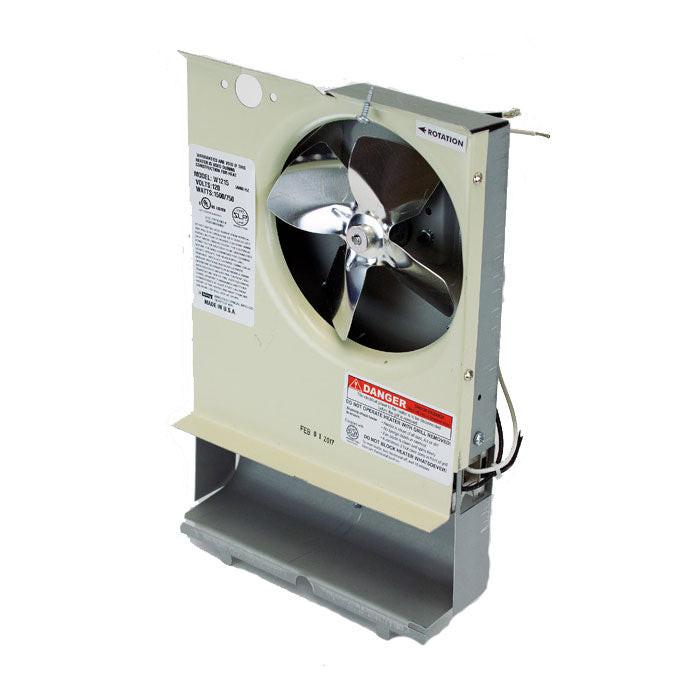

Motor shall be shaded pole, permanently lubricated, C-frame type with impedance protection, and sealed bearings. Motors shall be the same voltage as the heater. The motor and all wiring shall be totally isolated from the heating chamber for protection from heated air. The motor shall be equipped with a dynamically balanced four-blade aluminum impeller fan, located in the upper portion of the heat box, and shall provide a down-flow heating pattern.

Elements

Assemblies shall be constructed of coiled Nickel-Chromium alloy, corrosion-resistant wire strung through a minimum of four rows of mica insulators. Element assemblies shall have a factory-provided connection to allow field modification to 50% wattage at the time of installation.

Smart Limit Thermal Protection

Turns off heater during any unsafe temperatures on inlet or outlet and will only reset if power is interrupted for 10 minutes. Simply turning thermostat down below set point will reset. Exclusive King design and patented for US and Canada under #6,748,163 B2 and #2,393,882

Wall Can with QuickSetTM stud alignment tabs

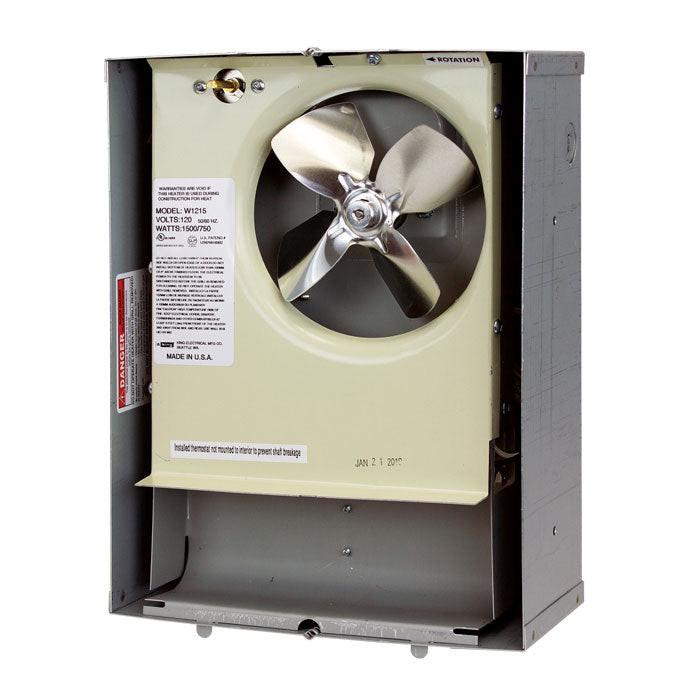

The wall can be 20 gauge electro-galvanized steel and contain knockouts through which power leads are brought. The wall can be able to mount directly to wall studs in new or existing construction. The wall can be provided with QuickSetTM stud alignment tabs, used for maintaining proper depth during new installation. The wall can be supplied with a factory-installed ground wire. Clearance: 6” to a side wall, 4” from floor minimum

Grill

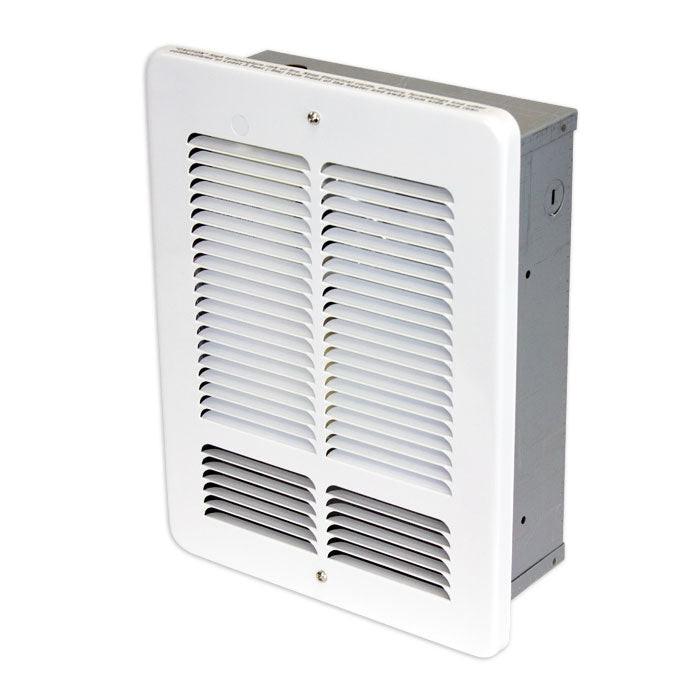

The grill shall be a louvered, one-piece design with rounded edges on all four sides, with rounded corners to prevent snags from contact with other materials. The grill shall be epoxy powder- coated in the color specified by manufacturer. When the W series is installed in a WSC surface can it adds UL ratings for Wet Location Applications.

Approvals

cULus (E41422)
