Phat JETFAN Inline Fan InstructionsAerodynamically-Optimized Airflow, Quiet Operation, & Extremely High Efficiency
Prepare to be blown away by the new Jetfans!
These powerful mixed-flow digital fans are 32-bit microprocessor-controlled and offer outstanding performance and value. Available in 4", 6", 8", 10", and 12" models, Jetfans are the ideal solution for your ventilation needs, and can also be used for air-cooling compatible HID fixtures. Because the motors in these fans are EC—electronically controlled—they offer very high efficiency, reliability, and controllability.

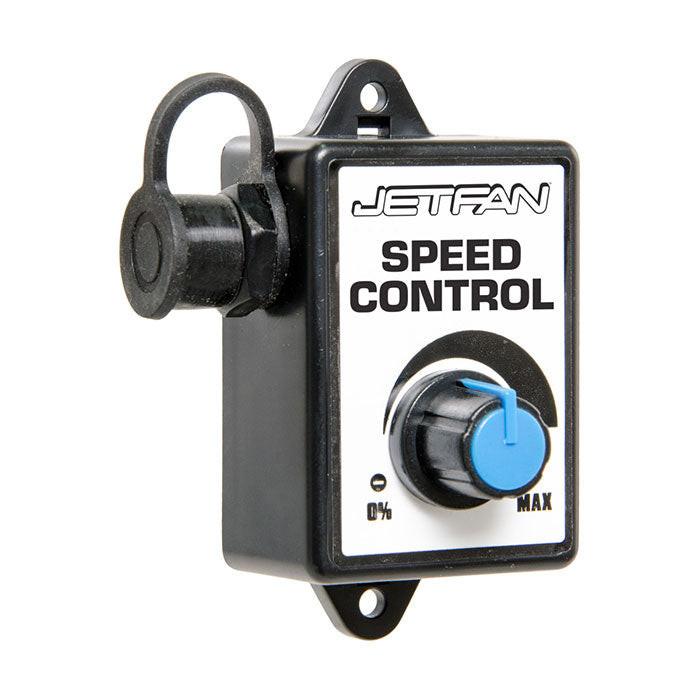

These units include a highly precise speed control unit that can be detached from the fan and power cord if desired.
- Low power consumption—Jetfans operate at a mere 25% of the power of comparable inline fans
- Their EC motors are highly efficient, reliable, and responsive to speed control
- ETL-certified
JetFan Specs
| Fan Size | 4 Inch | 6 Inch | ||||
|---|---|---|---|---|---|---|
| Rated Voltage | 110V | |||||
| Max Current | 0.3A | 0.60A | ||||
| Max Power | 18W | 40W | ||||
| Frequency | 60Hz | |||||
| Max Speed | 5000 RPM | 5000 RPM | ||||
| Max Airflow | 160 CFM | 350 CFM | ||||
| Static Pressure | 34 mmH2O | 51 mmH2O | ||||
| Noise Level | 56.8 dBA | 60 dBA | ||||
| Housing Material | Aluminum | Cold Rolled Steel | ||||
| Impeller Design | Mixed Flow | |||||
| Net Weight | 1.1 kg | 1.6 kg | ||||
| IP Rating | IPX4 | |||||
| 8 Inch | 10 Inch | 12 Inch |
|---|---|---|
| 110V | ||
| 1.2A | 2.0A | 3.4A |
| 75W | 150W | 270W |
| 60Hz | ||
| 3800 RPM | 3200 RPM | 2800 RPM |
| 710 CFM | 1065 CFM | 2800 CFM |
| 53 mmH2O | 52 mmH2O | 52 mmH2O |
| 61.6 dBA | 65 dBA | 73 dBA |
| Cold Rolled Steel | Cold Rolled Steel | Cold Rolled Steel |
| Mixed Flow | ||
| 2.6 kg | 3.7 kg | 10 kg |
| IPX4 | ||
| Brand | Jetfan |
|---|---|
| SKU | PF1060 |
| Weight (lb.) | 4.6300 |
| Lead Time | This item ships in 1-2 Business Days |
| Height (in.) | |
| Width (in.) | |
| Length (in.) | |
| Warranty | 3 Year |
| Prop 65 | false |
| Hazardous Material | false |
| UPC | 638104022880 |
| Shipping Restrictions | AK, HI |
| Fan Type | Inline |
| Fan Size | 6" Diameter |
| Is Speed Controllable | Yes |
| Inline Fan Features | Built-In Speed Controller |
| Oscillation | No |
| CFM Rating | 350 CFM |
| Exact Watts | 40 Watts |
| Amps | 0.6 Amps |
| Frequency | 60Hz |
| Voltage | 120 Volts |
| Max. Decibals | 60 dBA |
| Max. RPM | 5,000 RPM |
| ETL Listed | Yes |
| UL Listed | No |
