From J&D Manufacturing is an oscillating, three-speed, fan with quiet operation.
Horizontal Air Flow (HAF) fans are an important part of any grow facility. They serve in several different important ways. They de-stratify the air. This helps bring warm air out of the peak or ceiling, mixing it with the cooler air underneath so your heater doesn’t need to turn on so soon after the sun goes down. They also provide a fresh supply of carbon dioxide to your plants and blow humidity out of the plant canopy. HAF fans also “scrub” the corners helping to evaporate condensation. Workers enjoy the breeze too!

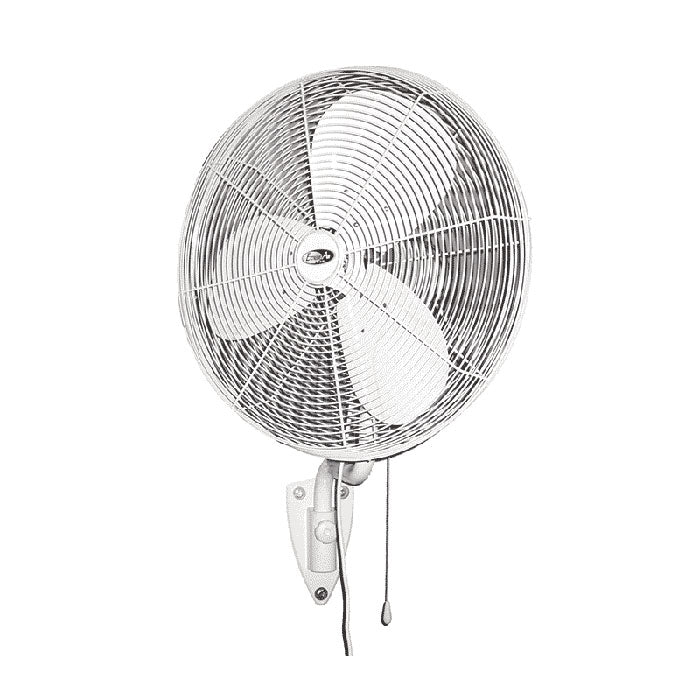

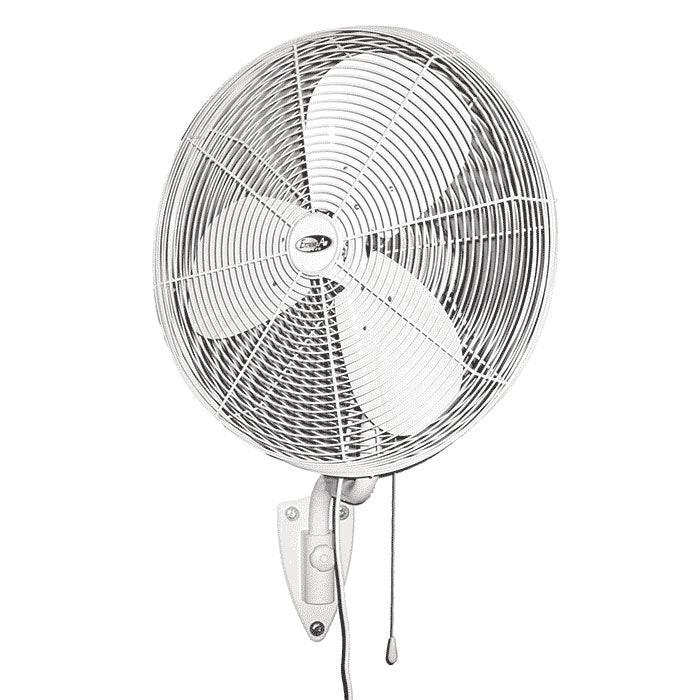

The Indoor/Outdoor Wall Mount POW (Premium, Outdoor, Waterproof) fan from J&D Manufacturing is an oscillating, three-speed, fan with quiet operation. The POW Wall Mount fan includes a wall mount bracket and an attached 10’ cord pre-wired for 115 volts so no electrician is required. J&D Manufacturing’s line of premium outdoor waterproof fans are perfect for greenhouses, marinas, outdoor loading docks, patios, amusement parks, and wash bays where fans may come in contact with rain and humidity. Our UL507 fans can be sprayed down to remove dust and dirt build-up, making them an excellent choice for agricultural applications.
Features of the Extreme Air Oscillating HAF Fan
Available in 24" and 30"
Push/Pull knob to stop oscillation for single direction
Includes powder coated steel wall bracket
High output performance and quiet operation
Aluminum blades - painted
3-speed pull chain
Attached 10’ cord with 3-prong plug pre-wired for 115 Volts
Range of oscillation — 93º
Corrosion resistant, powder coated fan guards meet OSHA 1910.212(a)(5) requirements for installation at any height
These fans do not ship assembled. Some assembly required.
Totally enclosed, maintenance-free, direct drive high-efficiency motors have completely sealed ball bearings, UL and CUL recognized, and are covered by a 1 Year Warranty
SKU
Size
Speed
POW24OSC
24"
3 speeds
Low - Medium - High
POW30OSC
30"
3 speeds
Low - Medium - High
CFM
CFM/Watt
Drive
2850 (L)
3340 (M)
3950 (H)
18
17.5
14.8
Direct
3030 (L)
3670 (M)
5010 (H)
19.7
18.7
16.9
Direct
Showing details for 30" Fan. Choose another option above to see its specs.
Specifications
Voltage
120 Volts
Fan Size
30" Diameter
Product Details
Brand
J&D Manufacturing
SKU
POW30OSC
UPC
82392100032
Weight
56.0 lb
Dimensions (L × W × H)
47 × 35 × 8 in.
Warranty
1 Year
Shipping
Lead Time
This Product Ships in 10-14 Business Days
Product Documents 2
For 30" Fan. Choose another option above for its documents.
We don't have a video for this product yet. Questions? Our grow experts are here to help: 888-815-9763.
What is recirculation ventilation?
Recirculation Ventilation uses a series of recirculation fans that are positioned to blow air across the animals to create a cooling effect. When designed properly with an open or curtain sidewall, you can also get an air exchange in the building.
What is the purpose of ventilation?
Ventilation helps to maintain a healthy environment by regulating moisture and humidity, controlling temperatures, removing fumes and odors, and exchanging fresh air for humans and animals to maximize productivity.
What should I consider when buying a ventilation fan?
There are many important factors to consider when purchasing a fan. Besides cost, you should also consider the efficiency of the fan, the noise level, and the energy use. Many ventilation fans have a lower upfront price tag but will cost you more over time by consuming large amounts of energy.
When is the right time to add a cooling system to my ventilation system?
J&D recommends a cooling system when temperatures reach between 85° - 90° depending on your application.
How do I wire my ventilation motor?
J&D recommends having all electrical work performed by a certified electrician. The electrician can find the wiring diagram on the motor label.
What is J&D’s warranty on your electric fan motors?
J&D offers a 2-year replacement warranty on all electric fan motors, unlike many of our competitors who offer only a one year warranty. Warranty is based on invoice date to the dealer, J&D does not cover freight or labor. POW14, POW18, POW18B, POW24OSC, POW30OSC, VBM60PSC-P, VBM148PSC-P, PDF24, and VRSM10-Power inlet motor carry a 1-year warranty.
