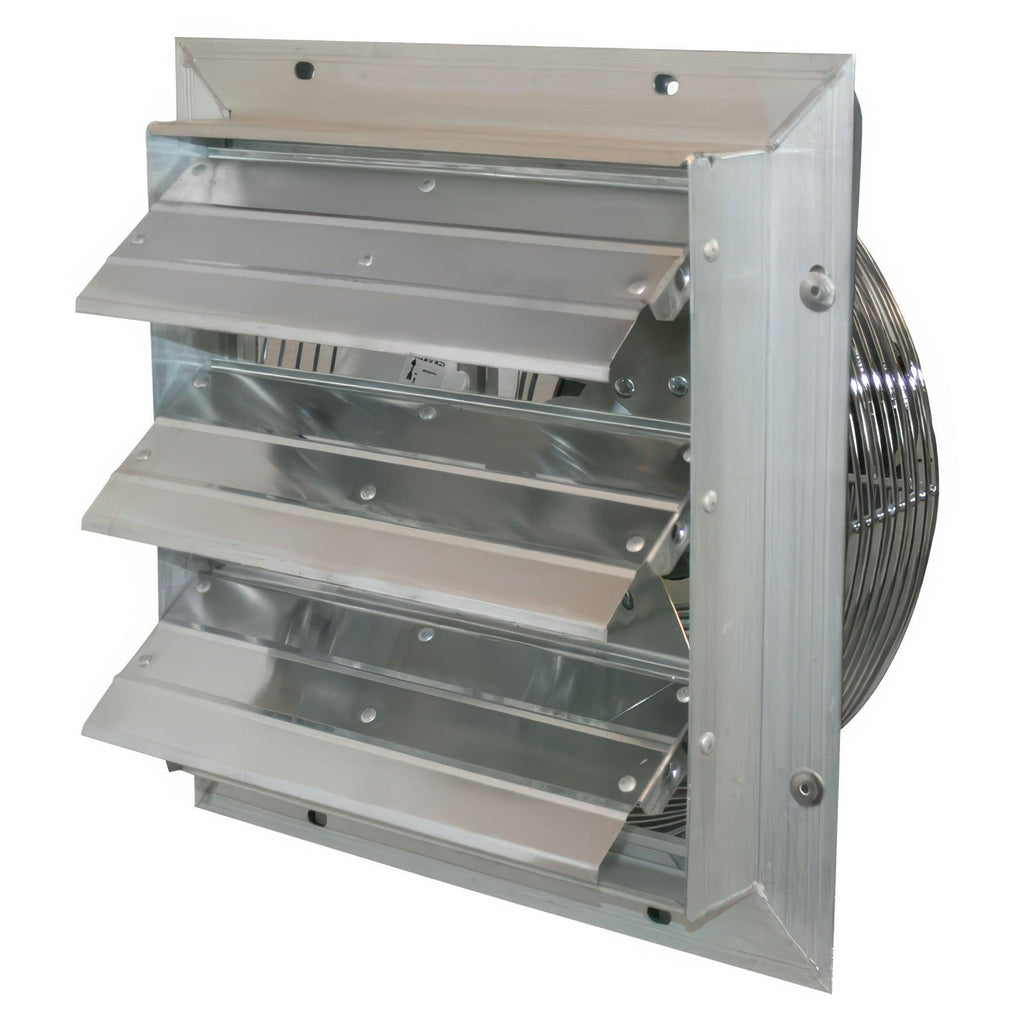

J&D Manufacturing ES Series Shutter Exhaust Fan with no Cord, 16" - 1/10 HP
Roll over image to zoom in Click on image to zoom
J&D Manufacturing ES Series Shutter Exhaust Fan with no Cord, 16" - 1/10 HP

J&D Manufacturing ES Series Shutter Exhaust Fan with no Cord, 16" - 1/10 HP

SKU: VES161
No reviews
J&D Manufacturing Brand ProductMultiple Units? Click for Volume Pricing.

Availability: In stock

Lead time: This Product Ships in 10-14 Days

Fan Size: 16" Fan - 1/10 HP
12" Fan - 1/10 HP
16" Fan - 1/10 HP
20" Fan - 1/3 HP
20" Fan - 1/10 HP
20" Fan - 1/3 HP - 3 Phase
24" Fan - 1/2 HP
24" Fan - 1/2 HP - 3 Phase
30" Fan - 1/2 HP
30" Fan - 1/2 HP - 3 Phase
30" Fan - 1/2 HP - 3 Phase - Gold Star
Price:
$226.11

J&D Manufacturing Product Documents

J&D Manufacturing ES Series Spec Sheet J&D Manufacturing ES Series Installation Guide

Durable agriculture grade exhaust fan

J&D Manufacturing's ES Shutter Fan is a durable agriculture grade exhaust fan perfect for barn and building peaks, greenhouses, warehouses and more. ES Shutter Fans are available without a cord, or pre-wired with a cord and plug for "No Electrician Required" installation. Fans ship fully assembled out of the box so you're up and running in no time!

This model has NO CORD included and can be wired for either 115 or 230 volts. The ES Series Shutter Exhaust fan also comes with a 9 ft. cord pre wired for 115 volts. That version can be found here - ES Series Shutter Exhaust Fan with 9 Ft. cord

The ES Series fans are a commercial-grade exhaust fan for any hobby to medium size greenhouse or grow room. Totally enclosed motor is maintenance-free, thermally protected, rated for continuous duty, and has a two-year warranty. We have a size to fit your application. The fans ship totally assembled. Chrome guard is OSHA approved for mounting at any height on the inlet side of the fan. The tie bar on the shutter reduces flapping on windy days. Most models are variable speed capable when used with speed control (sold separately).

Features of the ES Series Shutter Exhaust Fan

  • Available in 12", 16", 20", 24", & 30"
  • No cord included. Fans can be wired for 115 or 230 Volts
  • Smooth and quiet operation
  • Ships fully assembled and ready for installation
  • Balanced 3 bladed prop with a corrosion resistant coated steel hub
  • Coated steel guard allows for easy cleaning and meets OSHA 1910.212(a)(5) requirements to mount at any height on inlet side of fan. (When mounted, shutter side should be 7' above ground.)
  • High efficiency aluminum shutters with tie bar to reduce shutter flapping and opening on windy days
  • Fully enclosed, maintenance-free, direct drive high-efficiency standard motors feature sealed ball bearings and a 2 Year Warranty

Technical Specifications

Part # Size HP Volts Amps Phase RPM Cord CFM @ 0" SP CFM @ 0.05" SP CFM @ 0.10" SP CFM @ 0.15" SP CFM @ 0.20" SP Rough-In Dims
VES12C 12" 1/10 115 1.42 1 1,710 Yes 1,006 898 748 574 379 12½" x 12½"
VES161C 16" 1/10 115 1.42 1 1,727 Yes 1,438 1,289 1,034 683 437 16½" x 16½"
VES201C 20" 1/10 115 1.42 1 1,720 Yes 1,644 1,389 941 714 399 20½" x 20½"
VES20C 20" 1/3 115 3.8 1 1,704 Yes 3,126 2,875 2,697 2,540 2,435 20½" x 20½"
VES24C 24" 1/2 115 4.8 1 1,672 Yes 4,548 4,124 3,849 3,629 3,467 24½" x 24½"
VES30C 30" 1/2 115 6.1 1 858 Yes 6,785 6,300 5,801 5,123 3,953 30½" x 30½"
VES12 12" 1/10 115/230 1.42/0.77 1 1,710 No 1,006 898 748 574 379 12½" x 12½"
VES161 16" 1/10 115/230 1.42/0.77 1 1,727 No 1,438 1,289 1,034 683 437 16½" x 16½"
VES201 20" 1/10 115/230 1.42/0.77 1 1,720 No 1,644 1,389 941 714 399 20½" x 20½"
VES20 20" 1/3 115/230 3.8/1.9 1 1,704 No 3,126 2,875 2,697 2,540 2,435 20½" x 20½"
VES24 24" 1/2 115/230 4.8/2.4 1 1,672 No 4,548 4,124 3,849 3,629 3,467 24½" x 24½"
VES30 30" 1/2 115/230 6.1/3.09 1 858 No 6,785 6,300 5,801 5,123 3,953 30½" x 30½"
VES203 20" 1/3 230/460 1.24/0.62 3 1,720 No 3,180 3,002 2,820 2,688 2,525 20½" x 20½"
VES243A 24" 1/2 230/460 1.8/0.9 3 1,728 No 4,692 4,250 3,957 3,760 3,605 24½" x 24½"
VES303 30" 1/2 230/460 2.6/1.3 3 856 No 6,753 6,217 5,749 5,129 3,869 30½" x 30½"
VES303-GS 30" 1/2 230/460 2.6/1.3 3 853 No 6,777 6,242 5,767 4,817 2,629 30½" x 30½"
Brand J&D Manufacturing
SKU VES161
Weight (lb.) 23.0000
Lead Time This Product Ships in 10-14 Days
Height (in.)
Width (in.)
Length (in.)
Warranty 2 Years on Motor, 1 Year on Parts and Workmanship
Prop 65 false
Hazardous Material false
UPC 737623674201
Fan Type Shutter Fan
Fan Size 16" Diameter
Is Speed Controllable Yes
Oscillation No
CFM Rating 1440 CFM @ 0" SP, 1300 CFM @ .05" SP, 1220 CFM @ .10" SP, 1070 CFM @ .15" SP, 880 CFM @ .20" SP
Amps 1.42 Amps @ 115 Volts, 0.77 Amps @ 230 Volts
Frequency 60 Hz
Voltage 120 Volts, 240 Volts
Max. RPM 1720 RPM
Power Cord(s) Included No
ETL Listed No
UL Listed No

What is recirculation ventilation?

Recirculation Ventilation uses a series of recirculation fans that are positioned to blow air across the animals to create a cooling effect. When designed properly with an open or curtain sidewall, you can also get an air exchange in the building.

What is the purpose of ventilation?

Ventilation helps to maintain a healthy environment by regulating moisture and humidity, controlling temperatures, removing fumes and odors, and exchanging fresh air for humans and animals to maximize productivity.

What should I consider when buying a ventilation fan?

There are many important factors to consider when purchasing a fan. Besides cost, you should also consider the efficiency of the fan, the noise level, and the energy use. Many ventilation fans have a lower upfront price tag but will cost you more over time by consuming large amounts of energy.

When is the right time to add a cooling system to my ventilation system?

J&D recommends a cooling system when temperatures reach between 85° - 90° depending on your application.

How do I wire my ventilation motor?

J&D recommends having all electrical work performed by a certified electrician. The electrician can find the wiring diagram on the motor label.

What is J&D’s warranty on your electric fan motors?

J&D offers a 2-year replacement warranty on all electric fan motors, unlike many of our competitors who offer only a one year warranty. Warranty is based on invoice date to the dealer, J&D does not cover freight or labor. POW14, POW18, POW18B, POW24OSC, POW30OSC, VBM60PSC-P, VBM148PSC-P, PDF24, and VRSM10-Power inlet motor carry a 1-year warranty.
