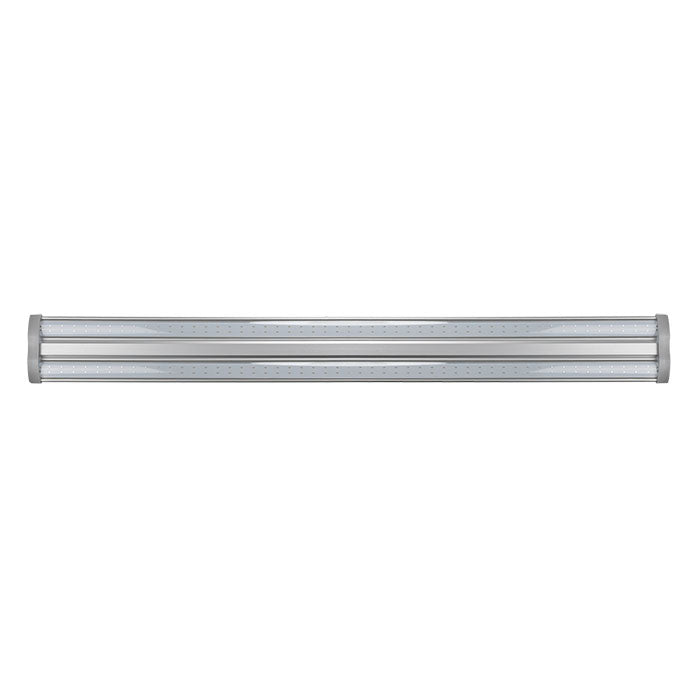

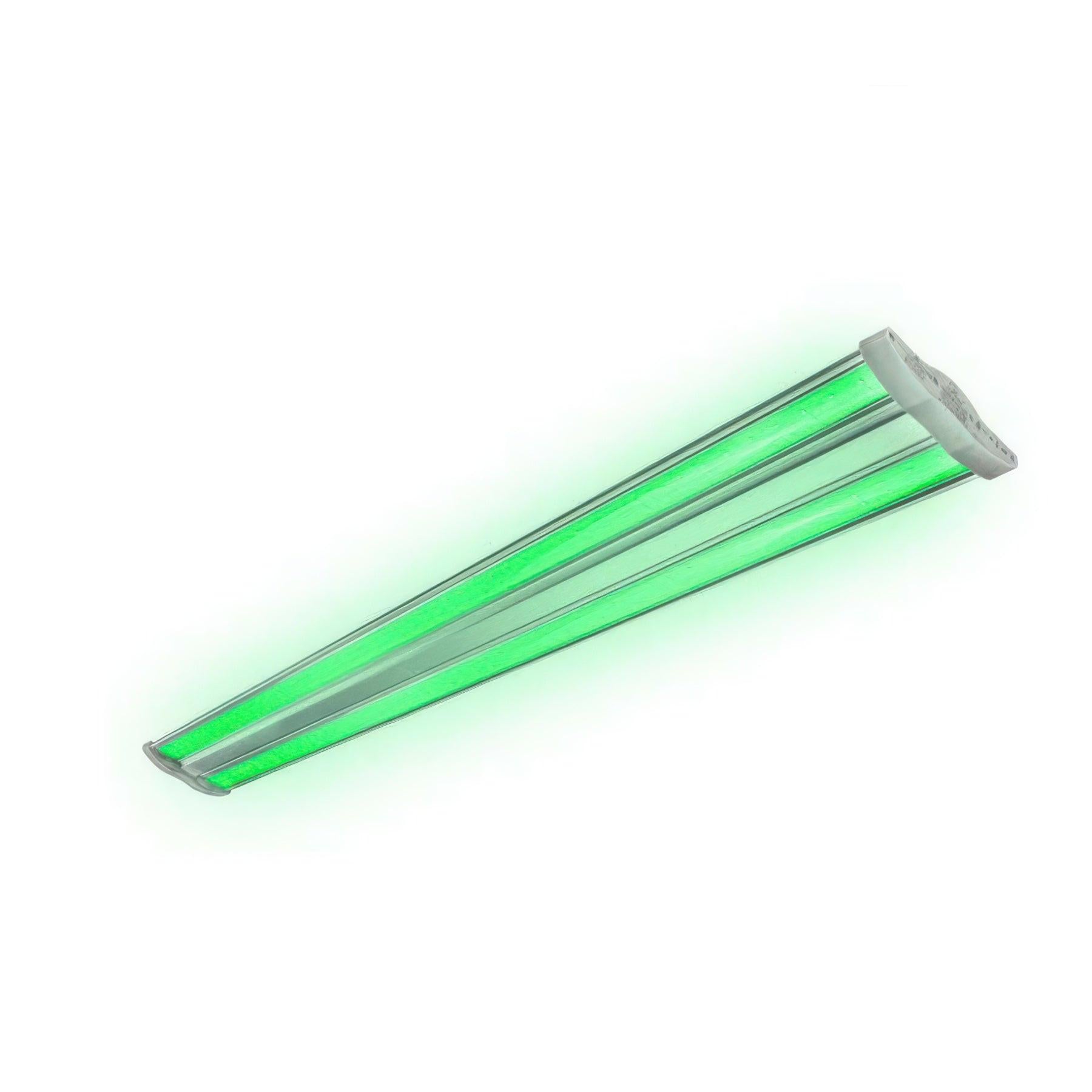

Iluminar iLW Green LED Work Light Spec SheetThe ILW-GREEN is a purpose built LED luminaire designed for safely lighting the dark cycle when growing short-day plants. ILUMINAR plant-safe soft green LEDs cannot be easily “seen” by plants allowing for critical tasks to be performed in the grow rooms during the dark cycle without the light adversely affecting the growth stage of the plant.
The ILW-GREEN is also available with a 90-minute battery backup to provide plant-safe egress lighting for grow facilities without disrupting critical photoperiod times.
- Easy installation in new construction or retrofit
- Battery backup installation is available
- Stainless steel mounting brackets are standard
- Waterproof Rating: IP65 for Damp/Wet Conditions
Specifications
| Waterproof Rating | IP65 for Damp/Wet Conditions |
|---|---|
| PPF | 64 µmol/s |
| Efficacy | 1.6 µmol/J |
| LED Lifespan (90%) | 55,000+ hours |
| Power Factor | ≥ .95 |
| Ambient Temperature | 0 - 35°C / 32-95°F |
| Relative Humidity | 98% |
| Fixture Dimensions | 1.14" H x 5" W x 47.2" L |
|---|---|
| Battery Dimensions | 2.83" H x 4.92" W x 19.88" L |
| Frequency | 50 / 60Hz |
| Heat Output | 136 BTU/h |
| Min. Power Factor | 0.9 |
| Power Consumption | 40W in AC , 15W in Battery |
| Emergency Function Time | 1.5 hours |
Voltage & Amperage
| 120 Volts | Amps: 0.32 | Watts: 38 |
|---|---|---|
| 208 Volts | Amps: 0.19 | Watts: 39 |
| 240 Volts | Amps: 0.18 | Watts: 40 |
| 277 Volt | Amps: 0.16 | Watts: 41 |
| Brand | Iluminar |
|---|---|
| SKU | IL-4025FSG-120-GREEN |
| Weight (lb.) | 2.0000 |
| Length (in.) | |
| Width (in.) | |
| Prop 65 | false |
| Height (in.) | |
| Warranty | 5 Year |
| Lead Time | This product ships in 1-2 Business Days |
| Hazardous Material | false |
| UL Listed | No |
| ETL Listed | No |
| Grow Light Certifications | IP65 Rated, ETL Listed |
