Iluminar iLogic MS Plus 1050 User Manual Iluminar iLogic MS Plus 1050 Spec SheetThe Latest Evolution in Floriculture Lighting
The ILUMINAR iLogic MS PLUS is our most powerful and versatile grow light yet
Featuring multi-channel control, growers can precisely and independently specify the timing and intensity of far-red, UV-A, and full spectrum light output during the light-cycle. This fine-tuning functionality is ideal for cultivators looking to reduce transition time between vegetative growth and flowering as well as boosting the production of secondary metabolites.

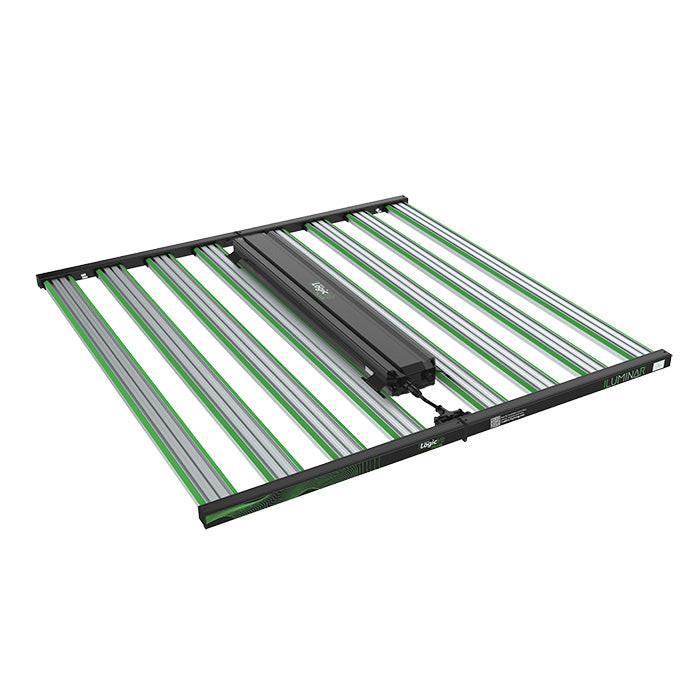

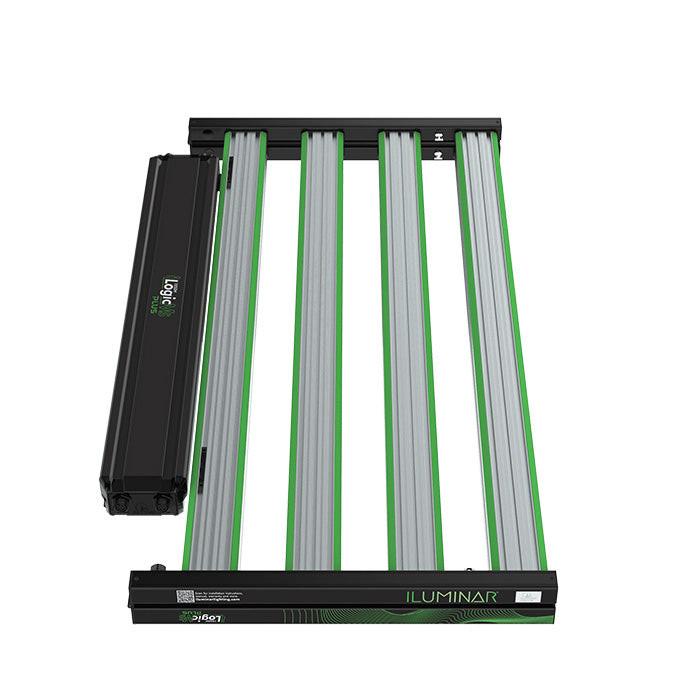

The iLogic™ MS Plus 1050W combines premium diodes and drivers to deliver truly exceptional results. With 3840 Samsung LM281B+ Pro diodes, 256 Honglitronic SMD3535 660nm diodes, 192 SMD3030 385nm UV diodes, and 192 SMD2835 730nm far-red diodes, this cutting-edge fixture generates an absolutely incredible Photosynthetic Photon Flux (PPF) of 3045 µmol/s, while boasting an outstanding efficacy of 2.9 µmol/J at full power. High-end Sosen LED Drivers squeeze every ounce of potential from the diodes with a power factor exceeding 0.9.
Designed for durability and reliability, the iLogic™ MS Plus 1050W features a robust construction and IP65 waterproof rating, ensuring longevity even in demanding growth environments. Backed by Iluminar’s comprehensive 5-year warranty, you can cultivate with confidence knowing that your investment is protected.
Advanced, Tunable Spectrum LED for Indoor Floriculture
The iLogic™ MS Plus 1050W if a veritable gift to cultivators who want to carefully steer their plants through their life-cycle rather than just watching them grow. Tailor the light spectrum to meet the specific needs of your plants from vegetative growth through to transition, flowering, and ripening.
The output and intensity of different light channels can be easily adjusted to target enhanced flower density, compact growth, or increased secondary metabolite production.
Full Spectrum 100% ON
Full Spectrum 100% ON + UV 100% ON
Full Spectrum 100% ON+ IR 100% ON
Full Spectrum 100% ON + UV 100% ON + IR 100% ON
UV 100% ON
IR 100% ON
Optional Upgrade: Iluminar Touch+ Grow Light Controller
The ILUMINAR Touch+ Controller will now allow you to control up to 60 lights per zone or room, with two channels you can control up to a total of 120 lights. This will take even your beginner garden to the commercial level, all of these features packed into the ILUMINAR Touch+ Controller.
The main difference between the Touch+ and the older Touch is greater dimming control. The old Touch controller could only control LEDs down to 50% dimming. The new Touch+ Controller can control dimming on LEDs all the way down to 20%
- LED + CMH + HPS All From One Controller
- Up to 120 Units, 60 fixtures per zone
- Control 2 Independent Rooms
- Auto Temperature Shut-Down
- Sunrise / Sunset Effects
- Battery Backup to Save Data
- Dual Temperature Zone input for High Heat Dimming
- Dual Temperature Probe Inputs
- Touch Screen Technology
- RJ9 to RJ14 cable included
Specifications for the Iluminar MS Plus 1050
| Input Power | 120V to 277V |
|---|---|
| Power Consumption | 1050W ± 5% |
| PPF | 448-480 µmol/s |
| ePAR | 2.9 µmol/J |
| ePAR - PPF | 3045 µmol/s |
| Power Factor | >0.9 |
| THD | <10% |
| Dimming | 0-100% dimming via RS485 |
| Frequency | 50/60 Hz |
|---|---|
| BTU | 3500 |
| LED Lifespan (90% of Life) | 50,000+ Hours |
| Ambient Temp / Working | 0° - 35°C / 32° - 95°F |
| Light Distribution | 120° |
| Waterproof Rating | IP65 |
| Color Temperature | 3600K |
| Color Rendering Index | 85 |
| Brand | Iluminar |
|---|---|
| SKU | IL-L1050MS-240 |
| Weight (lb.) | 0.0000 |
| Prop 65 | false |
| Warranty | 5 Year |
| Lead Time | Ships in 1-2 business days |
| Hazardous Material | false |
| Lighting Type | LED |
| LED Light Spectrum | Full Spectrum, Infrared, UV Spectrum |
| LED Fixture Type | Multi-Bar |
| LED Features | Dimmable *with Controller, Adjustable Spectrum, Supplemental UV |
| Est. Electricity Cost /mo | $43.20 |
| Exact Watts | 1050 Watts |
| LED Diode Type | Samsung LM281B |
| LED Driver Type | Sosen LED Drivers |
| PAR Efficiency | Up to 2.9 µmol/J |
| Total PPF Output | 3045 µmol/s |
| Power Factor | >0.9 |
| Voltage | 240 Volts |
| Amps | 4.38 Amps @ 240 Volts |
| Frequency | 50/60 hz |
| Power Cord(s) Included | Yes - 240 Volt |
| Power Cord Length | 6 ft. 10 in. |
| Coverage Area | Veg: 5' x 5'; Flower: 4' x 4' |
| Grow Light Certifications | IP65 Rated |
| ETL Listed | No |
| UL Listed | No |
