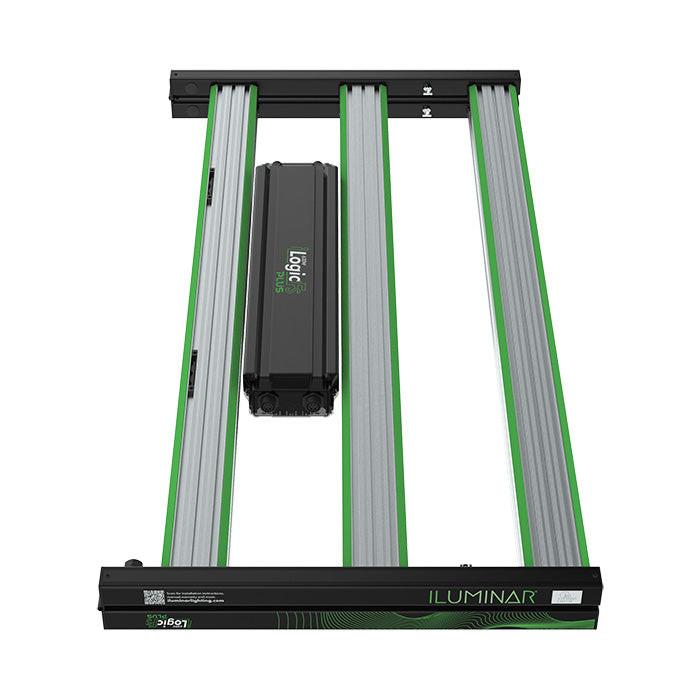

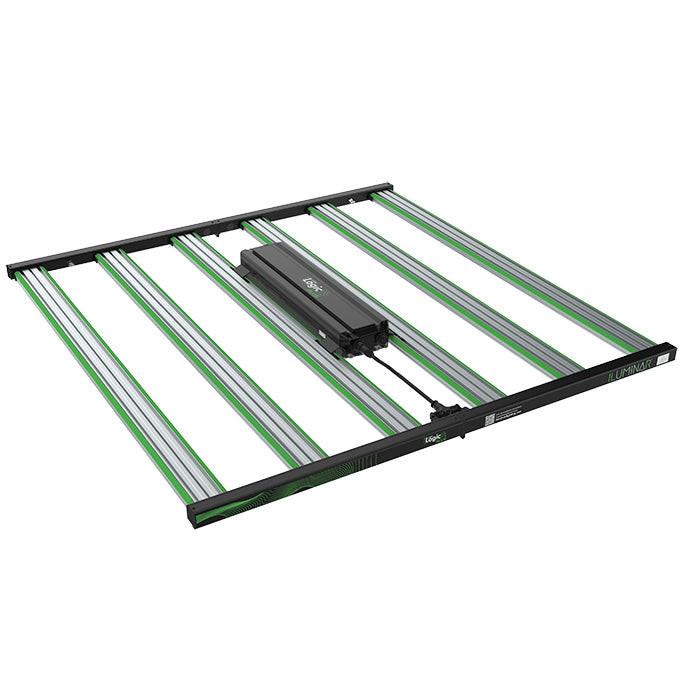

Iluminar iLogic FS Plus 630 User Manual Iluminar iLogic FS Plus 630 Spec SheetSmart and Scalable Full Spectrum Flowering LED
Covering large canopies with uniform and intense full spectrum light has never been this easy and efficient! The iLogic™ FS Plus 630W is our latest powerhouse LED grow light designed to deliver consistent illumination at any scale. This industry-leading grow light features cutting-edge diode and driver technologies combined with precision engineering and photometry techniques. The result for your cultivation facility will be nothing short of revolutionary.
More Canopy, Fewer Watts
With a power consumption of just 630W (± 5%), the iLogic™ FS Plus works hard to deliver all the light your plants need over a 4’ x 4’ footprint. Powered by a high-end Sosen LED Driver and compatible with AC inputs ranging from 110V to 277V at 50/60Hz, all growers are able to benefit from its stability, reliability and efficiency.
Embrace efficiency with New Generation High Intensity LED Lighting
When it comes to sheer lighting power, the iLogic™FS Plus 1030W is the pinnacle of LED grow light performance. Engineered without compromise for the most light-hungry plant species, this cutting-edge fixture has the power and intensity to drive full genetic expression and unmatched crop quality.
Quality Components
Featuring a dynamic combination of Samsung LM281B+ Pro LEDs (2400 diodes) emitting at 4000K and Honglitronic SMD3535 660nm LEDs (108 diodes), the iLuminar iLogic™ FS Plus 630W delivers advanced full spectrum light that’s built to drive demanding flowering species to their full potential. Boasting a Photosynthetic Photon Flux (PPF) output of 1890 µmol and a remarkable efficacy of 2.95 µmol/J, this fixture cuts no corners and makes no compromises.
With a staggering Photosynthetic Photon Flux (PPF) output of 3140 µmol and an exceptional efficacy of 3.05 µmol/W, this fixture delivers unparalleled performance to maximize your yields.
Compatible and Controllable
Whatever the size of your growing operation, iLuminar has you covered when it comes to lighting control. Growers can choose to use our external PAD controller or our intuitive and easy to use smartphone app via Bluetooth connectivity to fully control light cycles and intensity.
Optional Upgrade: Iluminar Touch+ Grow Light Controller
The ILUMINAR Touch+ Controller will now allow you to control up to 60 lights per zone or room, with two channels you can control up to a total of 120 lights. This will take even your beginner garden to the commercial level, all of these features packed into the ILUMINAR Touch+ Controller.
The main difference between the Touch+ and the older Touch is greater dimming control. The old Touch controller could only control LEDs down to 50% dimming. The new Touch+ Controller can control dimming on LEDs all the way down to 20%
- LED + CMH + HPS All From One Controller
- Up to 120 Units, 60 fixtures per zone
- Control 2 Independent Rooms
- Auto Temperature Shut-Down
- Sunrise / Sunset Effects
- Battery Backup to Save Data
- Dual Temperature Zone input for High Heat Dimming
- Dual Temperature Probe Inputs
- Touch Screen Technology
- RJ9 to RJ14 cable included
Specifications for the Iluminar FS Plus 630
| Input Power | 120V to 277V |
|---|---|
| Power Consumption | 630 ± 5% |
| PPF | 1890 µmol/s |
| PAR | 2.9 µmol/J |
| Power Supplu | Sosen LED Drivers |
| Power Factor | >0.9 |
| THD | <10% |
| Dimming | 0-100% dimming via RS485 |
| Frequency | 50/60 Hz |
|---|---|
| BTU | 2100 |
| LED Lifespan (90% of Life) | 50,000+ Hours |
| Ambient Temp / Working | 0° - 35°C / 32° - 95°F |
| Light Distribution | 120° |
| Waterproof Rating | IP65 |
| Color Temperature | 3600K |
| Color Rendering Index | 85 |
| Brand | Iluminar |
|---|---|
| SKU | IL-L630FS-277 |
| Weight (lb.) | 0.0000 |
| Prop 65 | false |
| Warranty | 5 Year |
| Lead Time | Ships in 1-2 business days |
| Hazardous Material | false |
| Lighting Type | LED |
| LED Light Spectrum | Full Spectrum |
| LED Fixture Type | Multi-Bar |
| LED Features | Dimmable *with Controller |
| Est. Electricity Cost /mo | $27.21 |
| Exact Watts | 630 Watts |
| LED Diode Type | Samsung LM281B |
| LED Driver Type | Sosen LED Drivers |
| PAR Efficiency | 2.95 µmol/J |
| Total PPF Output | 1890 µmol/s |
| Power Factor | >0.9 |
| Daisy Chain | Yes |
| Voltage | 277 Volts |
| Amps | 2.28 Amps @ 277 Volts |
| Frequency | 50/60 Hz |
| Power Cord(s) Included | Yes - 277 Volt |
| Power Cord Length | 6 ft. 10 in. |
| Coverage Area | Veg: 5' x 5'; Flower: 4' x 4' |
| Grow Light Certifications | IP65 Rated |
| ETL Listed | No |
| UL Listed | No |
