Iluminar Product Documents

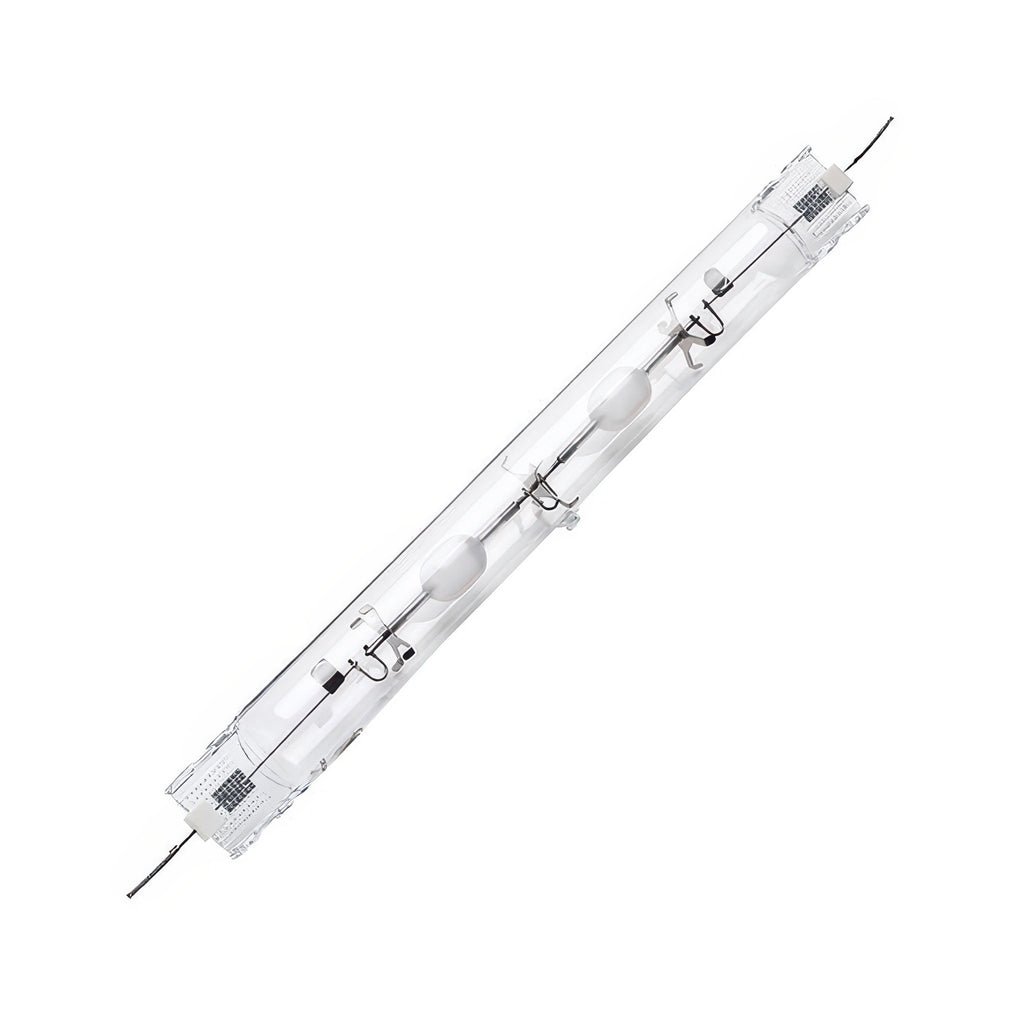

Iluminar 630 Watt DE CMH Bulb Spec SheetThe ILUMINAR double ended CMH is a natural white grow light with a proprietary phosphor coating on the outside of the arc tube to provide you with the richest spectrum available. CMH technology gives you the proportions and quality you need for your crop. From 3K to 3K+Red to 4K, we offer a grow lamp for every cycle of your plants.
The DE CMH delivers a low frequency, square wave technology in order to provide a constant maximum voltage to the lamp for an extended period of time giving your plants more photons of light. The CMH ballasts are designed to properly ignite and operate on a low frequency ensuring the safety of you and your crop.
The double ended CMH grow light can be used as a stand-alone grow light or as supplemental lighting.
ILUMINAR Lighting has over 20 years of experience in lighting and product development specifically designed for professional gardeners, it’s what we do. All living things need light and we offer the “right” lamp for growing your plants strong and healthy. Like you, we know because we grow.
| Brand | Iluminar |
|---|---|
| SKU | IL-LMPCDE-6303K |
| Weight (lb.) | 0.5000 |
| Prop 65 | false |
| Length (in.) | |
| Width (in.) | |
| Height (in.) | |
| Hazardous Material | false |
| Lead Time | 2-3 |
| ETL Listed | No |
| UL Listed | No |
| Lighting Type | CMH - Double Ended |
| Bulb Orientation | Horizontal |
| Bulb Type | Double Ended Ceramic Metal Halide |
| Color Temp (Kelvin) | 3000 K |
| Color Rendering Index (CRI) | 90 |
| Bulb Lumens | 78500 |
| Estimated Life Hours | 10000 Hours |
| Exact Watts | 630 Watts |
What is this Iluminar 630W Double-Ended CMH bulb rated at 3,000K?
This is a 630W Double-Ended CMH replacement bulb at 3,000K color temperature, designed for use with compatible Iluminar Double-Ended CMH fixtures.
What is the warranty on this bulb?
1 year, consistent with Iluminar's warranty terms across HID lamps.
Should I be aware of true wattage draw vs. the labeled wattage?
Yes — actual wattage draw on HID ballasts often runs higher than the labeled rating. For example, a fixture labeled 1000W may pull 1085W or more depending on the ballast's boost setting, and some configurations reach up to 1150W. Since wattage translates directly to heat output, this matters for accurate BTU and HVAC load calculations.
