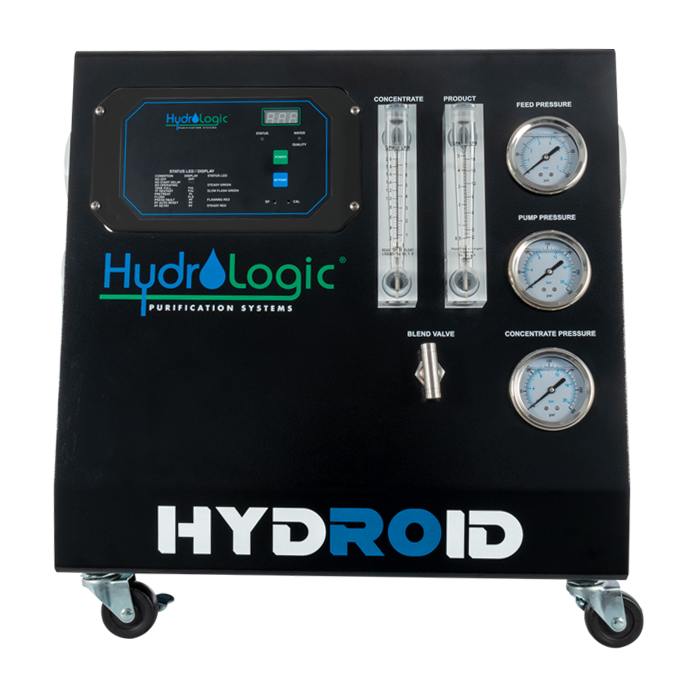

The Hydroid Reverse Osmosis System is a state-of-the-art, versatile system for treating tap water supplies with minimal set-up, low energy consumption, low maintenance, and reduced operating costs. The Hydroid system features a robust, innovative design that requires no adjustments in the event of feed water quality or temperature variations. Your Hydroid system is a durable piece of equipment which, with proper care, will last for many years

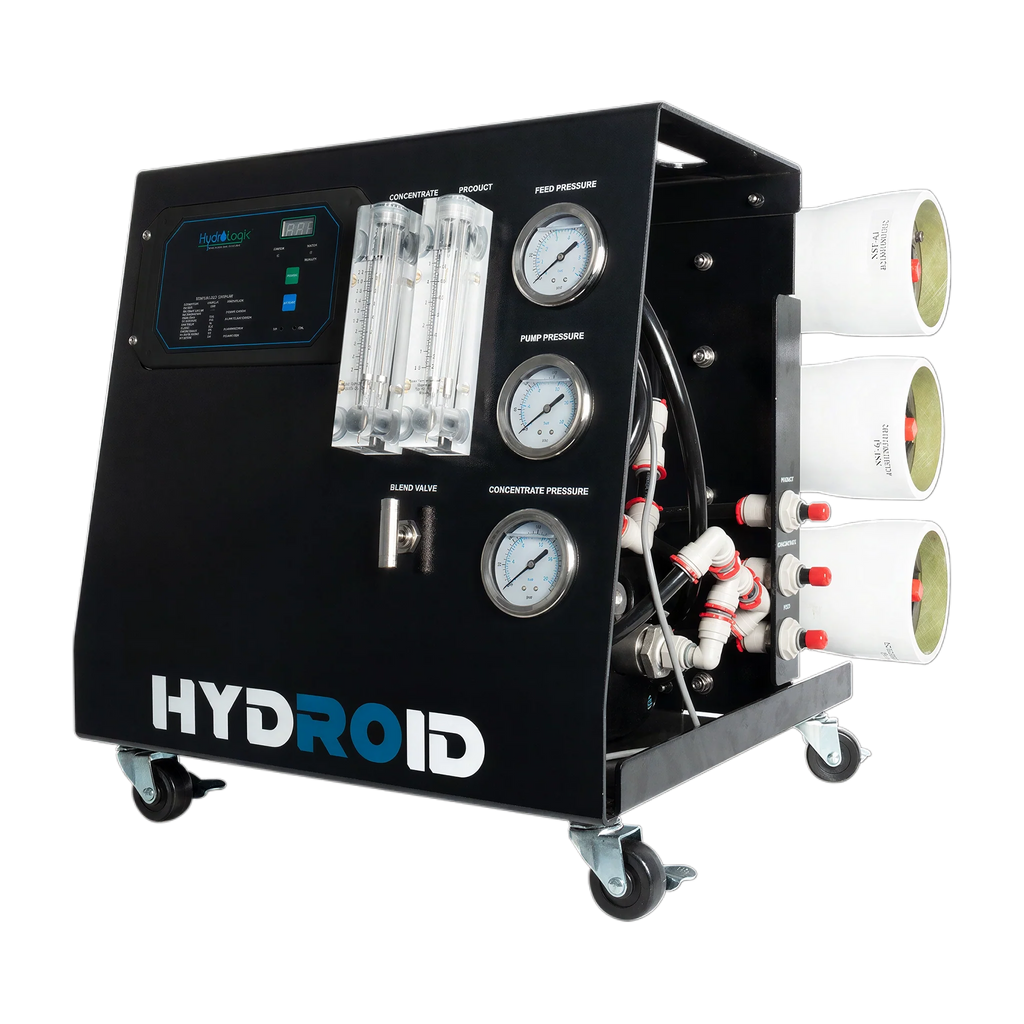

Standard features include CONCENTRATE (drain) water recycle loop, PRODUCT (purified water) blend valve, PRODUCT (purified water) TDS monitoring, and preset pump, CONCENTRATE (drain) water and CONCENTRATE (drain) water recycle flows. Hydroid series systems feature high quality parts and components for enhanced performance and reliability included Encapsulated Membrane Elements, glycerin filled pressure gauges, acrylic flow meters, Encapsulated carbon pre-filter, Grundfos pump, 316SS needle valve, and computer controller.
Details
The Hydroid is the industry’s premier compact-portable commercial water filter at an affordable price. Achieve up to a 4,500 GPD capacity (blended), or 3,000 GPD pure RO water. Not only is the Hydroid powerful, but it can produce a 2 parts product to 1 part waste water ratio, making it the most efficient system in its class. New, groundbreaking technology for a compact system with commercial scale performance.
The Hydroid compact commercial reverse osmosis system is designed to operate on municipal city water sources and not recommended for well water sources that are very hard or have a TDS of over 500 PPM. Hydro Logic makes an optional Anti-scalant kit is designed for those on city or well water with elevated hardness and/or high TDS.
Features:
Compact commercial reverse osmosis system
Up to 4,500 GPD capacity with blend valve (3,000 GPD pure RO water capacity)
Plug and play with all pre-filtration onboard
66% recovery means a 2-parts RO water to 1-part waste water
Blend valve to blend post carbon treated water with RO water to customize the TDS (this also increases recovery/efficiency)
On board ultra-high capacity sediment and carbon hybrid filter with 75,000-gallon capacity
Microprocessor RO controller with auto flush function, TDS meter, filter capacity monitor, and other high-end features
Stainless steel, multi-stage centrifugal pump for continuous operation
Plug and play, encapsulated proprietary membranes and carbon pre-filter
Liquid filled pressure gauges and flow meters
110V standard plug
Low pressure and high-pressure switches
Electronic float switch hookup leads as well as mechanical float valve ready
Casters come standard (loose in box)
Heavy duty powder coated aluminum frame
Comes with all tubing (including flush tubing), garden hose connector and extra locking clips
Only one blend valve, no other valves or controls to mess with. Very easy operation
The low-pressure switch shuts off the system when the feed water pressure drops below 15 PSI, preventing damage to the pump. The system restarts automatically when there is a constant pressure of 35 PSI or more
