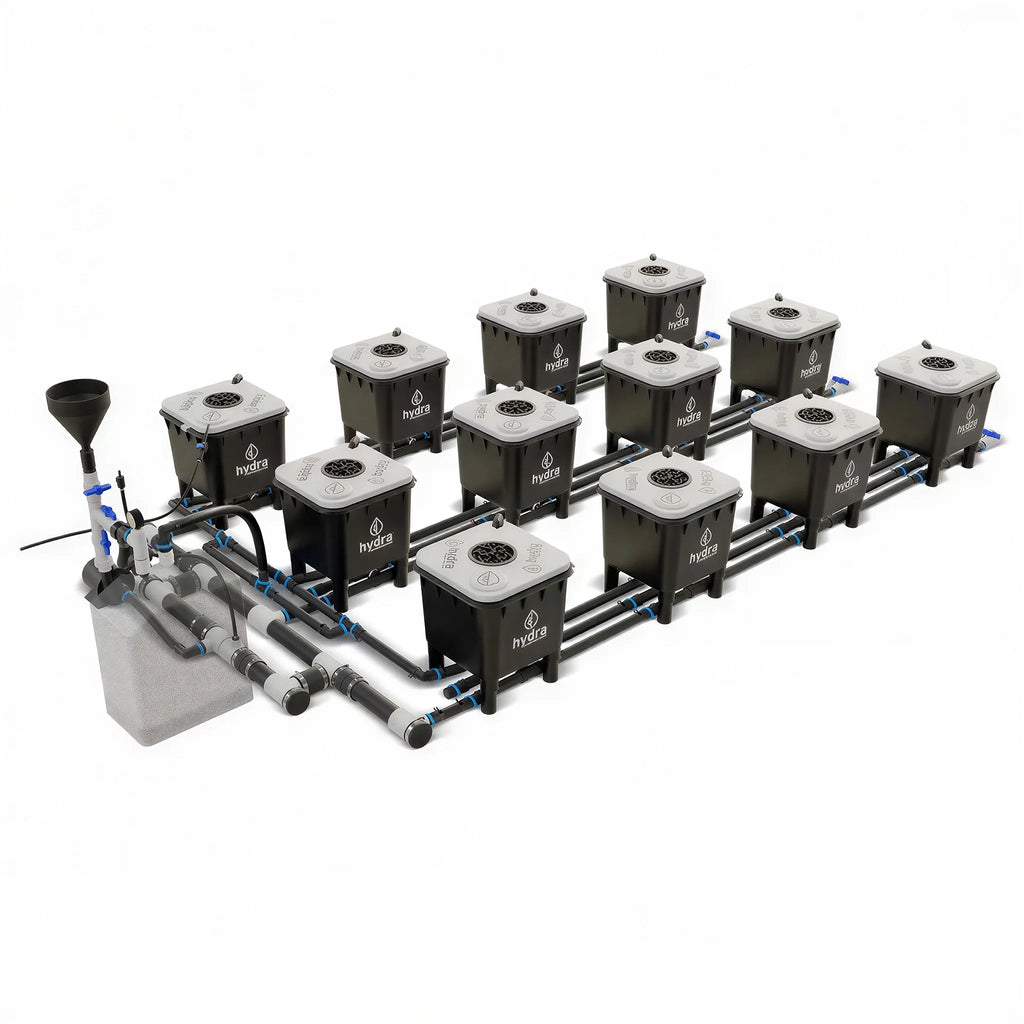

HydraMax Professional Installation GuideElevate your cultivation game with the HydraMax 3-Row, 12-Bucket RDWC System, a pinnacle of hydroponic innovation designed to revolutionize your growing experience. Whether you're a seasoned cultivator or a beginner, this system is your ticket to maximizing yields, optimizing growth, and enjoying the fruits of your labor like never before.
Embark on a journey of unparalleled plant growth and vigor. This advanced RDWC system provides your plants with an environment tailored for success, and is automated doser-ready. With three dedicated rows and a total of 12 buckets, you have the freedom to diversify your crops and grow a wide range of plants simultaneously. Our professional systems allow for scalability and customizability – adapting perfectly to every grow layout.
What's Included:
- Now includes Root Halo! Our media-less, snap-in netpot system.
- x12 8-Gallon Buckets
- x12 Lids w/ inspection port & cover
- x12 Venturi Circulators
- Qwik-Lok Plumbing, including all necessary hoses and connectors
- 1 Pump
- 1 Dosing Funnel
- 1 Refill Valve
- x12 5.5" snap-in netpots, each with neoprene collar insert.
- 3 Year Warranty
Features & Benefits of HydraMax Professional Hydroponic Systems
Backed by science, these U.S.A. Michigan made & manufactured HydraMax Professional Systems are the most comprehensive recirculating deep water culture hydroponics systems designed to take your grows to that next level. Extremely easy to use, maintain, clean in place and maximize your yields with – these systems are used by beginning cultivators to word-class grow operations. Hydra Unlimited is pushing the boundaries of deep water culture evolution, and these systems are designed to deliver world-class results to beginners and expert growers alike.

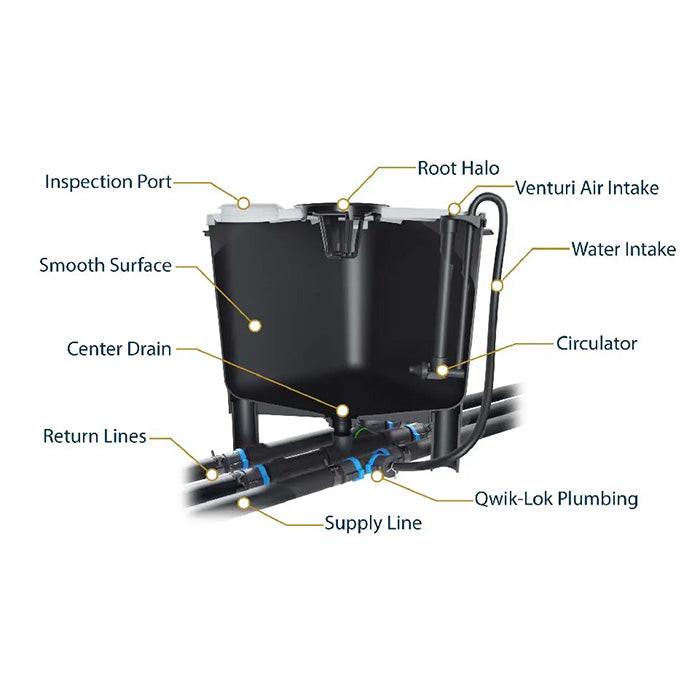

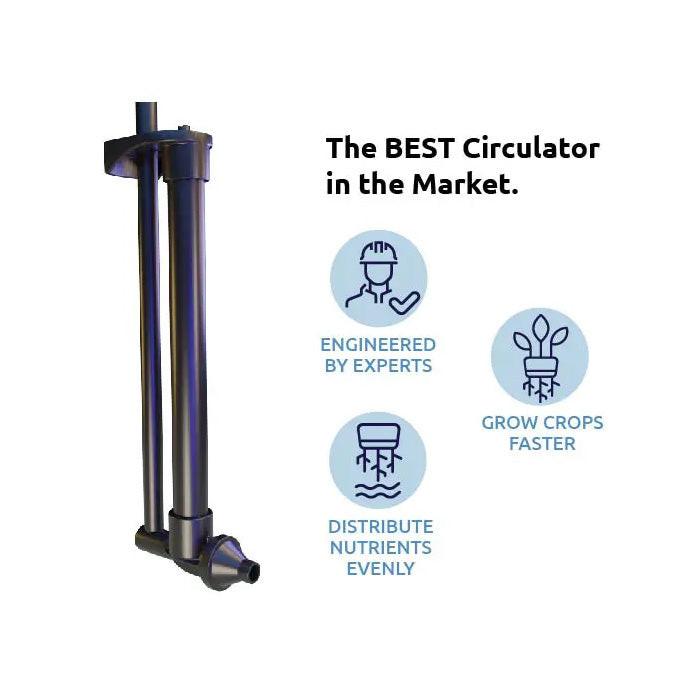

Circulators
Each bucket has its own water and air circulator that provides a 50/50 mix of water and oxygen. Air pumps and air stones are not required!
Raised Buckets
Raised bucket design allows plumbing to run underneath, saving valuable floorspace.
Center Drain
Each bucket’s bottom center drain drops directly into the plumbing system with an o-ring seal making assembly a breeze.

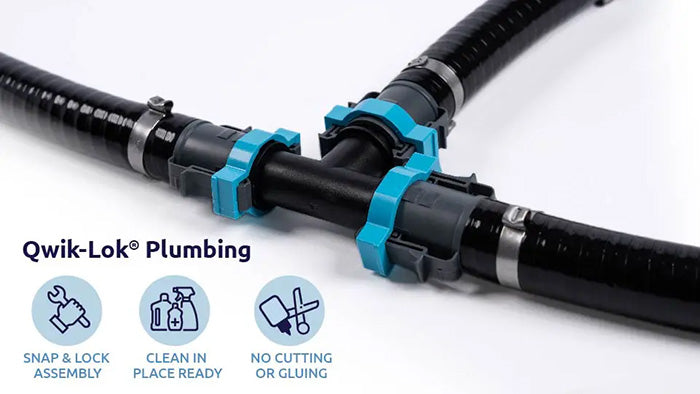

Qwik-Lok™
HydraMax uses Qwik-Lok Plumbing which makes assembly, disassembly and cleaning a snap!
No Reservoir
HydraMax systems do not require a reservoir, saving valuable floor space.
Dosing System
Nutrients are added through the dosing funnel and then delivered directly to each plant.
TetraBase™
HydraMax systems include TetraBase, Hydra Unlimited’s revolutionary new hydroponic media designed specifically for deep water culture.
Chiller Ready
HydaMax systems are compatible with inline chillers to keep the water temperature exactly where you want it.
Customer Service
Our unmatched customer and tech support is here for you when you need it.
TetraBase Grow Media
Please note: HydraMax systems come stock with Root Halo, the media-less snap-in netpots. If you wish to use TetraBase, you will also need traditional net pots to drop in the HydraMax buckets.
More Sustainable Than Soil.
Designed specifically for Deep Water Culture, TetraBase is a clean and reusable media that delivers the support large plants require. Unlike other traditional growing mediums, TetraBase does not affect pH, attract pests, promote bacteria or introduce dust or debris to your system.
Incredible Long Term Savings
100% Clean & Reusable Media. No Dust, No Debris, Non-Abrasive Professional Media.
Safer, More Healthy Choice
Reduces Bacteria Growth, Promotes Natural Root Growth, Non-Porous & Interlocking.
Reduce Pests, Keep PH Balance
Does Not Attract Pests, and Does Not Affect Water PH Levels.
Made In The United States
Designed, Engineered, Manufactured, Tested, & Shipped In The U.S.A.
Efficiency in Full Bloom
Experience the epitome of efficiency as this system streamlines the cultivation process. Each bucket is meticulously designed to ensure optimal water and nutrient distribution, fostering rapid growth and robust yields. Say goodbye to soil-related hurdles and embrace the simplicity of hydroponics. HydraMax provides cleaner grow environments, reduced labor and operational maintenance, clean in place capabilities, and is chiller ready. Our patented Qwik-Lok plumbing provides extremely easy plug n' play installation and hose reconnections.
Roots That Thrive
The HydraMax 3-Row, 12-Bucket System places root health at the forefront. Thanks to our precision-engineered venturi circulators, your plants' roots will flourish like never before while simultaneously removing the need for air stones all together. They homogenize the systems within 5 minutes causing them to develop vigorous root systems that are the foundation of exceptional growth. View our video on YouTube to see just how optimized our venturi circulators are.
Tailored for Your Space
Whether you're a hobbyist with limited room or a commercial grower seeking to maximize your production area, this system fits like a glove. The compact yet robust design eliminates the need for an epicenter bucket which reduces costs, and ensures that you can harness the benefits of hydroponics no matter the size of your growing space. HydraMax Professional systems come with 30" bucket spacing, but can be customized upon request.
Simple Setup, Stunning Results
Our recirculating deep water culture systems are easy to use. The HydraMax 3-Row, 12-Bucket System is engineered for easy setup and user-friendly operation. Our comprehensive guide walks you through each step, ensuring that you'll be up and running in no time. Watch how easy our innovative installation process with our guide here: HydraMax installation video!
Specifications
- System: HydraMax 12/3
- Part #: HK-12-3-30
- Buckets: 12
- Dimensions: 6’-4” x 12’-4”
- Weight: 206.86 lbs
- Warranty: 3-Year
| Brand | Hydra Unlimited |
|---|---|
| SKU | HK-12-3-30 |
| Weight (lb.) | 216.0000 |
| Width (in.) | |
| Height (in.) | |
| Length (in.) | |
| Warranty | 3 years |
| Prop 65 | false |
| Hazardous Material | false |
| Shipping Restrictions | AK, HI |
| Lead Time | Ships in 1-2 weeks |
| ETL Listed | No |
| Plant Count | 12 |
| Set-Up Dimensions | 6'-4" x 12'-4" |
| Plant Spacing | 30" |
| Growth Module Size | 8 Gallon |
| Number of Rows | 3 Rows |
| Total System Volume | 96 Gallons (x12 8-gallon buckets) |
| Recommended Reservoir Size | No reservoir required |
| Recommended Chiller Size | 1/4 HP |
HydraMax Professional RDWC Hydroponic System, 3-Row, 12-Site System Videos
HydraMax Professional Install Guide
How Our RDWC Hydroponic Systems Work
Filling a HydraMax Professional RDWC Hydroponic System
Connecting A Chiller To HydraMax Professional RDWC Hydroponic System
Draining a HydraMax Professional RDWC Hydroponic System
Dosing HydraMax Professional RDWC Hydroponic System
HydraMax Professional RDWC Hydroponic System, 3-Row, 12-Site System Questions & Answers
Q: Will the water fully drain out of the lines? Is there still water in the lines or are they completely empty?
A: Each row of the system ends with 1" ball valves to allow you to hook up to a hose and drain entirely.
Q: Is the pump size different for every system?
A: Our main system categories: HydraMax Home, Professional, and Commercial – all have a different pump, based on the category. We have thoroughly tested all pumps to make sure they meet our circulation specs and needs for optimized performance.
Q: Do the buckets measure 30 inches from bucket to bucket or from the center of the buckets?
A: We measure this from center to center, so they have 30" plant centers.
Q: Do the buckets measure 30 inches from bucket to bucket or from the center of the buckets?
A: We measure this from center to center, so they have 30" plant centers.
Q: Are the systems Chiller ready?
A: Our professional and commercial systems are chiller ready. The 1-2 Bucket system is not.
Q: Does the systems come with a chiller?
A: Our professional systems are chiller ready, but the actual chiller unit is not included our system.
Q: How Many Gallons Of Water Do The Buckets Hold?
A: HydraMax utilizes 8 gallon buckets and has a scale on the side of the bucket to help you track how much water your system is holding.
Q: My current system holds close to 10,000 liters, how much water does this system hold?
A: There is no limit to our system's capabilities, we can custom each room and each operation to your specific needs. HydraMax utilizes 8 gallon buckets and has a scale on the side of the bucket to help you track how much water your system is holding.
Q: Can I use longer hoses to locate the pump in a remote location?
A: Yes, within reason. Try not to go over 10′ and keep the hoses as level as possible.
Q: Should I move the pump outside the room if I am using C02? If yes, do you provide the connection or hosing?
A: The HydraMax pump is a water pump so it can stay in the room. The air is drawn in from the top of the circulators. If you are using CO2, you will want to chain the airlines together and draw from a remote location.
Q: Is it detrimental to pull air using the venturi than having an outside pump, if using CO2 enrichment?
A: It is recommended you draw air from outside the room if you are using CO2 enrichment.
Q: Can TetraBase work with any DWC system besides HydraMax?
A: Yes!
Q: How "green" is TetraBase?
A: TetraBase is made from 100% recycled Polypropylene. Polypropylene is considered to be the safest of all plastics. It is approved for food and beverage storage. Inherently BPA Free, too!
Q: Since the plastic is recycled and not virgin pvc, is leaching a concern?
A: No leaching is not a concern, even when exposed to warm or hot water.
Q: How does TetraBase compare to clay balls?
A:TetraBase was designed with 6 key features that clay balls do not have.
- TetraBase is made from Polypropylene just like the buckets and other components of the system so they may be used and reused indefinitely.
- TetraBase is non-porous. This can be a major factor in bacteria breeding grounds as well and makes sanitation easier.
- As your plants grow larger, TetraBase interlocks and grows in strength , creating the ultimate base for your stalks.
- TetraBase is pH Neutral. TetraBase will not effect your pH like other media, allowing you to dial in your control levels.
- TetraBase is Non-abrasive and friendly to young fragile plants. Smooth surfaces are also ideal in a DWC environment to avoid any tiny pockets where bacteria growth can occur.
- Debris/Dust free. Unlike Clay balls, TetraBase will not discolor your roots, water, or deteriorate and drop into your plumbing system which would wreak havoc on your pump and chiller.
- TetraBase is CLEAN and even if it does manage to get loose into the system, it floats on the surface so it will not be an issue for your pump/plumbing system.
Q: How do you clean TetraBase?
A: TetraBase is made from the same materials as your buckets and many other parts in the HydraMax System and may be cleaned like any other part. One suggestion would be to place the TetraBase into a mesh bag(s) and add this to a bucket(s) in the system when circulating a cleaning solution through the system.
Q: How much TetraBase do I need?
A: TetraBase is packaged in 6 liter and 1 liter bags. Not all net pots are created equal and can vary in volume but generally, a 5.5" or 6" net pot holds about 1 liter of media.
Q: Can you only grow well rooted clones out of TetraBase?
A: Most of our customers are using bare roots clones which is the best route for transplanting but if you are using cubes, the most important is that the water touches the roots for the first few days. After a few days, you should have some nice growth and can drop the water level.
