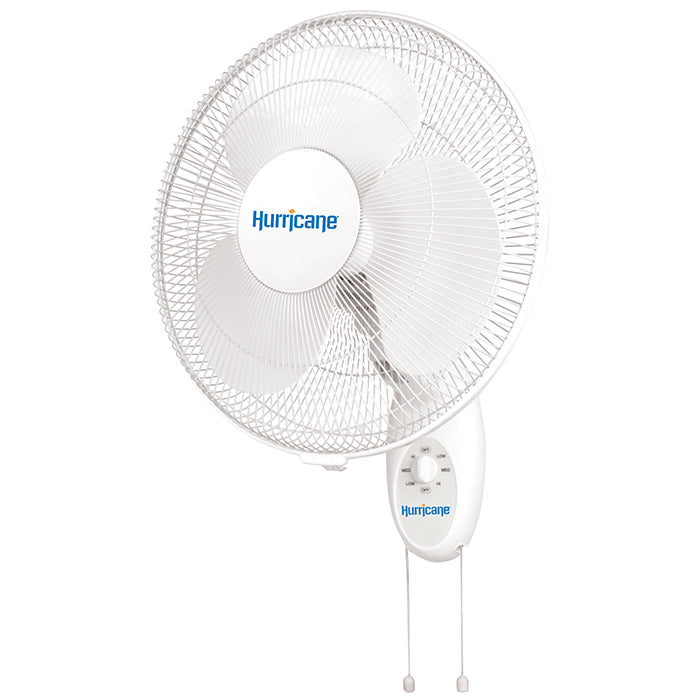

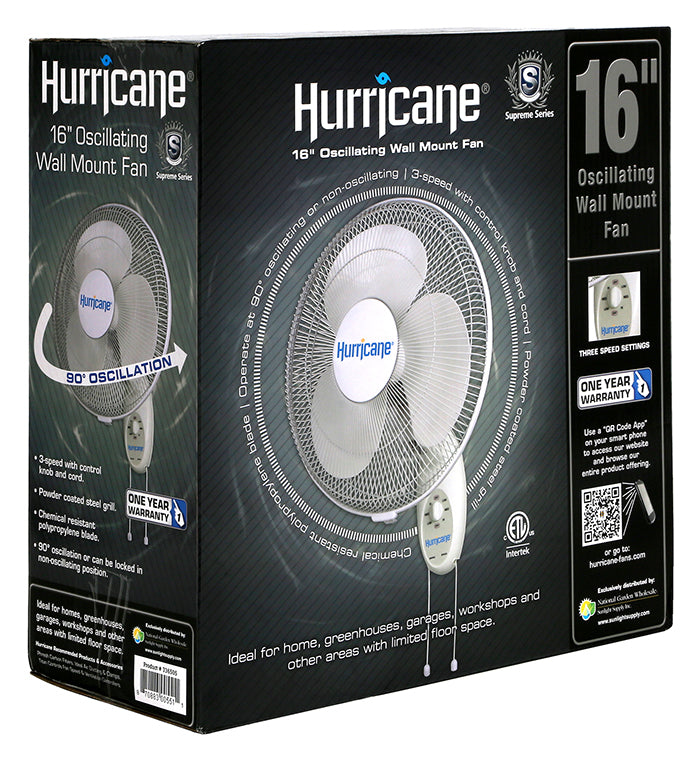

Hurricane 16" Oscillating Wall Mount Fan InstructionsHurricane Supreme Oscillating Wall Mount Fan
Available in 12, 16, or 18 in.
These fans are ideal for homes, greenhouses, garages, workshops and other areas with limited floor space. 3 different speeds allow you to find the perfect amount of circulation and airflow required for your work area. Side to side oscillation covers 90 degrees of space. A 5 ft. 120 Volt power cord is included - Plug type 1-15P
Features:
- Multi-position tilt

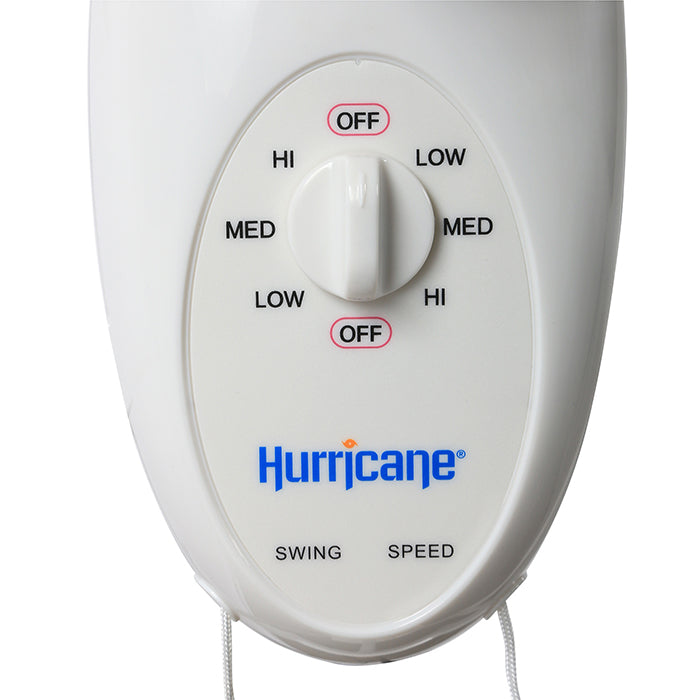

- 3 speed control with knob and cord
- Power coated steel grill
- Chemical resistant polypropylene blade
- 90 degree oscialltion or can be locked in place
- 1-Year Warranty
Note: There is no need for an external controller for these fans as they will not work. 3 speed control is built in.
| Size | 12" Fan | 16" Fan | 18" Fan |
|---|---|---|---|
| Amps | 0.42 Amps | 0.5 Amps | |
| Voltage | 120 Volts | ||
| Watts | 50 Watts | 55 Watts | |
| RPM | 1450 RPM | 1250 RPM | |
| Airflow (CFM) | 1412 CFM | 2118 CFM | 3036 CFM |
| Length | 13.58 in. | 17.72 in. | 19.88 in. |
| Height | 19.92 in. | 23.62 in. | 27.56 in. |
| Width | 11.54 in. | 13.78 in. | |
| Blade Diameter | 11.8 in. | 15.7 in. | 17.7 in. |
| Brand | Hurricane |
|---|---|
| SKU | HGC736505 |
| Weight (lb.) | 8.6900 |
| Lead Time | Ships in 2-3 Business days |
| Height (in.) | |
| Width (in.) | |
| Length (in.) | |
| Warranty | 1 Year |
| Prop 65 | false |
| Hazardous Material | false |
| UPC | 870883005511 |
| Fan Type | Wall Mount |
| Fan Size | 16" Diameter |
| Oscillation | Yes |
| Voltage | 120 Volts |
| ETL Listed | Yes |
| UL Listed | No |
