Ideal For Full & Flower Cycles

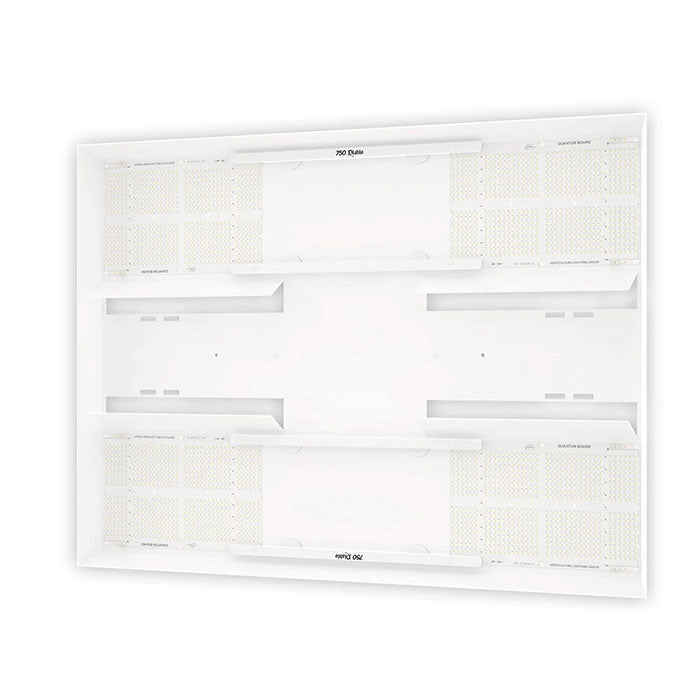

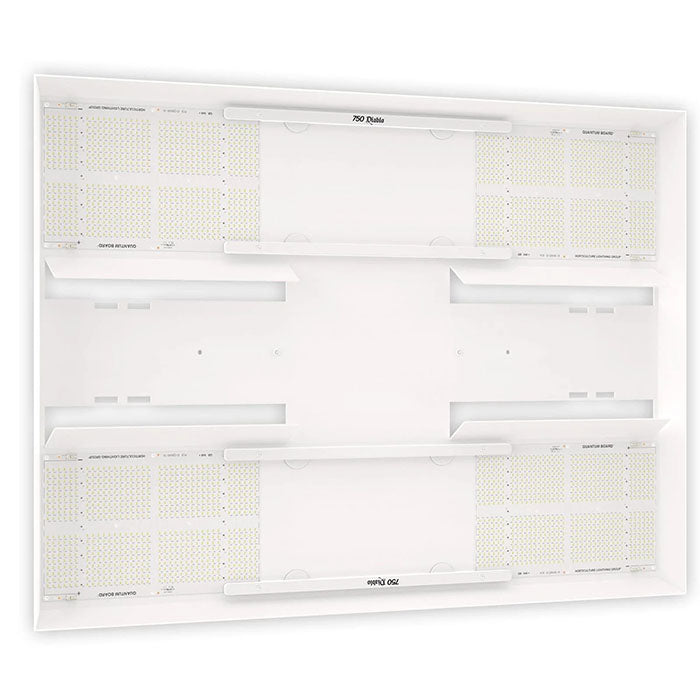

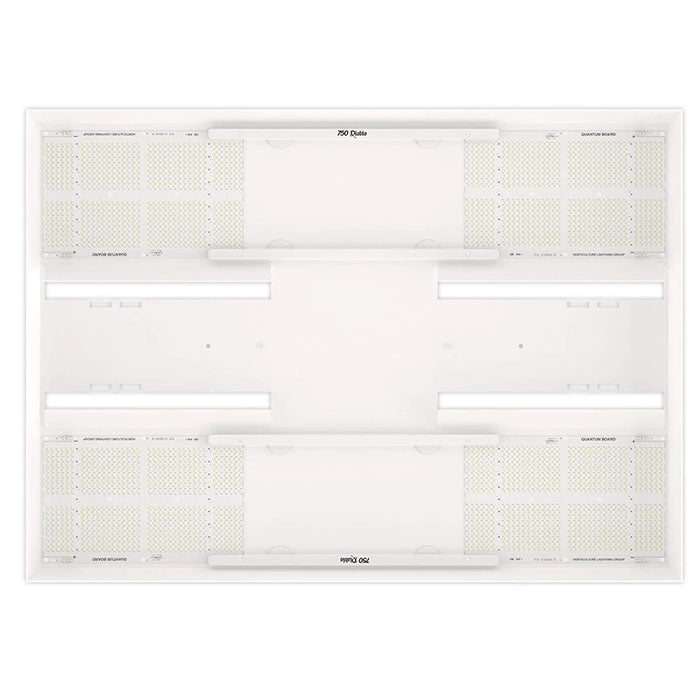

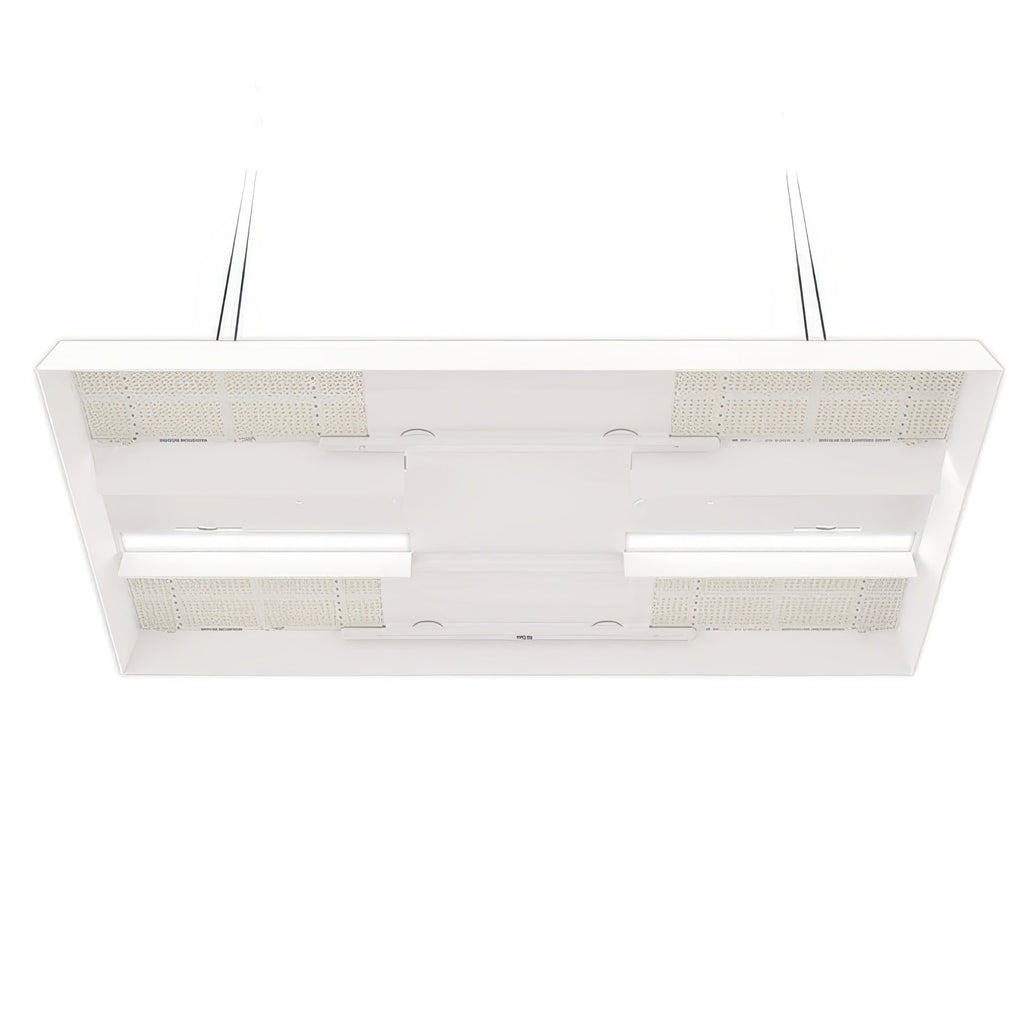

HLG 750 Diablo commercial lamps are designed for growers who want to maximize crop yields with a grow light that offers both high intensity and high efficiency. This lamp uses 4 advanced design Diablo Quantum Boards® for an even light spread making it perfect for grow tents, flood tables, and rolling benches.
IntIntegrated reflectors improve photon delivery resulting in better quality yields even at the lower canopy levels. This lamp produces over 2000 PPF output with photon efficacy of 2.88 µmol/J
What's Included
Features of the HLG 750 Diablo
Dimming Options
*If you select the GrowFlux Module, the GrowFlux Access Point IS REQUIRED for control of your fixtures
Optional Upgrade: GrowFlux Access Point
Securely connect your devices to the Cloud with GrowFlux Mesh, allowing for remote control, scheduling, and monitoring of horticultural lighting and sensors.
GrowFlux Mesh is an on-site, private, and secure wireless mesh developed for the agriculture industry, and offers long-range, high through-wall performance, self-healing redundancy, smart range extension, and secure encrypted communications.
Specifications of the HLG 750 Diablo
| Power | 0-715 Watts |
|---|---|
| Voltage Range | 120-277 VAC 50-60Hz |
| Flowering Footprint/ Canopy Distance | 5' x 5' / 15" - 24" |
| Veg Footprint/ Canopy Distance | 6' x 6' / 36" |
| System PPF Efficacy | 2.88 µmol/J |
|---|---|
| Total output | 2056 PPF |
| Dimensions | 37.5" x 27.125" x 3.75" |
| Certifications | Pending |
| Brand | Horticulture Lighting Group |
|---|---|
| SKU | HLG-750-DIABLO-RJ-MAN |
| Weight (lb.) | 24.0000 |
| Prop 65 | false |
| Length (in.) | |
| Width (in.) | |
| Height (in.) | |
| Warranty | 5 Year |
| Lead Time | 7-10 |
| Hazardous Material | false |
| Lighting Type | LED |
| LED Light Spectrum | Full Spectrum |
| LED Fixture Type | Panel |
| LED Features | Manual Dimming Knob, Dimmable *with Controller |
| Est. Electricity Cost /mo | $30.88 |
| Exact Watts | 715 Watts |
| Suggested Hanging Height | 15” - 24” Flowering; 36” for Veg |
| LED Driver Type | Mean Well Driver |
| PAR Efficiency | 2.88 μmol/J |
| Total PPF Output | 2056 μmol/s |
| Voltage | 120 Volts, 240 Volts |
| Frequency | 50/60 Hz |
| Power Cord(s) Included | Yes - 120/240 Volt |
| Coverage Area | Veg: 6' x 6'; Flower: 5' x 5' |
| ETL Listed | No |
| UL Listed | No |
| Dimming Option | RJ Ports & Manual Knob |

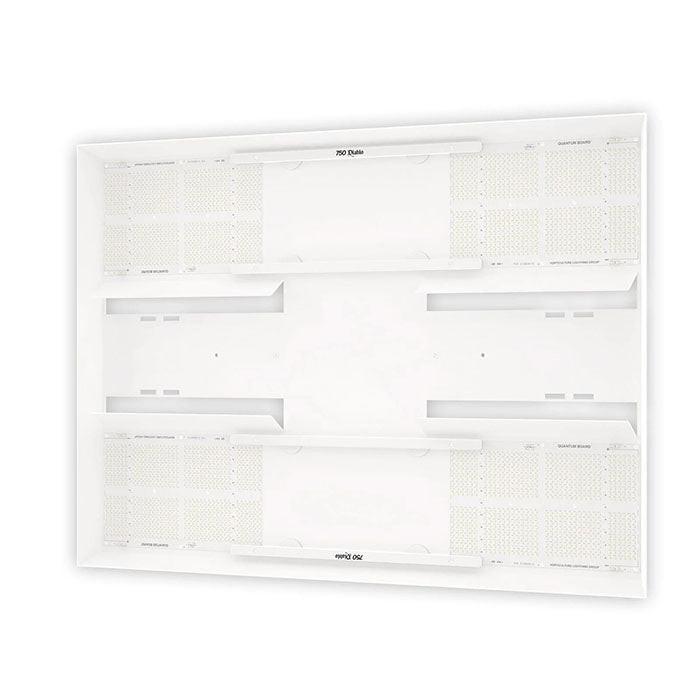

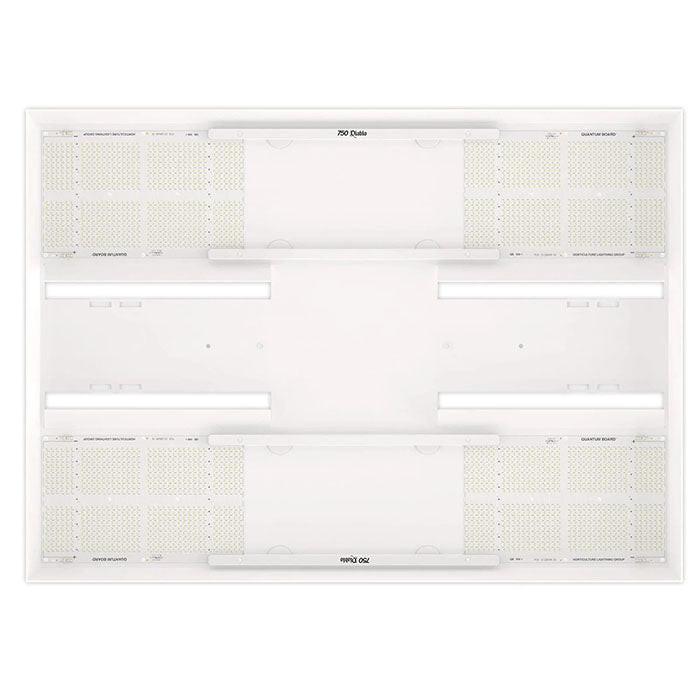

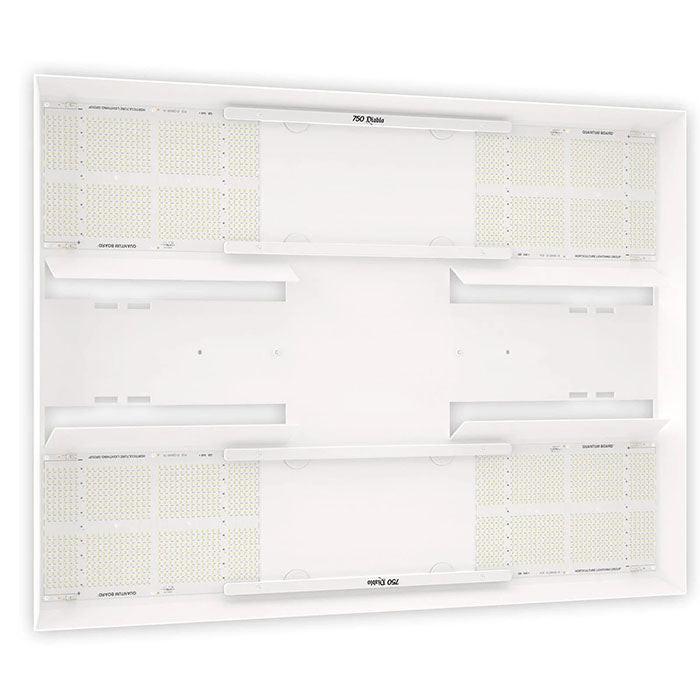

Horticulture Lighting Group HLG 750 Diablo LED Grow Light, RJ Ports and Manual Knob, 120/240 Volt
What growing stages and spectrum does the Horticulture Lighting Group HLG 750 Diablo LED Grow Light support?

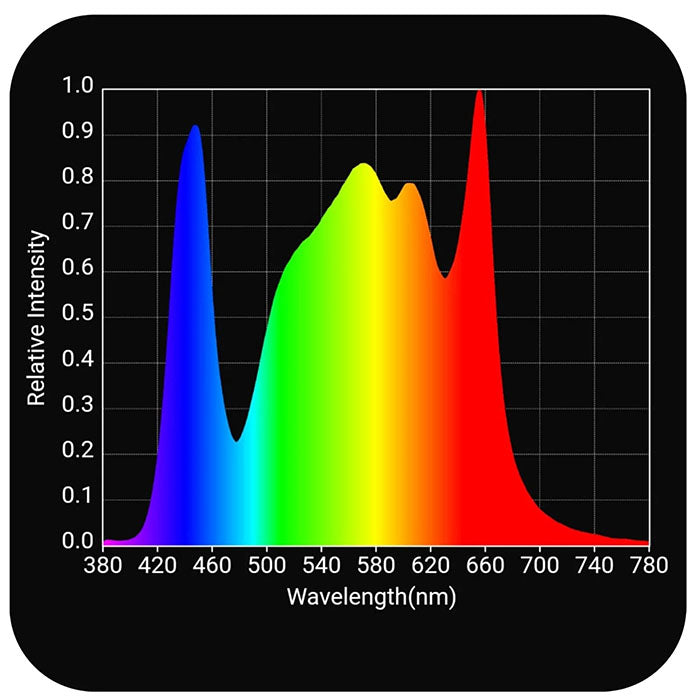

The Horticulture Lighting Group HLG 750 Diablo LED Grow Light supports full and flowering cycles with a plant-centric white spectrum and deep red light.
What coverage and mounting height does the Horticulture Lighting Group HLG 750 Diablo LED Grow Light provide?
The Horticulture Lighting Group HLG 750 Diablo LED Grow Light covers a 5-foot by 5-foot flowering area at 15 to 24 inches and a 6-foot by 6-foot vegetative area at 36 inches.
How much light output and efficiency does the Horticulture Lighting Group HLG 750 Diablo LED Grow Light deliver?
The Horticulture Lighting Group HLG 750 Diablo LED Grow Light delivers 2056 PPF output with system efficacy of 2.88 µmol/J.
How can growers dim the Horticulture Lighting Group HLG 750 Diablo LED Grow Light?
The Horticulture Lighting Group HLG 750 Diablo LED Grow Light includes RJ ports with 0-10V control and a manual knob. An optional GrowFlux Module enables wireless dimming, and the GrowFlux Access Point is required for GrowFlux control.
What accessories are included with the Horticulture Lighting Group HLG 750 Diablo LED Grow Light?
The Horticulture Lighting Group HLG 750 Diablo LED Grow Light includes the lamp, hanging hardware, rope ratchets, and a power cord.
What electrical input does the Horticulture Lighting Group HLG 750 Diablo LED Grow Light use?
The Horticulture Lighting Group HLG 750 Diablo LED Grow Light operates at 120 to 277 VAC and 50 to 60 Hz, with a 120/240-volt power cord included.
What warranty comes with the Horticulture Lighting Group HLG 750 Diablo LED Grow Light?
The Horticulture Lighting Group HLG 750 Diablo LED Grow Light includes a 5-year warranty.
