Horticulture Lighting Group Product Documents
HLG 250 Veg Pro Manual HLG 250 Veg Pro Efficiency ReportOptimized for Vegetative Grow Cycles

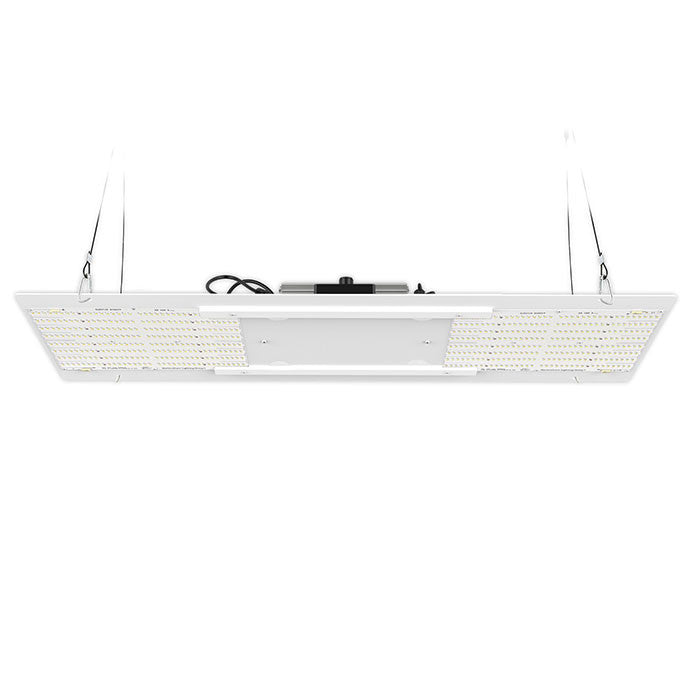

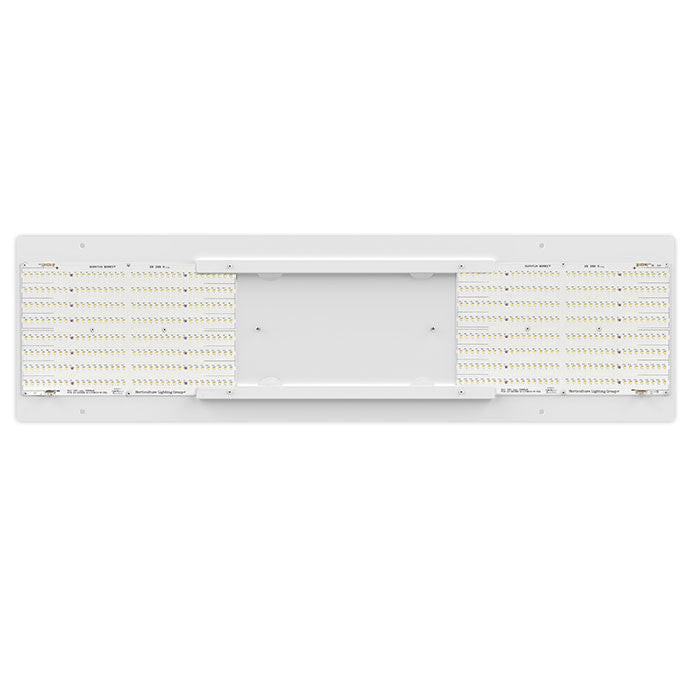

The HLG 250 VEG PRO LED grow light is designed for veg grows in indoor spaces. With HLG’s low-profile rectangular design, an improved light spread is obtainable at just 12” from the canopy. It is ideal for vegging in vertical racks by maximizing available height for plant growth. This full-spectrum white, deep red, and blue provide the best plant growth for an exceptional harvest. The HLG 250 Veg Pro uses 2 QB288 Quantum Boards® with a broad blue spectrum.
What comes in the box?
- HLG 250 Veg PRO
- Hanging Hardware
- Rope Ratchets
- Power Cord
- Dimming Option -RJ Ports + Manual Knob OR *GrowFlux Module
*GrowFlux Module required the GrowFlux access point. Available as an add-on at the top.
Features & Benefits
- 35" wide design for even light coverage
- Powered with high efficiency Quantum Boards® for 2.7 PPF/W
- 600 PPF high output

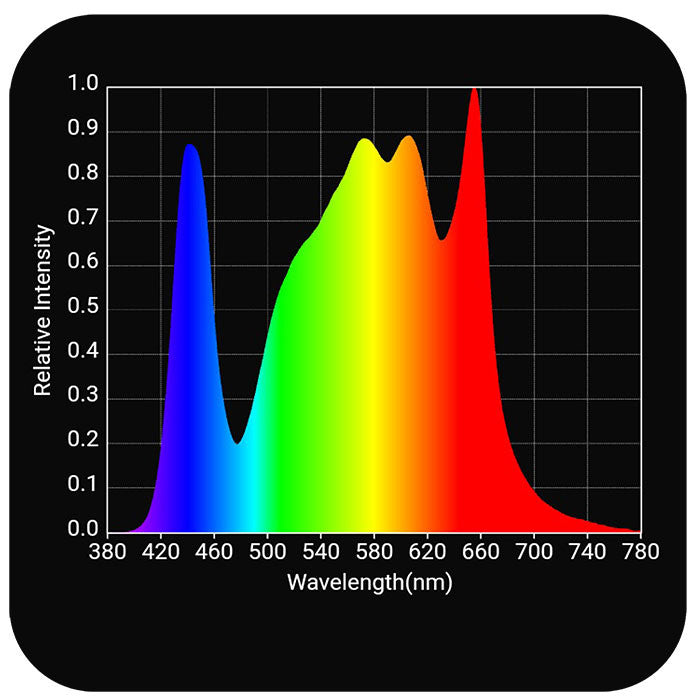

- Full spectrum white, 660nm red and blue LEDs
- Reliable passive-cooled design
- Better canopy light penetration with diffused light
- 40 to 240 Watts dimming design
- Auto sensing Inventronics power supply works on 120VAC, 240VAC, and 277VAC
- 5 Year Warranty
Specifications for HLG 250 Veg PRO
| Power | 40-240 Watts |
|---|---|
| Voltage Range | 120-277 VAC 50-60Hz |
| LED | Full Spectrum White, Deep Red & Blue |
| Veg Footprint | 2' x 4', 3' x 5' at 12" |
| System PPF Efficacy | 2.7 μmol/J |
|---|---|
| Total output | 600 PPF |
| Dimensions | 34.5" x 10" x 2.75" |
| Recommended Mounting Height | 12" - 24" above canopy |
| Brand | Horticulture Lighting Group |
|---|---|
| SKU | HLG-250-VEG-RJ-MAN |
| Weight (lb.) | 13.0000 |
| Prop 65 | false |
| Length (in.) | |
| Width (in.) | |
| Height (in.) | |
| Warranty | 5 Year |
| Lead Time | This product ships in 2-5 business days |
| Hazardous Material | false |
| Lighting Type | LED |
| LED Light Spectrum | Full Spectrum |
| LED Fixture Type | Panel |
| LED Features | Manual Dimming Knob, Dimmable *with Controller |
| Est. Electricity Cost /mo | $10.36 |
| Exact Watts | 240 Watts |
| Suggested Hanging Height | 12" - 24" above canopy |
| PAR Efficiency | 2.7 μmol/J |
| Total PPF Output | 600 μmol/s |
| Voltage | 120 Volts, 240 Volts |
| Amps | 1.8 Amps @ 120 Volts |
| Frequency | 50/60 Hz |
| Power Cord(s) Included | Yes - 120 Volt |
| Coverage Area | Veg: 3' x 5'; Flower: 2' x 4' |
| Grow Light Certifications | ETL Listed, UL Listed, CSA Listed |
| ETL Listed | Yes |
| UL Listed | Yes |
| Dimming Option | RJ Ports & Manual Knob |
