Growlite Product Documents
Growlite Varius Spec Sheet Growlite Varius Sell Sheet Growlite Varius Installation InstructionsThe Ultimate In Versatile Scalability
The Varius LED Grow Lighting System is comprised of a series of LED bars, each utilizing its own unique spectral distribution. VARIUS LED features solutions for standard or pallet rack growing, offering light quality and performance for any mounting application.
The Varius LED Light Bars can be used individually or mounted on the Varius Mounting Frame (AG-FRAME) to create a full 8-Bar Grow Light! Choosing the 8-Bar configuration at the top will include the Mounting Frame as well as the AC Supply Harness (AG-8-H).
Spectrum Options
- White Full Spectrum
- Blue Veg Spectrum
- Red Bloom Spectrum
Configuration
- Single Bar
- 8-Bar Kit - *Kit will include the Mounting Frame (AG-FRAME) and AC Cable Harness (AG-8-H)
Features & Benefits
- Each Varius® LED bar is supplied with a pre-wired, on-board driver and quick-connect cable system
- Broad spectrum LED with enhanced spectral performance ideal for each plant cycle

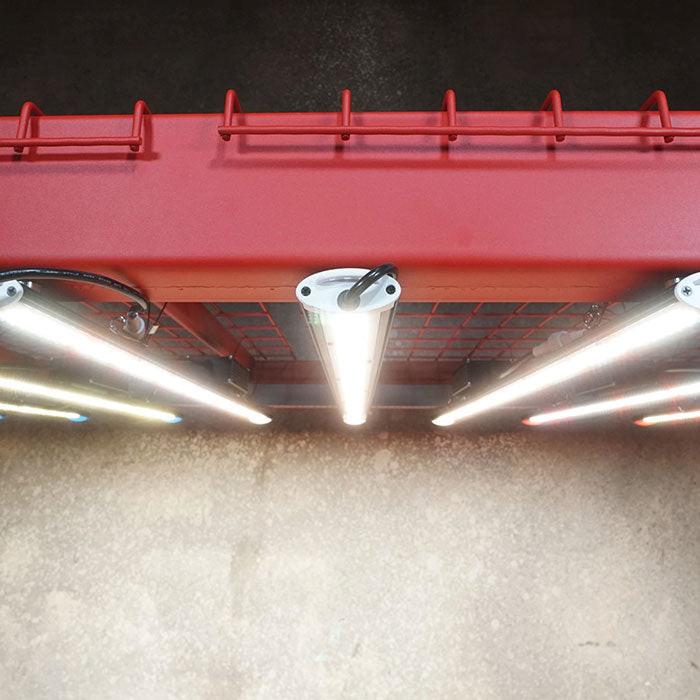

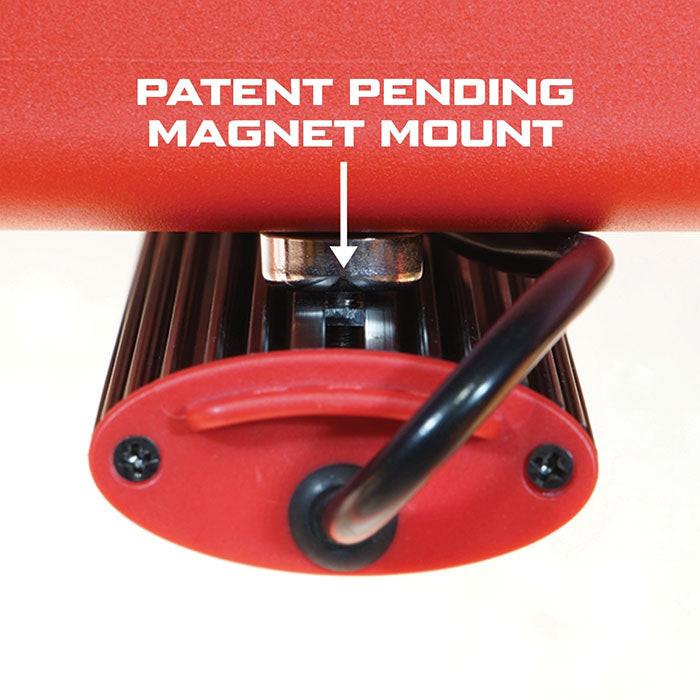

- Powerful magnets allow the VARIUS® LED to attach directly to pallet rack frames for easy adjustment of bar spacing to customize light intensity and uniformity
- Optional AC supply harness (AG-8-H) for simplified wiring of up to eight bars
- Optional mounting frame (AG-FRAME) offers customizable spacing and spectrum blending, allowing adjustability for any mounting application
- Listed to UL8800
Versatility
Unlike standard bar systems, the VARIUS LED’s magnet mounts allow growers to customize light coverage and intensity based on their plant’s needs by easily adjusting distances between fixtures.
Easy Installation
Each Varius LED bar is supplied with a pre-wired, onboard driver and quick-connect cable system. Powerful magnets allow the VARIUS LED to attach directly to pallet rack frames for easy adjustment of bar spacing to customize light intensity and uniformity.
3 Spectrums
Full, red, and blue-focused spectrums offer growers a powerful light for any stage of plant growth. Combining two or more spectrums increases the intensity and spectral quality beyond the capability of standard fixed-spectrum fixtures.
Bloom Spectrum
The VARIUS RED emits a strong red spectrum with enhanced red and far red energy. The red to far red ratio combined with the proper blue to far red ratio emits a spectrum that greatly enhances flowering growth.

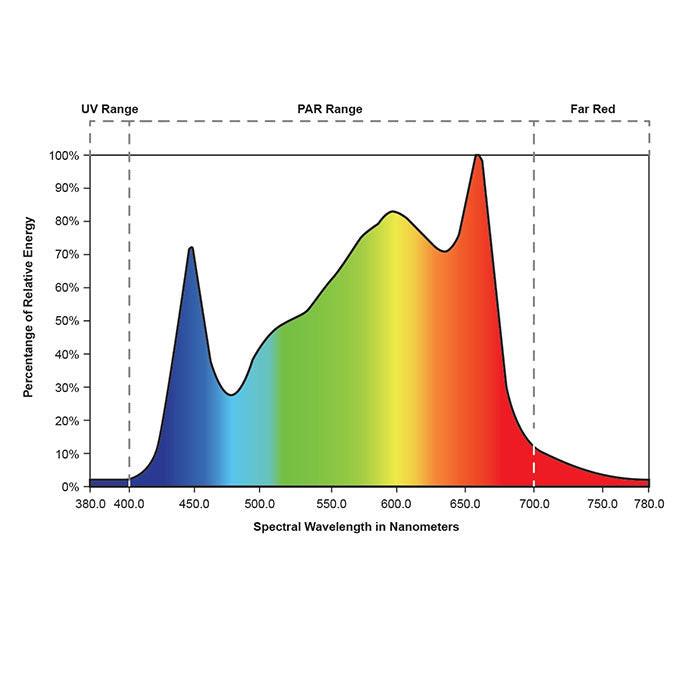

Full Spectrum
The VARIUS WHITE emits an intense full spectrum that can be used to boost PPF outputs.
Veg Spectrum
The VARIUS BLUE is a veg spectrum with added red energy ideal for overall plant health and light balance.
Optional Upgrade: Varius Dimming Controller
The Growlite horticultural single channel, 0-10V, LED grow light controller offers control of up to eight (8) Growlite LED fixtures. Fully customizable for scheduling on/off times and duration, and sunrise/sunset simulation dimming. Suitable for use in damp location environments.
- 1 Channel of 0-10V dimming control (up to 8 fixtures)
- IR remote control
- Customizable scheduling of on/off times and duration
- Customizable sunrise/sunset simulation dimming
- Matrix type single color display (Approx. 0.75" x 1.25")
- Temperature readout
- Convenient factory preset timing schedules
- Three Year Warranty (Terms and Conditions Apply)
*The Varius 8-Bar Dimming Connector (AG-8-DIM-H) is required for linking and dimming up to eight Varius LED Bars with the controller
Specifications for the Varius LED Bar Lights
| Number of Bars | 1 Bar* | 8 Bars** |
|---|---|---|
| PPF (400-700nm) µmol/s | 181 | 1480 |
| PAR (400-700nm) µmol/J | 2.0 | |
| Lumens | 11950 | 95600 |
| CRI | ≥ 87 | |
Full Spectrum
| Number of Bars | 1 Bar* | 8 Bars** |
|---|---|---|
| PPF (400-700nm) µmol/s | 185 | 1480 |
| PAR (400-700nm) µmol/J | 2.1 | |
| Lumens | 11280 | 90240 |
| CRI | ≥ 92 | |
Bloom Spectrum
| Number of Bars | 1 Bar* | 8 Bars** |
|---|---|---|
| PPF (400-700nm) µmol/s | 178 | 1424 |
| PAR (400-700nm) µmol/J | 2.0 | |
| Lumens | 10300 | 82400 |
| CRI | ≥ 90 | |
Additional Specifications
| Mounting Height | 12" - 36" | |
|---|---|---|
| Power Consumption | 90 Watts | 720 Watts |
| Input Voltage | 120-277 VAC | |
| Amps @ 120V | 0.75 | 6.0 |
| Amps @ 240V | 0.38 | 3.0 |
| Amps @ 277V | 0.33 | 2.7 |
| Operating Frequency | 50/60 Hz |
|---|---|
| Operating Temperature | -20°C to 40°C (-4°F to 104°F) |
| Dimming | 1-10V |
| Power Factor (PF) | ≥ .98 |
| Certifications | ETL / UL8800 | Environment | Damp Location |
* Single Bar mounted 18" above canopy
** Typical Application with eight (8) bars spaced 6" apart and mounted 24" above canopy.
| Brand | Growlite |
|---|---|
| SKU | AG90-W-001 |
| Weight (lb.) | 5.2000 |
| Prop 65 | false |
| Length (in.) | |
| Width (in.) | |
| Height (in.) | |
| Warranty | 5 Year |
| Lead Time | This product ships in 5-8 Business days |
| Hazardous Material | false |
| Lighting Type | LED |
| LED Light Spectrum | Full Spectrum |
| LED Fixture Type | Bar/Strip |
| Est. Electricity Cost /mo | $3.88 |
| Exact Watts | 90 Watts |
| Suggested Hanging Height | 12" - 36" Above Canopy |
| PAR Efficiency | 2.1 μmol/J |
| Total PPF Output | 185 μmol/s |
| Power Factor | > .98 |
| Voltage | 120 Volts, 240 Volts, 277 Volts |
| Amps | 0.75 Amps @ 120 Volts, 0.38 Amps @ 240 Volts, 0.33 Amps @ 277 Votls |
| Frequency | 50/60 Hz |
| Power Cord(s) Included | Yes - 120 Volt |
| Power Cord Length | 5 ft. |
| Coverage Area | Veg: 4' x 1'; Flower: 4' x 1 |
| Grow Light Certifications | ETL Listed, UL Listed |
| ETL Listed | Yes |
| UL Listed | Yes |
