Growlite Archon Spec Sheet Growlite Archon Sell Sheet Growlite Archon Installation InstructionsThe Archon Double-Ended Horticulture Grow Light System

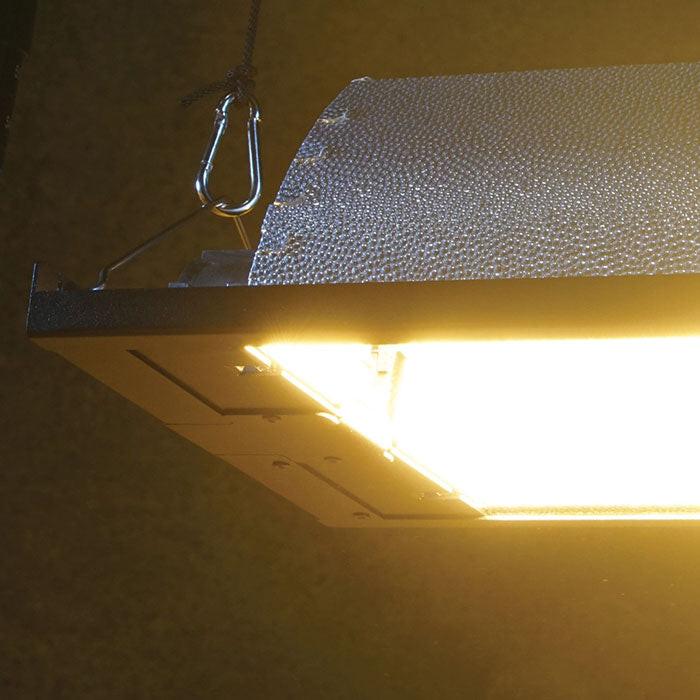

The ARCHON DE was designed with the grower in mind for ease of use and superior yielding performance. The unique optical design of the fine hammertone reflector provides more reflective surface area resulting in more intense uniformity. Lamps are easily installed in the patented SafeDElock™ socket from the top of the unit and require the user to rotate the lamp 172° to initiate an electrical/power connection, eliminating the risk of arcing inside the socket due to improper installation.
Features Overview
Growlite's team of engineers has developed a patented (Patent No. 10,720,741 and 10,873,169), industry-leading socket design that provides safety from electrical shock and ensures the accurate installation of the lamp. Photometric performance was increased by reducing the space between the lamp and reflector intersection, minimizing light loss.
- Maximizes Lamp Performance: The reflector maximizes DE lamp performance due to its compact design and focus on photometric control.
- Fine Hammertone Reflector: Fine hammertone textured reflector with 95% reflectance provides even and intense light coverage.
- Installation: Installation of DE lamps from the top of the unit allows for easier and safer work environments.

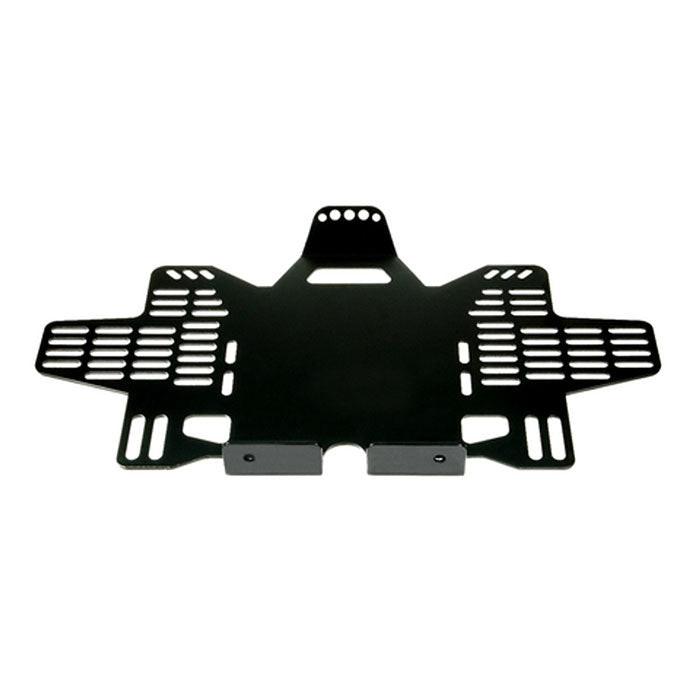

- Universal Ballast Mounting: Ballast can be mounted vertically, horizontally or remotely.

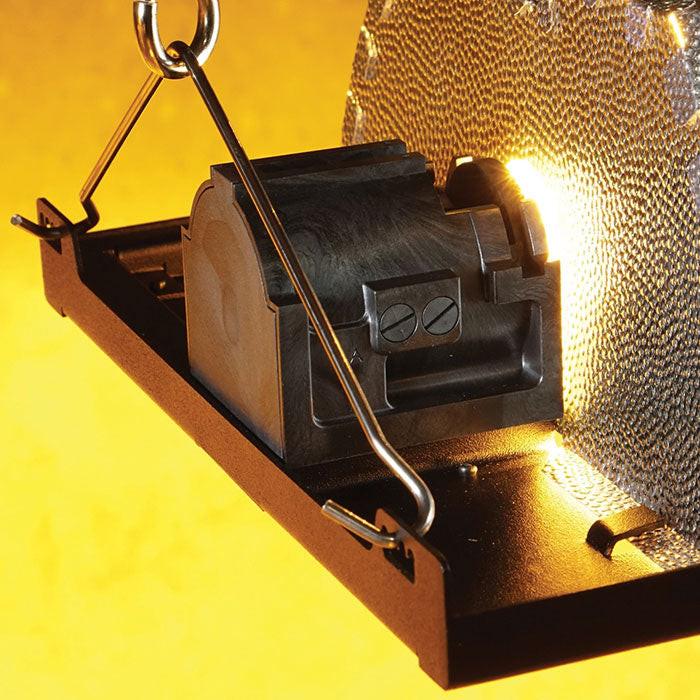

SafeDELock
Featuring the all new SafeDELock Socket
Growlite's team of engineers has developed a patented (Patent No. 10,720,741 and 10,873,169), industry-leading socket design that provides safety from electrical shock and ensures the accurate installation of the lamp. The lamps are easily installed in the SafeDElock™ socket from the top of the unit and require the user to rotate the lamp 172° to initiate an electrical/power connection. The SafeDElock™ socket also eliminates the risk of arcing inside the socket due to improper installation.
Insert lamp into socket
Close lid
Rotate lamp 180° inside socket
Lamp is now ready for operation
Specifications
- Wattage: 315W / 1000W
- Input Voltage: 120-277VAC
- Amps: 120V - 2.63A @ 315W, 277V - 1.14A @ 315W, 120V - 8.33A @ 1000W, 277V - 3.61A @ 1000W
- Optimal Coverage Area: 4' x 4'
- Weight: 18.60 LBS
- Dimensions: 17.50 x 10.50 x 9.80 (in)
| Brand | Growlite |
|---|---|
| SKU | GLH-HDE-E-UL-1000-HPS-240/277 |
| Weight (lb.) | 20.0000 |
| Prop 65 | false |
| Length (in.) | |
| Width (in.) | |
| Height (in.) | |
| Lead Time | This product ships in 5-8 Business days |
| Hazardous Material | false |
| Lighting Type | HPS/MH - Double Ended |
| Coverage Area | Flower: 4' x 4' |
| Exact Watts | 1000 Watts |
| Bulb Lumens | 144,400 Lumens |
| Reflector Type | Enclosed |
| Glass Included | No |
| Bulb(s) Included? | Yes |
| Bulb Type | Double Ended High Pressure Sodium |
| Ballast Type | Digital Ballast |
| Est. Electricity Cost /mo | $43.20 |
| Frequency | 50/60 Hz |
| Power Cord(s) Included | Yes - 240 Volt |
| Power Cord Length | 6 ft. |
| Amps | 4.50 Amps @ 240 Volts, 3.80 Amps @ 277 Volts |
| Voltage | 240 Volts, 277 Volts |
| ETL Listed | No |
| UL Listed | No |
