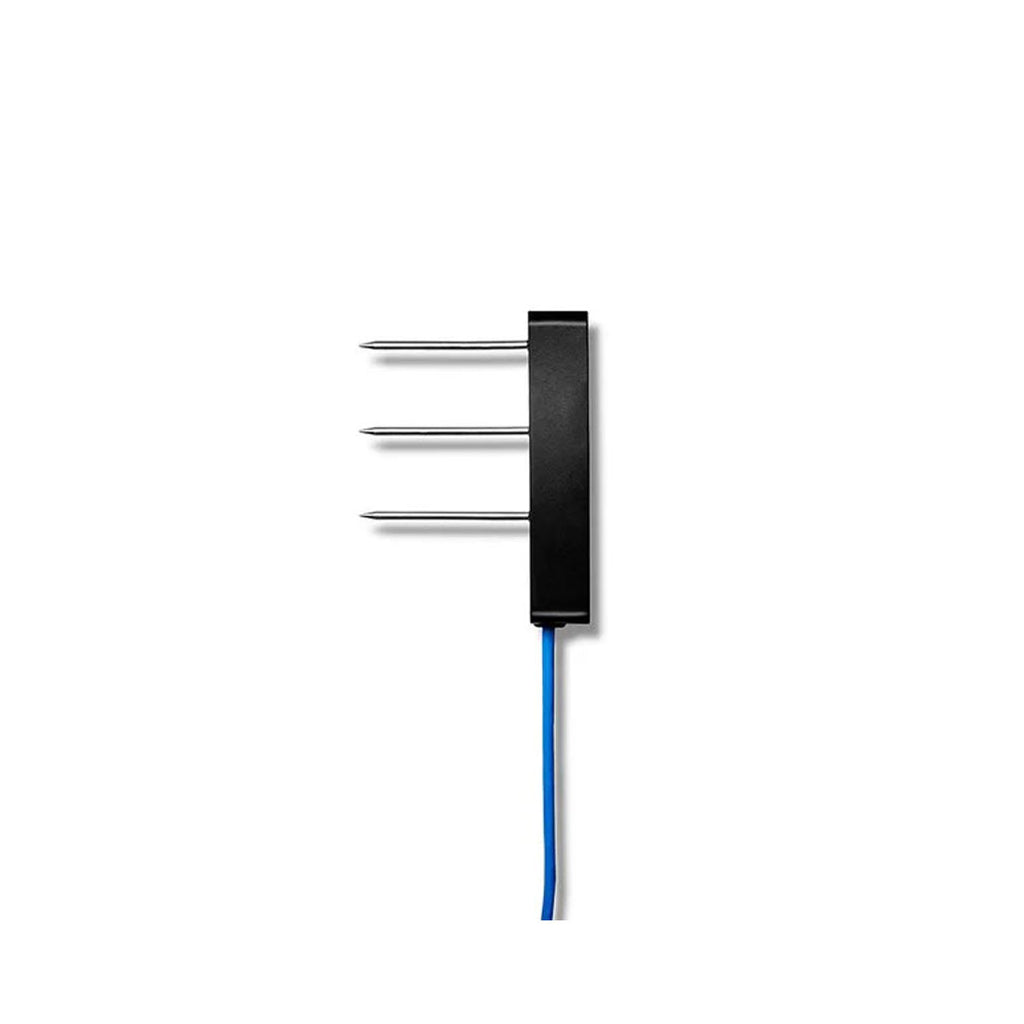

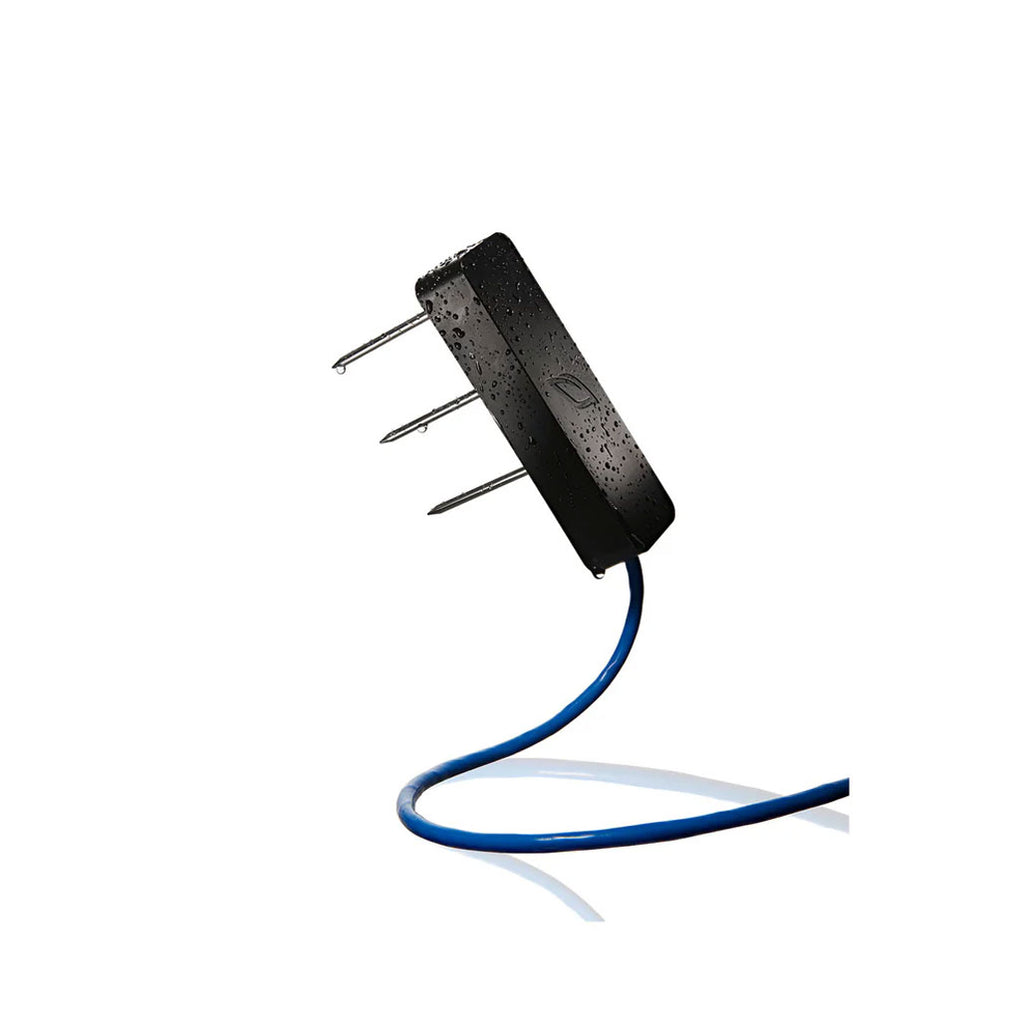

Growlink terraLINK Sensor for canopyLINK InfoIntroducing the Terralink Soil Moisture Sensor, featuring the industry-leading capacitance technology. Designed to provide precise and reliable soil moisture data, our sensor helps you optimize your farm's irrigation system and make better-informed decisions for your crops. With the Terralink Soil Moisture Sensor, you can ensure your plants receive the right amount of water at the right time, reducing waste and maximizing yield.
Growlink Terralink Key Features:
- Works with canopyLINK
Growlink Terralink Key Specs:
-
Power
- Output Interface: SDI-12, V1.3
- Power Supply: 3.6-16V/DC
- Quiescent Current: 30uA
- Measuring Current : 10mA during 150ms measurement
- Soil Moisture Measurement
- Apparent dielectric permittivity ():
- Range: 1-81 (air - water)
- Resolution: 1.00-40.00:±0.1,40.00-81.00:±0.5
- Accuracy: 1.00-40.00:±2%,40.00-81.00:±5%
-
Soil Moisture(VWC)
- Range: 0%-100% (air - water)
-
EC Measurement
- Range: 0-23ds/m
- Resolution: 0-7ds/m, 0.01ds/m; 7-23ds/m, 0.05ds/m
- Accuracy: 0-7ds/m, 5%; 7-23ds/m,15%
- EC temperature compensation: 0-50°C
-
Temperature Measurement
- Range: 40~80°C, Resolution:0.1°C, Accuracy:±0.5°C
-
IP Ratings
- IP68
- Operating Temperature: -40~85°C
- Sensor Rod: Stainless steel
- Sensor Sealed: Epoxy resin
-
Installation
- Surface or buried installation
- Cable Length: 6 feet
