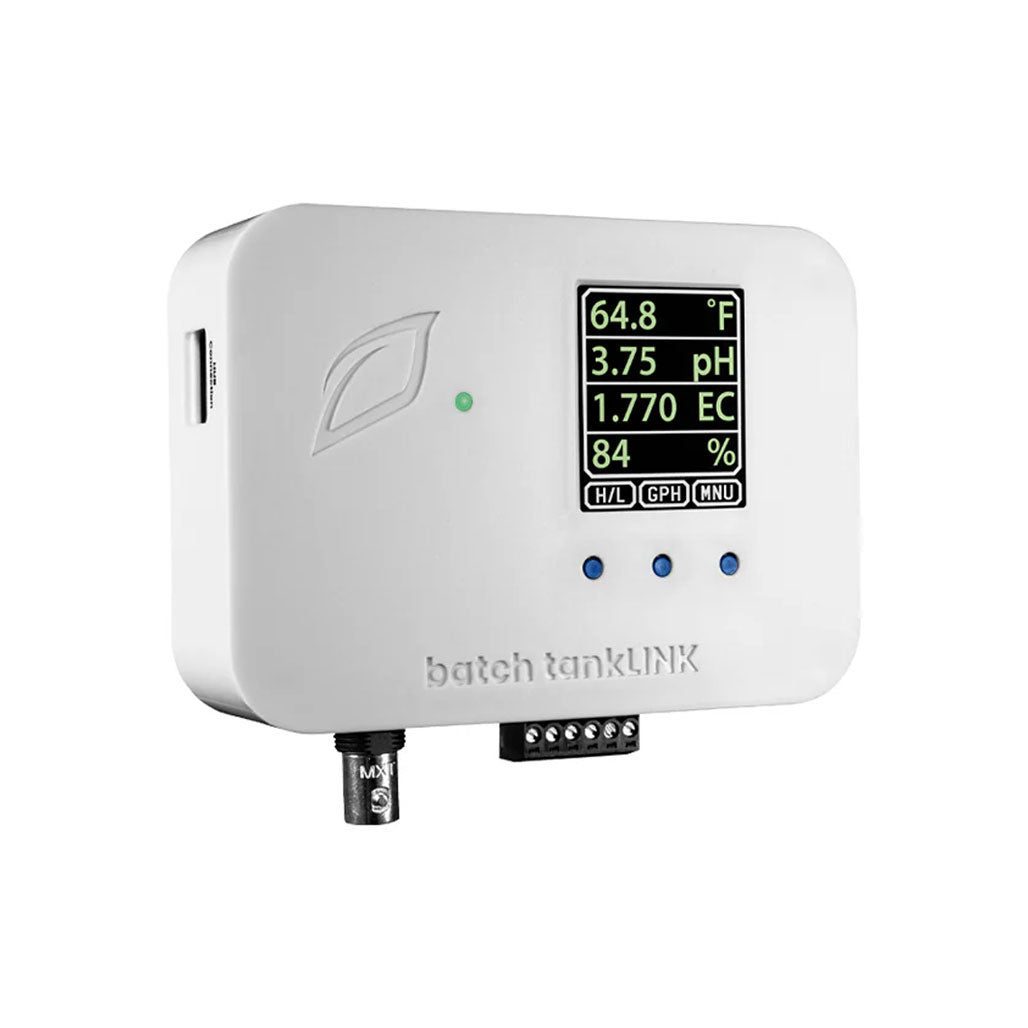

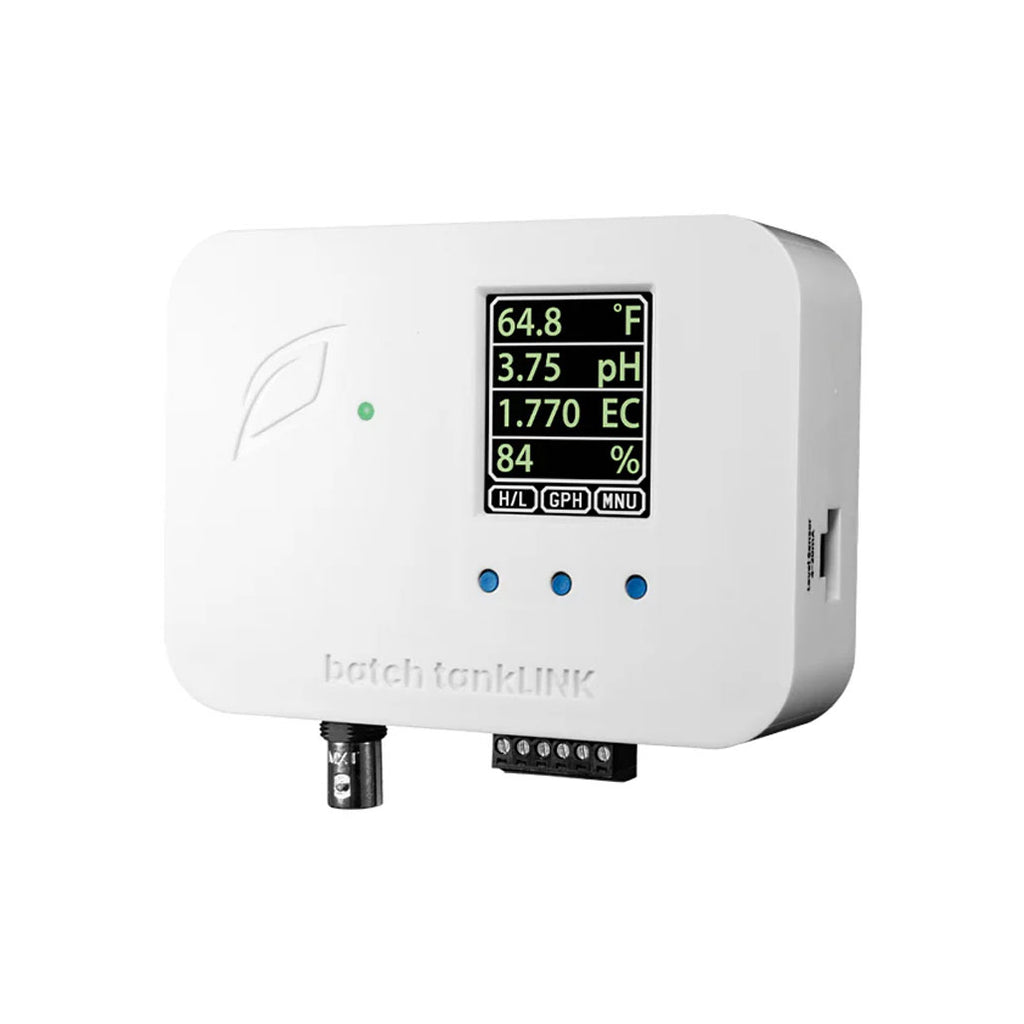

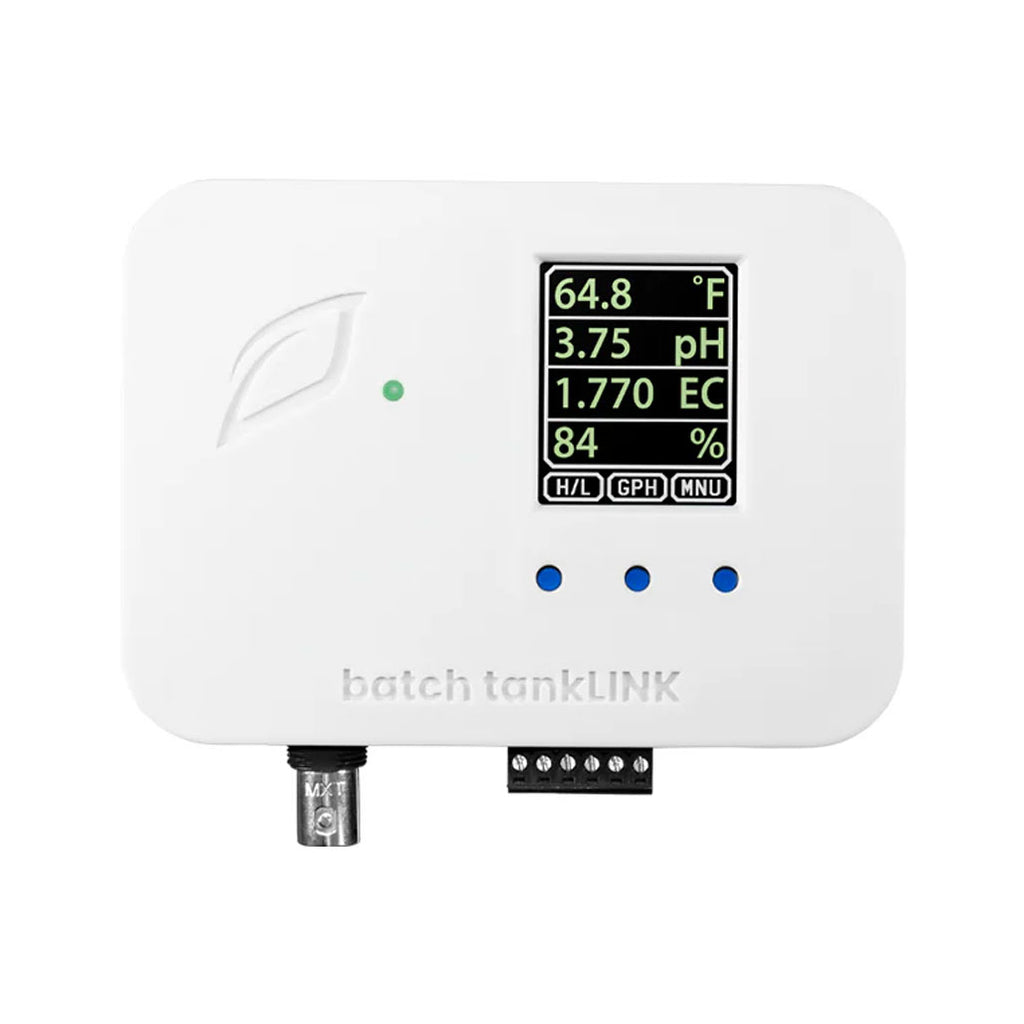

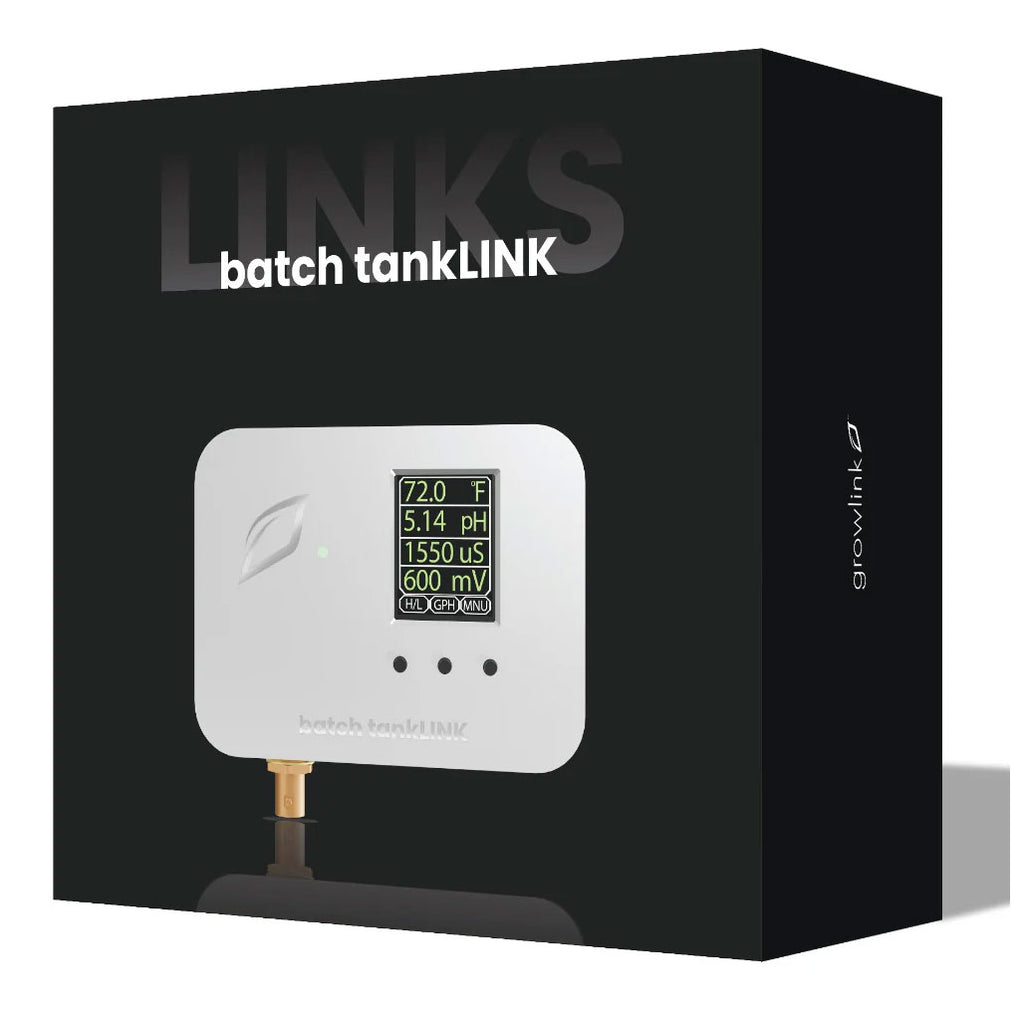

Growlink Batch tankLINK

Streamline Tank Monitoring and Management

The batch tankLINK ensures accurate tank monitoring by seamlessly integrating with your Growlink system. Equipped with sensors inputs for EC, pH, temperature, and tank levels, it automates refills and logs data for consistent oversight. Simplify tank management with reliable, automated tracking and alerts.

Growlink Batch tankLINK Key Features:

• Nutrient Monitoring: Tracks EC and pH levels continuously to maintain optimal nutrient concentrations for every growth phase.
• Automated Fill Control: Prevents dry tanks with level sensors that automate refills, ensuring uninterrupted nutrient supply with minimal manual effort.
• Data Logging and Alerts: Logs sensor data for historical tracking and provides alerts for deviations, enabling proactive tank management.

Growlink Batch tankLINK Key Specs:

• Input Power - Provided by HUB
  • Voltage: 24V DC
  • Power Consumption: ~5W
• Working Enviroment
  • Temp: 50-122°F (10-50°C)
  • Humidity: 0-75%RH (Non-Condensing)

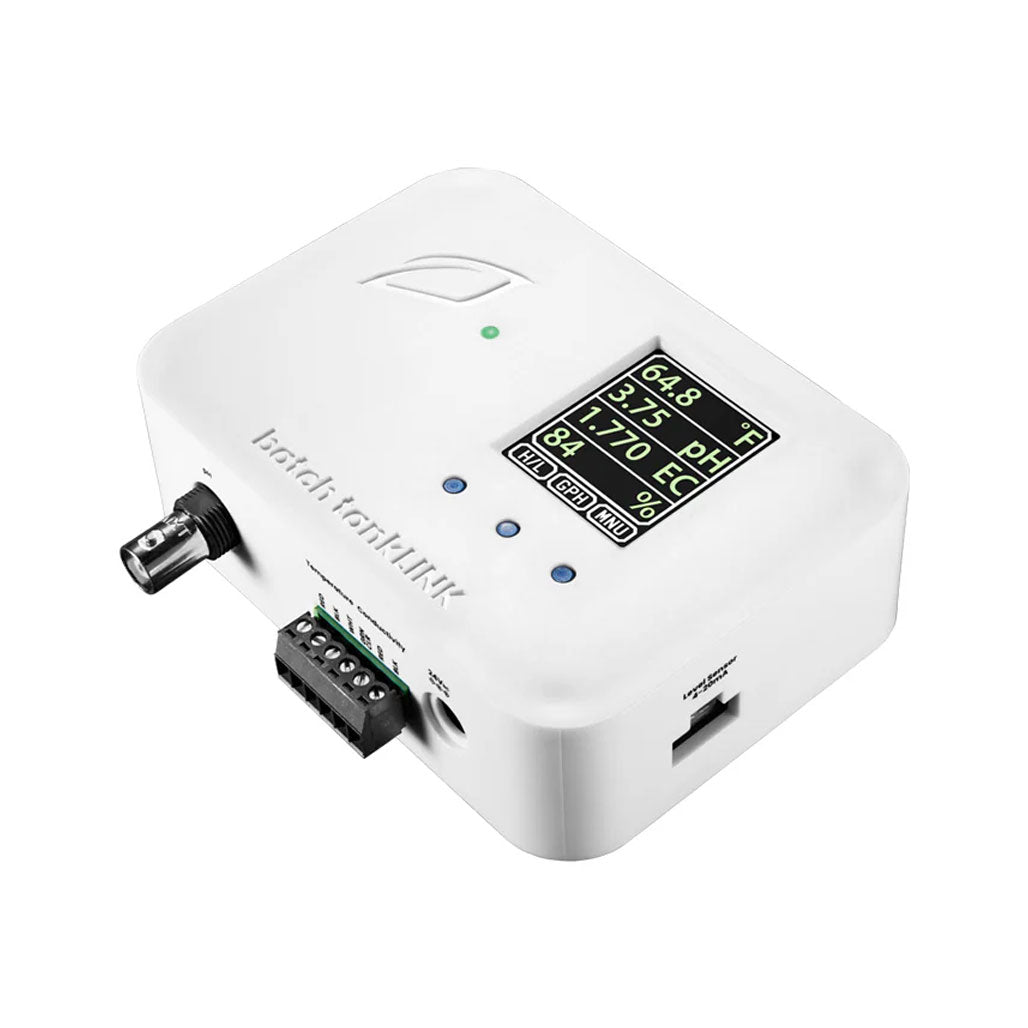

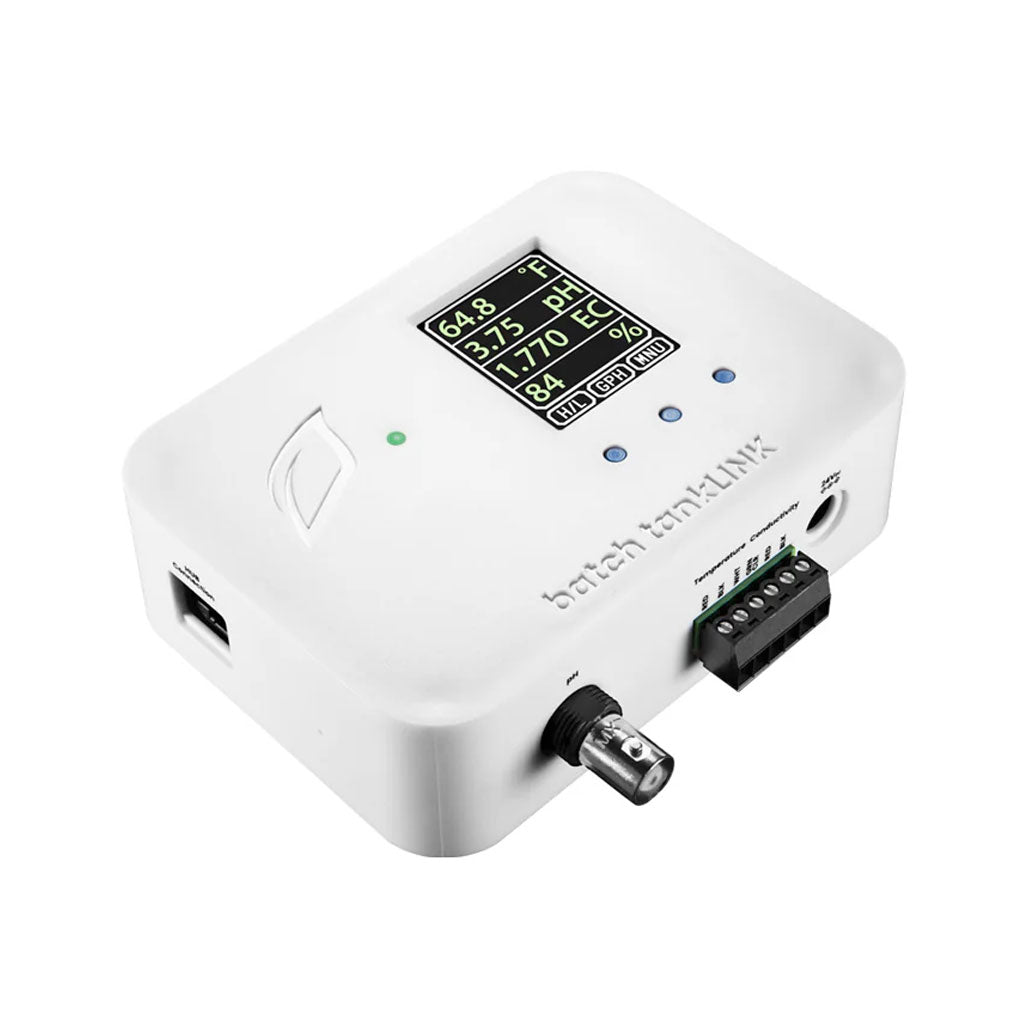

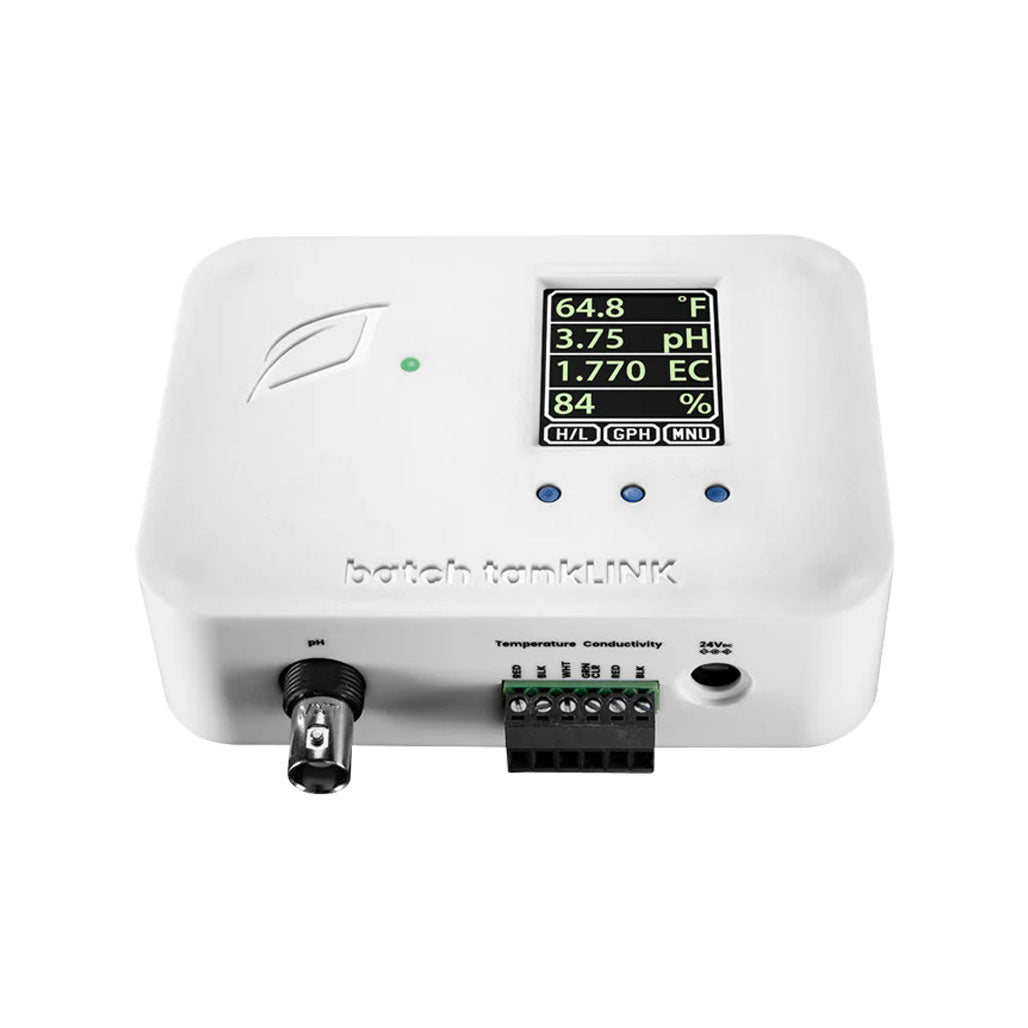

• Functionality Inputs:
  • (1x) RJ-45 Port for Connection to Hub
  • (1x) BNC Connection for pH Probe
  • (1x) Terminal Block for EC and Temperature Probe
  • (1x) Molex Connector for 4-20mA Input (Level Sensor Sold Seperatley)
• Sensors:
  • pH Sensor:
    • Range: 0-14pH
    • Accuracy: ±0.02pH, 0.01pH Res.
  • EC Sensor:
    • Conductivity Range: 0-7000µS, (0-3500ppm), 0-80,000µS (High Salinity/Saltwater Model)
    • Conductivity Accuracy: <2000µS ±20 µS, >2000µS ±50µS; 2µS Resolution
  • Temperature Sensor:
    • Range: -4-140°F (-20-60°C)
    • Accuracy: ±3.6°F (±2°C), 0.02°F (0.01°C) Res
• Package Contents:
  • Batch tankLINK

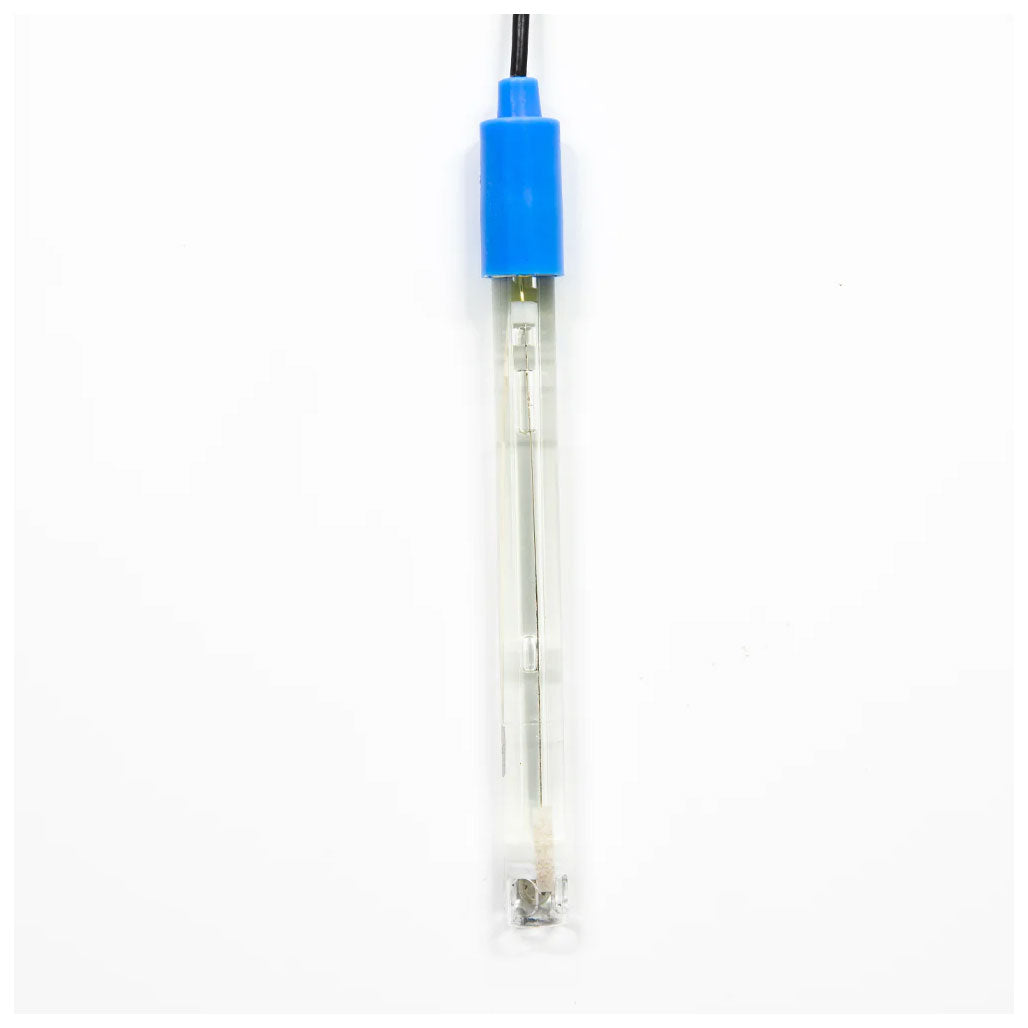

  • pH Probe

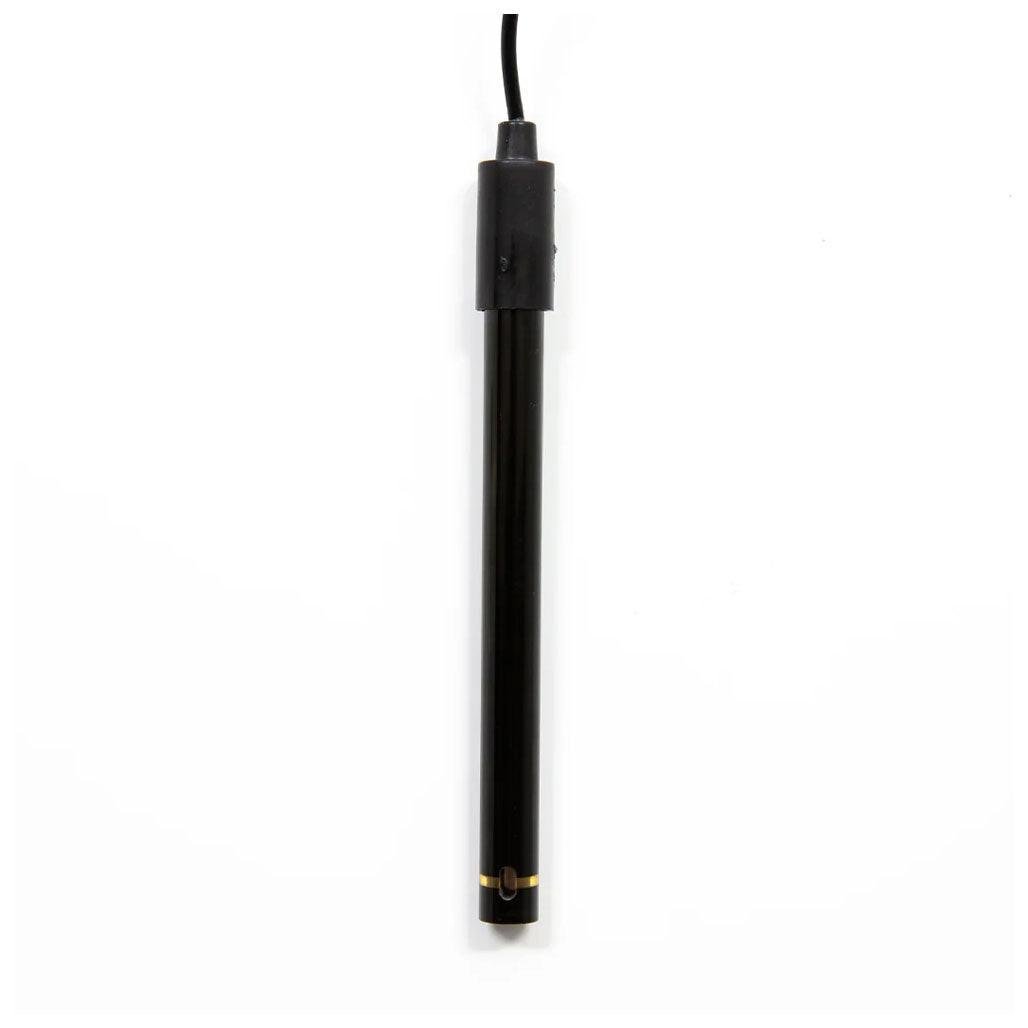

  • EC Probe

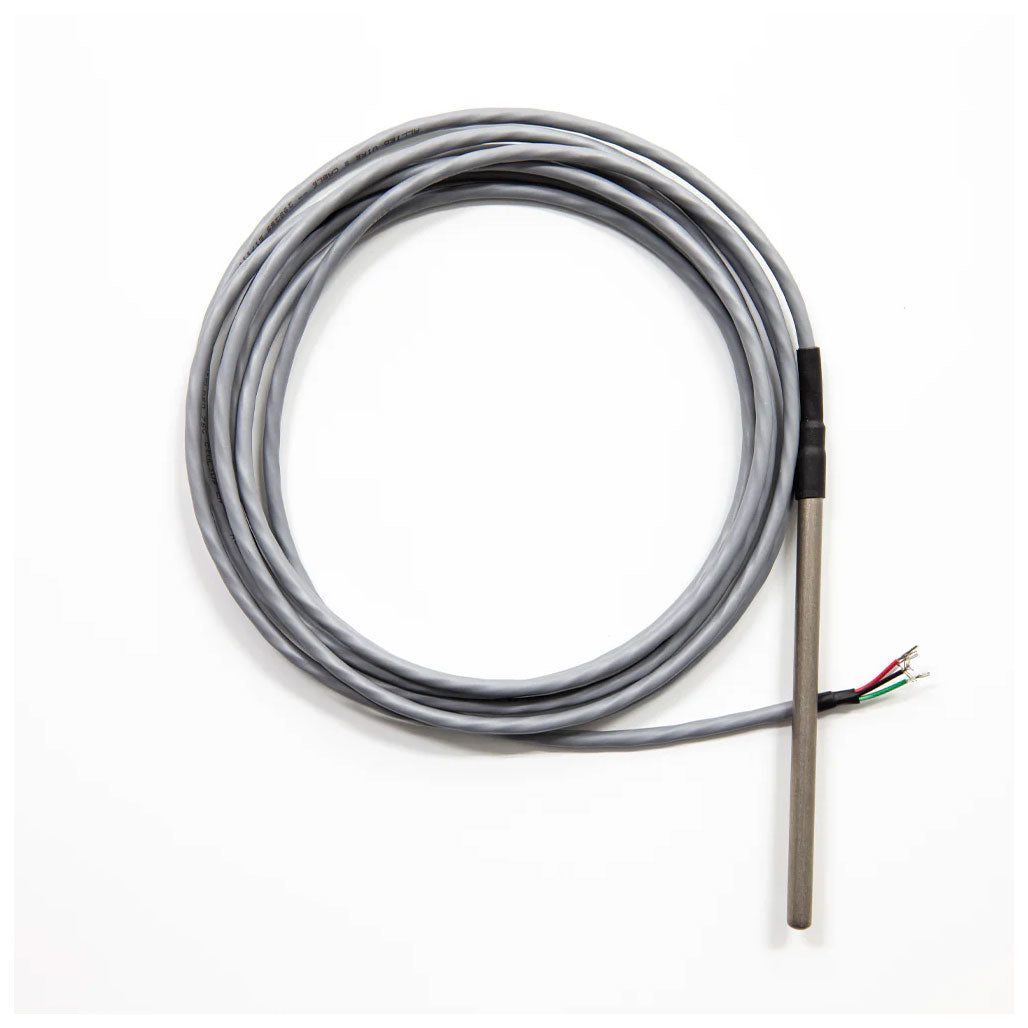

  • Temperature Probe
  • AC/DC Power Supply
  • Mounting Kit
  • 10 ft. RJ-45 Cable
  • Mini Screwdriver
