GreenBroz 215 Sorter Spec Sheet GreenBroz Sorter Instruction Manual GreenBroz Rise Conveyor Spec SheetAutomate Sorting and Move Serious Weight
Eliminate contamination points, mitigate employee repetitive motion injuries and sort well over 300 pounds of dried flower an hour with the Rise-N-Sort System.

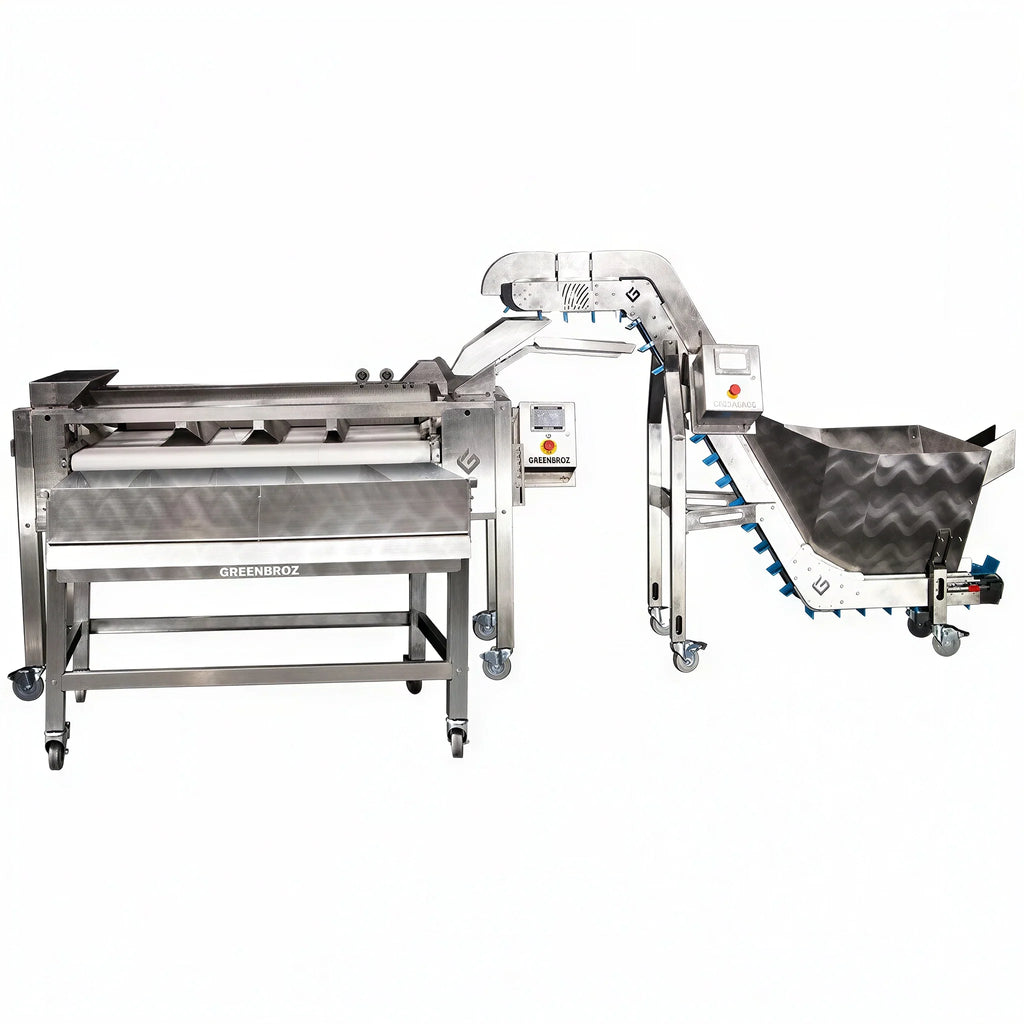

The Rise-N-Sort is comprised of two machines, the GreenBroz Precision Sorter and Rise Conveyor. The machines do not need to be used in tandem. You can apply the Rise Conveyor's metered feeding anywhere in your operation. Both machines are on wheels, so you can reconfigure your processing facility on the fly.
Benefits of the Rise-N-Sort System
- Process 360 lbs./hr.: Organize your flower into different sizes at unparalleled speed.
- Customize Size Sorting: Adjustable sorting bands allow you to tailor each batch to your specifications.
- HMI Digital User Interface: An intuitive touchscreen puts you in total control of your sorting speed.
Gentle On Flower
Potency retention is paramount to the Rise-N-Sort System. Every piece of the machine was designed to preserve the unique quality of flower while processing pounds as fast as possible. Its minimal drop points and no-vibration operation ensures your flower comes out of the system looking pristine.
Limit Harmful Touch Points
Faster sorting times allow your flower to spend less time in the processing phase of your cultivation. Less time being handled by your staff ensures your product retains more of its valuable potency and remains as close to fresh off the stem as possible.

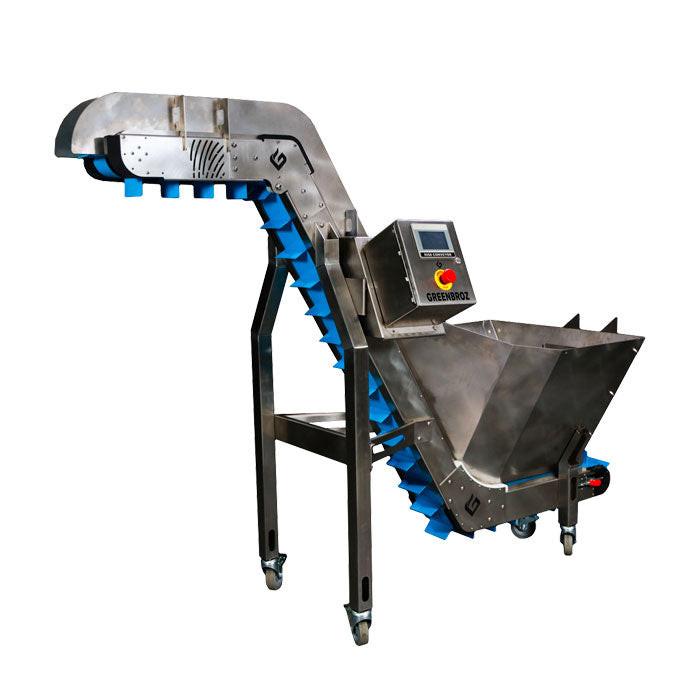

Included: Rise Conveyor
The Rise Conveyor can move 5 lbs, of dried flower a minute in a continuous flow, allowing you to automate and link significant aspects of your production like trimming and sorting. Because of its angled design, the Rise Conveyor is smaller than other available conveyor options, so you don’t have to worry about it taking up valuable real estate inside your facility. Plus, the machine is on wheels, so one person can move it to wherever it’s needed in your facility.
Specifications for the Rise-N-Sort System
- Sort 360 lbs./hour
- Hopper Capacity: 15 lbs.
- HMI Digital User Interfaces
- Whisper Quiet / Washdown Ready Motors
- Construction: Surgical grade 316 Stainless Steel, Food Grade 304 Stainless Steel, Aircraft Grade 6061-T6 Aluminum, HDPE, and Polyurethane
- Units Feature Locking Wheels for Mobility
- Made in the USA
- hree-Year Manufacturer’s Warranty
- System Weight: 650 lbs. (system total)
- Precision Sorter - 300 lbs
- Rise Conveyor - 200 lbs.
- Sorter Table - 150 lbs.
- Adjustable Speed Settings
- Sorting Sizes: Adjustable to User Preference
- Dimensions
- Precision Sorter - 32”W x 49”H x 103”L
- Rise Conveyor -36” W x 63” H x 82” L
- Sorter Table -28” W x 33” H x 50” L
- Precision Sorter Unit Power (US) - 110VAC, 60Hz 6A 660W
- Precision Sorter Unit Power (International) - 220VAC, 50Hz 3A 660W
- Rise Conveyor Unit Power (US) - 110VAC, 60Hz 3A 330W
- Rise Conveyor Unit Power (International) - 220VAC, 50Hz 1.5A 330W
Brand | GreenBroz |
---|---|
SKU | RISE-N-SORT |
Weight (lb.) | 500.0000 |
Prop 65 | false |
Lead Time | This product ships in 10-15 Business Days |
Hazardous Material | false |
ETL Listed | No |
UL Listed | No |
Sorter Throughput | 360 lbs./hr. |
