Delivers A Broad White Light With An Enhanced Blue Spectrum
The Gavita Pro RS 2400e produces 2400 μmol/s at an impressively efficient 3.2 μmol/J and delivers a broad white light with an enhanced blue spectrum which helps to intensify the flavor and aroma profiles.
This powerful, full-spectrum light source is intended for full-term plant growth - from the vegetative stages to higher-light-requiring bloom and finishing stages. Using the Gavita Master EL3 Controller, the fixture is dimmable to 10% without any loss of efficiency. The RS 2400e is built with high-quality components, including Gavita drivers and custom-made Gavita-branded diodes, to deliver the performance and lifespan you expect from the name you trust.
What comes included?
- Gavita Pro RS 2400e LED
- RJ45 Cap
- Dummy Plug
- 10ft RJ45 Dimming Cable
- Safety Wire
- • Y-Hook Hanger
- Power Cord - Select voltage at top
Features & Benefits of the RS 2400e
- High light intensity to help produce higher yields
- Broad white light with an enhanced blue spectrum which may intensify terpene and cannabinoid profiles
- Dimmable down to 10% with the Gavita EL3 Master controller (sold separately)
- Delivers the highest efficiency of any full spectrum, DLC-listed LED fixture at an impressive 3.2 μmol/J *
- Premium Gavita-branded diodes and drivers
- Embedded adapter for maximum controllability with the Gavita EL3 Master controller (sold separately)

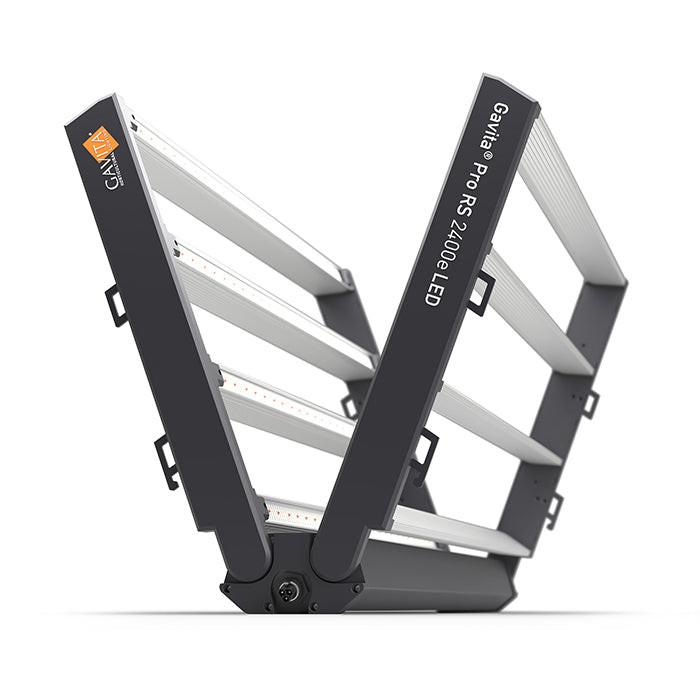

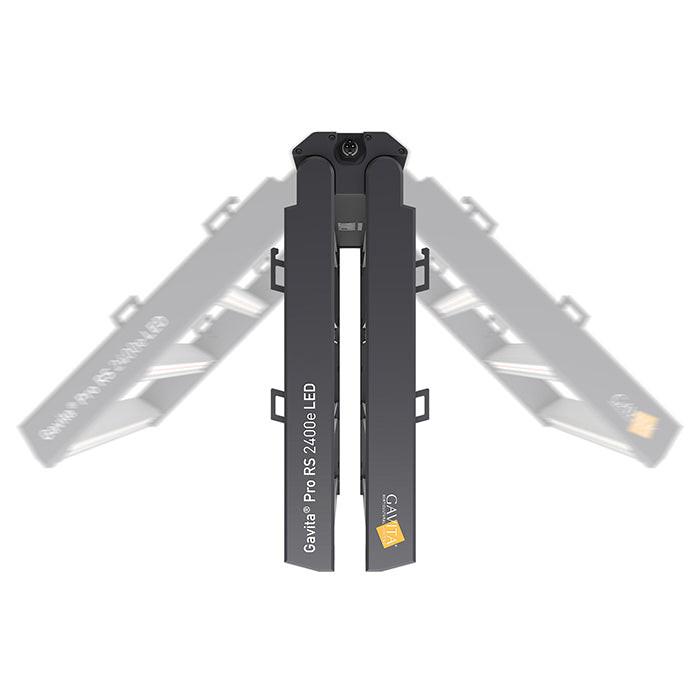

- Foldable 8-rail fixture is a breeze to ship, store, and install
- IP66 wet rating and ANSI/CAN/UL 8800 compliant
- Assembled in the USA using foreign components
- Five-year limited warranty
Increased Yields
This fixture will be able to output PPFD levels close to full sun on a cloud-free day. This will allow growers to maximize bud yield. Research in the primary literature and our own internal studies show a positive correlation between light intensity and bud yield. This is also a very well-established phenomenon in other crops.
Efficiency and Controllability
This fixture produces 2400 µmol s-1 PAR and is incredibly efficient at 3.2 µmol/j. When paired with the Gavita Master EL3 Controller, it can be dimmed down to 10% without any loss of efficiency, connecting up to 512 LED fixtures.
Dimming Curve
The Gavita Pro RS 2400e gains efficiency as the fixture is dimmed down to desired light levels. This allows users to reach higher levels of PPE, leading to even more cost savings.

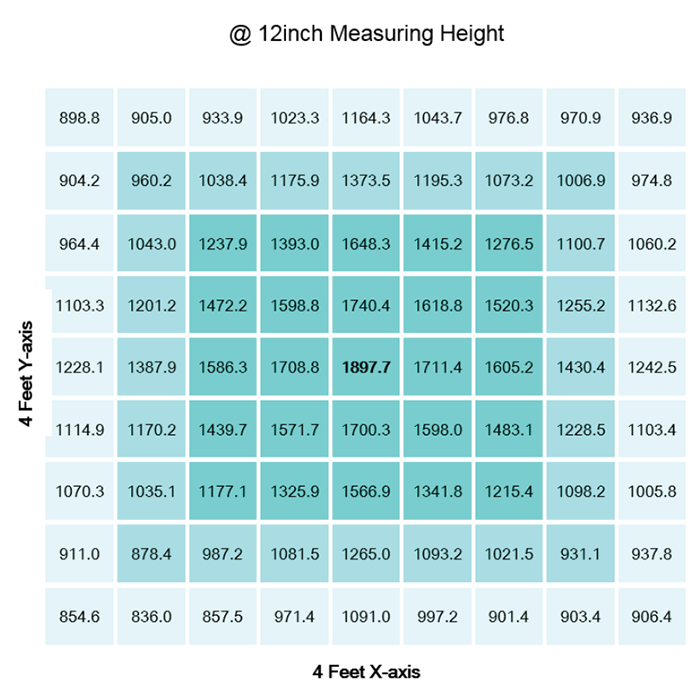

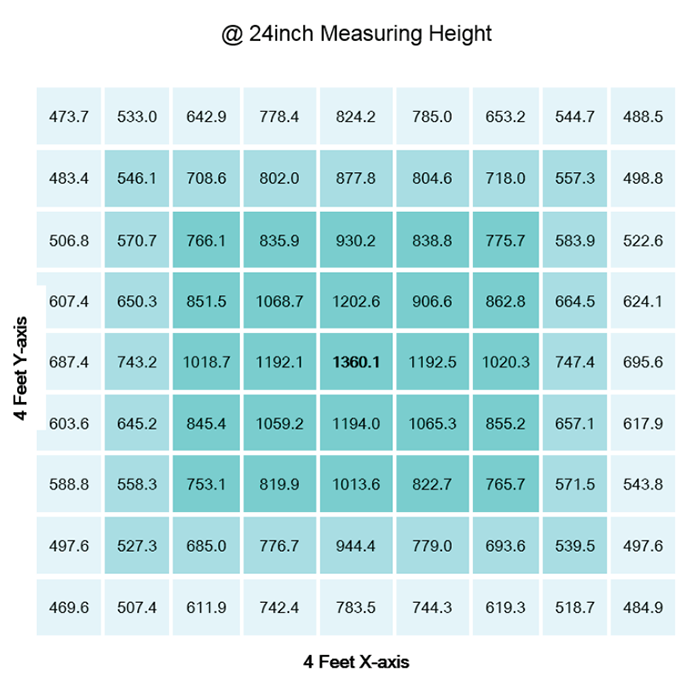

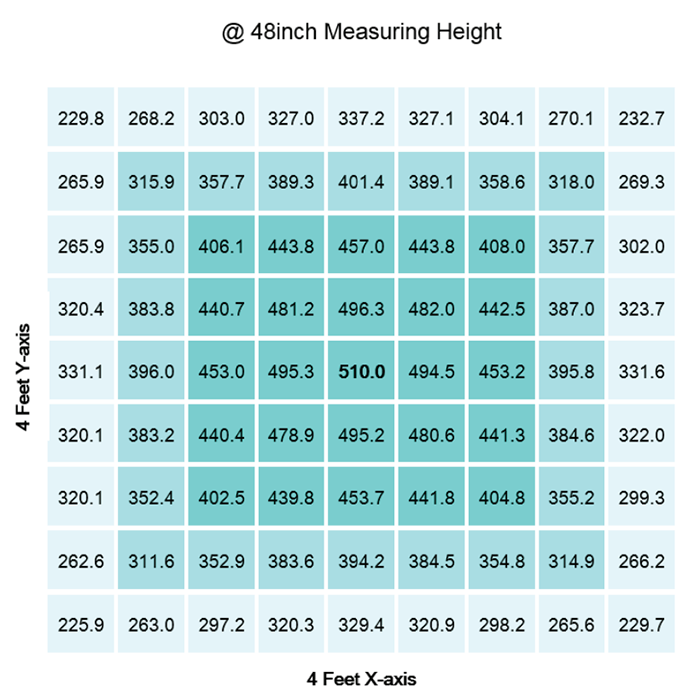

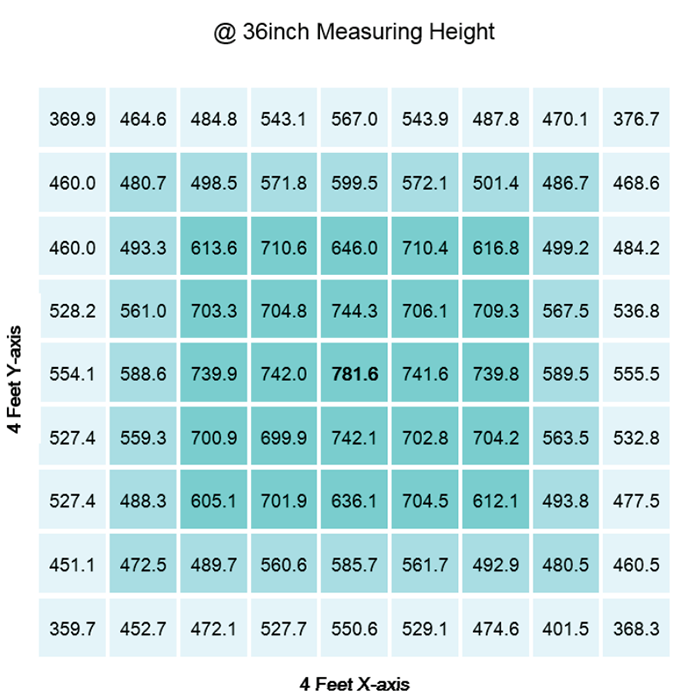

Uniformity (PPFD Map)
The luminaire was tested with the long axis of the luminaire oriented along the y-axis of the plot.
Optional Upgrade: Gavita EL3 Grow Light Controller
- 8-inch touchscreen interface
- Compatible with Gavita® e-Series fixtures
- Controls up to 512 fixtures
- Easily updatable via USB
- Spray feature dims lights to help protect against crop burn during spray applications
- Data logging saves setting history for trend and performance data
- Three-year limited warranty
Designed to maximize the performance of your compatible fixtures. An 8-inch touchscreen interface provides a clear and colorful display. With this unit, you can control up to 512 fixtures across two zones, making it possible to customize settings for different rooms or growth phases.
The EL3 enables you to set sunrise/sunset dimming, high-temperature dimming, and high-temperature shut-off for all connected fixtures. Best of all, the EL3 lets you build and program entire schedules for your growing cycles.
Specifications for the RS 2400e
| Input Voltage +/- 10% | 208-480Volts |
|---|---|
| Input Watts +/- 7% | 750 Watts |
| Current | 3.6 - 1.56 amps |
| Heat Load | 732.9 Btu/hr |
| Frequency | 50/60 Hz |
| Power Factor | > 0.95 |
| IP Rating | IP66 |
|---|---|
| Dimensions | 43.25" x 44.8" x 3.3" |
| Power inlet | Wieland RST 20i3 connector |
| External dim | Gavita EL3 Master Controller |
| External control signal | RJ connector (8P6C) |
| Warranty | 5 Year warranty |
| Brand | Gavita |
|---|---|
| SKU | GAVITA-RS2400E |
| Hazardous Material | false |
