Gavita Master Controller EL3 Instruction ManualThe Gavita EL3 is the next generation in our EL controller series
Designed to maximize the performance of your compatible fixtures. An 8-inch touchscreen interface provides a clear and colorful display. With this unit, you can control up to 512 fixtures across two zones, making it possible to customize settings for different rooms or growth phases. The EL3 enables you to set sunrise/sunset dimming, high temperature dimming, and high temperature shut-off for all connected fixtures. Best of all, the EL3 lets you build and program entire schedules for your growing cycles.
What Comes In The Box?
- Gavita EL3 Controller
- Mounting plate and hardware
- Power adapter
- Equipment wires
- USB dongle
- Gavita El3 to Titan Sensor Cable - For Triton Substrate Sensor & Tali VPD Sensor
Compatible with:
Features & Benefits

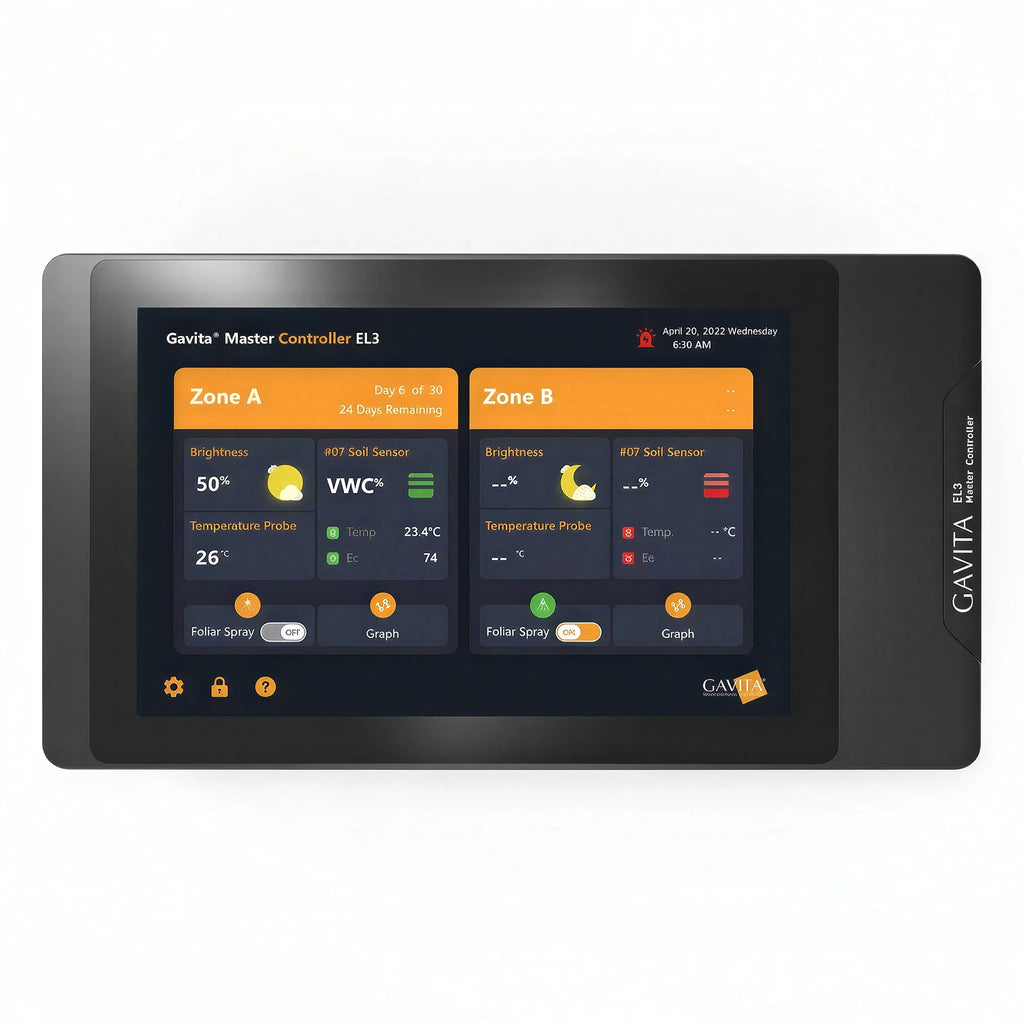

- 8-inch touchscreen interface
- Compatible with Gavita® e-Series fixtures
- Controls up to 512 fixtures

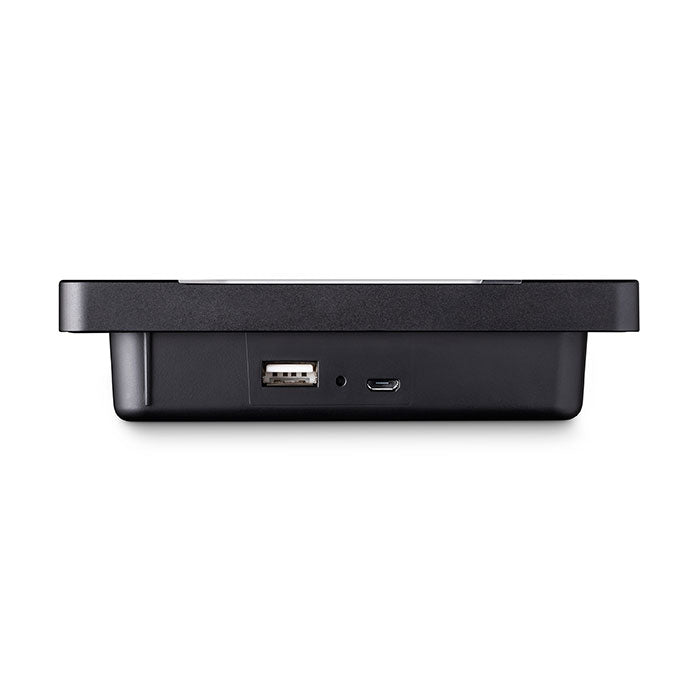

- Easily updatable via USB
- Spray feature dims lights to help protect against crop burn during spray applications
- Data logging saves setting history for trend and performance data
- Three-year limited warranty
Switch, Dim, and Boost Centrally
Control light cycles and output from a single point.
Simple Programming
Program with ease using the included instructional overlays.
Data Logging
Track information on past and present light and alarm conditions with logging features. Toggle between zones and set multiple parameters for growing environment insights.
Auto-Dim for Crop Safety
Automatically dims lights to help plants survive extreme heat conditions.
Memory
Non-volatile memory stores user settings in the event of a power outage.
Independent Light Cycles on EL3 Models
Set overlapping cycles. (For example, a 12/12 on channel one and 18/6 on channel two.)
Separate Sunrise/Sunset
Set different times for sunrise and sunset.
Easy Installation
Simple plug-and-play installation. Controller comes with communication cables to connect to compatible Gavita LED fixtures.
Auto-Shutdown for Crop Protection
Automatically switches-off lights to help prevent crop damage if cooling or ventilation fails.
Software Updates
Download and install new software updates from the Gavita website for improved performance.
Specifications for the EL3 Controller
| Adapter Input | 100-240 V, 50/60 Hz 1.5 A |
|---|---|
| Controller Input: | 15 Vdc, 3 A |
| Certified / Authorized: | ETL, FCC |
| Enclosure protection level: | IP20 |
| Maximum cascade distance | 800m |
| Maximum number of luminaires | 512 (256 per zone) |
| Number of sensors that can be carried | 16 |
| Temperature range | 32-122°F (0-50°C) |
|---|---|
| Working environment | Humidity ≤ 90% |
| External dimming output accuracy | 1% |
| Operating temperature | 32-122°F (0-50°C) |
| Temperature accurac | ±0.54°F (T-A, T-B) |
| Dimensions | Weight | 9.84" x 5.41" x 1.38" | 3.75 lbs. |
| Warranty | 3 year |
| Brand | Gavita |
|---|---|
| SKU | HGC906174 |
| Weight (lb.) | 6.0390 |
| Length (in.) | |
| Prop 65 | false |
| Width (in.) | |
| Height (in.) | |
| Lead Time | This product ships in 7-10 Business Days |
| Hazardous Material | false |
| UPC | 849969000436 |
| UL Listed | No |
| ETL Listed | No |
