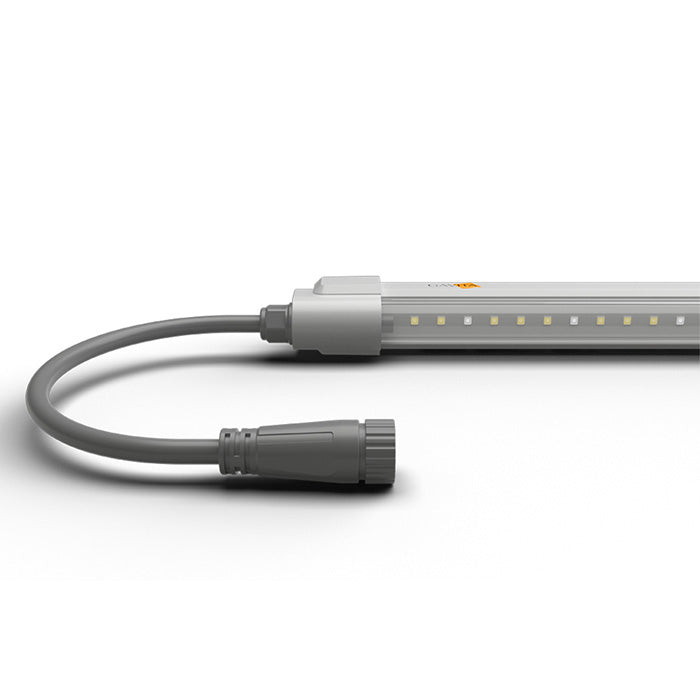

Gavita LED Clone Bar Instructions Gavita LED Clone Bar Sell Sheet Gavita LED Clone Bar Spec SheetThe Gavita LED Clone Bar is specifically designed for cloning and propagation, providing growers with an efficient and reliable solution to enhance the early growth stages. Consuming only 18 watts and offering precision-engineered light output of 35 µmol/s at an efficiency of 2.0 µmol/j to ensure healthy and robust clones.
The Gavita LED Clone Bar is an energy-efficient lighting solution for cloning and propagation with low power consumption at only 18 watts to minimize operational costs.

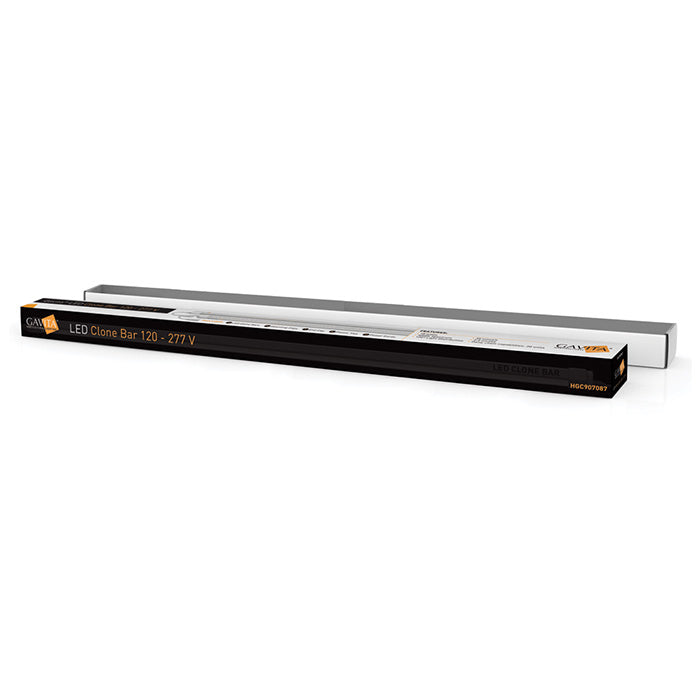

What's in the box:
- Gavita LED Clone Bar 120 - 277 (2x)
- 120 V Power Cord (1x)
- Standard Mounting Clip (4x)
- Plastic Tie (4x)
- End Cap (1x)
Features & Benefits
The Gavita LED Clone Bar delivers a 9000K spectrum, specifically tailored to support early-stage plant development. The Gavita LED Clone Bar is ideal for nursery applications of all sizes, with the ability to daisy chain up to 20 units. 2 LED Clone Bars, mounting hardware, and a 120 V power cord are included within each package.
- 9000K Spectrum
- 120° wide light distribution
- Each bar delivers 35 µmol/s at an efficient 2.0 µmol/j
-
Certifications & Warranty
- When purchased from an authorized Hawthorne dealer, this product is covered by a five-year limited warranty
- IP66 wet rating and ANSI/CAN/UL 8800 compliant
- ETL Listed
Cost Saving
The Gavita LED Clone Bar is an energy-efficient lighting solution for cloning and propagation, with low power consumption at only 18 watts to minimize operational costs.
Scalability and Versatility

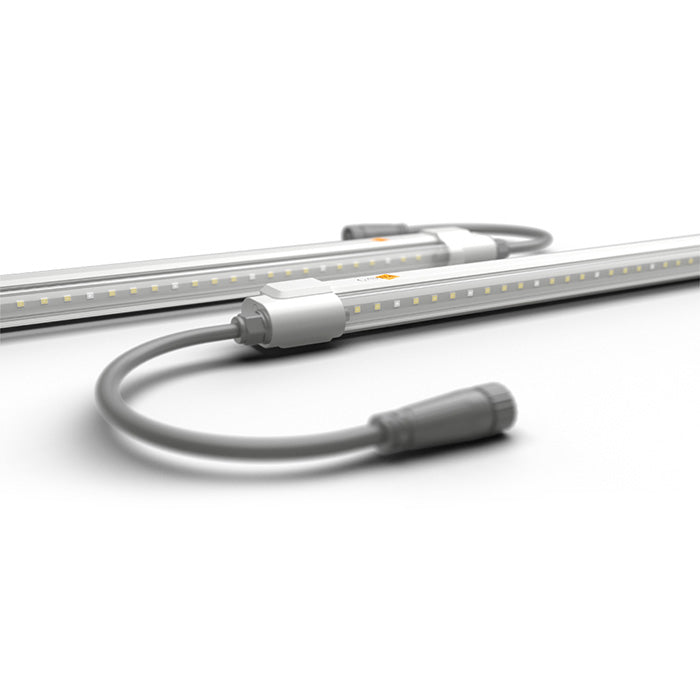

With its slim profile, the Gavita LED Clone bar is ideal for compact and large areas alike. The ability to daisy-chain up to 20 fixtures allows growers to easily install and expand, no matter the size of their setup.
Specifications
| Voltage | 120-277 V |
|---|---|
| Current at 120 V | 0.161 A |
| Current at 240 V | 0.088 A |
| Current at 277 V | 0.076 A |
| Frequency | 60 Hz |
| Watts | 18 W |
|---|---|
| Max Ambient Temp | 40° C |
| Power Factor | 0.95-0.89 |
| Dimensions | 44.09 in x 1.15 in x 1.46 in |
| Weight | 0.835 lb |
| Brand | Gavita |
|---|---|
| SKU | HGC907087 |
| Weight (lb.) | 5.8000 |
| Prop 65 | true |
| Length (in.) | |
| Width (in.) | |
| Height (in.) | |
| Warranty | 5 Year |
| Lead Time | This product ships in 7-10 business days |
| Hazardous Material | false |
| UPC | 849969002317 |
| Case/Pack/Pallet Amount | 2 |
| Lighting Type | LED |
| LED Light Spectrum | Veg Spectrum |
| LED Fixture Type | Clone Light, Bar/Strip |
| Est. Electricity Cost /mo | 0.77 |
| Exact Watts | 18 Watts per bar (32 Watts Total) |
| PAR Efficiency | 2.0 umol/J |
| Total PPF Output | 35 umol/s |
| Daisy Chain | Yes - 20 units |
| Voltage | 120 Volts |
| Amps | 0.161 Amps @ 120 Volts, 0.088 Amps @ 240 Volts, 0.076 Amps @ 277 Volts |
| Frequency | 60 Hz |
| Power Cord(s) Included | Yes - 120 Volt |
| Grow Light Certifications | IP66 Rated, ETL Listed, UL Listed, CSA Listed |
| ETL Listed | Yes |
| UL Listed | Yes |
