Faven Lighting Product Documents

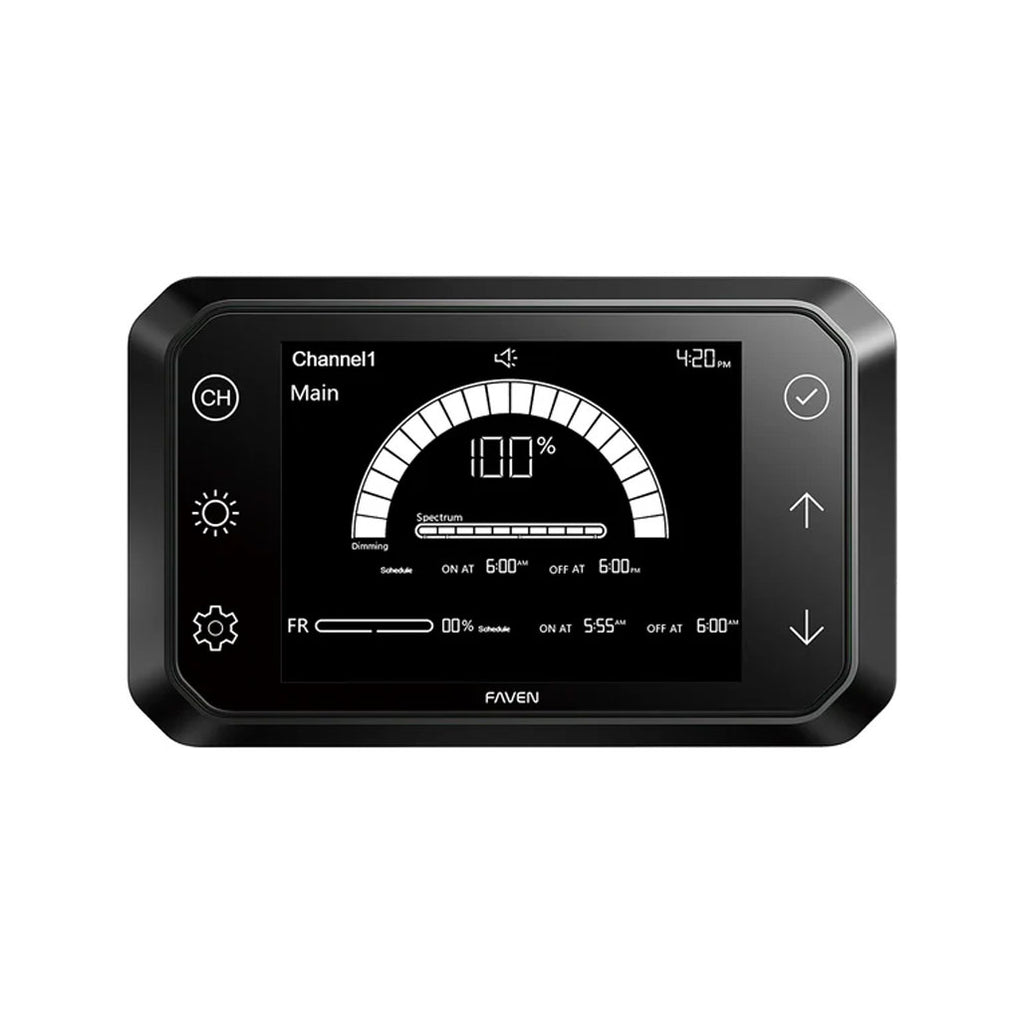

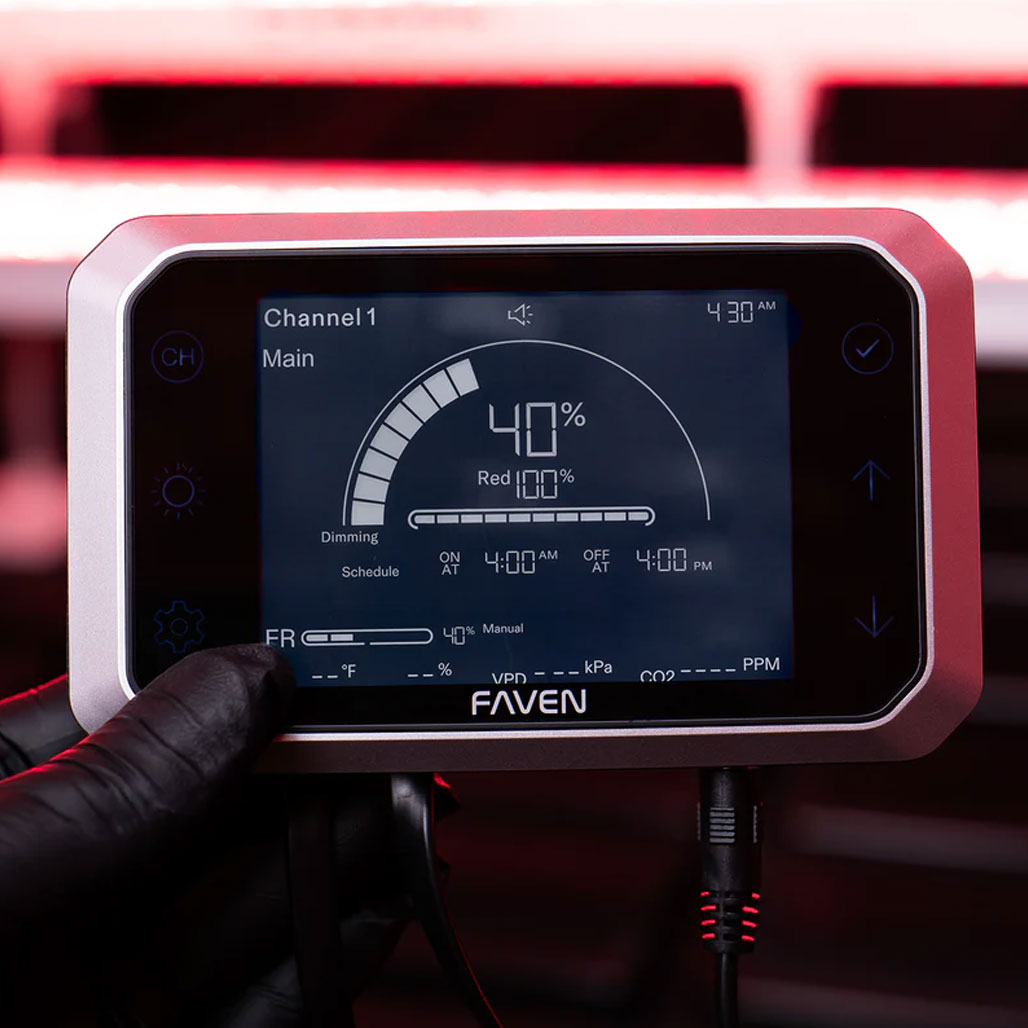

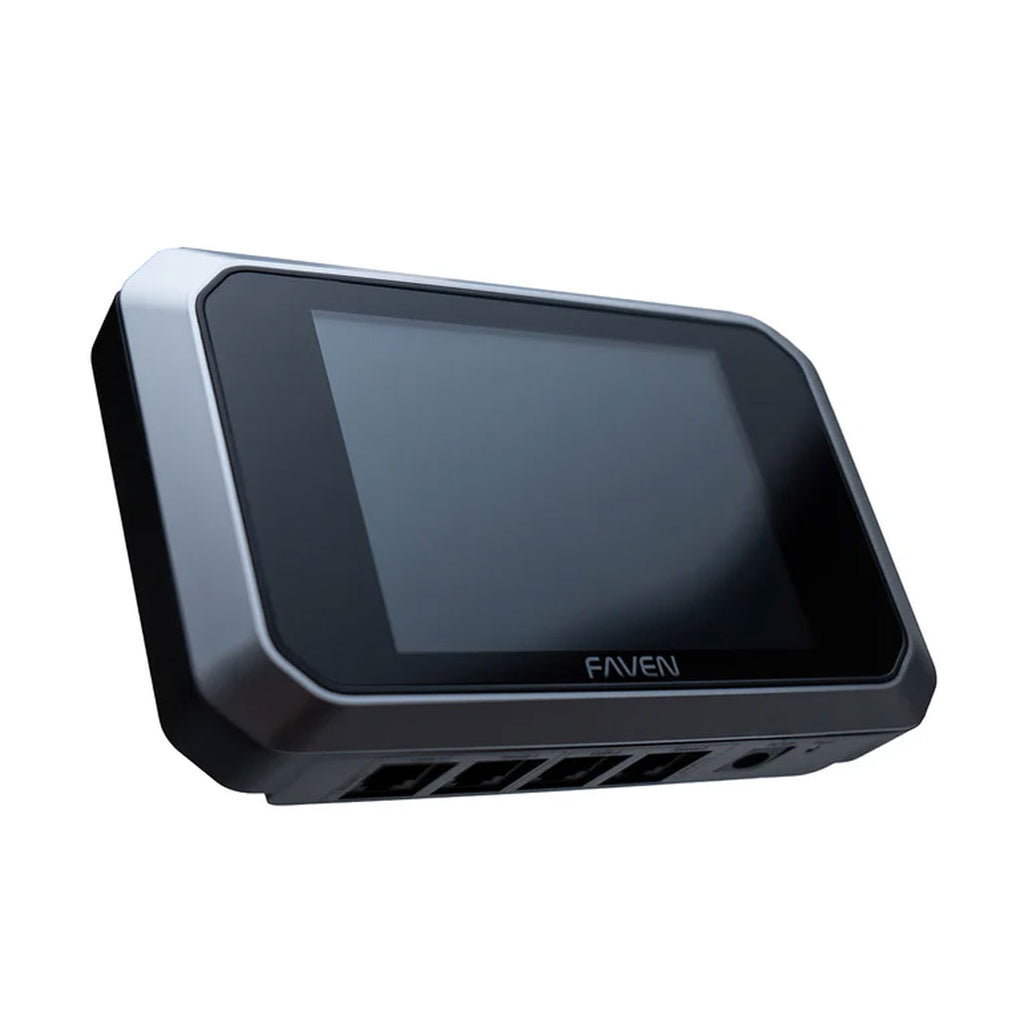

Faven Lighting CX2 Smart Controller User User ManualThe Faven CX2 is a standalone lighting controller built exclusively for Faven Chroma fixtures. Designed with smaller cultivators and first-time Chroma users in mind, the CX2 delivers simple, reliable control without the need for third-party systems.
With two independent channels, it offers direct dimming, spectrum adjustment, and far-red scheduling—giving growers flexible options to fine-tune their lighting environment. The CX2 supports both manual operation and time-based scheduling, making it easy to dial in lighting strategies.
Built for simplicity, the CX2 is fully hand-operated and does not offer remote access. Each line supports up to 100 fixtures (and in some cases up to 150), providing scalable control for a wide range of grow spaces.
NOTE: This controller is only compatible with our Chroma model.
Faven CX2 Smart Controller Included Products
- CX2 Smart Controller
- Iron Mounting Plate
- 2x Expansion Screws
- 4x Cable Ties
- 2x Wire Ties
- Power Adapter
- User Manual
What is the Faven CX2 Smart Controller?
The CX2 is Faven's proprietary controller required to operate Chroma fixtures. Since the Chroma runs on Faven's own digital control protocol rather than standard 0-10V, a CX2 (or an integrated panel that supports Faven's protocol) is required to unlock spectrum control and independent far red channel access.
How many Chroma fixtures can one CX2 support?
One CX2 controller supports up to 150 Chroma units.
Do I need a CX2 if I already have a lighting control panel?
It depends on your panel. Faven is fully integrated with Growlink — if you're running Growlink, you can plug your standard RJ12 connection directly into the Growlink system to control Chroma fixtures without a separate CX2. Faven is also in discussions with other panel manufacturers to add native protocol support. For all other control platforms, the CX2 is currently required.
Will a CX2 work with R6 or R8 fixtures?
R6 and R8 fixtures use standard 0-10V control and don't require the CX2. The CX2 is specifically built to run Faven's digital protocol for the Chroma line.
How does far red scheduling work on the CX2?
The CX2 supports multiple lighting cycles per schedule. Far red timing — such as running the far red channel for 5 minutes immediately after the top lights turn off — is set up directly on the controller's interactive schedule graph, with no additional hardware required.
