EZTRIM Product Documents
The EZ Air is a fully adjustable and customizable sub canopy air flow system for multi-tier and single-tier grows.
The EZ Air enhances photosynthesis and greatly mitigates powdery mildew and botrytis pressure by injecting fresh, CO2 rich air directly into the underside of the canopy, flushing out the stagnant, moist air that surrounds the leaf.
Multiple studies have shown that insufficient airflow limits photosynthesis by suppressing gas diffusion in the leaf boundary-layer (this is the area of still, moist air that surrounds the leaf). With increasing airflow, the boundary area becomes thinner and more gas diffusion can take place through the stomata which is located on the underside of the leaf. With more CO2 diffusion into the leaf, photosynthesis increases thus increasing yield.
Features & Benefits
The EZ Air can be configured for sub canopy and above canopy airflow as a single, double or quad run for each tier. The available mounting hardware provides for complete adjustability of the x, y and z axis of the fan creating greater flexibility for various planting densities while simultaneously allowing the airflow tube to remain in contact with the underside of the canopy as the plants increase in size.
- Can be configured for sub-canopy and above canopy airflow
- Single, double or quad run for each tier
- Mounting hardware provides for complete adjustability
- Ez Air utilizes an 8” 735 CFM inline fan
- 6" polyethylene duct forcing air with 1/2" holes
- Units comes with 40′ of tubing
The Ez Air utilizes an 8” 735 CFM inline fan to pressurize a 6” polyethylene duct forcing air through ½” holes that are spaced every 6” at the ten and two position on the duct.
This airflow can be measured at a rate of 4 meters per second at each hole and up to 2 meters per second when measuring the airflow 2 feet away from the duct.
Specifications
- Material exposed to plants: Polypropylene tubing – 2mil
-
UL certified components:
- 8" Inline fan
- On/Off Switch
- Voltage: 120 VAC
- Amps: 1.6 Amps
- Watts: 205 Watts
- CFM: 735 CFM
- RPM: 2450 RPM
Dimensions
Single Fan
- Weight: 11 lbs.
- Ship weight: 14 lbs.
- Assembled Dimensions: 24" x 24" x 12"
- Ship Dimensions: 16" x 16" x 24"

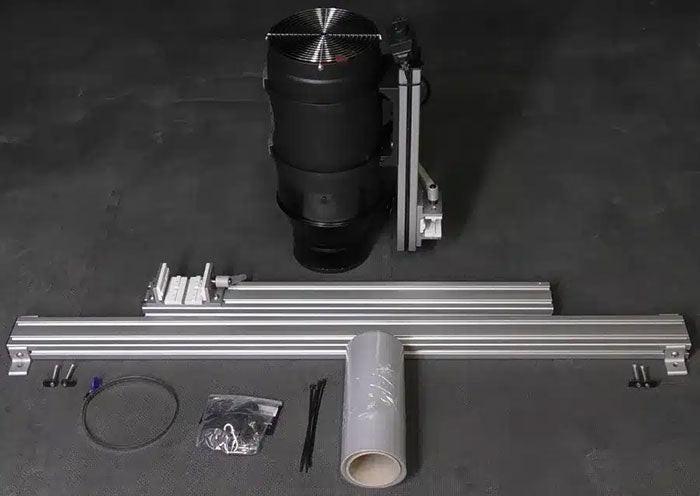

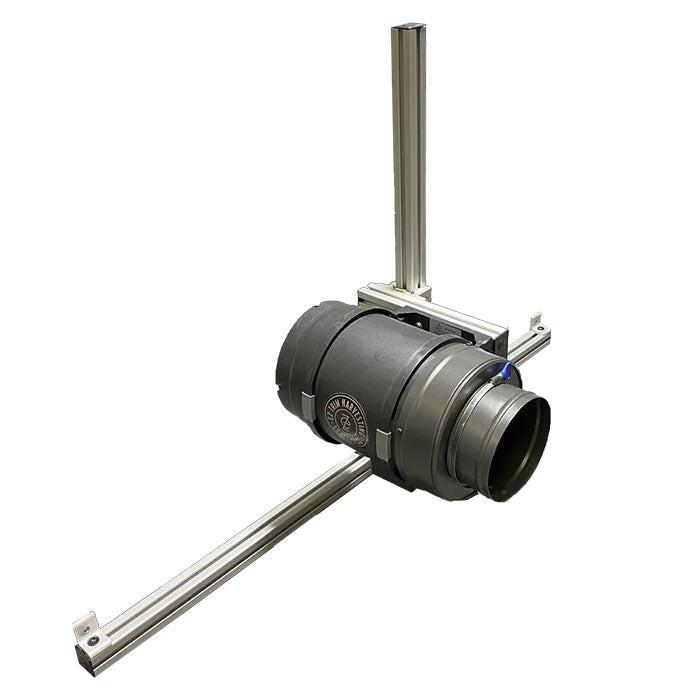

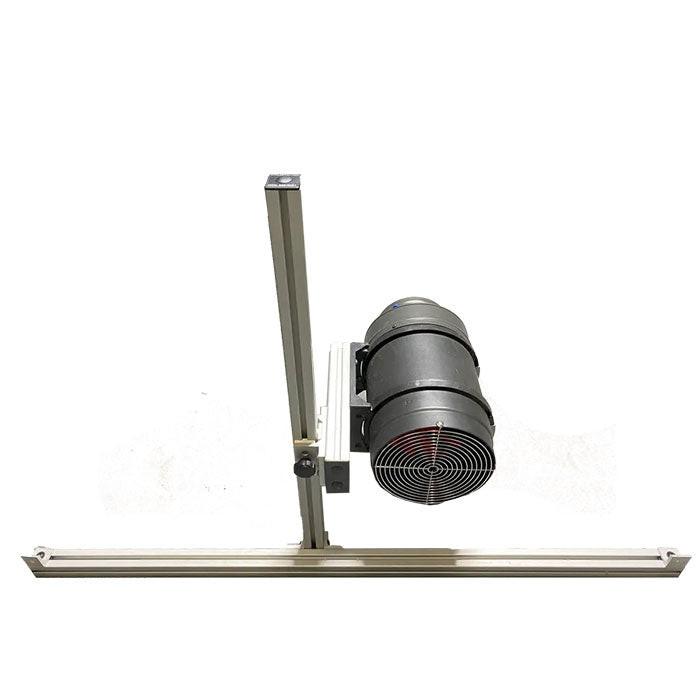

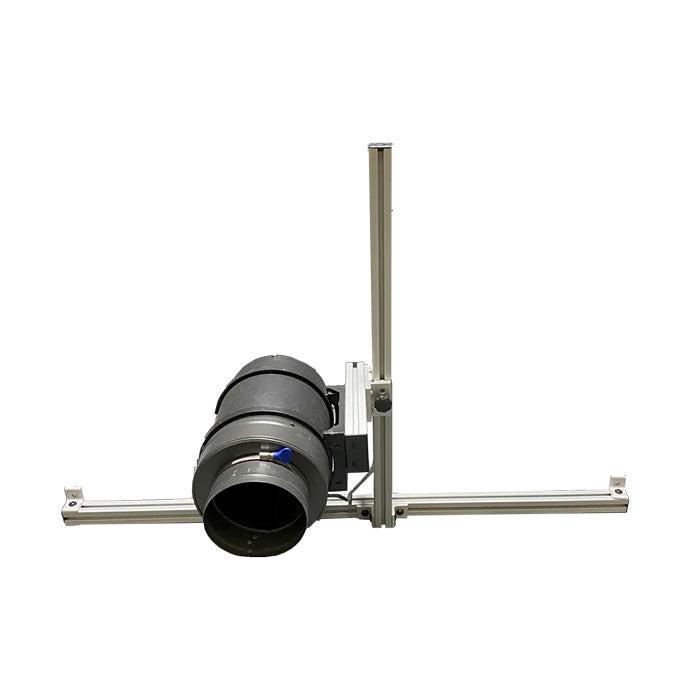

Single Fan w/ Mounts
- Weight: 27 lbs.
- Ship weight: 30 lbs.
- Assembled Dimensions: 48" x 30" x 24"
- Ship Dimensions (Box 1): 16" x 16" x 24"
- Ship Dimensions (Box 2): 52" x 8" x 8"
Double Fan w/ Mounts
- Weight: 45 lbs.
- Ship weight: 50 lbs.
- Assembled Dimensions: 48" x 30" x 24"
- Ship Dimensions (Box 1): 24" x 24" x 12"
- Ship Dimensions (Box 2): 52" x 8" x 8"
Note: Units comes with 40′ of tubing
| Brand | EZTRIM |
|---|---|
| SKU | EZ-AIR-1-M |
| Weight (lb.) | 30.0000 |
| Lead Time | This product ships in 2 business days |
| Height (in.) | |
| Width (in.) | |
| Length (in.) | |
| Prop 65 | false |
| Hazardous Material | false |
| Fan Type | Inline |
| Oscillation | No |
| CFM Rating | 735 CFM (1 Fan) |
| Exact Watts | 205 Watts |
| Amps | 1.6 Amps |
| Voltage | 120 Volts |
| Max. RPM | 2450 RPM |
| ETL Listed | No |
| UL Listed | No |
| Sub-Canopy Airflow Configuration | 1 Fan with Adjustable Mounts |
