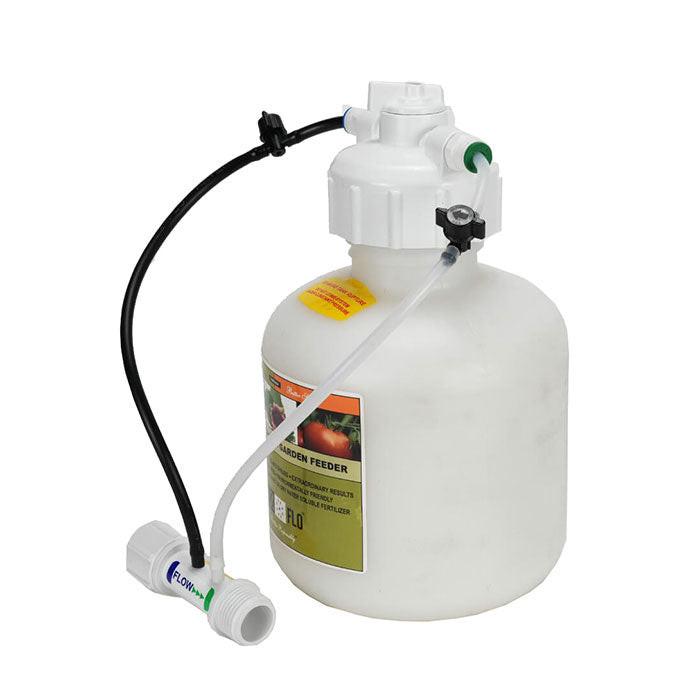

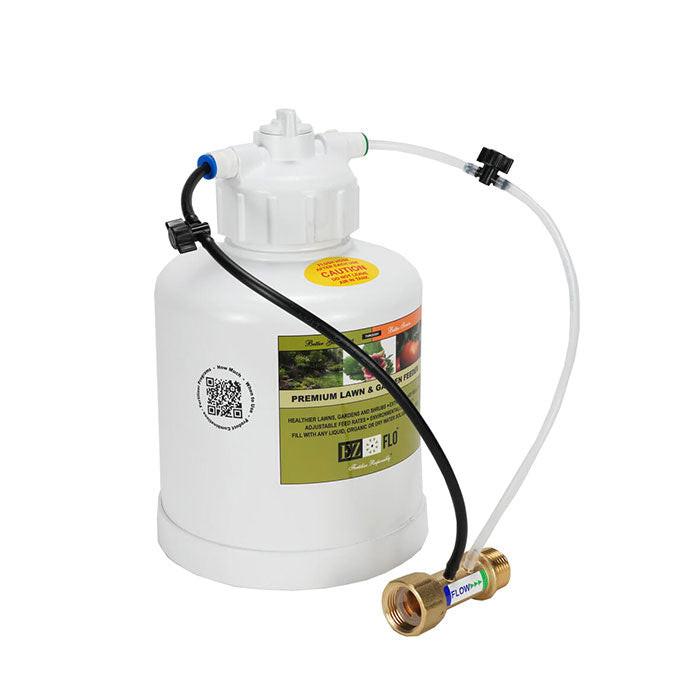

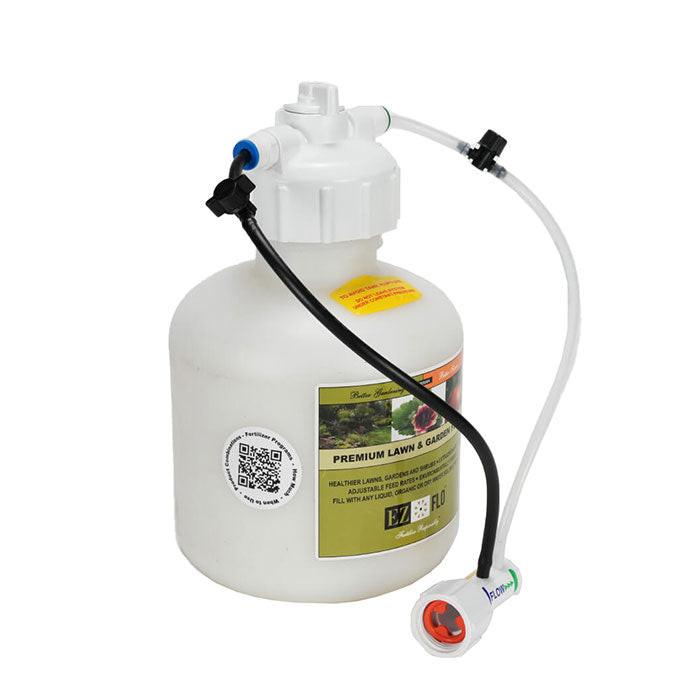

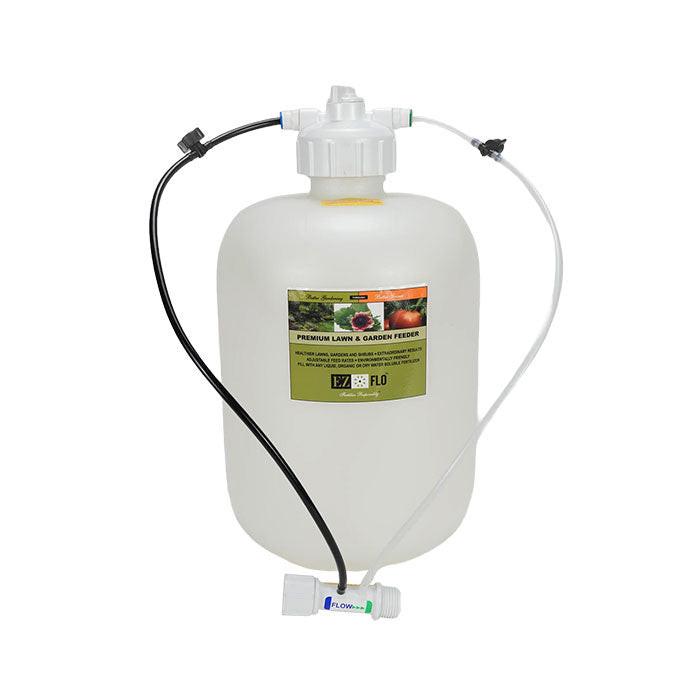

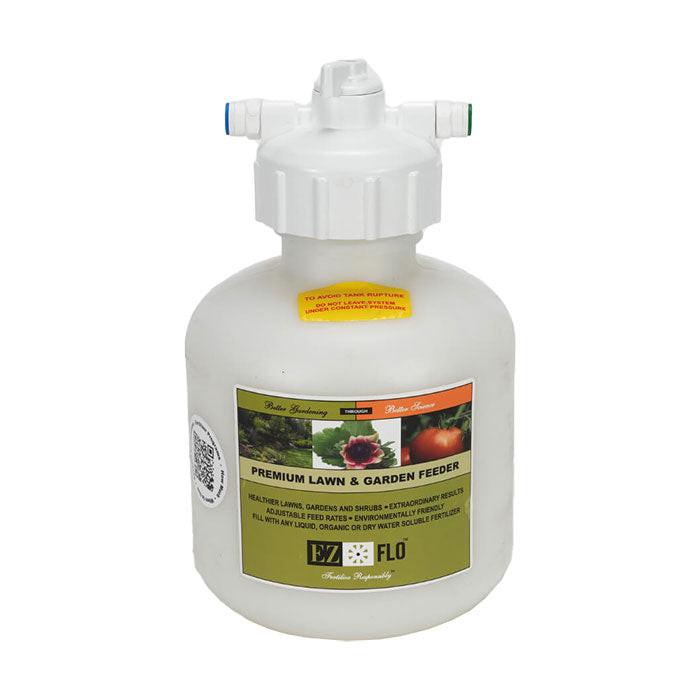

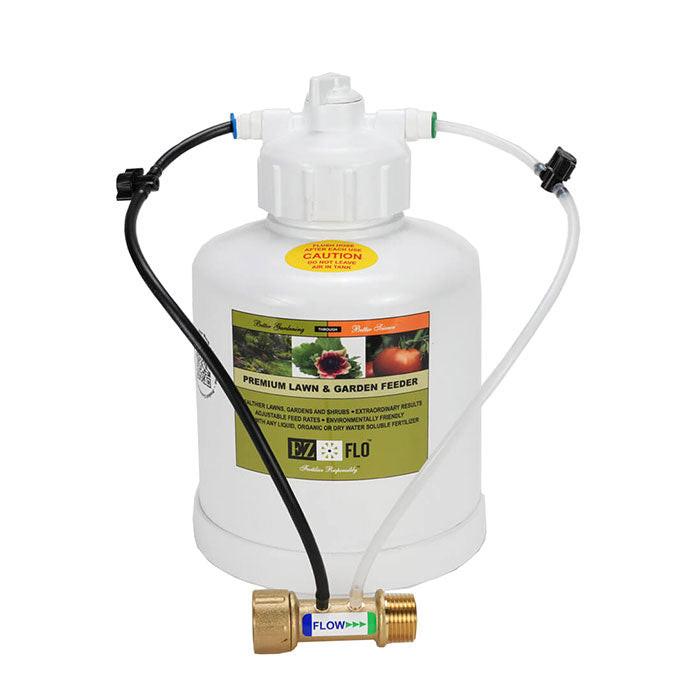

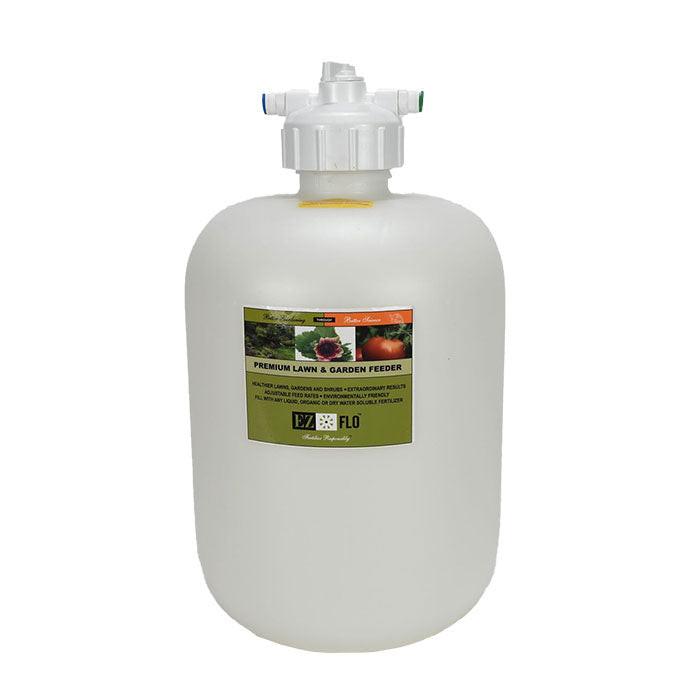

Hose Bib Fertigation Systems
Hose Bib units can be used by any homeowner, nursery or grower simply by attaching it to a standard water faucet. All parts for installation are included with the system.
- Backyard Hobbyist & Enthusiasts
- Low Cost Fertigation / Injection
- Vegetable Gardens
- Targeted Product Applications
Forget using watering cans, backpack sprayers and plain old water, join thousands of other Americans using EZ-FLO to boost the health and look of their lawns, vegetable plots and gardens. Simply fill EZ-FLO with your chosen fertilizer or nutrient and start utilising every drop of water from your garden hose to deliver the nutrients and fertilizer your plants and lawn need.
Super quick to set up and super simple to use. EZ-FLO’s Hose and Drip systems connect directly to your outdoors water faucet. The fertilizer or any water soluble product goes through the tubes to join up with your water source. Now you’re fertigating like a pro directly from your garden hose! The Hose Bib units are the most economical choice you can make. They’re big enough to not need constant refilling. Easy to attach and detach from your faucet. And compact enough to move around when you need to fertigate other areas.
EZ-Flo is not JUST for fertilizer
You can use a huge range of liquid and water-soluable products with EZ-FLO
Soil Wetters
Effectively improve hydrophobic soil and stop wasting water to run off. Thanks to EZ-FLO, it’s easy to get soil wetters where they’re needed – the soil.
Soil Improvers
Keeping your soil healthy has never been easier. Utilise every drop of water you put on your lawn or garden to transfer beneficial soil improvers to exactly where it’s needed – the soil.
Critter & Insect Control
Your EZ-FLO is perfect for applying insect and critter repellents. Adjust to your preferred dilution rate and connect your nozzle or sprinkler.
So Much More
Bio-Stimulants, Iron supplements and more. The EZ-FLO is changing the way American businesses fertilize.
Why EZ-Flo?
EZ-FLO is trusted by thousands of homeowners and commercial businesses across the world to deliver amazing results to turf, crops, vegetables and any plant that requires water.
- Makes your plants and landscape grow more beautifully
- Is low-cost, convenient, and super easy to use, and
- Is environmentally responsible and resource saving
Fertigation With EZ-Flo
Traditional fertilization is a water and labor-intensive process. The EZ-FLO patented process of delivering solutions to your landscape eliminates the need for additional labor and water. By adding these products to the irrigation system, typically in combination, you are able to solve a wide variety of landscape issues all at once with minimal labor required. With the EZ-FLO system, you can treat a six-acre park or a home landscape in minutes versus hours.
Works with all types of irrigation: Rotor, Spray, Drip, & Many More
Ez-Flo Technology
Our patented process is centered around the controlled delivery of products over a period of time. EZ-FLO can deliver a solution within minutes or weeks from the same system without the need for complicated adjustments or programming or premixing.
The EZ-FLO Dynamic Suspension process stratifies the solution into layers preventing dilution. Layering technology allows products to be consistently applied over weeks to take full advantage of the beneficial micro-dosing approach.
Specifications for Hose Bib Fertigation Systems
| 3/4 Gallon (2005-HB) | 1 Gallon (1010-HB) | 2.5 Gallon (2020-HB) | |
|---|---|---|---|
| Fill Capacity | .75 Gal / 5 lbs. | 1 Gal / 8 lbs | 2.5 Gal / 10 lbs |
| Dimensions | 7" x 7" x 10" | 7" x 7" x 15" | 10" x 10" x 16" |
| Coverage | 10,000 sq. ft. | 16,000 sq. ft. | 20,000 sq. ft. |
| Flow Range | 2.5 GPH - 35 GPH | 2.5 GPH - 35 GPH | 2.5 GPH - 35 GPH |
| Pressure Range | 5 PSI - 50 PSI | 5 PSI - 50 PSI | 5 PSI - 50 PSI |
| Connection | 3/4" GHT PVC included | 3/4" GHT PVC included | 3/4" GHT PVC included |
| Brand | EZ-Flo |
|---|---|
| SKU | EZ-HB |
| Hazardous Material | false |
EZ-Flo Hose Bib Fertilizer Dispensing System Videos
EZ-FLO Hose Bib Units
What is EZFLO?
EZ-Flo Hose Bib Fertilizer Dispensing System Questions & Answers
Q: What exactly is an EZ-FLO System?
A: EZ-FLO Systems are a line of easy-to-use, effective, and environmentally friendly, automatic fertilizer dispensing systems (hose-bib or connected to an in-ground irrigation system) for use in residential, commercial, grower and municipal applications. The units use a patented flow process built on the principles of precision, port water entry, agitation and flow control to deliver non-hazardous fertilizers and supplements to your landscape. Four precision settings can be selected using our easy-to-use feed adjustment knob on the top of each unit’s cap for maximum proportioning flexibility.
Q: What sizes of landscapes can EZ-FLO service? What kinds of irrigation heads work with an EZ-FLO unit?
A: EZ-FLO Systems are suitable for all sizes of landscapes. Our systems are used by professional landscape maintenance companies as well as homeowners because they are so simple to install and operate. We have units that will handle small gardens and residence landscapes as well as ones that can service tens of acres of commercial or municipal landscapes. Larger landscapes for a given tank size can be covered by simply refilling more frequently.
EZ-FLO systems can be used with all sprinkler and spray heads, micro-spray heads and drip and subsurface options without the need to adjust the system for zones with different end devices (i.e. spray heads vs. drippers). EZ-FLO adjusts automatically to water flow in any zone even if there are different pressures present in that zone. For example many drip zones have pressure reducers in order to protect the dripper heads. Other injection system designs do not have the same ability to easily address these different flow and pressure attributes with a single unit.
Q: Why are EZ-FLO proportioning systems better than other methods of application?
A:
- Consistent and Accurate Metering – other methods can deliver dangerously high levels of fertilizer or chemicals in the first few minutes, and then drop below the ideal feeding range for the remainder of the application cycle. With EZ-FLO, your landscape receives consistent micro-doses of fertilizer or nutrients which is proven to be the best way to feed your plants.
- Adjustable Feed Rates – Various precision settings enable you to achieve desired feed rates for just about any fertilizing or control situation. Micro-dosing also eliminates the chance of “burning” your plants or staining buildings or walkways.
- Automatically Adjusts to Pressure and Flow - Since there are no moving parts, there is no pressure loss when using our system. EZ-FLO systems can proportion on a little as 2.5 gallons (9.5 liters) per hour flow at only 5 PSI (.34 bars) water pressure. This makes EZ-FLO particularly useful on irrigation systems with low water pressure, on long piping runs or when installed on a low-flow drip or other subsurface irrigation zones.
- Availability of Products – EZ-FLO offers a full line of fertilizers, water treatment, and pest control products. These products are available direct from our distributors and you are not limited only to the products we sell. If the product is liquid or water soluble, the EZ-FLO system can dispense it.
- Ease of Use – No pre-dilution of water solubles required. No annual maintenance. Longer service life. Fewer refills for the equivalent size property.
Q: Is an EZ-FLO unit hard to install? Is it easy to use?
A: Main-line systems can be generally installed in less than one hour. Hose and Drip systems can be installed in minutes. Once installed they work automatically every time you turn on your water. No guesswork, no pre-mixing and no measuring. No setting up complicated zone controls or selecting the correct type of nozzle to use. EZ-FLO units only take a few moments to refill. See the Installation & Use section of this site for more information including pictorial step by step procedures.
Q: What kind of maintenance do EZ-FLO units require?
A: In normal operating conditions, the systems require no maintenance. There are no moving parts to wear out. No electricity is required. EZ-FLO units work using existing water pressure from your system. Our durable products will provide trouble-free service for many years. Because of this, EZ-FLO can offer the longest warranty of any main-line landscape injector/proportioner–Five (5) years.
Q: How does fertigation affect my plants or lawn?
A: Your plants will never be healthier and more vital. Consistent, even feeding (micro-dosing) gives all plants a constant supply of the nutrition they need. This helps them fight disease, insects, heat, drought or other adverse conditions. All plants (tress, shrubs, flowers and turf) benefit from small doses of fertilizer each time you water. See Fertigation Benefits for more information on why EZ-FLO is the agronomically superior way to feed your plants.
Q: How can I tell if my EZ-FLO system is flowing?
A: This is one of the more frequently asked questions since you will not hear any noise or feel any mechanical vibration to tell you that the system is running. When the system is full of fertilizer the clear output tube will flow with the same color as your fertilizer. If you do not have color to your fertilizer product, we recommend adding food dye in blue or green to the tank when filling with product. To tell if the system is flowing is to change the cap setting from Slow to Fast. If the color in the clear line goes from a lighter blue to a darker blue, this will indicate that the system is flowing. After several days or weeks of use depending on your injection setting, the color will dissipate from the clear line. Once the clear output tube is no longer showing the fertilizer color, the tank is empty and it is time to refill.
Q: How do I compare EZ-FLO to other Fertigation Systems or Landscape Injectors?
A: Before you buy a fertigation system, you should compare systems to make sure you are making an informed decision. Areas that you should consider:
- Warranty-What is the warranty term? What actions void the warranty? EZ-FLO has a 5 year warranty and does not void your warranty if you use other non-hazardous products.
- Maintenance-What kinds of maintenance will you need to perform on your unit once it is installed? EZ-FLO requires no maintenance since it has no moving gears and no electrical pumps or parts. Make sure that you fully understand the annual equipment maintenance program for any system before you buy.
- Product availability-What kinds of fertilizers and supplements can you use with your unit? EZ-FLO offers the broadest range of organic, natural and synthetic fertilizers and supplements. You won’t be limited to a small number of proprietary formulations since the system can inject any liquid or water soluble product.
- Irrigation System configuration-What types of irrigation zones do you have on your landscape? EZ-FLO automatically adjusts to the pressure and flow on any zone with no manual adjustment. There are no nozzles to swap out if you have mixed zones (drip and spray) and there is no need to program injection times for each zone. If you already have an in-ground system, EZ-FLO will work with it.
- Time between Refills-How often do you have to refill the unit? EZ-FLO units proportion water soluble fertilizers which have concentration rates of more than 2-3 times that of liquids. You will fill our units less often using full-strength water solubles.
- Ease of Installation – How easy is it to install? To install an EZ-FLO unit you simply glue in a coupling connector (many different sizes and types available) and hook up the tank tubing. There are no bypasses to be plumbed in, there are no electrical connections to run, there are no programming steps to set the injection rate for each zone and there are no nozzles to install or change. One reason we have EZ in our name!
Q: What fertilizers can I use in an EZ-FLO unit?
A: Virtually any type of water-soluble, non-hazardous fertilizer or liquid organic product can be used in an EZ-FLO unit. We do not void our Warranty when using other manufacturer’s fertilizers or supplements. If you have a particular favorite, check with your fertilizer supplier to see if their fertilizer is compatible with our unit.
Q: Can I use organic products in the system?
A: Yes. We offer our own line of natural and organic products- but you can use your favorites too. Our studies have shown EZ-FLO units efficiently deliver even the heaviest organic products. The internal flow ports of the system are large and protected by a fine, non-clogging screen. This screen prevents downstream clogging in your drip emitters or spray heads. If the desired organic is oil-based (lighter than water), the unit may not be able to pull the mixture since the pickup tube pulls from the bottom of the tank.
