Picked up a used Twister T6 for $400 and replaced the gear box for $100 and now its like new again.

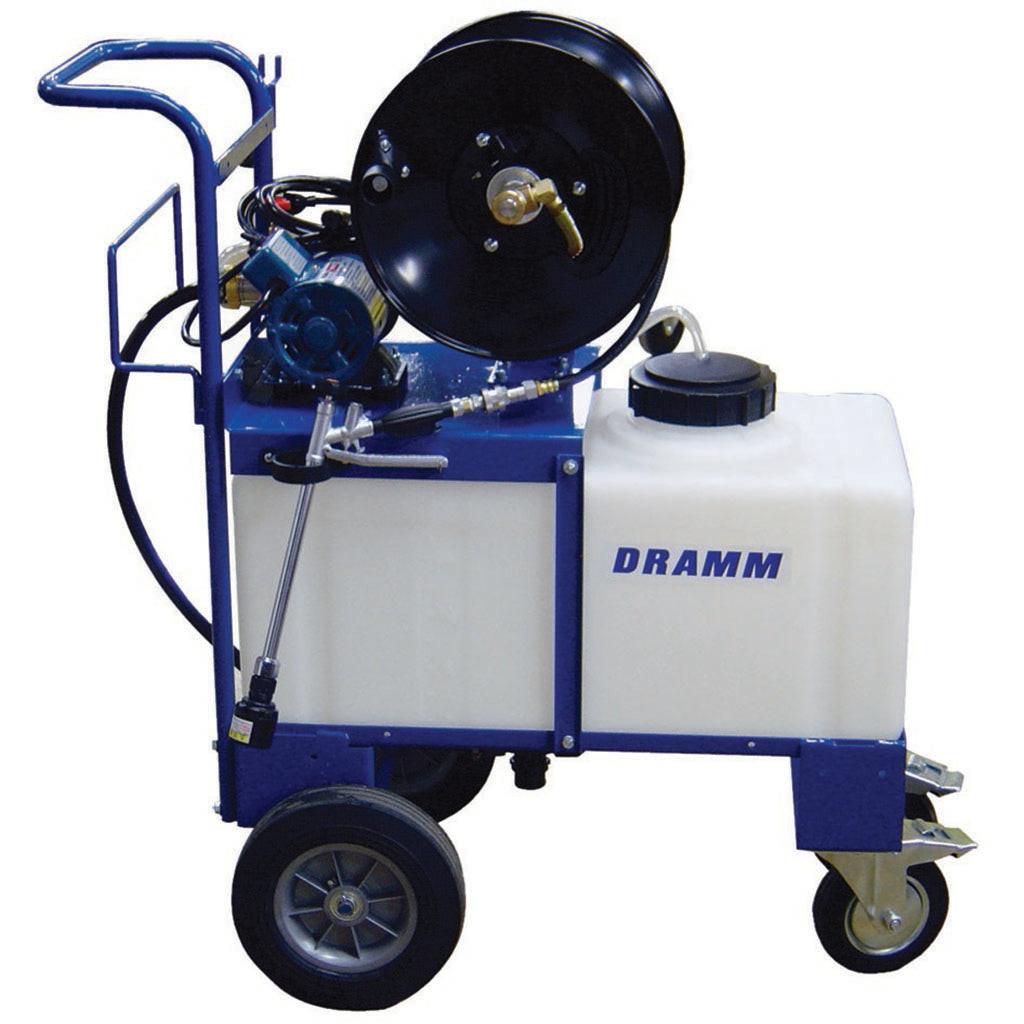

The Dramm MS20-100 is a hydraulic sprayer designed to apply all forms of chemicals. It offers an adjustable pressure regulator with a maximum pressure of 500 psi. Combined with the MS-TG trigger gun and the pump output of 1/2 gpm, the MS20-100 creates a very fine spray for even coverage. The included trigger gun offers an adjustable pattern that will spray from a 20-foot straight stream to a 10-foot mist cone. The MS20-100 includes 100 feet of hose, a hose reel, a cart assembly and a telescoping spray wand. Clean-up is easy and maintenance is simple. The MS20-100 uses oilless bearing and stainless steel pump parts. Manufacturer's 6-month parts and labor warranty.
Features & Benefits
- Fully adjustable pressure – up to 500 PSI
- Trigger Gun with adjustable spray pattern and output rates
- Solid bronze & stainless steel pump construction with oilless bearings
- Applies most chemical formulation
- 100' hose
- 20-gallon solution tank
- Hose reel
- Optional telescoping spray-wand
- Manufacturer's 6-month parts and labor warranty
Technical Data
-
Power Supply: 110 V 60 HZ 200 Watts -
Horse Power: 1â?„4 hp -
Maximum Pressure: 500 PSI -
Maximum Discharge Rate: 0.5 GPM -
RPM: 1800 (no load), 1740 (under Load) -
Bearings: Oilless -
Drive System: Direct drive -
Pump Type: Piston -
Plunger Size Cylinder: bore .984" – Stroke .157" -
Spray Gun Adjustable output: 0.0 - 0.5 GPM -
Discharge Hose Length: 33 feet or 100 feet -
Suction & Return Hose Length: 6 feet -
Power Cord Length: 8 feet -
Spray Distance Stream: 20 feet Mist: 10 feet
| Brand | Dramm |
|---|---|
| SKU | MS20-100 |
| Weight (lb.) | 225.0000 |
| Length (in.) | |
| Width (in.) | |
| Prop 65 | false |
| Height (in.) | |
| Shipping Restrictions | AK, HI |
| Lead Time | This Product Ships in 2-3 Business Days |
| Hazardous Material | false |
| UL Listed | No |
| ETL Listed | No |
| Sprayer Capacity | 20 Gallon |
| Voltage | 120 Volts |
What spraying work does the Dramm MS20-100 Sprayer handle?
The Dramm MS20-100 Sprayer is designed to apply all forms of chemicals. The sprayer provides fine spray coverage for chemical applications.
How does the Dramm MS20-100 Sprayer adjust spray coverage?
The Dramm MS20-100 Sprayer includes an adjustable pressure regulator up to 500 PSI and an MS-TG trigger gun with an adjustable spray pattern. The trigger gun sprays from a 20-foot straight stream to a 10-foot mist cone.
What equipment comes with the Dramm MS20-100 Sprayer?
The Dramm MS20-100 Sprayer includes 100 feet of hose, a hose reel, a cart assembly, and an MS-TG trigger gun. Product details also reference a telescoping spray wand.
How is the Dramm MS20-100 Sprayer pump built for maintenance?
The Dramm MS20-100 Sprayer uses solid bronze and stainless steel pump construction with oilless bearings. The sprayer provides simple maintenance and easy clean-up.
What warranty covers the Dramm MS20-100 Sprayer?
The Dramm MS20-100 Sprayer includes a manufacturer's 6-month parts and labor warranty.
