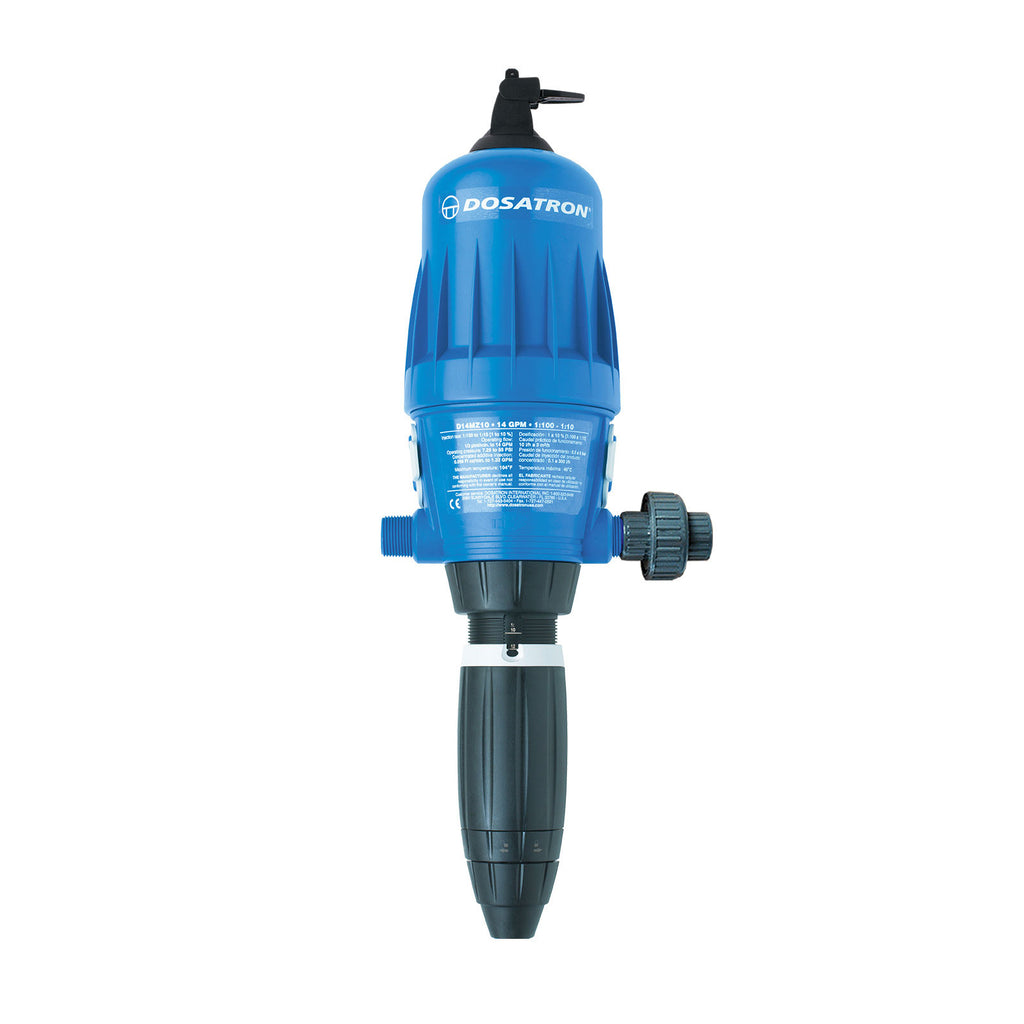

The Water-powered Dosatron D14MZ10VFBPHY - 14 GPM with dosing seals for the injection of acidic chemistries and concentration scale specifically designed for hydroponic applications.
Includes an integrated by-pass to easily switch the nutrients on and off. Unit made to be installed in series as part of a hydroponic system with included union fitting. It has a flow range of 0.05 to 14 GPM and a dilution range of 1:100 to 1:10 (1% to 10%).
Maintenance & Rebuild Kits
- For a regular maintenance use Mini Maintenance Kit # PJDI122MINI-H.
- For a recommended yearly maintenance use Seal Kit # PJDI122VF.
- To extend the life of your Dosatron use Rebuild Kit # MKD14MZ10VF.
Specifications
- Dilution Range: 1:100 to 1:10 (1% to 10%)
- Injection Range mL: 37.5 to 375 mL/gal
- Injection Range tsp: 7.5 to 75 tsp/gal
- Water Flow Range: 0.05 to 14 GPM
- Operating Pressure Range: 7 to 85 PSI
- Available Housing Materials: Polypropylene
- Dimensions: 19 1/18” x 6 5/16”
- Weight: 6 lbs.
- Connection Size: 3/4" NPT
- Included Accessories: 6' clear suction tube, strainer, bypass, weight, mounting bracket and operating manual
- Recommended Accessories: 200 mesh filter, check valve, pressure regulator, flow restrictor
| Brand | Dosatron |
|---|---|
| SKU | D14MZ10VFBPHY |
| Weight (lb.) | 4.6500 |
| Height (in.) | |
| Prop 65 | false |
| Lead Time | 2-3 |
| Length (in.) | |
| Width (in.) | |
| Hazardous Material | false |
| UPC | 850019843071 |
| ETL Listed | No |
| UL Listed | No |
| Auto-Dosing Product Type | Doser / Injector |
| Flow Rate | 14 GPM |
| Connection size | 3/4 Inch |
| Doser Seal Type | Viton Seal & Bypass |
| Doser Dilution Range | 1:100 to 1:10 (mL/gal: 37.5 to 375 mL) |
Dosatron D14MZ10 Water Powered Doser, 14 GPM, 1:100 to 1:10, Viton Seals, 3/4 Inch (D14MZ10VFBPHY)
Dosatron D14MZ10 Water Powered Doser, 14 GPM, 1:100 to 1:10, Viton Seals, 3/4 Inch (D14MZ10VFBPHY)
How does the Dosatron D14MZ10 Water Powered Doser support hydroponic nutrient injection?
The Dosatron D14MZ10 Water Powered Doser injects nutrients into hydroponic systems using water power. An integrated bypass switches nutrient dosing on and off.
Which flow and dilution ranges does the Dosatron D14MZ10 Water Powered Doser provide?
The Dosatron D14MZ10 Water Powered Doser supports water flow from 0.05 to 14 GPM and dilution from 1:100 to 1:10, equal to 1% to 10%. Injection ranges are 37.5 to 375 mL per gallon and 7.5 to 75 teaspoons per gallon.
How does the Dosatron D14MZ10 Water Powered Doser connect to a hydroponic system?
The Dosatron D14MZ10 Water Powered Doser installs in series as part of a hydroponic system through a 3/4-inch NPT connection. An included union fitting supports installation.
Which hydroponic chemistries suit the Dosatron D14MZ10 Water Powered Doser?
The Dosatron D14MZ10 Water Powered Doser has dosing seals designed for acidic chemistries used in hydroponic applications. Viton seals provide the specified dosing seal material.
How can growers maintain the Dosatron D14MZ10 Water Powered Doser?
The Dosatron D14MZ10 Water Powered Doser uses Mini Maintenance Kit PJDI122MINI-H for regular maintenance, Seal Kit PJDI122VF for recommended yearly maintenance, and Rebuild Kit MKD14MZ10VF to extend product life.
