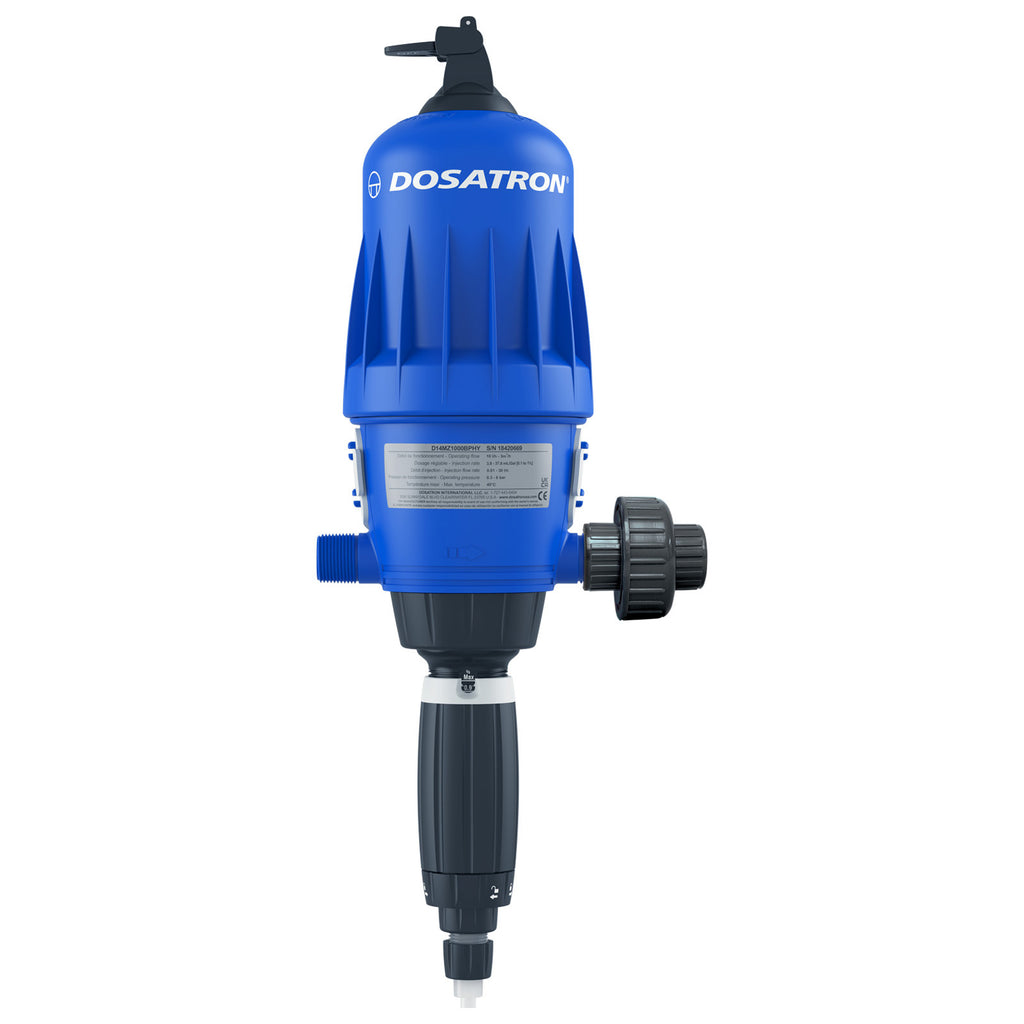

The Water-powered Dosatron D14MZ1000-HY with dosing scale specifically designed for hydroponic applications.
Includes an integrated by-pass to easily switch the nutrients on and off. Unit made to be installed in series as part of a hydroponic system with included union fitting. It has a flow range of 0.05 to 14 GPM and a dilution range of 1:1000 - 1:100 (0.1% to 1%).
Maintenance & Rebuild Kits
- For a regular maintenance use Mini Maintenance Kit # PJDI235-MINI.
- For a recommended yearly maintenance use Seal Kit # PJDI235.
- To extend the life of your Dosatron use Rebuild Kit # MKD14MZ1000.
Specifications
- Dilution Range: 1:1000 - 1:100 (0.1% to 1%)
- Injection Range mL: 3.75 to 37.5 mL/gal
- Water Flow Range: 0.05 to 14 GPM
- Operating Pressure Range: 4.3 to 85 PSI
- Available Housing Materials: Polypropylene
- Dimensions: 19 1/18” x 6 5/16”
- Weight: 6 lbs.
- Connection Size: 3/4" NPT
- Included Accessories: 6' clear suction tube, strainer, bypass, weight, mounting bracket and operating manual
- Recommended Accessories: 200 mesh filter, check valve, pressure regulator, flow restrictor
| Brand | Dosatron |
|---|---|
| SKU | DOSA-D14 |
| Hazardous Material | false |
