Dosatron Check Valve with Viton Seal, 3/4 Inch

SKU: CV34-PH
No reviews
Dosatron Brand ProductMultiple Units? Click for Volume Pricing.

Availability: In stock

Lead time: This product ships in 2-3 business days


Price:
Sale Price$53.76

Dosatron Product Documents

Dosatron Check Valve with Viton Seal, 3/4 Inch

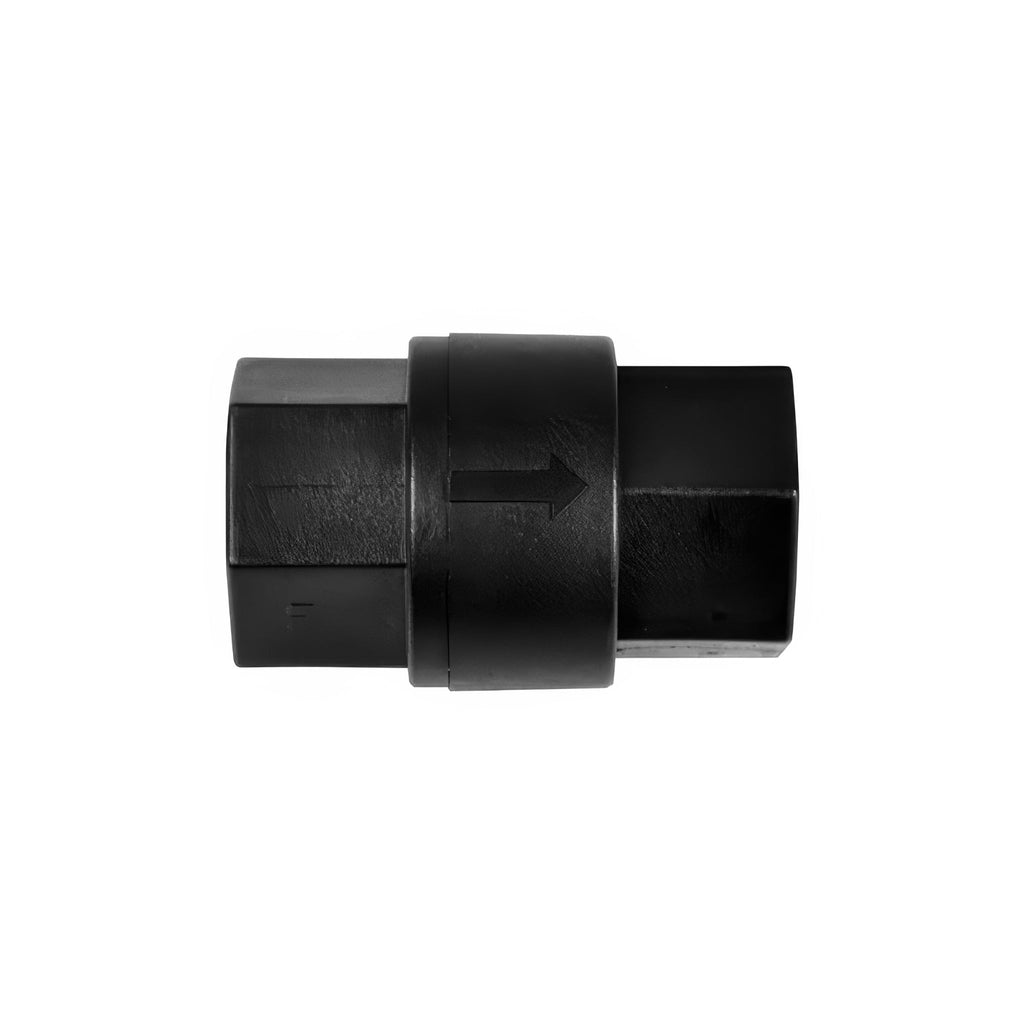

This 3/4" check valve is made of chemical-resistant Polypropylene with a Hastelloy spring.

Brand Dosatron
SKU CV34-PH
Weight (lb.) 4.0000
Height (in.)
Prop 65 false
Lead Time 2-3
Length (in.)
Width (in.)
Hazardous Material false
ETL Listed No
UL Listed No
Auto-Dosing Product Type Accessories & Fittings

What does this Dosatron check valve do (Viton seal)?

This check valve assembly functions as a vacuum/siphon breaker. When the system is pressurized, the reversed check valve prevents solution from leaking out the barb fitting at the top, and prevents downstream water — or a broken/frozen line — from siphoning back through the Dosatron system and contaminating the fresh water source.

Is this check valve needed for a custom monitor kit build?

Yes, if you're building a custom manifold or monitor kit rather than using Dosatron's standard kit. Note that D40 and larger high-flow units already have a vacuum breaker built in — visible as a small black knob on the injection stem — so this add-on isn't needed for those units.
