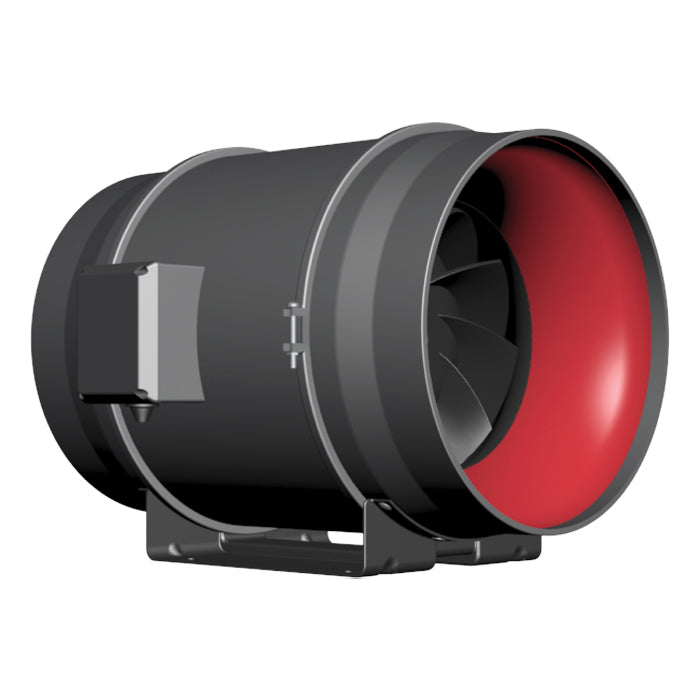

Feel the F5 Force!
Now available by F5 are their line of Turbo EC Fans. Electronically Commutated (EC) fans combines AC and DC voltages bringing the best of both worlds. High efficiency, low noise, light-weight, and continuous motor speed control is possible as a result. EC motors are significantly smaller and consequently have advantages with regard to installation and overall quiet operation. Get your F5 Fans today!
Benefits
- More power and airflow than other traditional EC fans
- High pressure output to guarantee airflow with your ventilation system
- Quiet operation resulting in a low noise, minimal decibel environment
- Low Power consumption utilizing an EC motor to cut cost on power use
Specifications
| Model | 4 Inch | 6 Inch | 8 Inch | 10 Inch | 12 Inch | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SKU | 981604 | 981606 | 981608 | 981610 | 981612 | |||||||
| Construction | Ball Bearings / PP / ABS | Motor Type | 3-Phase EC Motor | |||||||||
| Current (Amps) | 0.94 | 0.94 | 2.3 | 2.7 | 2.5 | |||||||
| Power (Watts) | 70 | 70 | 180 | 255 | 250 | |||||||
| Max Speed (RPM) | 3800 | 3000 | 3000 | 3000 | 2350 | |||||||
| Max Air Flow (CFM) | 216 | 381 | 721 | 1065 | 1375 | |||||||
| Pressure (Pa) | 578 | 503 | 746 | 1059 | 818 | |||||||
| Noise (dB) | 35 | 35 | 50 | 56 | 55 | |||||||
| Net Weight (lbs/kgs) | 4.4lbs / 2.0kgs | 6.0lbs / 2.7kgs | 10.8lbs / 4.9kgs | 17.4lbs / 7.9kgs | 24.9lbs / 11.3kgs | |||||||
| Packaging Dimensions | 12.3in x 8.5in x 8.9in | 12.8in x 9.3in x 9.3in | 12.4in x 10.2in x 10.2in | 17.5in x 16.3in x 14.2in | 20.1in x 19.1in x 17.3in | |||||||
| Brand | DL Wholesale |
|---|---|
| SKU | 981612 |
| Weight (lb.) | 24.9000 |
| Lead Time | This product ships in 3-5 business days |
| Height (in.) | |
| Width (in.) | |
| Length (in.) | |
| Prop 65 | false |
| Hazardous Material | false |
| Fan Type | Inline |
| Is Speed Controllable | Yes |
| Oscillation | No |
| CFM Rating | 1375 CFM |
| Exact Watts | 250 Watts |
| Amps | 2.5 Amps |
| Frequency | 60Hz @ 120 Volts, 50Hz @ 240 Volts |
| Voltage | 120 Volts, 240 Volts |
| Max. Decibals | 55dB |
| Max. RPM | 2,350 |
| Power Cord(s) Included | Yes |
| ETL Listed | No |
| UL Listed | No |
