Dimlux Pro Series 1,000 Watt Double Ended HPS Grow Light Fixture, 240 Volt

SKU: GG-600020
No reviews
DimLux Brand ProductMultiple Units? Click for Volume Pricing.

Availability: In stock

Lead time: This product ships in 2-3 Business Days


Voltage & Lamp: 240 Volt with No Lamp
Price:
Sale price$278.57

THE DIMLUX PRO HAS A PASSIVELY COOLED ULTRA OPTICS SINGLE BOUNCE CLEAR SIGHT REFLECTOR GUARANTEEING THE HIGHEST EFFICIENCY AND LIGHT OUTPUT IN THE HORTICULTURE INDUSTRY.

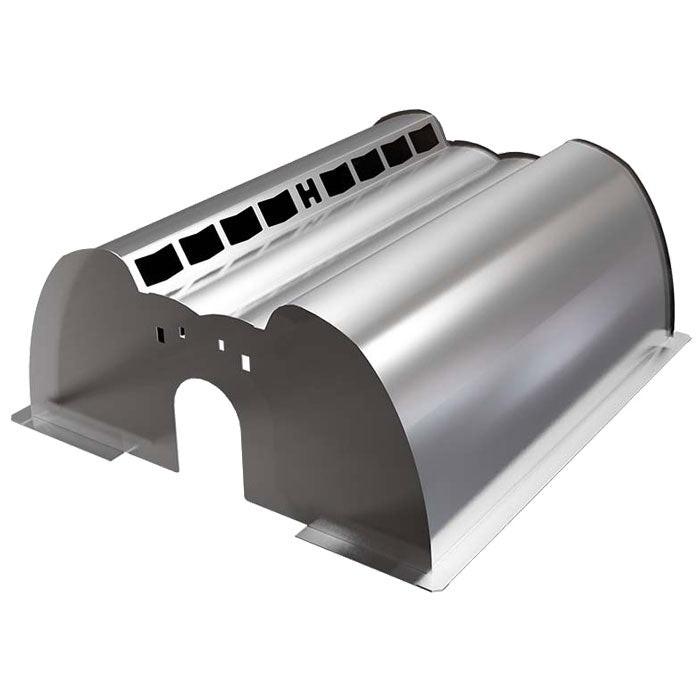

The dimlux Pro has a passively cooled Ultra Optics reflector in order to get the optimum lamp temperature and highest light output. By using Miro 95 (99,99 aluminium) instead of Miro Silver for the reflector, we prevent deterioration in high humidity when scratched. The Ultra Optics reflector is available in 3 different styles of reflectors, Hybrid (default), Deep and Wide and can be changed quickly and easily, even at high heights.

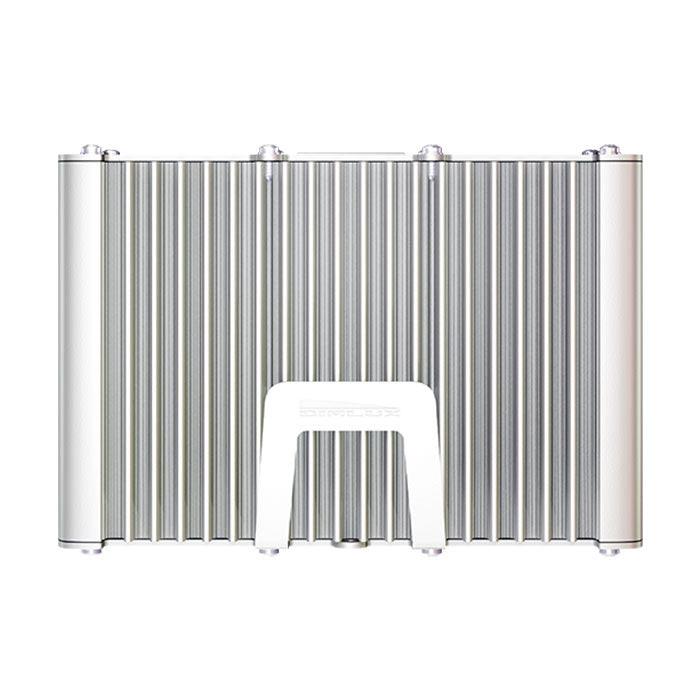

The ballast is ready for the new digital controller platform, and is upgradable. The Pro series has a closed ballast instead of an open ballast. This protects the ballast from moisture. The Geo Membrane equalizes the pressure inside and outside the ballast, while still preventing condensation on the electronics. The vertically mounted ballast will decrease the amount of daylight which is blocked by the fixture. We have done daylight simulations in CAD and this design had the least light interception during a full daylight cycle.

The output of the Dimlux Pro Series can be controlled up to 115%, both by using the dim button and by remote control. With the manual power settings 500, 600, 700, 800, 900, 1000, 1075 and 1150W you have a wide range of settings available. Status and alarms are displayed on a Four-character display making your Dimlux Pro even more easy to use.


Your Dimlux Pro Series 1,000 Watt Double Ended HPS Grow Light Fixture box will contain the following items:

  • 1x Interlink cable
  • 2x Eye bolt and nut (M6)
  • 1x Power cord
  • 1x Instruction manual

Suitable Lamps for the Dimlux Pro Series 1,000 Watt Double Ended HPS Grow Light Fixture

  • 1000W Philips Master Greenpower EL DE
  • Dimlux 1000W PRO
  • Dimlux 1000W MKII Ultra
  • 1000W 2-74
  • Horturion MH 1000 DE EL 5.5K
  • HPS1000 PRO DE 2K

Optional Upgrade: DimLux Maxi Controller

The Dimlux Pro Series can be controlled with the Dimlux Maxi Controller or by using external switching gear (contactors, timers). Make sure that the contactors and timers are designed to match the load of the ballasts.

The Maxi Controller can control up to 160 Dimlux Pro fixtures at the same time. No longer needed are the switchboard, time delay timers, timers and relays (contactors). The power cables of the fixtures can be directly plugged into a power socket, after which they can be remote controlled. Light on and off times, brightness, and many more settings can be controlled with the Maxi Controller.

Dimlux Maxi Controller

Specifications for Dimlux Pro Series 1,000 Watt Double Ended HPS Grow Light Fixture

Voltage: 240V 277V
Input Power @100%: 1035W 1032W
Input Current @100%: 4.5A 3.7A
Input power @boost: 1242W 1187W
Input Current @boost: 5.4A 4.25A
Input Frequency: 50/60 Hz
Power factor: > 0.95
System PPF@1000W: 201 µmol/s
System PPE@1000W: 1.95 µmol/J 1.955 µmol/J
System PPF@1150W: 2339 µmol/s
System PPE@1150W: 1.96 µmol/J 1.97 µmol/J
Ultra High Frequency (UHF): Yes
Controller: By WiFi - Maxi controller

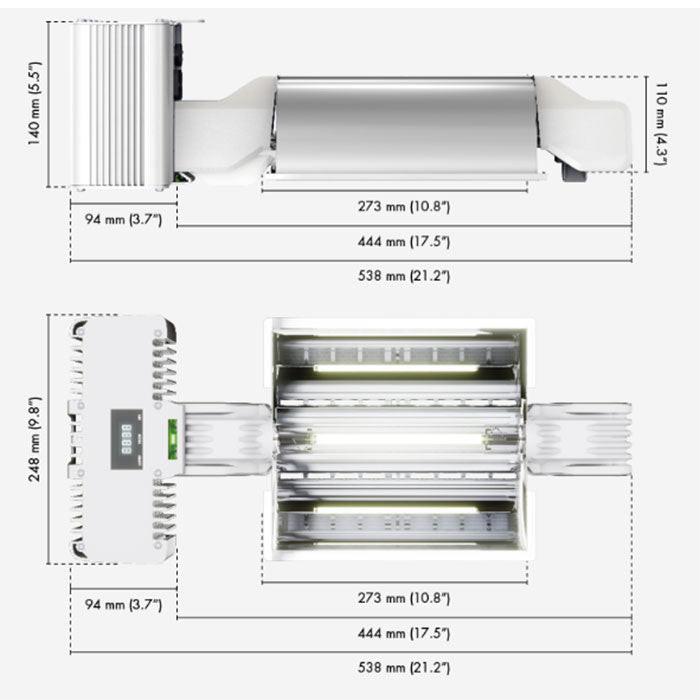

Measurements: 21.2" x 9.8" x 4.5"
Weight: 9 lbs.
Power cord: 15 foot IEC - 240V plug 12 foot Waterproof EP030 L7-15
Brand DimLux
SKU GG-600020
Weight (lb.) 9.0000
Prop 65 false
Length (in.)
Width (in.)
Height (in.)
Warranty 3 Year
Lead Time This product ships in 2-3 Business Days
Hazardous Material false
UPC 850019000000
Lighting Type HPS/MH - Double Ended
Coverage Area Veg: 6' x 6'; Flower: 5' x 5'
Exact Watts 1,000 Watts
Reflector Type Open
Glass Included No
Bulb(s) Included? No
Bulb Type Double Ended High Pressure Sodium
Ballast Type Digital Ballast
Frequency 50/60 Hz
Power Cord(s) Included IEC 240 Volt Plug
Power Cord Length 15 foot
Amps 5.4A
Voltage 240 Volts
ETL Listed No
UL Listed No
