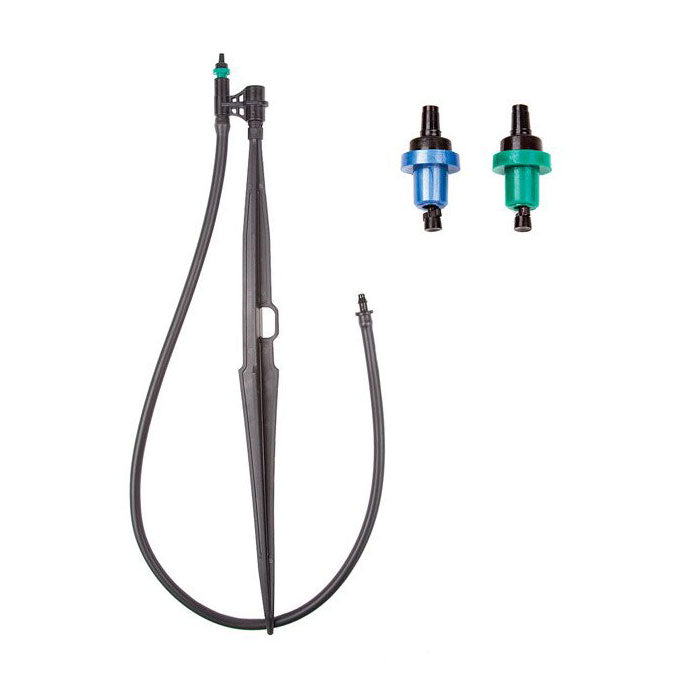

DIG’s Dynamic Mini Sprinkler features low trajectory and high uniformity for excellent watering of flowerbeds, groundcover, seedlings, under tree canopies and horticultural irrigation. The 360° Dynamic Mini Sprinkler is available in seven models to cover a wide range of applications.
Features
- Excellent performance with uniform water distribution
- Press-fit configuration for easy maintenance
- Head closes downwards after operation to prevent dirt and insects from entering the sprinkler (insect-proof)
- Dynamic operation ensures self-cleaning and prevents accumulation of deposits

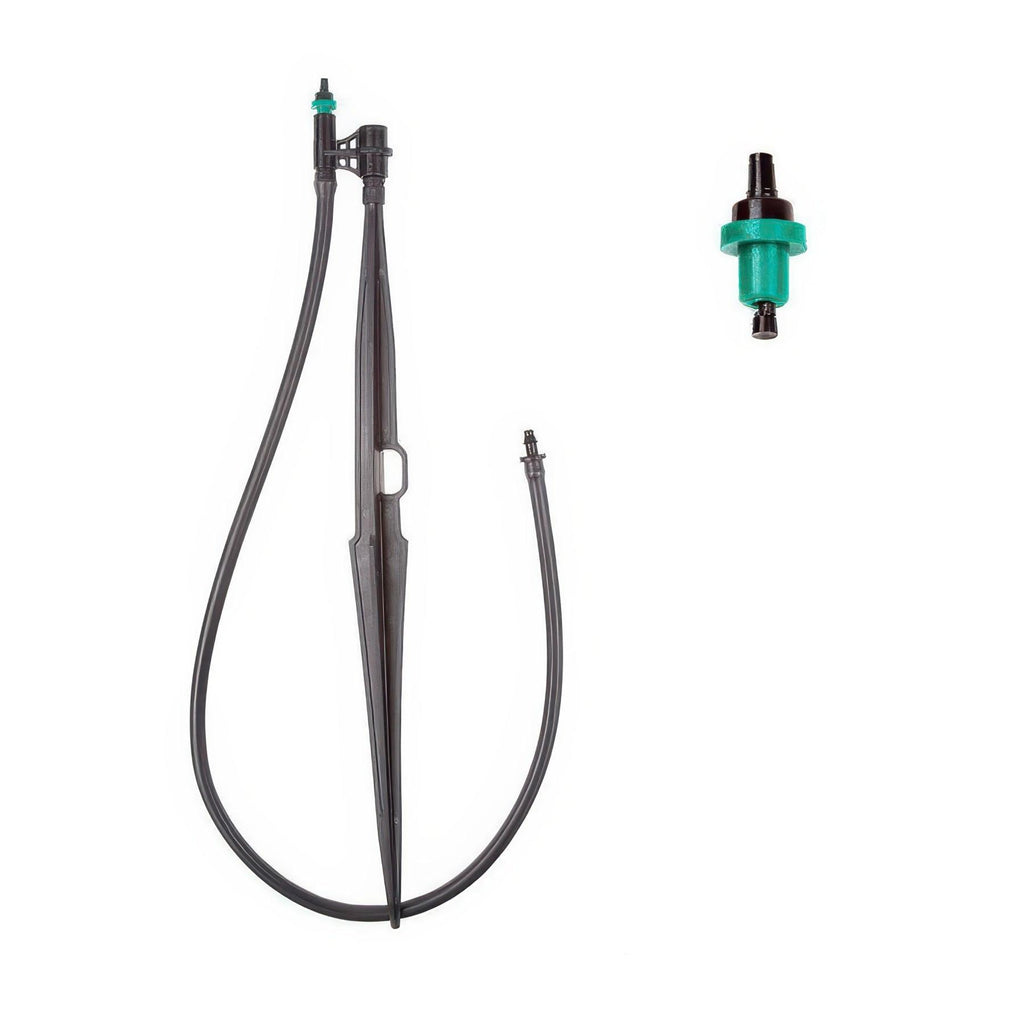

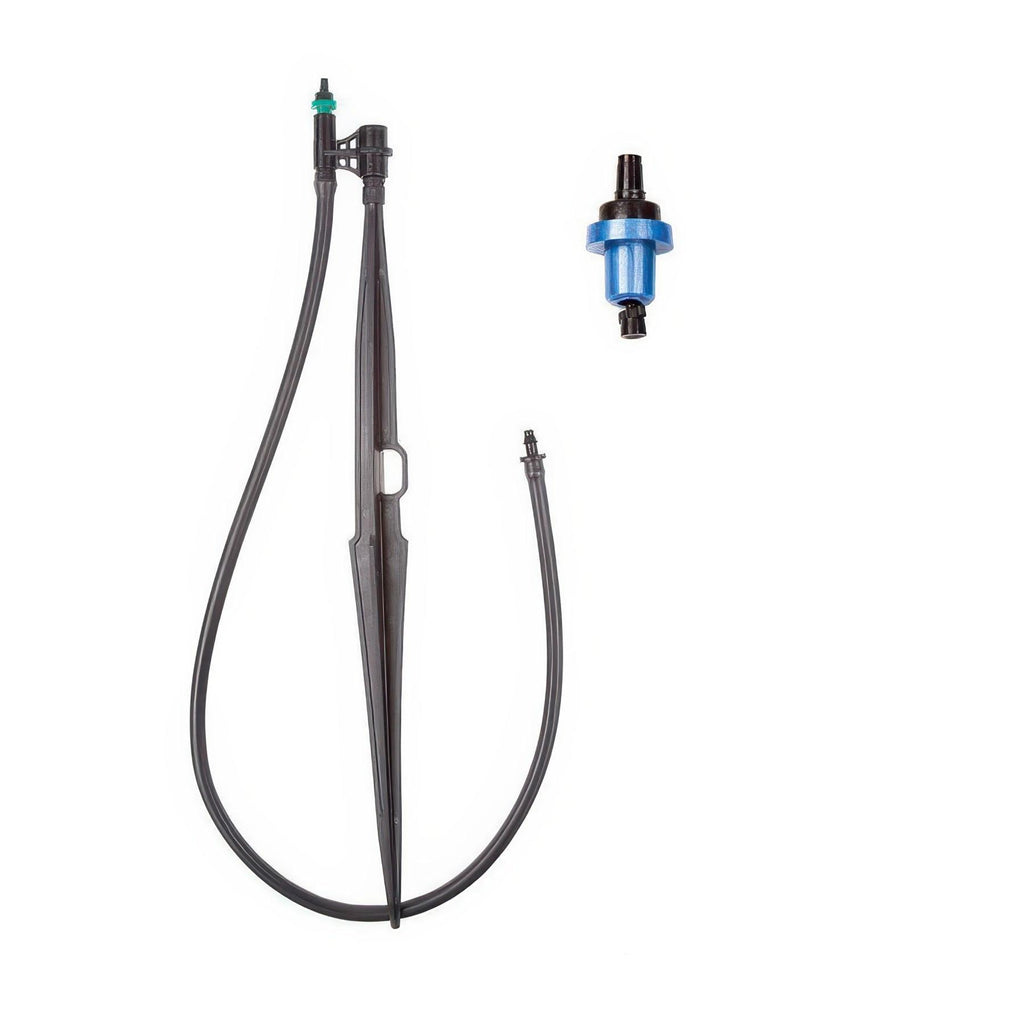

- Available on 1/2” FNPT base or assembled with a spike, micro tubing and barb
- Recommended for under tree canopies, flowerbeds, groundcovers and seedlings
- Full-circle pattern with excellent water distribution
- Large droplets, suitable for irrigation in windy areas
- Low flow rate
- Easy to dismantle, clean and assemble
- No misting
- Reliable operation, low maintenance and trouble-free operation, even at low pressure
- Strong propulsion of the spinner at low pressure for even uniformity
- Frame construction without a bridge gives a complete 360° circle
- Can be used upside down to reduce wetting diameter
- Made of high-impact, high-strength, UV-resistant plastic for durability and
Specifications
- Recommended operating pressure: 25 - 35 PSI (1.7 - 2.4 BAR)
- Recommended operating pressure: 35 PSI (2.4 BAR) (which??)
- Flow rates: 10 - 42 GPH (40 l/h - 160 l/h)
- Diameter of coverage: 10' - 17' (3 - 5.1 m)
- Material: polyacetal
| Brand | DIG |
|---|---|
| SKU | DIG-360-DMS |
| Hazardous Material | false |
