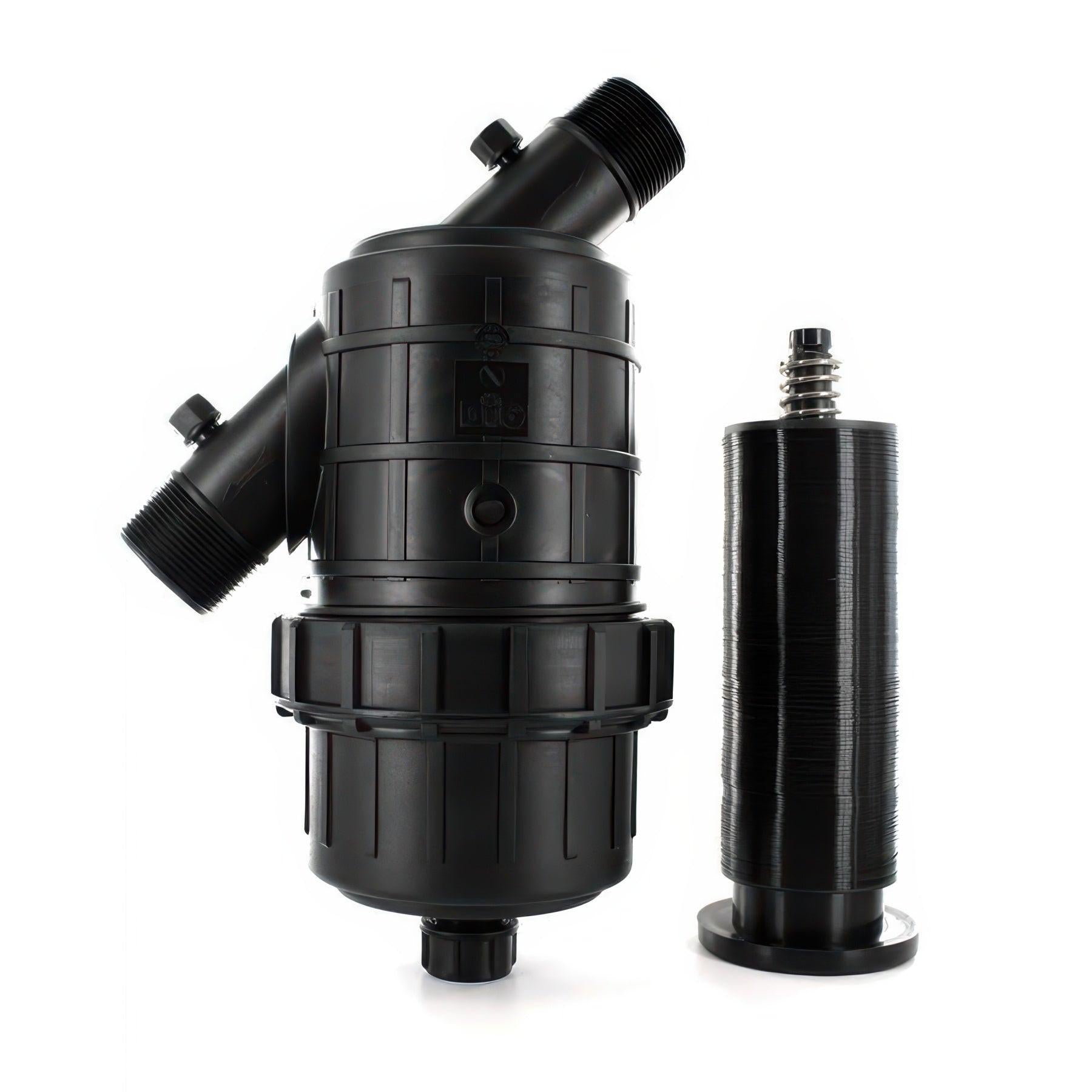

DIG Disc Filter Cut SheetThe disc filters’ three-dimensional filtration mechanism consists of plastic grooved discs compressed and stacked together on a plastic spine to form the cylindrical filter element, effectively filtering the water and removing sediments and debris which then accumulate on the outer face of the stacked discs. The low maintenance, inexpensive disc filters provide reliable and trouble-free operation by removing fine sand and other particles that could otherwise block the small water passages of the drip and micro-sprinklers.
Features
- Sediments accumulate on the outer face of the stacked discs, allowing clean water to flow through the stacked discs and out the middle of the filter
- Disc elements provide in-depth filtration to retain organic matter
- During operation the disc elements are tightly pressed together by pressure and the spring, providing high filtration efficiency
- Discs have excellent resistance to most common chemicals
- Easy maintenance; the discs can be extracted for cleaning
- Interchangeable color-coded discs and stainless-steel screen elements provide a wide range of filtration degrees and options
- Constructed of UV-resistant, durable plastic material to withstand the most adverse conditions
Specifications
- Flow rates: 1 1/2" & 2": up to 60 GPM (13.6 m3/h)
- Operating pressure: up to 120 PSI (8.4 BAR)
- Temperature range: up to 130°F (54°C)
- Inlet and outlet size: 1 1/2", 2" MNPT
- Filter and Disc Materials
- Housing and discs: polypropylene
- O-ring: EPDM
- Pressure testing ports: polypropylene
- Pressure testing seals: natural rubber BR
- Disc cylinder assembly: polypropylene / PBT
- Spring: stainless steel 304
Brand | DIG |
---|---|
SKU | P75-150DL |
Weight (lb.) | 2.8800 |
Prop 65 | false |
Lead Time | This product ships in 3-5 business days |
Hazardous Material | false |
UL Listed | No |
ETL Listed | No |
Irrigation Part Type | Disc Filter |
Hardware Diameter | 1 1/2 Inch |
Mesh | 150 Mesh |
