Dabpress 20 Ton Industrial Rosin Press

SKU: DP-HR20T77-US
No reviews
Dabpress Brand ProductMultiple Units? Click for Volume Pricing.

Availability: Out of stock

Lead time: This Product Ships in 5-7 Business Days

Price:
$1,341.80

Dabpress Product Documents

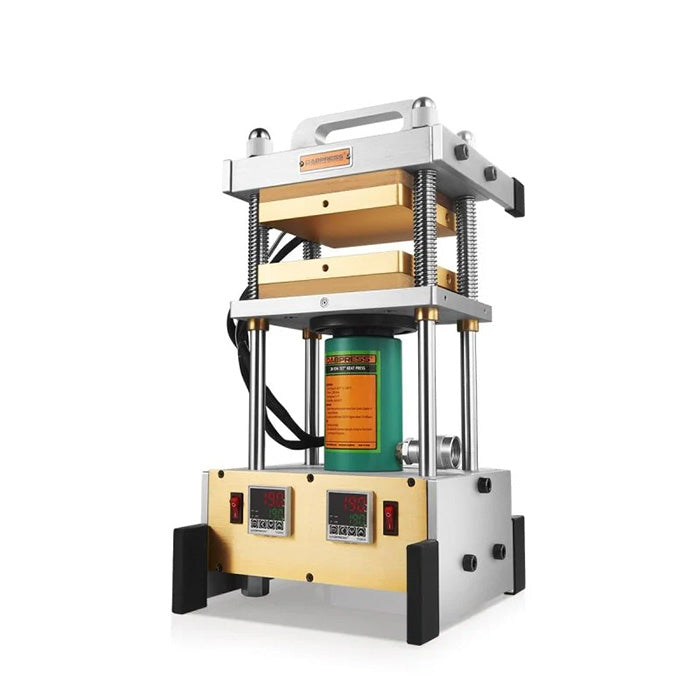

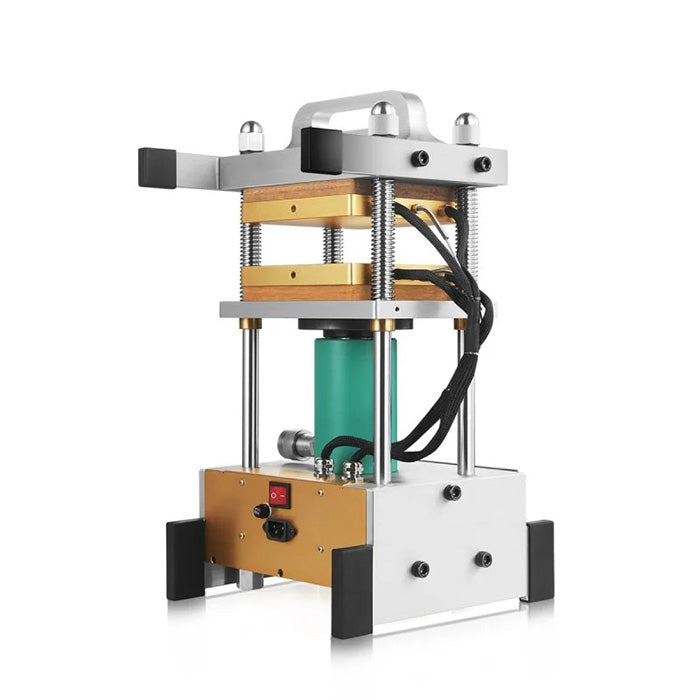

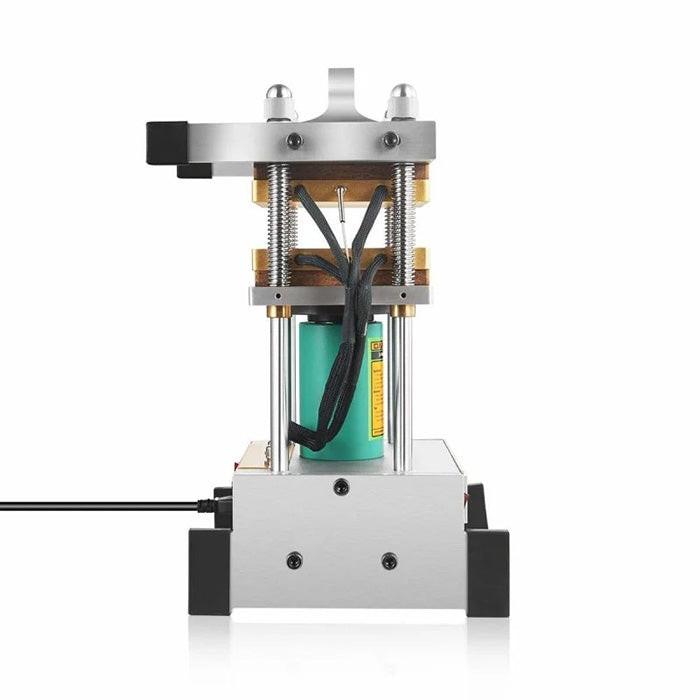

DABPRESS Industrial Rosin Press 20 Ton - Durable Frame with 7" x 7" Heated Platens and 1,200W Heated Rods

Features & Benefits

  • Very Durable Mount - 78-Pound Heat Press - The mount is made of 6061 aluminum, 4 pieces of chrome steel posts, and a 20-ton cylinder with a large flat saddle. The one-time forming aluminum base makes the equipment overweight, but it also supports long-term stable operation during the process of extraction.
  • 7" x 7" Heated Platens - The big plates and the 20-ton force of pressure is able to handle up to 3 ounces of materials, but we still recommend loading several 2x4 press bags, and the total weight does not exceed 2 ounces for the better yield.
  • Upgraded Temp Controller - 4pc Heating Rods - 2 pieces of cartridge heaters for each plate, 300w per heater, 1,200 watts in total, because the heating plate is too large, it will take about 0 minutes to reach 200F.

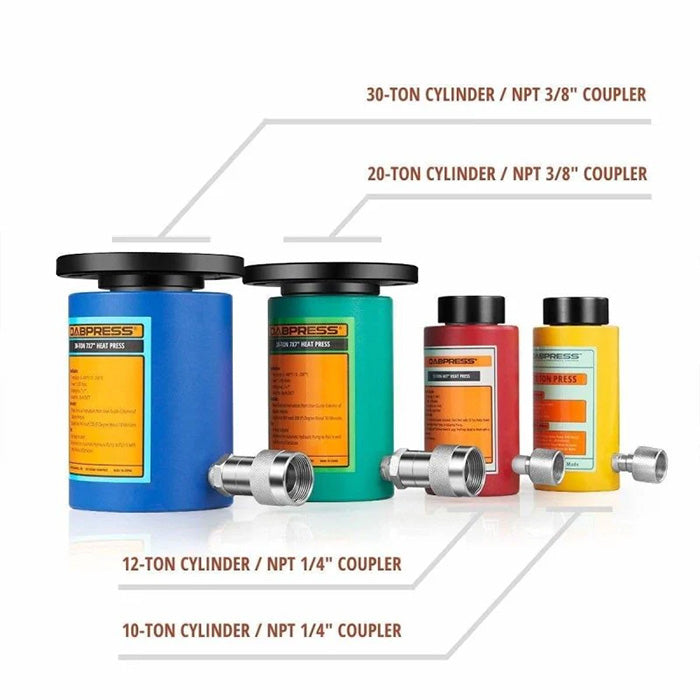

  • 20 Ton Customized Cylinder Included - It includes an NPT 3/8" female coupler on the cylinder ram, so it allows hooking up the hydraulic hand / electric pump with the NPT 3/8" male coupler, there is a flat saddle on the cylinder ram that helps get the uniform pressure on the pressing bag so as to extend the service life and increase the yield.
  • Upgraded PID Temp Controller - Accurate Temp Delivered - The 20-ton heat press set up dual upgraded PID temperature controller - replaceable and pluggable, not only detects and delivers the even temperature but also is easy to replace and maintain.
  • No Pump Included - Relative Pump Sold Separately - We recommend a hydraulic hand pump with NPT 3/8" male fitting and it offers more than 30 tons of pressure like BVA P1000 or TEMCo hand pumps for pairing.

Pump for Pairing:

  • BVA hydraulic hand pump
  • Temco automatic pump

How to Avoid the Filter Bags from Blowing Out?

  • Remove excess stems from flowers.
  • Use less material in your filter bag.
  • Preheating your material first to get it melty before you begin to apply pressure.
  • Apply the pressure more slowly.

Specifciations

  • Temperature Range: 0-399°F
  • Power: 1,200 Watts
  • Voltage: 110 Volts
  • Net Weight: 78 Pounds
  • Gross Weight: 99 Pounds
  • Working Area: 7" x 7"
  • The Distance/Clearance Between Dual Heated Platens: 50mm/1.96 inches.
  • The Dimension of Packaging: 22" (W) x 32.6" (L) x 20"(H)
  • The Dimension of the Cylinder: 9 inches in height; 3.5 inches in Diameter
  • It takes 10 minutes to reach a temp of 200°F
Brand Dabpress
SKU DP-HR20T77-US
Weight (lb.) 99.0000
Prop 65 false
Length (in.)
Width (in.)
Height (in.)
Warranty 1 Year
Lead Time This Product Ships in 5-7 Business Days
Hazardous Material false
UPC 789219684583
ETL Listed No
UL Listed No
Rosin Press Type Hydraulic
Plate Size 7" x 7"
Plate Material Type Anodized Aluminum
Temperature Range 0-399 F
Temperature Control PID Controller
Max. Pressure 20 Ton
Pressure Control Hand pump
Press Time Range 0-999
Adjustable Tilt Position No
Needs Air Compressor Required
Voltage 110 Volts
Exact Watts 1200 Watts

What does the Dabpress 20 Ton Industrial Rosin Press do?

The Dabpress 20 Ton Industrial Rosin Press uses hydraulic pressure and heated 7-inch by 7-inch platens for rosin extraction. The press has a 20-ton cylinder, flat saddle, and dual PID temperature controllers.

How much material can the Dabpress 20 Ton Industrial Rosin Press handle?

The Dabpress 20 Ton Industrial Rosin Press can handle up to 3 ounces of material. Dabpress recommends using several 2-inch by 4-inch press bags with a combined material weight of no more than 2 ounces for better yield.

Which pump is compatible with the Dabpress 20 Ton Industrial Rosin Press?

The Dabpress 20 Ton Industrial Rosin Press connects to a hydraulic hand or electric pump with an NPT 3/8-inch male coupler. A BVA hydraulic hand pump or Temco automatic pump can pair with the press, and the pump is sold separately.

What temperature and electrical setup does the Dabpress 20 Ton Industrial Rosin Press use?

The Dabpress 20 Ton Industrial Rosin Press operates from 0 to 399°F, uses 1,200 watts, and runs on 110 volts. The press reaches 200°F in 10 minutes.

What is included with the Dabpress 20 Ton Industrial Rosin Press?

The Dabpress 20 Ton Industrial Rosin Press includes a durable aluminum frame, 7-inch by 7-inch heated platens, 1,200-watt heated rods, a 20-ton customized cylinder, a flat saddle, and dual PID temperature controllers. A hydraulic pump is not included.
