DAB DConnect BOX Remote Management, 115/230 Volt

DAB DConnect BOX Remote Management - 115/230V - Connects up to 8 Devices

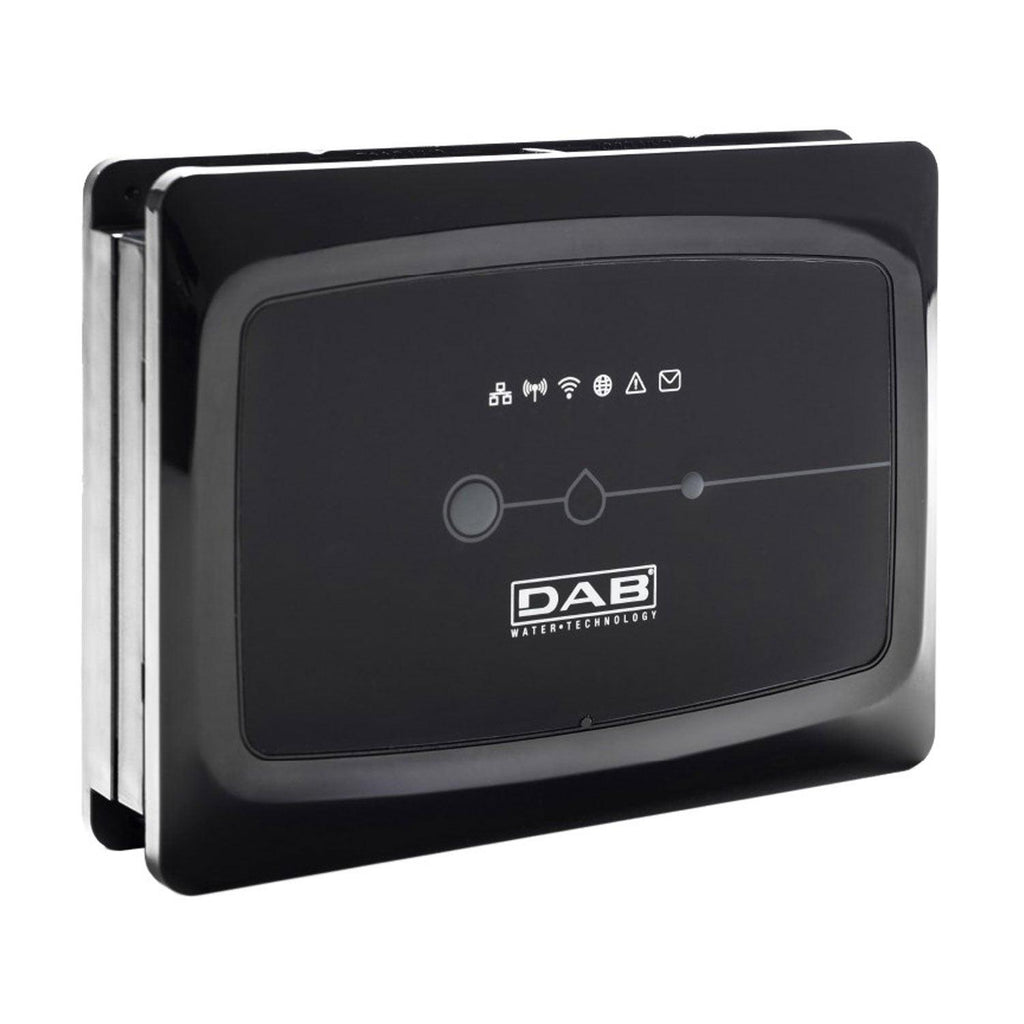

The DAB DConnect Box Remote Management system is a compact electronic device designed to connect a wide range of DAB products, including existing installations, to the DConnect cloud service. Requiring only a permanent network connection at the installation site, the DConnect Box enables remote monitoring and management through the DAB DConnect App, available on Apple Store and Google Play, or via the dconnect.dabpumps.com website. The intuitive interface provides quick access to individual system settings and real-time performance data. Suitable for a variety of applications including pressurization, circulation, wastewater recovery, and swimming pool filtration systems, DConnect offers a flexible, multi-channel solution capable of managing up to eight electronic pumps in a streamlined and integrated way.

Kit Includes: DConnect Box, wall-mounted power supply unit, plugin socket and ferrite core, screws and plugs for wall-mounted installation, DIN rail installation bracket, electric connectors for Modbus, Canbus, I/O, relay connections, and instruction manual.

Product Specifications

• Power Supply: 12V DC, 1.5A
• Power Supply Unit Supplied: Input 100-240VAC, with interchangeable plugs for the European, UK, Australian, and USA markets.
• Protection Class: IP20
• Connection to Wi-Fi: Supports 802.11 b/g/n, WPA-PSK/WPA2-PSK encryption. Frequency 2.4 GHz
• Connection to Ethernet: Compliant with IEEE802.3 10Base-T and 100Base-TX standards
• Assembly: DIN rail using the accessory supplied, or wall-mounted installation using the wall plugs supplied.
• Maximum Number of Devices: 8 Pumps
• Input Connection: (4) non opto-coupled inputs with voltage control
• Output Connection: (2) relay outputs

APP Requirements:

• Smartphone or Tablet running Android 7 or higher or IOS 11 or higher.
• Access to the Internet

Network Requirements:

• Permanent direct Internet connection (no login portals).
• 2.4Ghz Wi-Fi and/or LAN modem/router with active DHCP service.
• Good quality Wi-Fi signal at the installation area.

PC Requirements:

• Web Browser supporting Java script (Edge, Firefox 7.0 or higher, or Chrome).
• Access to the Internet.
