Covert Product Documents

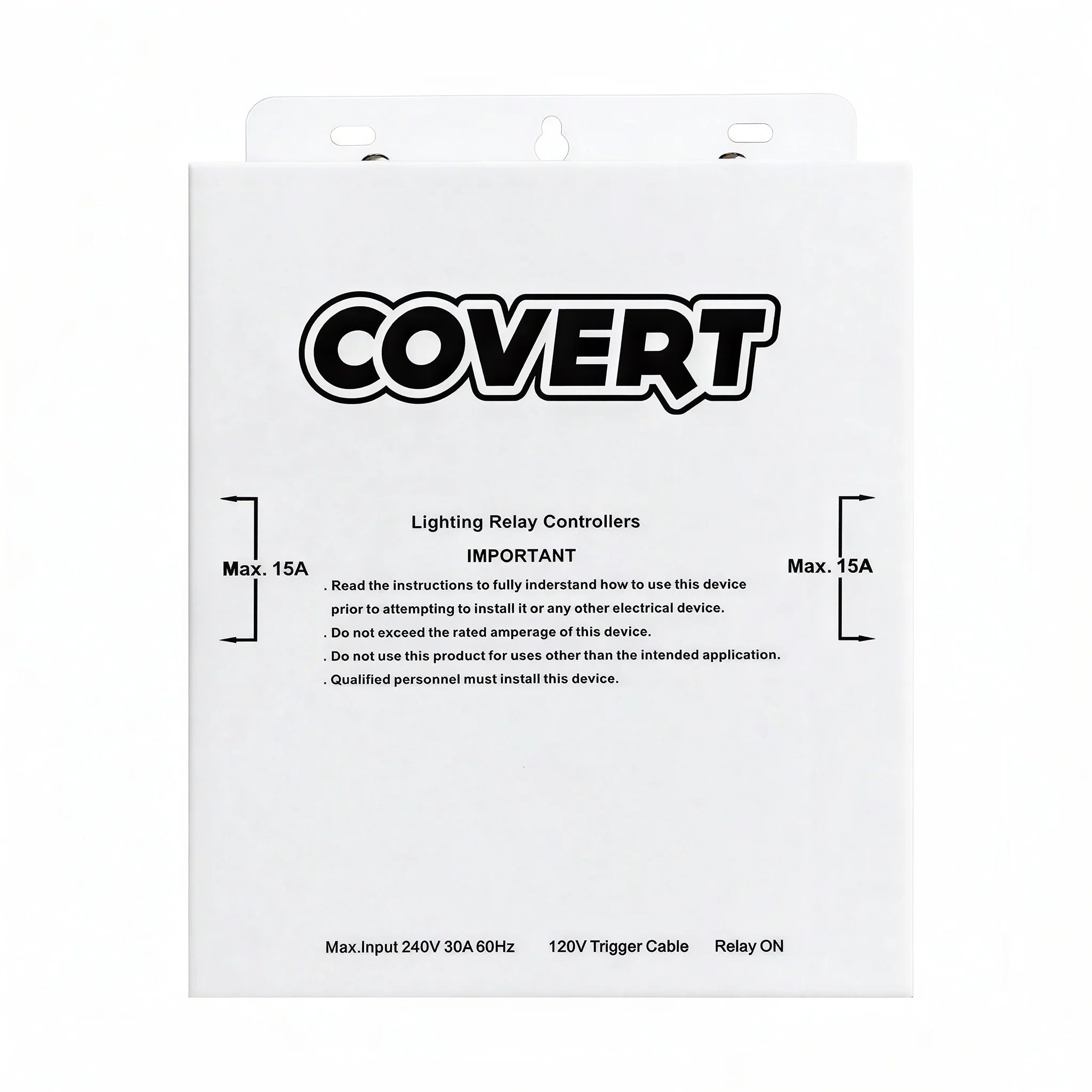

Reliably and confidently control up to 4 HID lights with the Covert 4 Light Controller.
When using with the included 120 volt trigger cable with a 120 volt timer, you are able to automatically turn on and off up to (4) 1,000 watt grow lights (LED, HPS, CMH, T5 etc).
It is recommended to consult a certified electrician before installing or using this controller, especially if you are unfamiliar with electrical wiring and circuits. (120 volt & 240 volt universal plugs)
Specifications
| Size | 9.5" x 7.5" x 4" (HxWxL) |
|---|---|
| Weight | 3.5 lbs |
| Input/Output Voltage | 120 or 240 VAC |
| Relay Coil Voltage | 120 Volts |
| Electrical Relay Operations | 100,000 Cycles |
| Max Input Amps | 30 Amps |
|---|---|
| Max Output Amps | 20 Amps |
| Maximum Wattage | 4000 Watts (1000 per outlet) |
| Storage Temp | 32°F - 135°F |
| Operating Temp | 40°F - 125°F |
| Brand | Covert |
|---|---|
| SKU | EC-LCHYLC-4 |
| Weight (lb.) | 4.0000 |
| Length (in.) | |
| Prop 65 | false |
| Width (in.) | |
| Height (in.) | |
| Lead Time | Ships in 2-3 Business days |
| Hazardous Material | false |
| UL Listed | No |
| ETL Listed | No |
| Number of Lights Controlled | 4 |
| Voltage | 120 Volts, 240 Volts |
| Amps | 20 |
| Exact Watts | 4000 Watts (1000 per outlet) |
