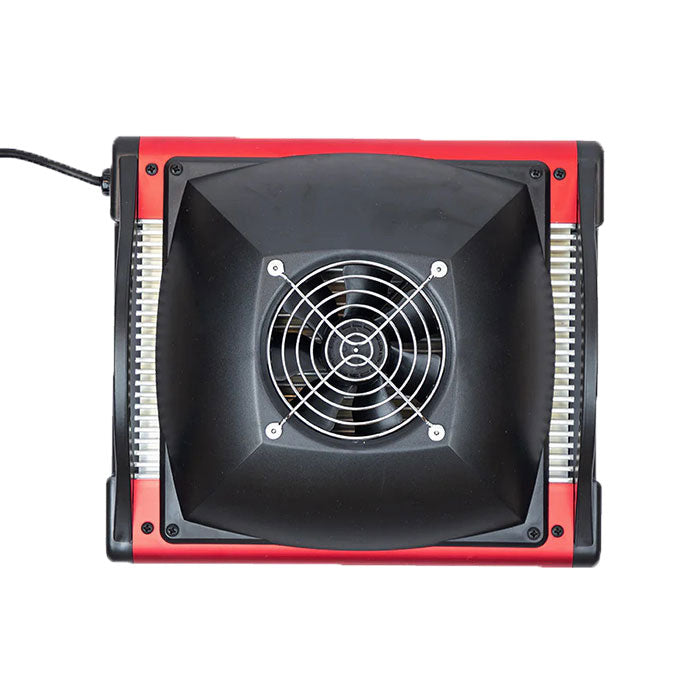

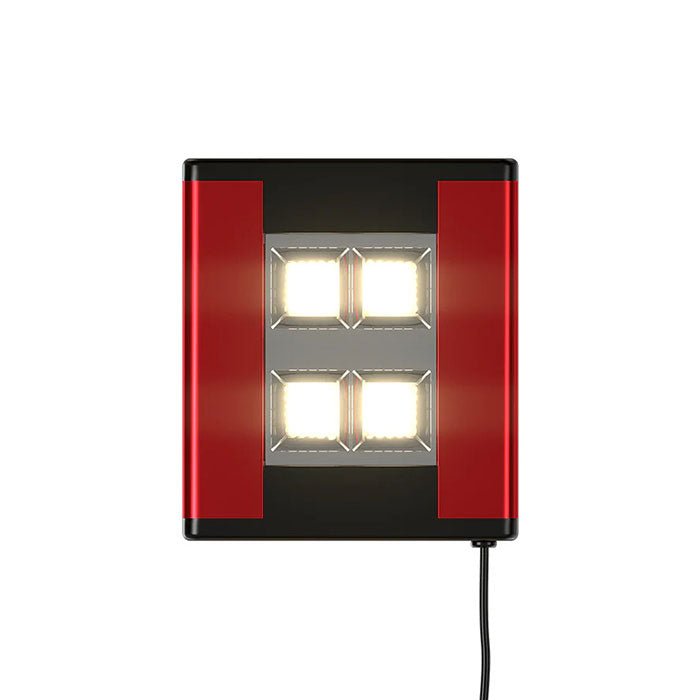

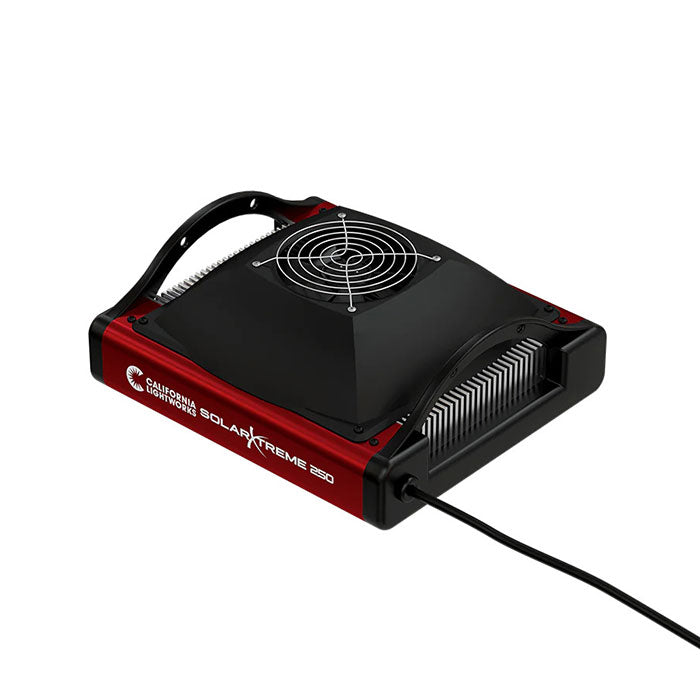

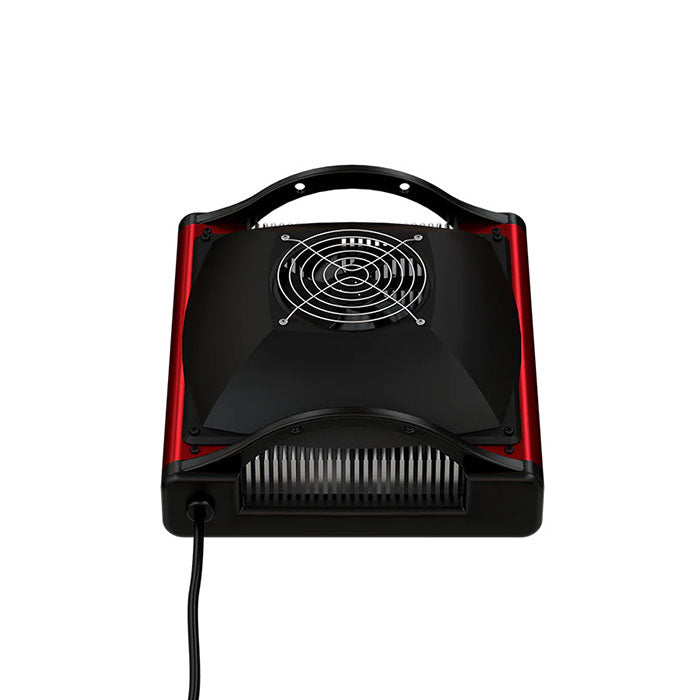

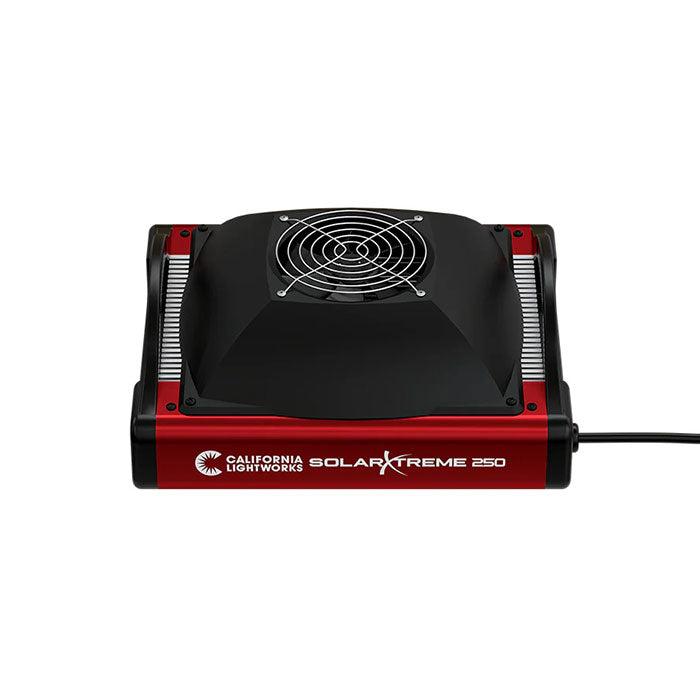

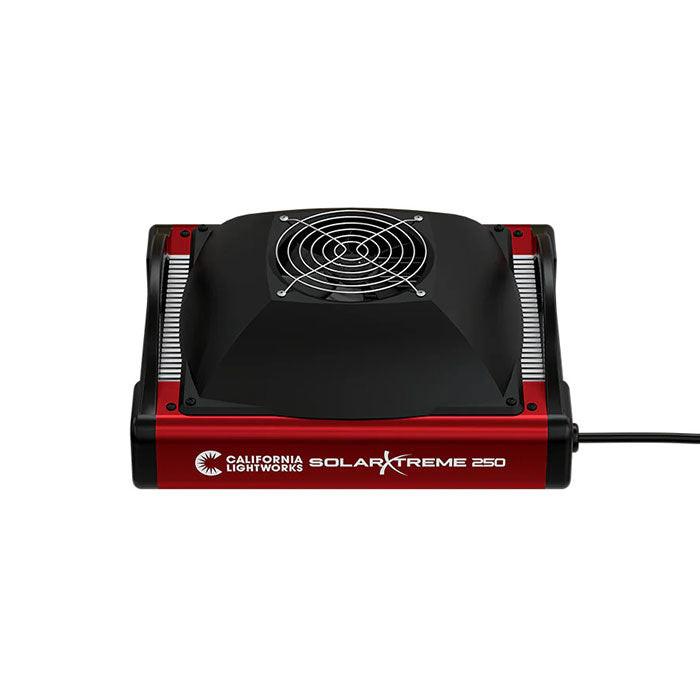

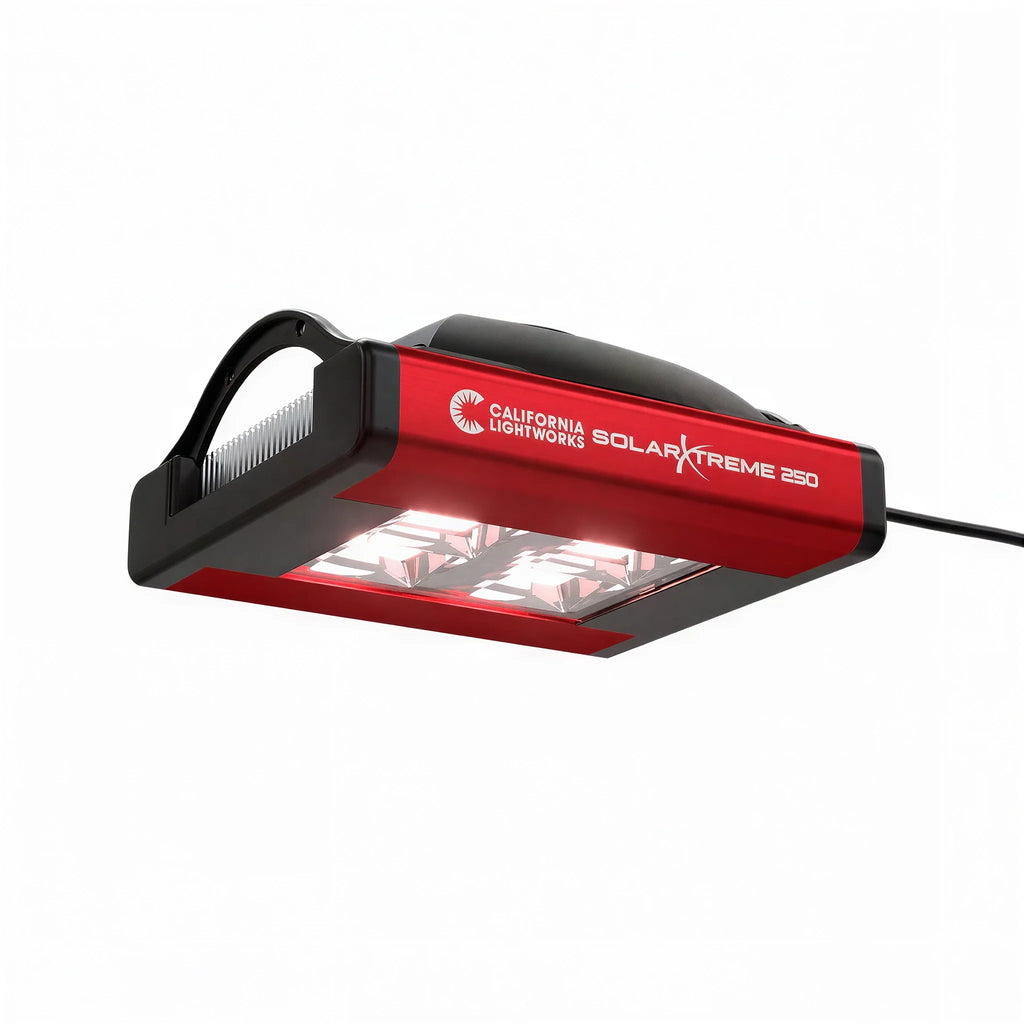

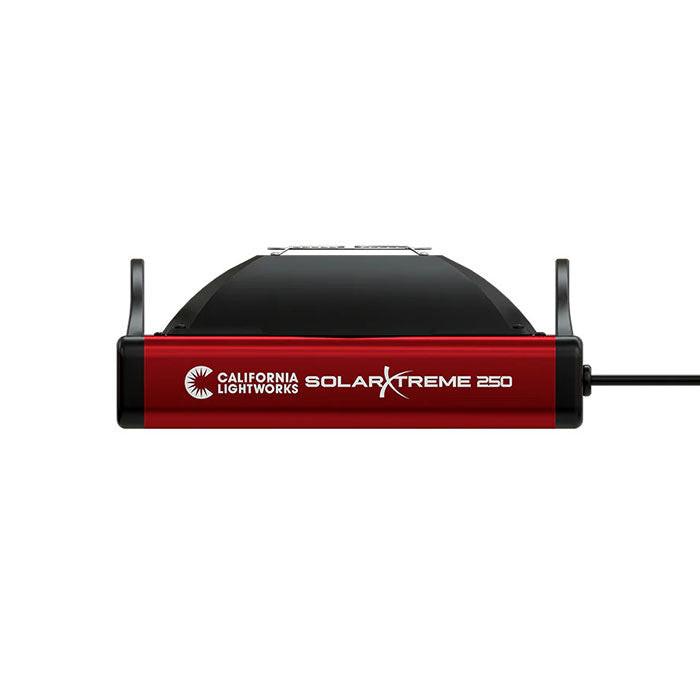

California Lightworks SolarXtreme ManualThe SolarXtreme 250 is one of our easiest-to-use full-spectrum LED grow lights.
Designed especially for grow tents and smaller-scale home growing, this low-power grow light system draws just 200 watts with a maximum current of 1.6 amps at 120 volts.
The new SolarXtreme range of full-spectrum LED grow lights from California Lightworks features our exclusive Optigrow® light spectrum which offers the best results for all phases of growth in a single fixture. Optigrow® has been specially formulated and tested to give the best results in while offering full power for bloom and high yields. Available from 200 to 800 watts, SolarXtreme is designed to give professional results at home at a very affordable cost.
- High efficacy white and deep red individual LED diodes
- Up to 2x more light: faster growth, bigger yield
- Maximum yield at reasonable cost
- Improved direct AC electronics for higher efficiency
- One light for the entire grow cycle
The SolarXtreme series replaces the COB with white and deep red diodes and utilizes a direct AC drive, so LED drivers are not needed. This enables high-efficiency LEDs to be used, at a much lower cost than traditional LEDs. Users, therefore, benefit from full-spectrum grow lights that accommodate all stages of plant growth and flowering for many types of indoor plants, vegetables, and flowers. No adjustments are needed during the growing cycle.
OptiGrow Full Spectrum
Our horticultural LED lights have been developed based on years of research and knowledge of photosynthesis and biological processes. The SolarXtreme 250 represents a convenient innovation in indoor LED grow lights suited for smaller cultivations and users who wish to conserve power draw.
Optional Upgrade: Supplemental UVB Light Kit
The SolarSystem UVB Kit features the latest generation high-output UVB T5 fluorescent bulb. This system is perfect for a single light in a tent or several hundred lights in a large commercial operation.
- The kit consists of (2) SolarSystem UVB units, (2) mounting brackets, and rivets.
- Compatible with SolarSystem 1100, SolarSystem 550, SolarXtreme 1000, and SolarXtreme 500 (all sold separately).
- This is the kit that makes the SolarSystem 1100 a SolarSystem 1100 UVB.
Specifications
| Power Draw | 200 Watts |
|---|---|
| 500 PPFD Distance | 18" |
| 800 PPFD Distance | 12" |
| Max Current | 1.6A @ 120V |
| Coverage Area | Up to 3' x 3' |
|---|---|
| Heat Output | 640 BTU |
| Dimensions | 8.5" x 8.5" x 4" | 6 lbs. |
| Warranty | 3 Years |
| Brand | California Lightworks |
|---|---|
| SKU | SX250 |
| Weight (lb.) | 6.0000 |
| Prop 65 | false |
| Length (in.) | |
| Width (in.) | |
| Height (in.) | |
| Warranty | 1 Year |
| Lead Time | This product ships in 4 weeks |
| Hazardous Material | false |
| Lighting Type | LED |
| LED Light Spectrum | Full Spectrum |
| LED Fixture Type | Panel |
| Est. Electricity Cost /mo | $8.64 |
| Exact Watts | 200 Watts |
| Suggested Hanging Height | Veg: 5'-6' ; Bloom: 20"-30" |
| LED Diode Type | Osram Brand LEDs |
| LED Driver Type | CLW Brand Driver |
| Voltage | 120 Volts |
| Amps | 1.6 Amps @ 120 Volts |
| Frequency | 50/60 Hz |
| Power Cord(s) Included | 120 Volt |
| Power Cord Length | 8 ft. |
| Coverage Area | Veg: 3' x 3'; Flower: 3' x 3' |
| Grow Light Certifications | ETL Listed |
| ETL Listed | Yes |
| UL Listed | No |
