Blue Diamond Product Documents

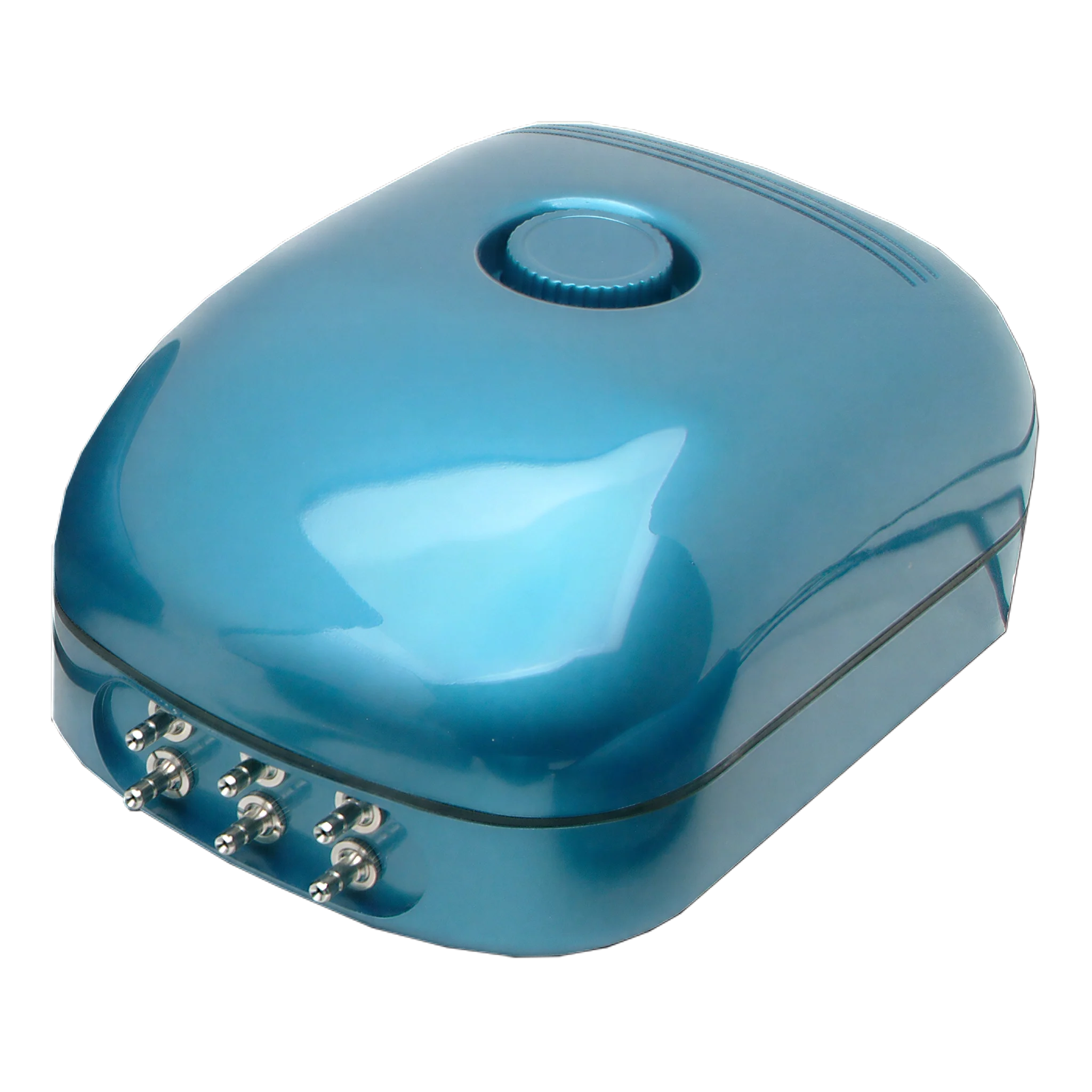

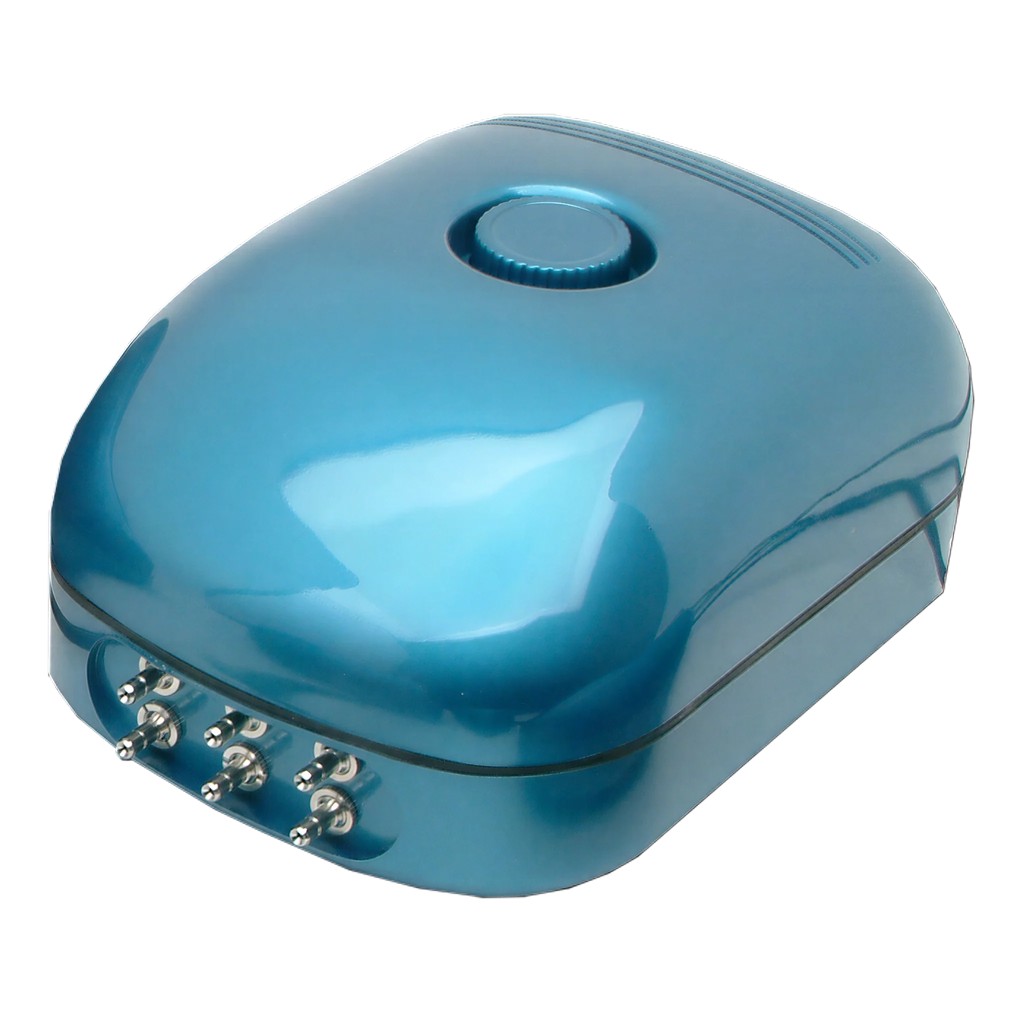

SS Series SpecsheetThe SS series of super quiet air pumps are ideal for oxygenating nutrient reservoirs or aquariums for optimum health. The non-oil lubricated design of the SS series produces a large output of purified air due to its high efficiency and compact design. With low power consumption and long service life, energy and costs are saved. With metal outlets, the SS series allows several processes to be run from the same pump.
Features & Benefits
- Rubber feet for anti vibration and keeps noise levels low.
- Variable flow dial for better and more accurate flow control.
- 3.2 to 42 litres per minute
- High efficiency oil free design for contamination free pumping
- Exceptionally low power consumption from just 2W
- Multiple metal outlet options which eliminate the need for manifolds
- Simple low cost servicing
| Model | Flow @ Pressure | Pressure | Outlets | Power | Connector | Dimensions |
|---|---|---|---|---|---|---|
| SS3 | 3.2 l/min | 0.12 bar | 1 | 2 Watts | 4mm | 136 x 78 x68mm |
| SS7 | 7.2 l/min | 0.12 bar | 2 | 5 Watts | 4mm | 162 x 100 x 87mm |
| SS10 | 10 l/min | 0.15 bar | 4 | 10 Watts | 4mm | 187 x 145 x 95mm |
| SS14 | 14 l/min | 0.15 bar | 6 | 12 Watts | 4mm | 224 x 163 x 126mm |
| SS16 | 16 l/min | 0.15 bar | 8 | 15 Watts | 4mm | 248 x 176 x 137mm |
HYDROPONIC SYSTEMS
Indoor Fish Tanks
The highly efficient SS series is great for both hydroponic and aquatic applications. The range can save you from buying multiple manifolds with its diverse outlet configurations ranging from 1-12 outlets. The variable flow control gives the user a more precise air flow depending on the application.
| Brand | Blue Diamond |
|---|---|
| SKU | SS14 |
| Weight (lb.) | 6.0000 |
| Length (in.) | |
| Width (in.) | |
| Height (in.) | |
| Hazardous Material | false |
| UPC | 6920255810275 |
| Lead Time | This product ships in 1-2 business days |
| Prop 65 | false |
| ETL Listed | No |
| UL Listed | No |
| Parts & Accessories | Air Pumps |
| Pump Outlets | 6 |
| Voltage | 120 Volts |
| Exact Watts | 12 Watts |
