Blue Diamond Product Documents

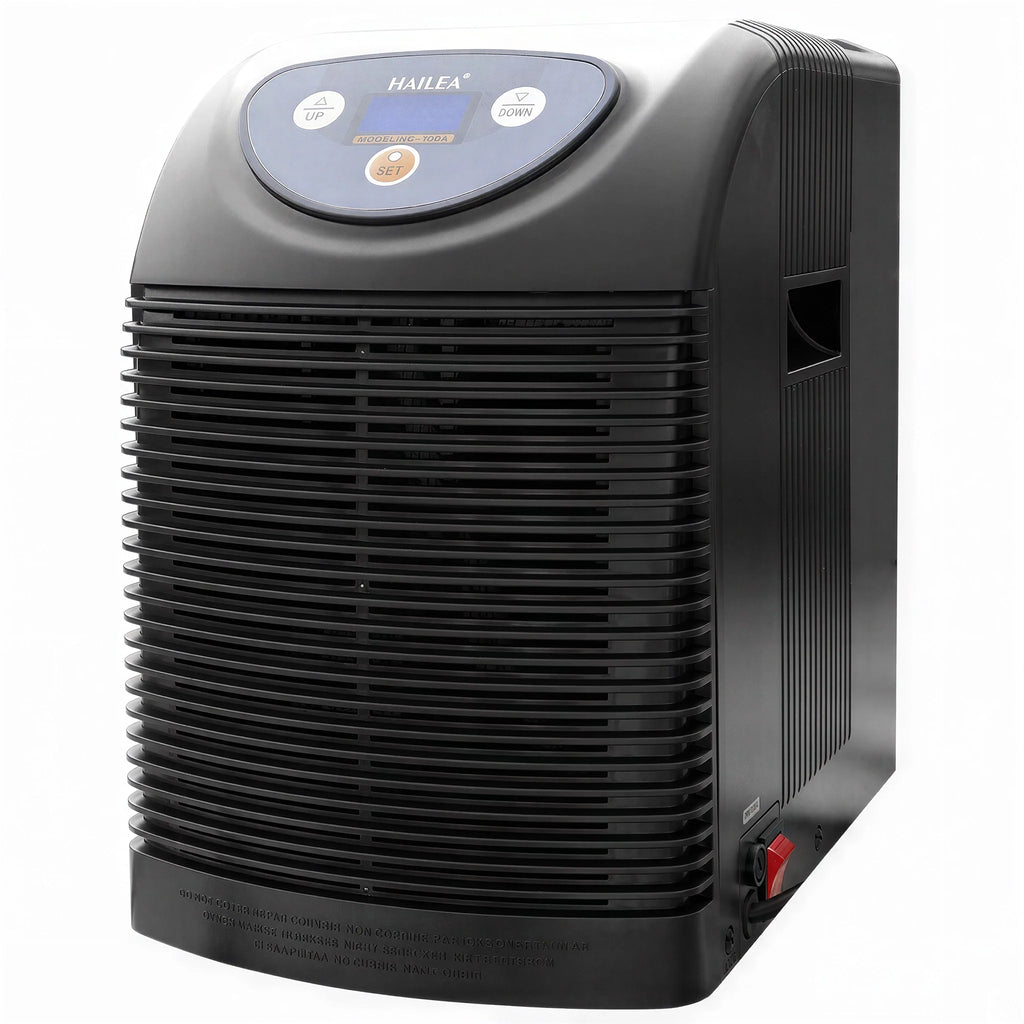

HC Series SpecsheetThe HC Chiller series has been specifically designed to cool water for large hydroponic and aquatic systems. Integrated with on board electronic digital display the HC series is ideal for accurate temperature control making set up easy. Quiet in operation and modelled with a anti-corrosive titanium evaporator, makes the HC series one of the most advanced chillers in the market. They can process 1000’s of liter of water which is great for sudden temperature changes.
The HC-1000X in this series has heating capabilities, with the ability to heat your water up to 98°! You can ensure your water is always at the perfect temperature for your grow or your cold plunge set up with this unit.
Low in noise and environmentally friendly the Chiller series of pumps are low in noise and come equipped with anti-corrosive pure titanium evaporator for fresh and salt water use. The Charles Austen water chillers series are a great addition to any hydroponic or aquatic system.
Benefits & Features
- Digital temperature - controlling technology to keep the set temperatures accurate.
- Anti-corrosive pure titanium evaporator for fresh and salt water use.
- Solid chassis along with overall stylish housing design ensure chiller blend well with the surrounding working environment.
- Low noise.
- Temperature memory system that makes the chiller refrigerate continuously according to the previous temperature when power is supplied again to protect the animals and plants in the aquarium.
- Easy to install.
| Model Number | Max Flow (Gallons/Hour) | Water Refrigerated (Gallons) | Power Consumption HP | Connector Size (Inches) | Dimensions (Inches)(LxWxH) |
|---|---|---|---|---|---|
| HC-300A | 264 - 660 | 80 | 1/4 | 0.78 x 0.98 | 17.6x12.9x17.3 |
| HC-500A | 317 - 792 | 132 | 1/2 | 0.78 x 0.98 | 18.7x14.1x19.3 |
| HC-1000A | 369 - 1057 | 264 | 1 | 1.25 | 20.5x15.7x18.9 |
| HC-1000X | 369 - 1057 | 264 | 1 | 1.25 | 20.5x15.7x18.9 |
| Brand | Blue Diamond |
|---|---|
| SKU | HC-1000A |
| Weight (lb.) | 79.8000 |
| Width (in.) | |
| Height (in.) | |
| Prop 65 | false |
| Length (in.) | |
| Lead Time | 2-3 |
| UPC | 6920255880957 |
| UL Listed | No |
| ETL Listed | No |
| Chiller HP Rating | 1 HP |
| Included Fittings | 1.25" |
| Recommended Pump | 369 - 1057 GPH |
| Recommended Reservoir Size | 132 - 264 Gallon |
| Voltage | 120 Volts |
| Power Cord(s) Included | Yes |
| Power Cord Length | 4 ft. |
What does the Blue Diamond HC Series Water Chiller, 1 HP do for hydroponic and aquatic systems?
The Blue Diamond HC Series Water Chiller, 1 HP cools water for large hydroponic and aquatic systems. Digital temperature control supports accurate temperature settings, while low-noise operation suits grow and aquatic environments.
Can the Blue Diamond HC Series Water Chiller, 1 HP work with fresh water and salt water?
The Blue Diamond HC Series Water Chiller, 1 HP uses a pure titanium evaporator for fresh water and salt water applications.
What pump and reservoir setup suits the Blue Diamond HC Series Water Chiller, 1 HP?
The Blue Diamond HC Series Water Chiller, 1 HP suits a pump delivering 369 to 1057 gallons per hour and a reservoir holding 132 to 264 gallons.
How does the Blue Diamond HC Series Water Chiller, 1 HP connect to a hydroponic or aquatic system?
The Blue Diamond HC Series Water Chiller, 1 HP includes 1.25-inch fittings and a 4-foot power cord. The chiller operates at 120 volts and is designed for easy installation.
Does the Blue Diamond HC Series Water Chiller, 1 HP provide heating as well as cooling?
The Blue Diamond HC Series Water Chiller, 1 HP model is the HC-1000A, while heating capability is specified for the HC-1000X model. The HC-1000X can heat water up to 98 degrees.
