BioTherm Solutions Product Documents

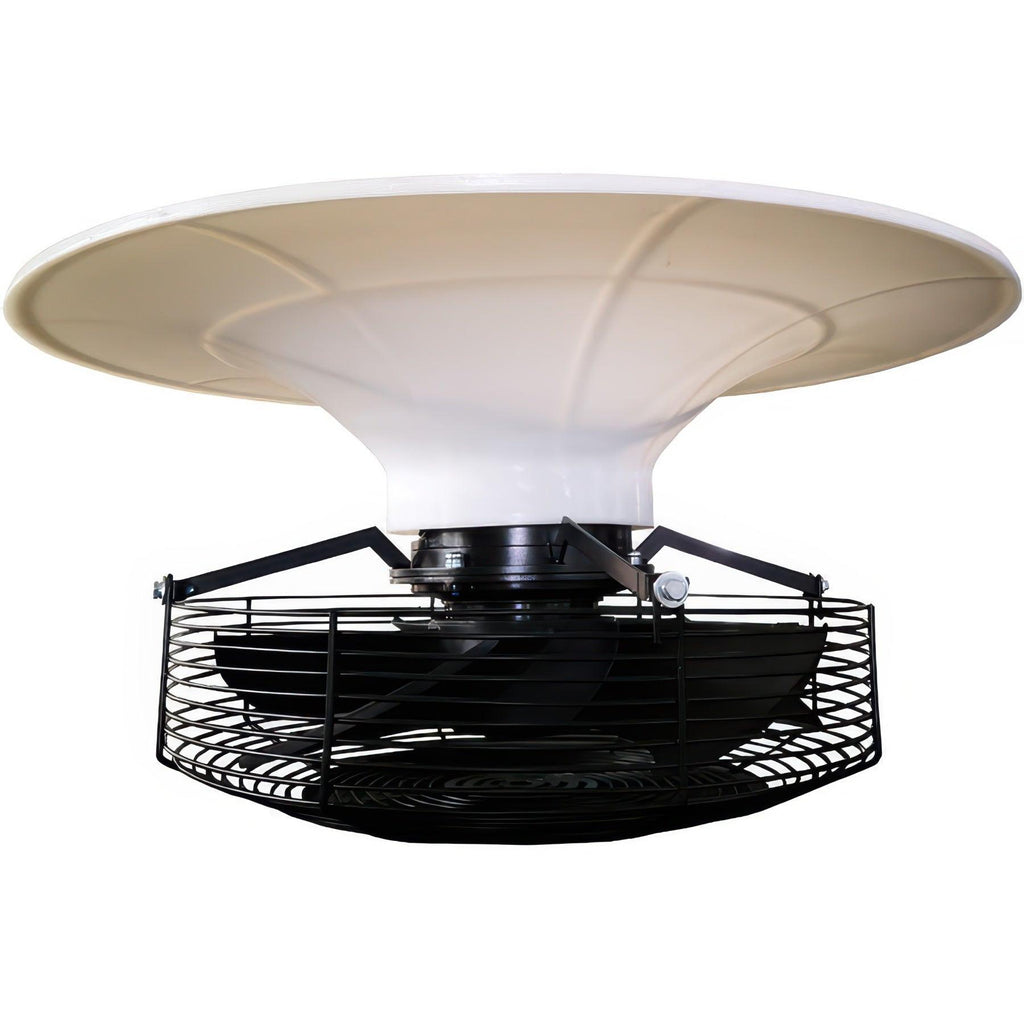

BioTherm Solutions Vertical Air Flow Fan Spec SheetVertical Airflow Fans
BioTherm’s vertical airflow fans provide an excellent solution to air circulation from underneath the canopy. Easy to mount and install, these fans provide a circulatory air flow that pushes air outward along the roof and walls of your grow space and then pulls said air upward through the canopy in one contiguous pattern to uniformly mix your local atmosphere to your plant’s liking.
Given their aerodynamic design, growers can use these HAF fans more economically compared to basket-style HAF or oscillating fans.
- Voltage: 220 Volt
- Diameter Size: 20"
- Rotor Material: Carbon Steel
- Blade Material: Plastic
- Ingress Protection: IP44
- Insulation Class: B
- Bearing Type: Maintenance-free ball bearing.
Specifications for the BioTherm HAF Fans
- Model No.: GRV-220
- Voltage (VAC): 220
- Frequency (Hz): 50/60
- Speed (RPM): 1800
- Input Power (W): 310
- Current (A): 1.42
- Airflow (CFM): 2400
- Sound Level (dBA): 68
| Brand | BioTherm Solutions |
|---|---|
| SKU | FAN-GRV-220 |
| Weight (lb.) | 26.5000 |
| Lead Time | This Product Ships in 10-14 Business Days |
| Height (in.) | |
| Width (in.) | |
| Length (in.) | |
| Warranty | 12 Months |
| Prop 65 | false |
| Hazardous Material | false |
| Fan Type | Vertical Circulation |
| Oscillation | No |
| CFM Rating | 2400 CFM |
| Exact Watts | 310 Watts |
| Amps | 1.42 Amps |
| Frequency | 50/60 Hz |
| Voltage | 240 Volts |
| Max. Decibals | 68 dBA |
| Max. RPM | 1800 RPM |
| ETL Listed | No |
| UL Listed | No |
What problem does the BioTherm Solutions Vertical Airflow Fan solve in a grow space?
The BioTherm Solutions Vertical Airflow Fan circulates air from underneath the canopy. The fan helps uniformly mix the local atmosphere around plants.
How does the BioTherm Solutions Vertical Airflow Fan move air through a plant canopy?
The BioTherm Solutions Vertical Airflow Fan pushes air outward along grow-space roofs and walls, then pulls air upward through the canopy in one continuous circulation pattern.
How can growers install the BioTherm Solutions Vertical Airflow Fan in a grow space?
The BioTherm Solutions Vertical Airflow Fan is designed for easy mounting and installation in grow spaces. The fan provides vertical circulation from beneath the canopy.
What airflow does the BioTherm Solutions Vertical Airflow Fan provide for canopy circulation?
The BioTherm Solutions Vertical Airflow Fan provides 2,400 CFM of airflow. The fan uses vertical circulation to mix air throughout the grow space and canopy.
What construction and operating features does the BioTherm Solutions Vertical Airflow Fan offer?
The BioTherm Solutions Vertical Airflow Fan has a carbon steel rotor, plastic blades, and maintenance-free ball bearings. The fan operates at 68 dBA and has IP44 ingress protection.
