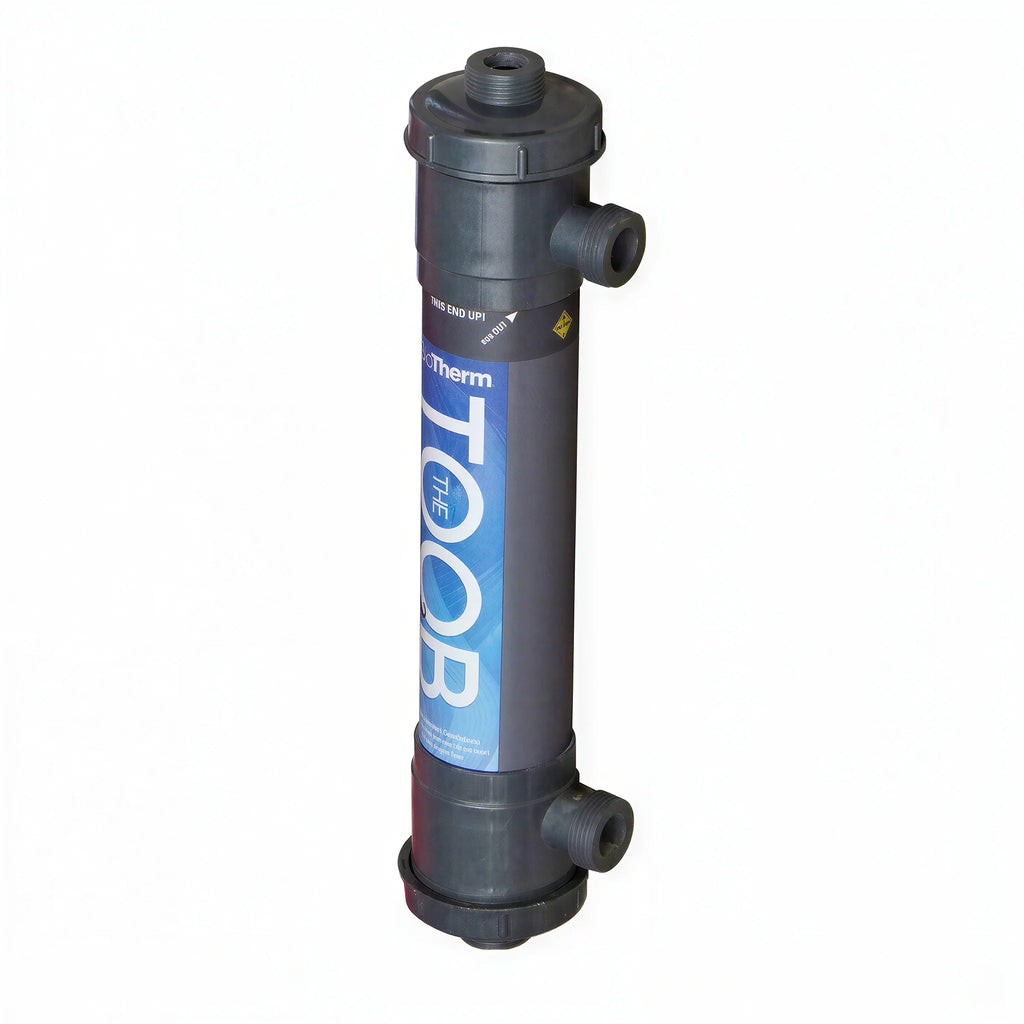

BioTherm Solutions O2 TOOB Craft Dissolved Oxygen Infuser, 24 Inch

The TOOB Craft - Oxygen Infusion

The BioTherm TOOB™ is a revolutionary, efficient method of increasing the dissolved oxygen (DO) content of irrigation water, significantly improving plant health and productivity. The TOOB has an inlet for water, and another for pure oxygen (from an optional BioTherm O2GEN oxygen generator, or oxygen tanks from a commercial source). Oxygen enters the TOOB through long strands of a proprietary hollow “mass transfer” fiber. The O2 molecules are forced though microscopic holes in the fiber into the surrounding water, supersaturating it with dissolved oxygen. The oxygen remains in stable suspension throughout the irrigation process.

Dissolving oxygen into water is normally considered to be an energy-intensive process. Until now, inefficient air blowers or bubble diffusers have been used, and the results are usually only minor increases in the oxygen level. There is no known method as efficient and economical as the TOOB.

Benfits of The TOOB and Dissolved Oxygen

Our system dissolves oxygen in water without making bubbles. The efficiency of this manner of mass transfer allows the production of stable liquid streams containing enormous amounts of dissolved oxygen that are normally only seen in laboratory conditions. Stable high levels of dissolved oxygen are achieved with the TOOB. For example, 40-45 ppm is quite simply achieved in irrigation storage tanks. Under ambient conditions, 8 ppm is typically the maximum. The saturation correlates with the depth of the tank. Sustained high DO readings in excess of a week are obtainable in common open-top irrigation tanks. Find out why oxygen infusion as part of your irrigation plan can make a big difference to your grow operation. Increasing the amount of Dissolved Oxygen in your irrigation water allows more vigorous, crazy root growth. Roots climb out of their grow bags, resulting in increased plant growth.

• Simple and efficient
• Easy to install
• Connects to a locally sourced oxygen tank or oxygen concentrator
• Economical with immediate ROI
• Long-life – No parts replacement
• Scalable for your irrigation needs
• Increased health and production
• Reduced disease rates
• Increased nutrient uptake
• Reduced nutrient and supplement costs

How Mass Transfer Fiber Works

Inside the TOOB is a proprietary “fiber module cluster,” created from mass transfer fiber. How porous is this fiber? One cubic foot of it has 7,500 square feet of surface area. This unique material has the ability to create a large interface between the water and the oxygen, resulting in an extremely efficient infusion. As the water passes through the TOOB, it passes over the hollow oxygen-filled fibers, where it undergoes the oxygen infusion process. The oxygen pressure is managed by the grower, supersaturating the water at the desired level for any growing scenario. The water exiting the TOOB is ready to use for irrigation.

Why Dissolved Oxygen Matters

Every grower knows that water is the lifeblood of plant production. It carries nutrients and hydrates the plant, but in order for those nutrients to be efficiently absorbed by the plant, the latest research is confirming the theory that significant amounts of oxygen must be present.

Doesn’t water already contain oxygen? The average city water and well water contain Dissolved Oxygen (DO), but at a very low level of 4-8 ppm. The use of the TOOB allows the grower to control the amount of DO and find the optimal level for the application. The DO range that research indicates is optimal for most applications is 18-25 ppm.

Specifications for the TOOB

• Material: PVC (grey)
• Application: Irrigation; Hydroponics; Deep Water Culture; Tank management; Soil or soilless
• Dissolved Oxygen: Craft: 0-25mg/L (water flow and pressure impact required oxygen flow to achieve target levels)
• Water Flow/Pressure: 0-18GPM / 0-40psi max
• Water Pipe Sizes: Inlet and Outlet: 1” socket union
• O2 Flow/Pressure: 0-3LPM/ 50ps
• Filtration: 100 microns minimum
• Oxygen Source: Customer provided tank or concentrator capable of pressure and volume requirements
• Length: Craft: 21.5” (546mm)
• Weight (dry): Craft: 4.5 lbs
• Diameter: 3.5” (89mm)
• Included: Vertical surface mount clamps; inlet pressure gauge; O2 flow regulator; O2 hose and fittings; Sch80 PVC ball valves
