AXEON Water Technologies Product Documents

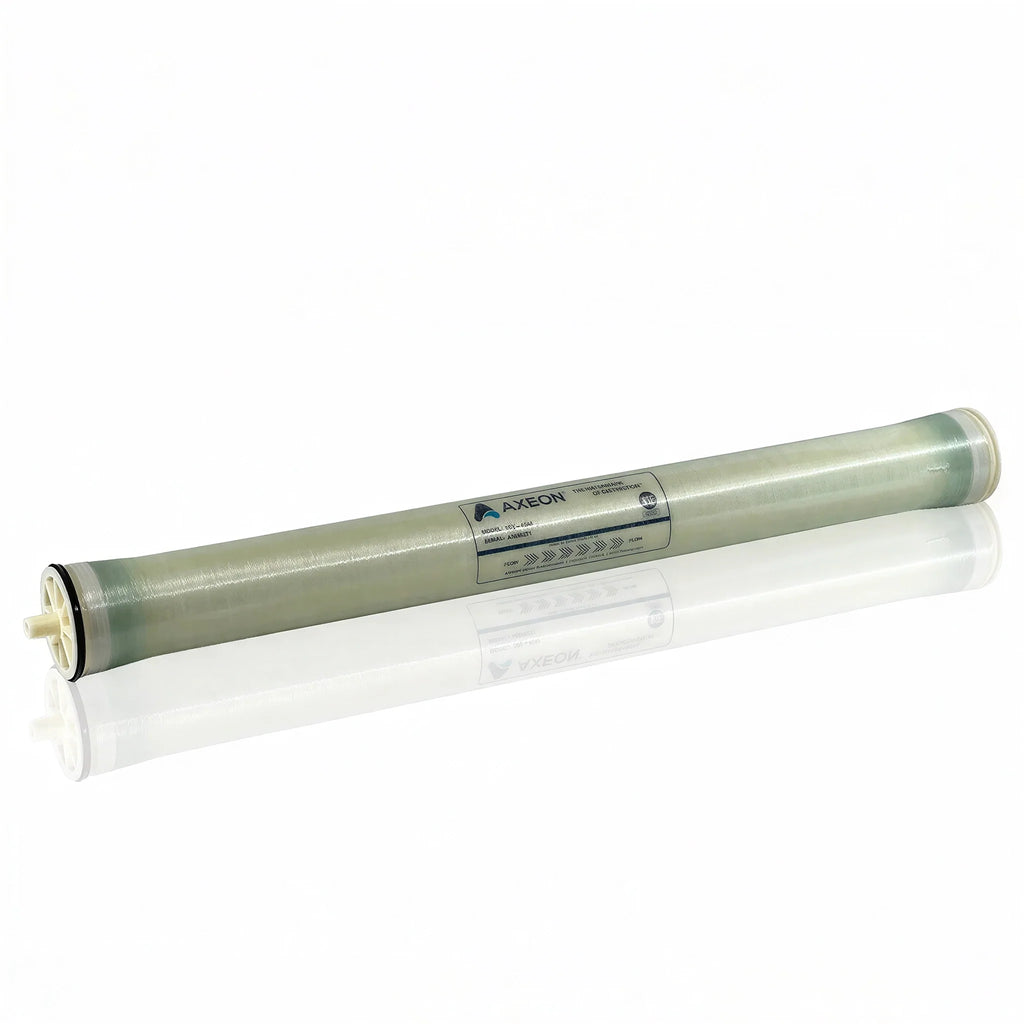

XE1 SpecsheetAXEON® XE1–Series Membrane Elements offer enhanced performance and extra energy savings for reverse osmosis systems by operating at a low applied pressure of 100 psi with a nominal rejection rate of 99.2%. AXEON XE1–Series are fiberglass wrapped, NSF-61 Certified and manufactured in a state-of-the-art, ISO–9001 compliant automated rolling facility and are shipped dry for extended shelf life.
Benefits:
- NSF-61 Certified
- Extra-low Operating Pressure
- Fiberglass Wrapped for Enhanced Durability
Specifications:
- Description: XLE-4040
- Applied Pressure (psi / bar): 100 / 6.89
- Permeate Flow Rate (gpd / m³/d): 2400 / 9.09
- Nominal Salt Rejection %: 99.20
Operating Limits:
- Membrane Type: Polyamide Thin-Film Composite
- Maximum Operating Temperature (°F / °C): 113 / 45
- Maximum Operating Pressure (psi / bar): 600 / 41
- pH Range, Continuous Operaiton: 2 - 11
- pH Range, Short Term Cleaning (30 Min.): 1 - 13
- Maximum Feed Silt Density Index (SDI): 5
- Chlorine / Chloramine Tolerance (ppm): 0
- Maximum Feed Flow Rate (gpm): 14
| Brand | AXEON Water Technologies |
|---|---|
| SKU | 211757 |
| Weight (lb.) | 7.6000 |
| Height (in.) | |
| Width (in.) | |
| Length (in.) | |
| Lead Time | 10-14 |
| Prop 65 | false |
What is the AXEON XE1-4040 reverse osmosis membrane designed for?
The AXEON XE1-4040 is a reverse osmosis membrane element for reverse osmosis systems. The membrane operates at a low applied pressure of 100 psi and offers extra energy savings.
What permeate flow and salt rejection does the AXEON XE1-4040 provide?
The AXEON XE1-4040 provides a permeate flow rate of 2,400 gallons per day and a nominal salt rejection rate of 99.20%.
What operating pressure does the AXEON XE1-4040 require?
The AXEON XE1-4040 uses an applied pressure of 100 psi, or 6.89 bar. The membrane has a maximum operating pressure of 600 psi, or 41 bar.
What operating conditions are suitable for the AXEON XE1-4040?
The AXEON XE1-4040 supports a maximum operating temperature of 113°F, or 45°C, and continuous operation across a pH range of 2 to 11. The membrane supports short-term cleaning for 30 minutes across a pH range of 1 to 13.
What durability and storage features does the AXEON XE1-4040 include?
The AXEON XE1-4040 is fiberglass wrapped for enhanced durability, NSF-61 Certified, and shipped dry for extended shelf life.
