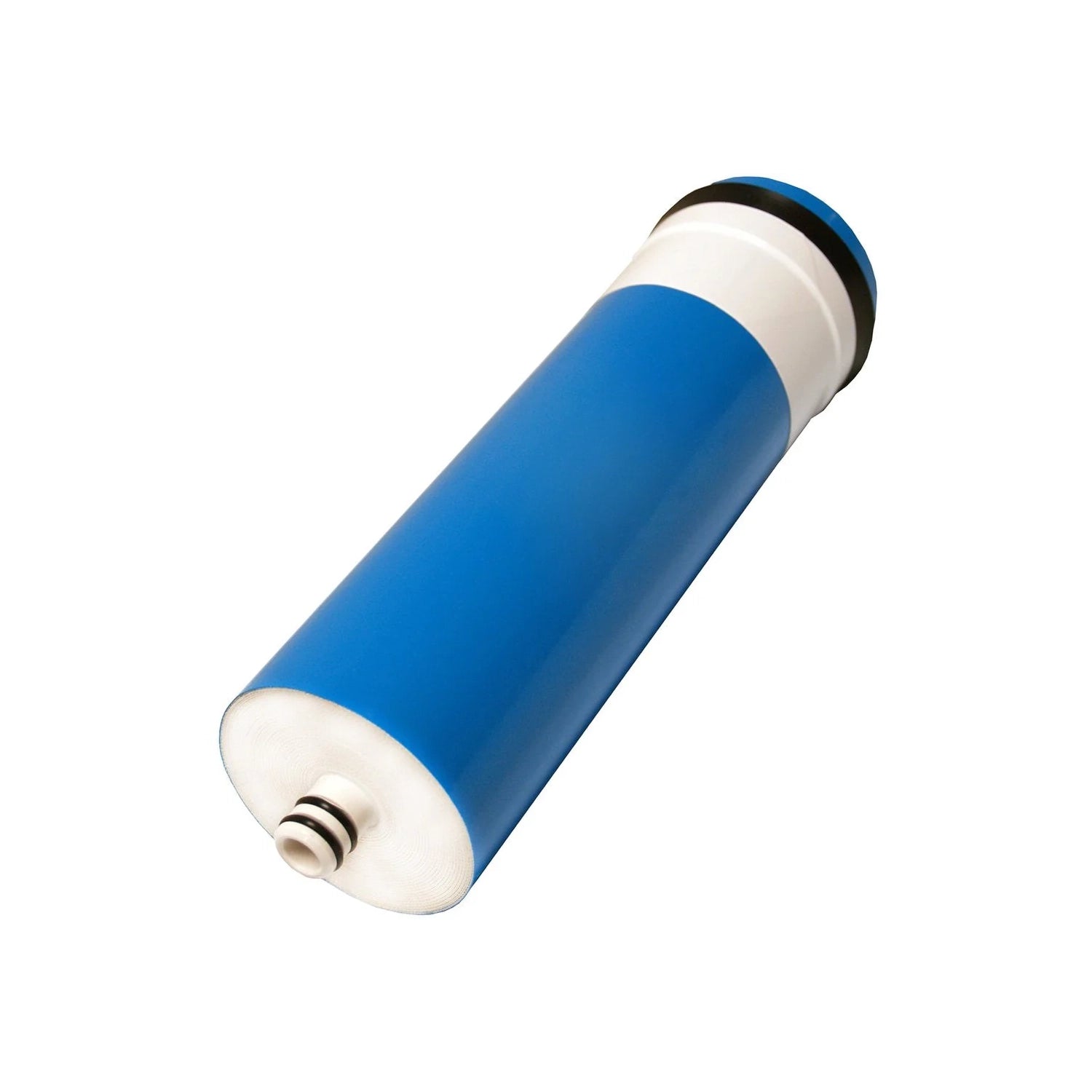

The AXEON® TE-3012 Reverse Osmosis Membrane is designed for light commercial and high-output point-of-use RO applications requiring elevated daily water production. Rated at 500 GPD in a compact 3.0" x 12" format, this membrane is ideal for commercial RO systems, beverage equipment, laboratories, and specialty applications where higher permeate flow is needed in a space-efficient format.
Manufactured using advanced thin-film composite (TFC) membrane technology, the TE-3012 delivers effective dissolved solids reduction with stable permeate output. Dry-shipped for extended shelf life and simplified storage prior to installation. For use with non-chlorinated water only.
Features
- 500 GPD light commercial membrane
- Advanced thin-film composite (TFC) technology
- Compact 3.0" x 12" format
- Dry-shipped for extended shelf life
- Consistent permeate quality and stable output
- AXEON®-engineered reliability
Specifications
-
Model: TE-3012-500
-
Applied Pressure: 70 psi / 4.83 bar
-
Permeate Flow Rate: 500 GPD / 1,892.72 LPD
-
Nominal Salt Rejection: 98%
-
Membrane Type: Polyamide Thin-Film Composite
-
Max Operating Temperature: 113 degrees F / 45 degrees C
-
Max Operating Pressure: 300 psi / 20 bar
-
Max Feed Flow Rate: 2.5 gpm / 9.50 lpm
-
pH Range, Continuous Operation: 2 - 11
-
Max Feed SDI: 5
-
Chlorine / Chloramine Tolerance: 0 ppm
