AXEON Water Technologies Product Documents

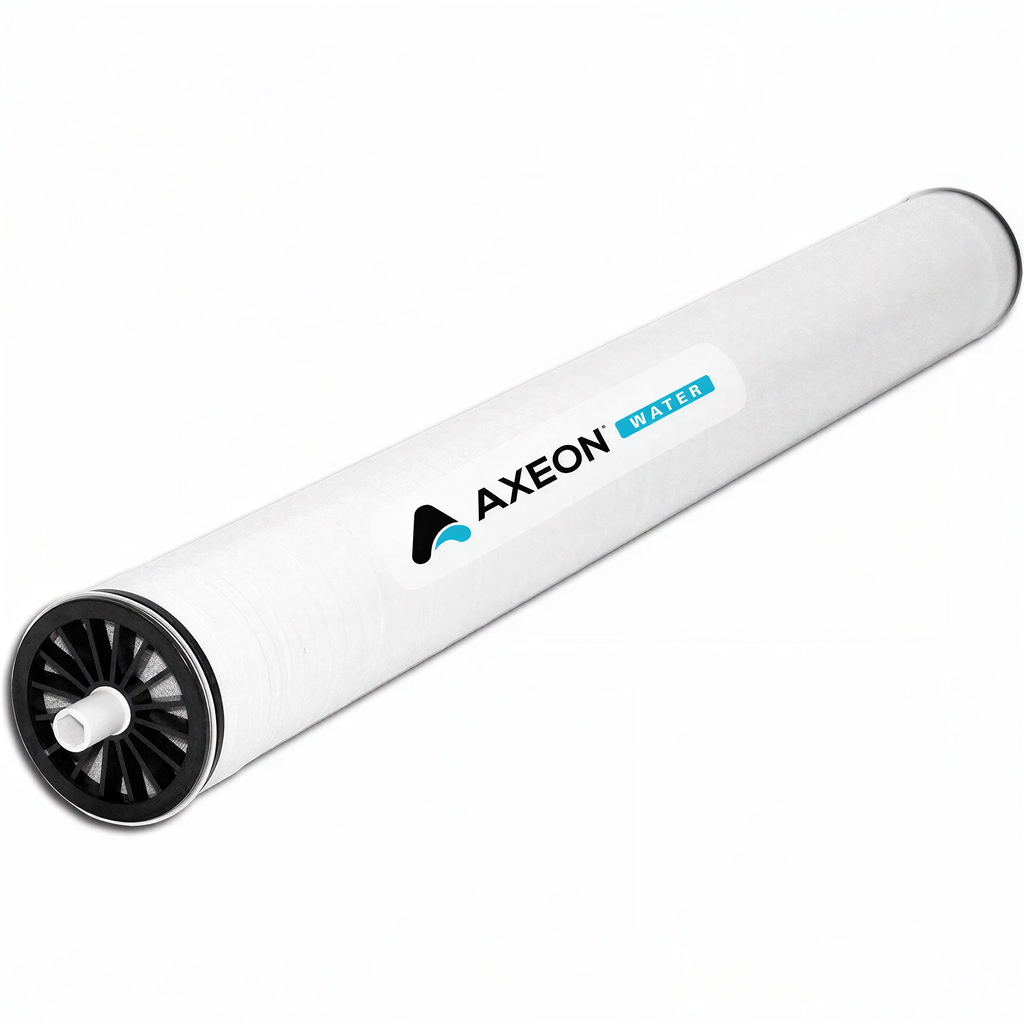

Axeon R1 4040 Replacement Membrane SpecsheetAXEON HF5 – Series Membrane Elements are manufactured using the industry's leading membrane film technology. These membranes offer reliability, high performance and deliver consistent results. They provide increased production, high rejection rates and ultra low energy consumption by operating at low applied pressures.
AXEON HF5 – Series Membrane Elements are the only elements on the market that operate at a pressure of only 80 psi. AXEON HF5 – Series Membrane Elements are available in all standard 2.5 inch and 4 inch commercial sizes and feature a tape-wound exterior. AXEON HF5 – Series Membrane Elements are the best choice to counter the negative effects of cold water temperatures on reverse osmosis production. All elements are shipped dry for an indefinite shelf life, easier handling, and a lighter shipping weight. AXEON HF5–Series Membrane Elements are 100% vacuum integrity tested and may also be ordered as individually wet tested.
R1-Series Replacement RO Membrane for: R1-2140, R1-4140, R1-8140
Benefits
- Superior Quality and Cost Savings
- Individually Inspected, Qualified and Vacuum Tested
- Pricate Labeling & Customization Available
- All Industry Standard Sizes
- Ultra Low Energy with High Flow Rates
- Improved RO System Performance
Operating Limits
- Membrane Type: Polyamide Thin-Film Composite
- Maximum Operating Temperature (°F / °C): 113 / 45
- Maximum Operating Pressure (psi / bar): 400 / 27.58
- pH Range, Continuous OperationA: 2-11
- pH Range, Short Term Cleaning (30 Min.): 1-13
- Maximum Feed Silt Density Index (SDI): 5
- Chlorine / Chloramine Tolerance (ppm): 0
- Maximum Feed Flow Rate (gpm): 2.5" = 6 4.0" = 14
| Brand | AXEON Water Technologies |
|---|---|
| SKU | AXR1000 |
| Weight (lb.) | 8.0000 |
| Height (in.) | |
| Width (in.) | |
| Length (in.) | |
| Lead Time | This Product Ships in 3-5 Business Days |
| Shipping Restrictions | AK, HI |
| Prop 65 | false |
| Gallons Per Hour | 104.17 |
| Min. Feed Pressure | 45 psi |
| Recommended Feed Pressure | 80 PSI |
| Operating Temperature | 77 degrees |
| Operating pH | 7 pH |
| Nominal % Rejection | 98.5 |
What is the AXEON R1-HF5 Series 4040 Replacement Membrane used for?
The AXEON R1-HF5 Series 4040 Replacement Membrane replaces a 40-inch by 4-inch commercial reverse osmosis membrane. AXEON HF5 membrane technology supports high production, high rejection, and low-energy operation.
Which reverse osmosis systems fit the AXEON R1-HF5 Series 4040 Replacement Membrane?
The AXEON R1-HF5 Series 4040 Replacement Membrane fits R1-2140, R1-4140, and R1-8140 reverse osmosis systems.
What production and rejection performance does the AXEON R1-HF5 Series 4040 Replacement Membrane provide?
The AXEON R1-HF5 Series 4040 Replacement Membrane provides 104.17 gallons per hour and a nominal rejection rate of 98.5 percent.
What pressure does the AXEON R1-HF5 Series 4040 Replacement Membrane require?
The AXEON R1-HF5 Series 4040 Replacement Membrane has a recommended feed pressure of 80 psi, a minimum feed pressure of 45 psi, and a maximum operating pressure of 400 psi. Low-pressure operation helps counter reduced reverse osmosis production caused by cold water temperatures.
What water conditions can the AXEON R1-HF5 Series 4040 Replacement Membrane handle?
The AXEON R1-HF5 Series 4040 Replacement Membrane supports continuous operation across a pH range of 2 to 11 and temperatures up to 113 degrees Fahrenheit or 45 degrees Celsius. The membrane has zero chlorine and chloramine tolerance.
How is the AXEON R1-HF5 Series 4040 Replacement Membrane shipped and tested?
The AXEON R1-HF5 Series 4040 Replacement Membrane ships dry for indefinite shelf life, easier handling, and lighter shipping weight. AXEON vacuum tests every membrane for integrity, with individually wet-tested membranes available by order.
