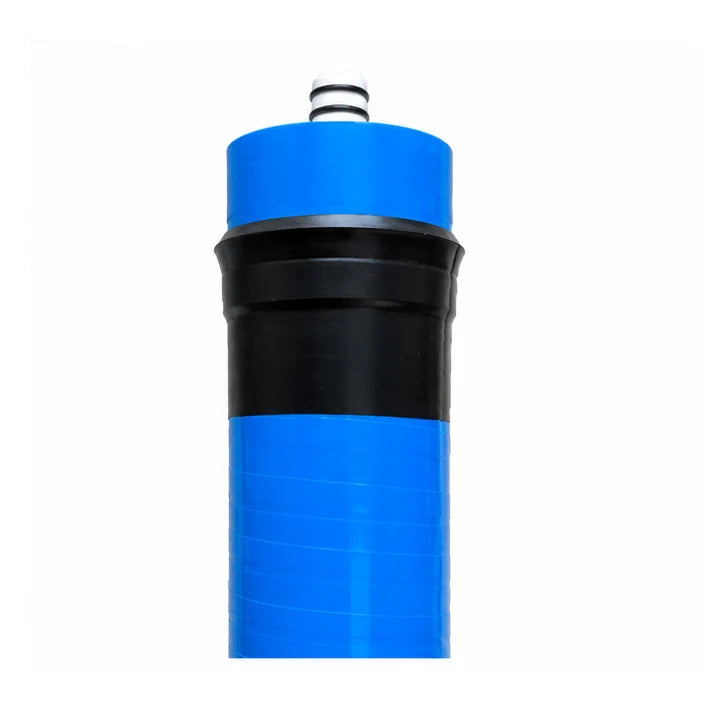

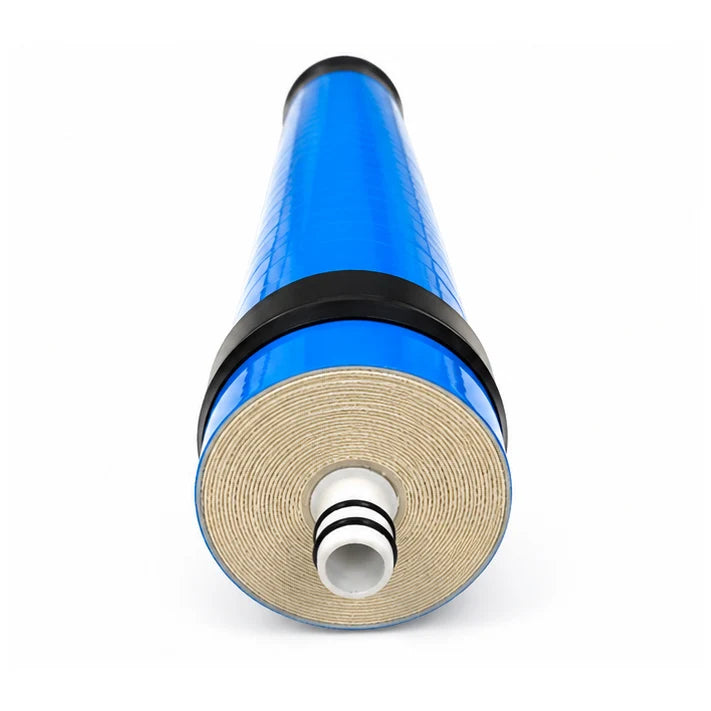

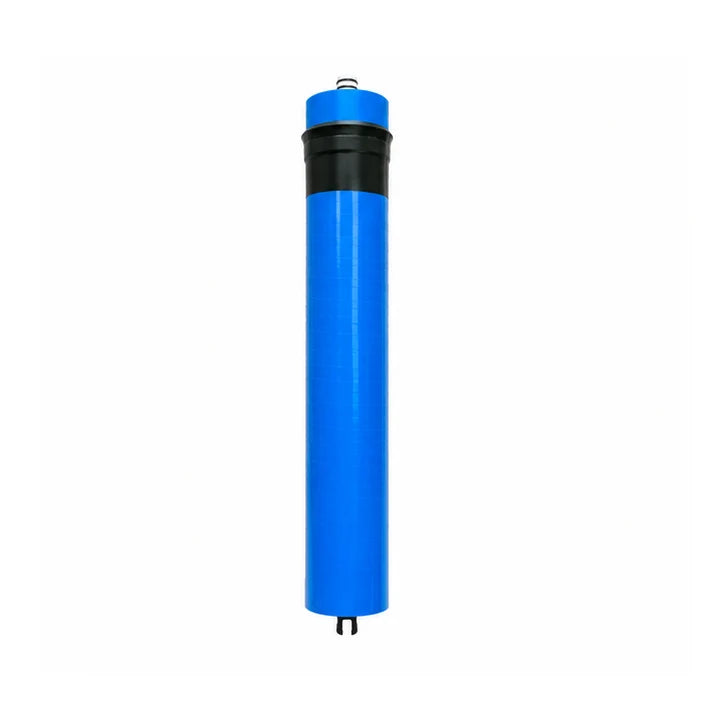

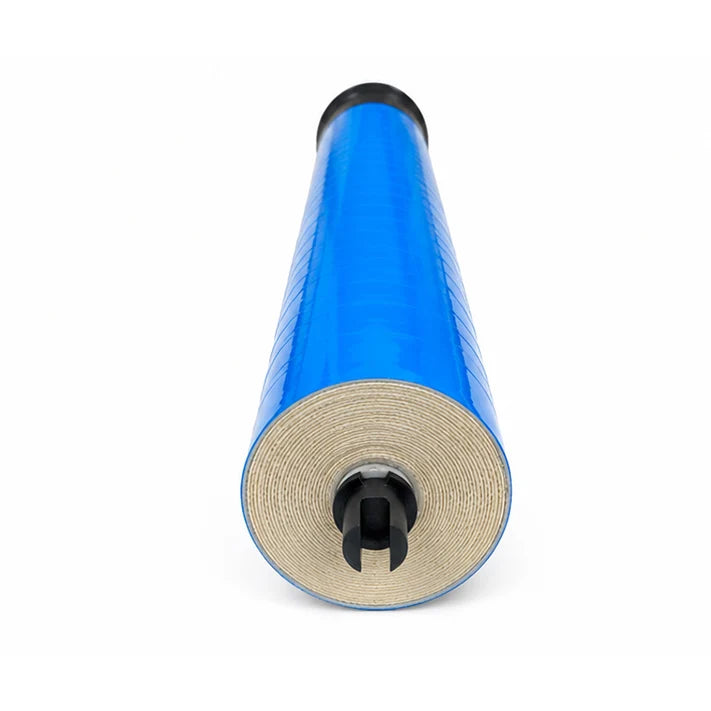

The AXEON HF5-3018 Reverse Osmosis Membrane Element is engineered to provide dependable, high-rejection performance for light commercial and specialty RO applications. Utilizing advanced thin-film composite (TFC) membrane technology, this element delivers consistent reduction of dissolved solids while maintaining stable permeate flow and system efficiency.
AXEON’s precision manufacturing ensures long service life and consistent performance across a wide range of operating conditions. The HF5-3018 RO membrane elements feature a protective tape wound exterior, and are 100% vacuum integrity tested.
Features:
- Superior Quality and Cost Savings
- Individually Inspected, Qualified and Vacuum Tested
- All Industry Standard Sizes
- Ultra Low Energy with High Flow Rates
- Improved RO System Performance
- Made with Genuine Dupont FilmTec Flatsheet
- Assembled in the U.S.A
Specifications
-
Description: HF5-3018
-
Applied Pressure (psi / bar): 80 / 5.52
-
Permeate Flow Rate (gpd / m³/d): 600 / 2.27
-
Nominal Salt Rejection %: 98.50
-
Membrane Type: Polyamide Thin-Film Composite
-
Maximum Operating Temperature (°F / °C): 113 / 45
-
Maximum Operating Pressure (psi / bar): 400 / 27.58
-
pH Range, Continuous Operation: 2 - 11
-
pH Range, Short Term Cleaning (30 Min.): 1 - 13
-
Maximum Feed Silt Density Index (SDI): 5
-
Chlorine / Chloramine Tolerance (ppm): 0
-
Maximum Feed Flow Rate (gpm): 14
