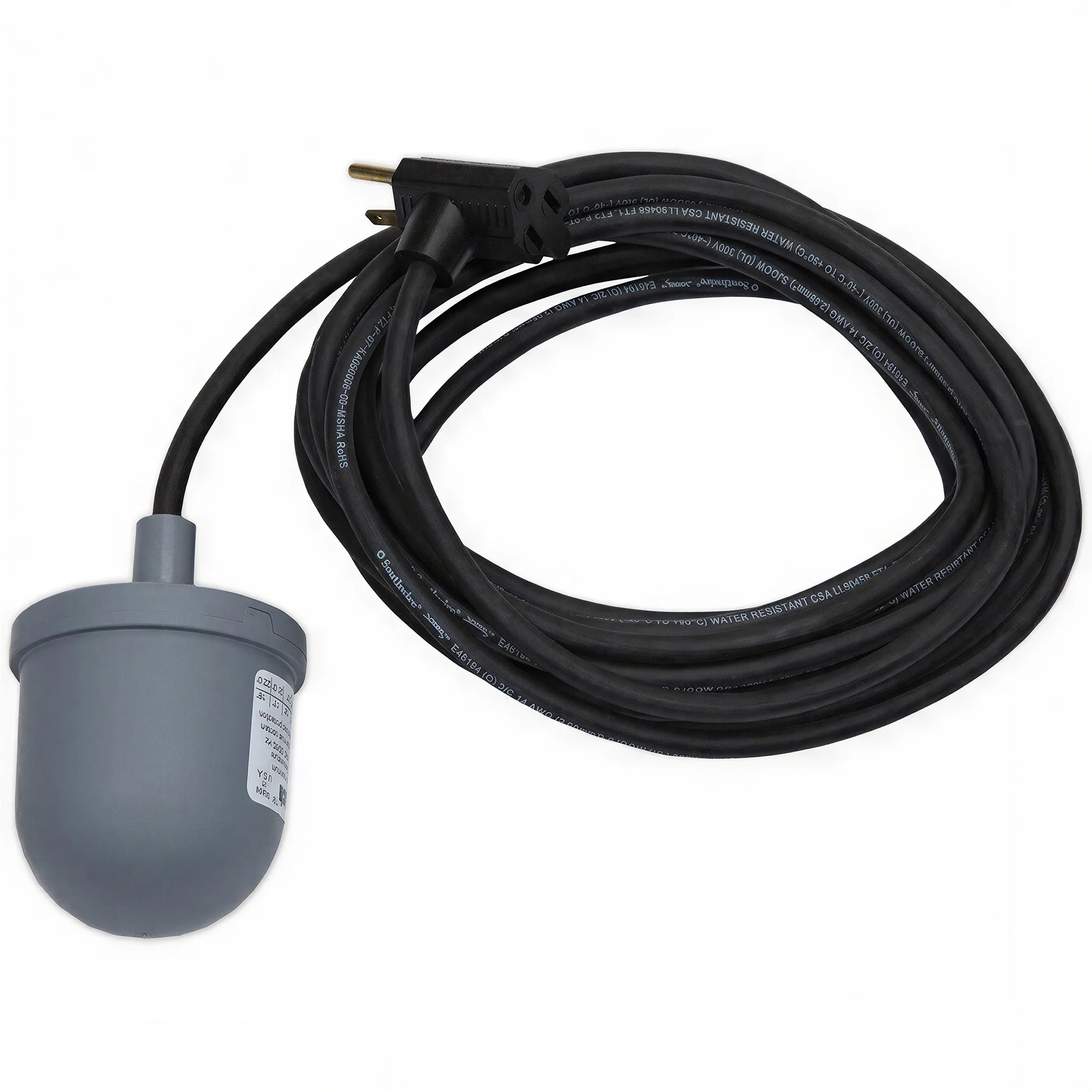

Float Switch Float SpecsheetBig Switch Series Float Switches are environmentally safe with a patented mechanical switching mechanism that eliminates the use of hazardous mercury. The high-quality design utilizes a high number of fine stranded copper wires which makes for an extremely flexible long-life cable.
The Big Switch Series Float Switches are rated at 15 amps, which allows the switches to be used on both small and large horsepower pumps.
FEATURES
- Patented Mechanical Design
- PVC Float Housing
- Heavy Duty Cable
- Omni-Directional
- UL Listed
BENEFITS
- High Amp Rating, 15 amps @ 220V
- Environmentally Safe
- High Integrity Design
- 20’ power cord
Applications
Normally Open (Pump Down): The Big Switch Series Float Switch turns on (closes) when the float is 45 degrees above horizontal, turning on the pump, and turns off (opens) when the float drops 45 degress below horizontal, turning off the pump.
Normally Closed (Pump Up): The Big Switch Series Float Switch turns on (closes) when the float is 45 degree below horizontal, turning on the pump, and turns off (opens) when teh float drops 45 degrees above horizontal, turning off the pump.
| Brand | AXEON Water Technologies |
|---|---|
| SKU | AXR1700 |
| Weight (lb.) | 8.0000 |
| Prop 65 | false |
| Width (in.) | |
| Height (in.) | |
| Lead Time | This item ships in 1-2 Business Days |
| Length (in.) | |
| Hazardous Material | false |
| UL Listed | No |
| ETL Listed | No |
| Shipping Restrictions | AK, HI |
| Irrigation Part Type | Float Valves |
| Power Cord Length | 20 ft |
| Amps | 15 Amps |
| Voltage | 220 Volts |
