Autopilot Product Documents

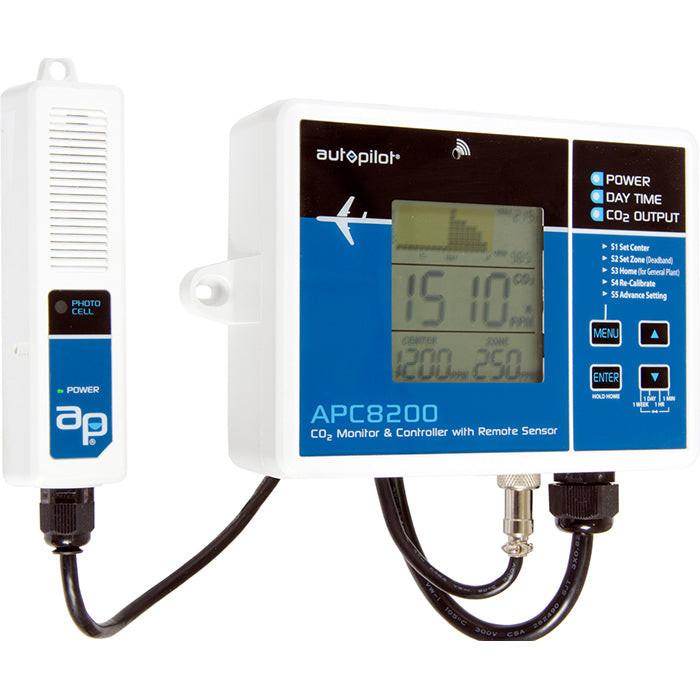

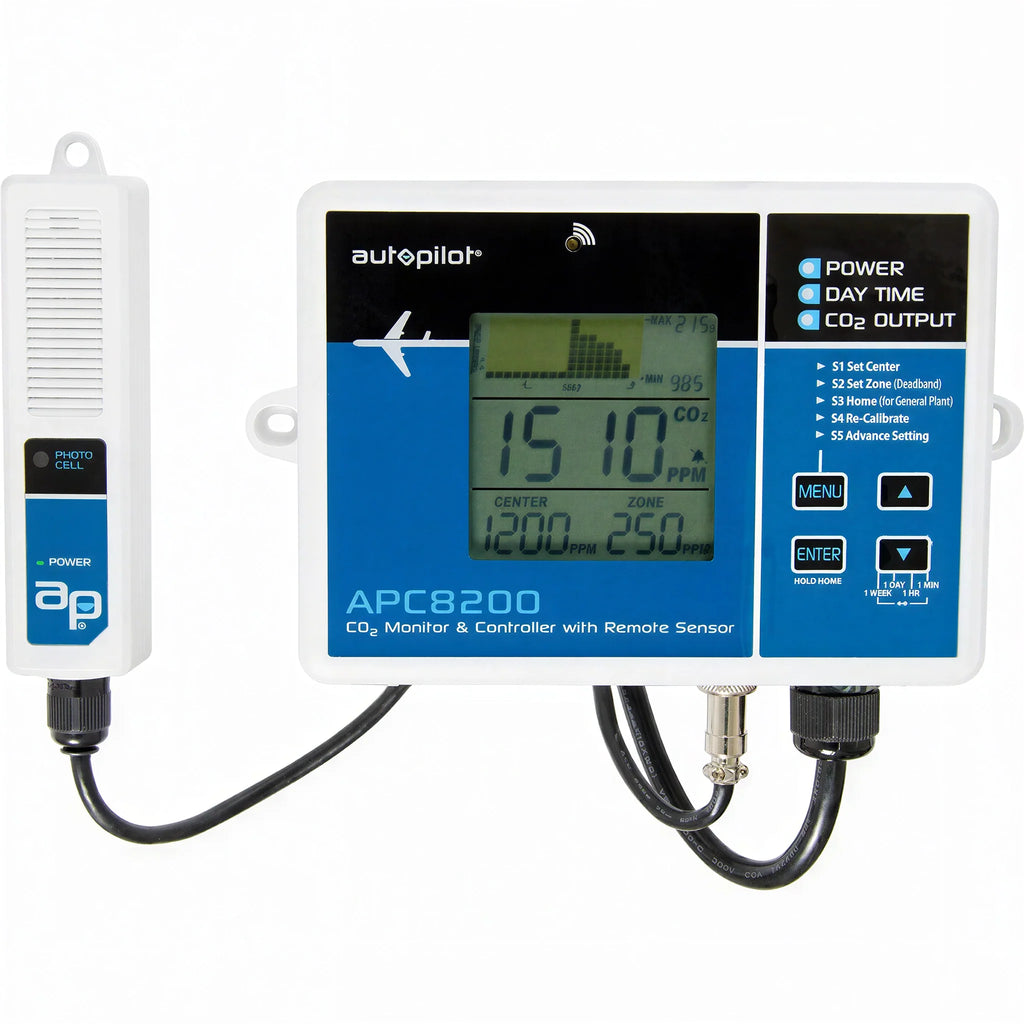

Product InstructionsAutopilot APC8200 CO2 Monitor & Controller with Memory offers a simple and affordable way to control, monitor and record CO2 levels over an adjustable period of time. Trace your room's CO2 levels over minutes, hours, or up to 7 days with this easy-to-use controller. The APC8200 also boasts a fully customizable CO2 set point and dead-band. Adjust and review your CO2 levels when you want to and how you want to. The APC8200's memory feature gives growers a real edge in fine-tuning the grow room environment. Optimize your CO2 levels with this precision controller from Autopilot!
Features:
- Fully customizable ppm dead-band and CO2 set point allow flexibility in programming
- Trend Chart records CO2 levels per minute, hour, day and week for accurate analysis of CO2 distribution
- Adjustable Trend Chart Zoom levels let you trace your ppm levels
- Remote CO2 sensor probe w/photocell & 15' data cable lets you take readings from proper grow room locations
- 2-Channel Low Drift NDIR Sensor precisely reads CO2 ppm levels
- Green LED identification lights inform you of the unit's status at all times
APC8200 Error Codes:
| Fault Icon | Description Of The Fault | Suggested Actions |
|---|---|---|
| Err4 | IR lamp error | Please reconnect power adapter, if the Err4 still appears, please contact the service department. |
| Err5 | Internal parameter error | Please reconnect power adapter, if the Err5 still appears, please contact the service department. |
| Err6 | Sensor unit Connect Error | Please reconnect sensor unit and redo power on, if the Err6 still appears, please contact the service department. |
| Err7 | temperature or humidity error | Please turn off power adapter, and put the device in a dry place more than 12 hours. |
| Err8 | Internal calculate error | Please reconnect power adapter, if the Err6 still appears, please contact the service department. |
| Brand | Autopilot |
|---|---|
| SKU | APC8200 |
| Weight (lb.) | 2.3000 |
| Lead Time | This item ships in 1-2 Business Days |
| Length (in.) | |
| Width (in.) | |
| Height (in.) | |
| Warranty | 3 Year |
| Prop 65 | false |
| Hazardous Material | false |
| UPC | 00638104020701 |
| Shipping Restrictions | AK, HI |
| ETL Listed | No |
| UL Listed | No |
| CO2 Enrichment | CO2 Controllers, CO2 Monitors |
| CO2 Sensor Type | Remote CO2 Sensor |
| CO2 Function | 0-5000 ppm |
| Number of Zones | Single Zone |
| Has Photocell | Yes |
| Voltage |
