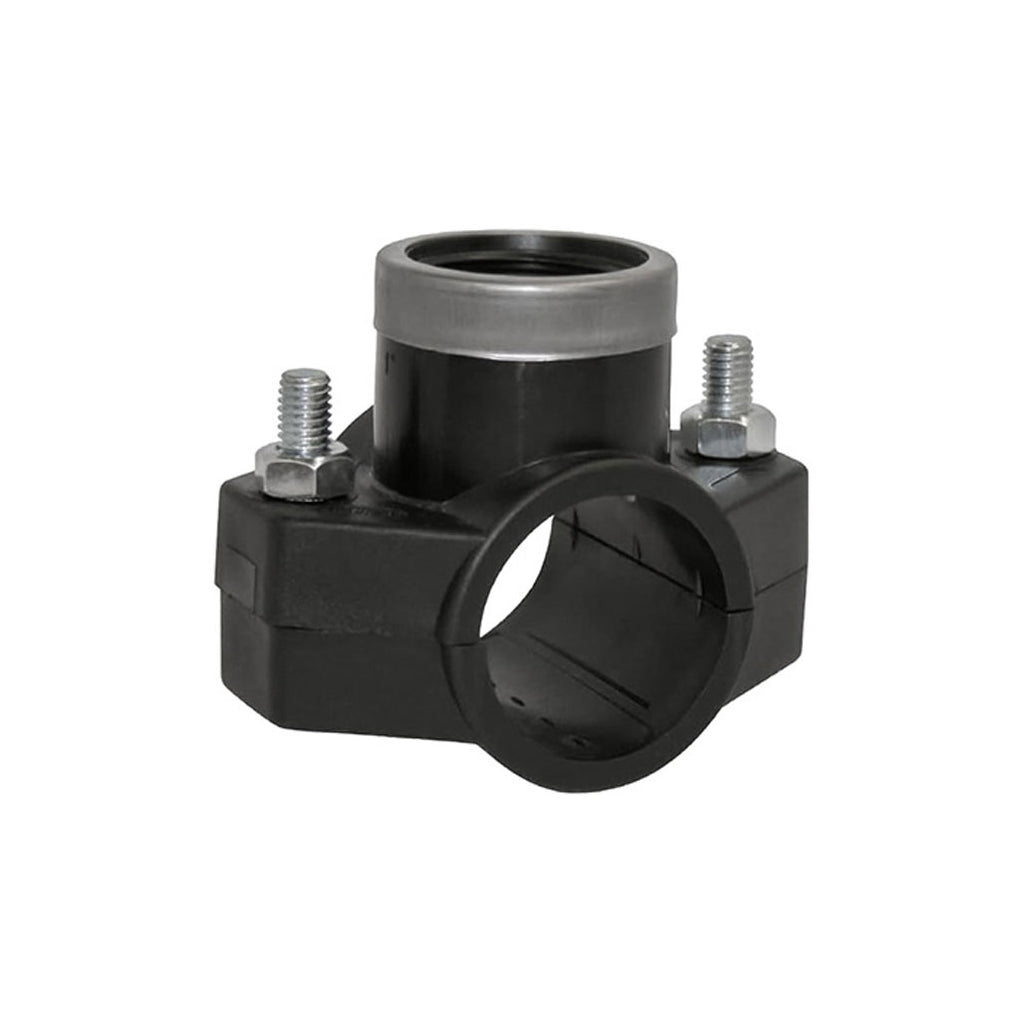

Aqua Master Tapping Saddle 50mm with 1/2 Inch Female Thread

This tapping saddle is designed for quick and secure installation of accessories such as electrode holders and injection valves onto a 50 mm PVC pipeline. It features a 1/2 female thread, allowing easy inline integration of sensors or dosing components without modifying or cutting the pipe.

• Fits 50 mm PVC pipe
• 1/2 female BSP thread – compatible with:
  • Standard 12 mm electrode holders
  • 1/2 injection valves
• Enables inline measurement or dosing with minimal installation effort
• Durable construction for long-term use in irrigation, hydroponics, or water treatment

How It Works

• 1. Position the saddle around the pipe and securely fasten it using the included bolts.
• 2. Drill through the opening inside the threaded port to access the pipe interior.
• 3. Screw in the electrode holder or injection valve.
• 4. Ensure tight sealing for leak-free operation.

Note: For use only on 50 mm PVC pipe. Always install with appropriate sealing (e.g., PTFE tape or gasket) to ensure proper function.
