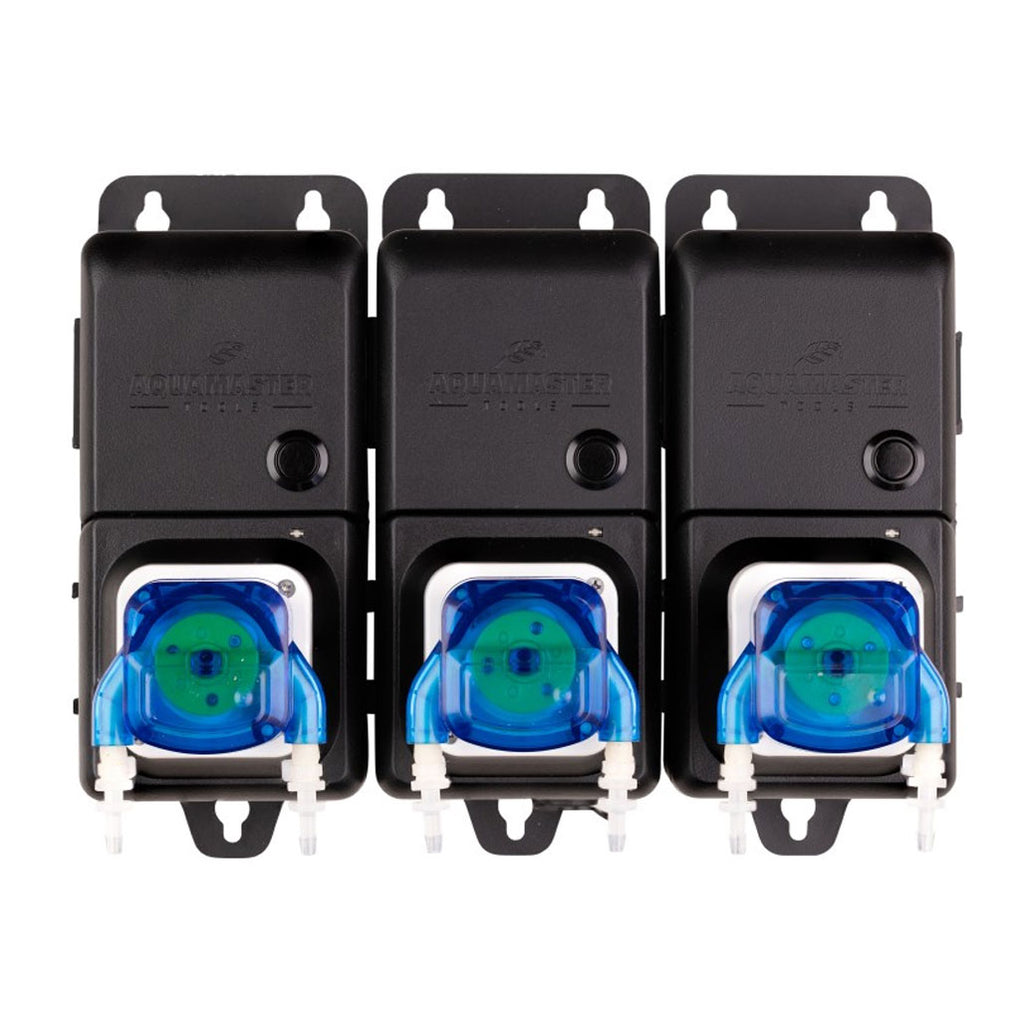

Aqua Master C30 Triple Peristaltic Pump Unit
Roll over image to zoom in Click on image to zoom
Aqua Master C30 Triple Peristaltic Pump Unit

Aqua Master C30 Triple Peristaltic Pump Unit

SKU: AMT1063
No reviews
Aqua Master Brand ProductMultiple Units? Click for Volume Pricing.

Availability: In stock

Lead time: This product ships in 5-7 business days

Shipment Restrictions
This item cannot be shipped to the following states: AK, HI

Price:
$679.03

Aqua Master Product Documents

C30 pump unit 3x peristaltic pump set for nutrient dosing

The C30 is a dosing unit with three peristaltic pumps, designed for accurate nutrient dosing. It is only suitable for EC dosing and not for pH control. Each pump has a standard dosing rate of 1.5 ml per second.

Connection and Expansion Options

The C30 offers flexible usage options:

  • The C30 connects directly to the controller via the left UTP port (bottom side).
  • The right UTP port is used for expansion with a C10 (1 pump) or a C20 (2 pumps).
  • Mechanical linking is done via the side slide rail, and electrical connection via the included 50 cm UTP cable.

Pump numbers in the controller menu:

  • C30 only: Pump 1, 2, and 3
  • C30 + C10: Pump 1 to 4
  • C30 + C20: Pump 1 to 5

Maximum: 5 EC pumps + 1 pH pump per controller.

Aqua Master C30 Single Peristaltic Pump Unit Includes:

  • C30 dosing unit (3 pump)
  • 3x Tubing (3 meters)
  • UTP cable (150 cm) for controller connection
  • UTP cable (50 cm) for expansion
  • International Power Adapter

Specifications for Aqua Master C30 Single Peristaltic Pump Unit

Individual Flow Rate 90 ml per 60 seconds ( depending on the temp and viscosity of the liquid )
Operation Temp 5°C - 50°C (41°F - 122°F)
Noise level <60 DB
Power Supply AC85~260V, 50~60Hz, with standard UK/EU/ AU/US plugs
Power 6 W
Rated voltage 12V
Peristaltic Tube Lifetime 1000 Hours
Motor lifetime 800 Hours
