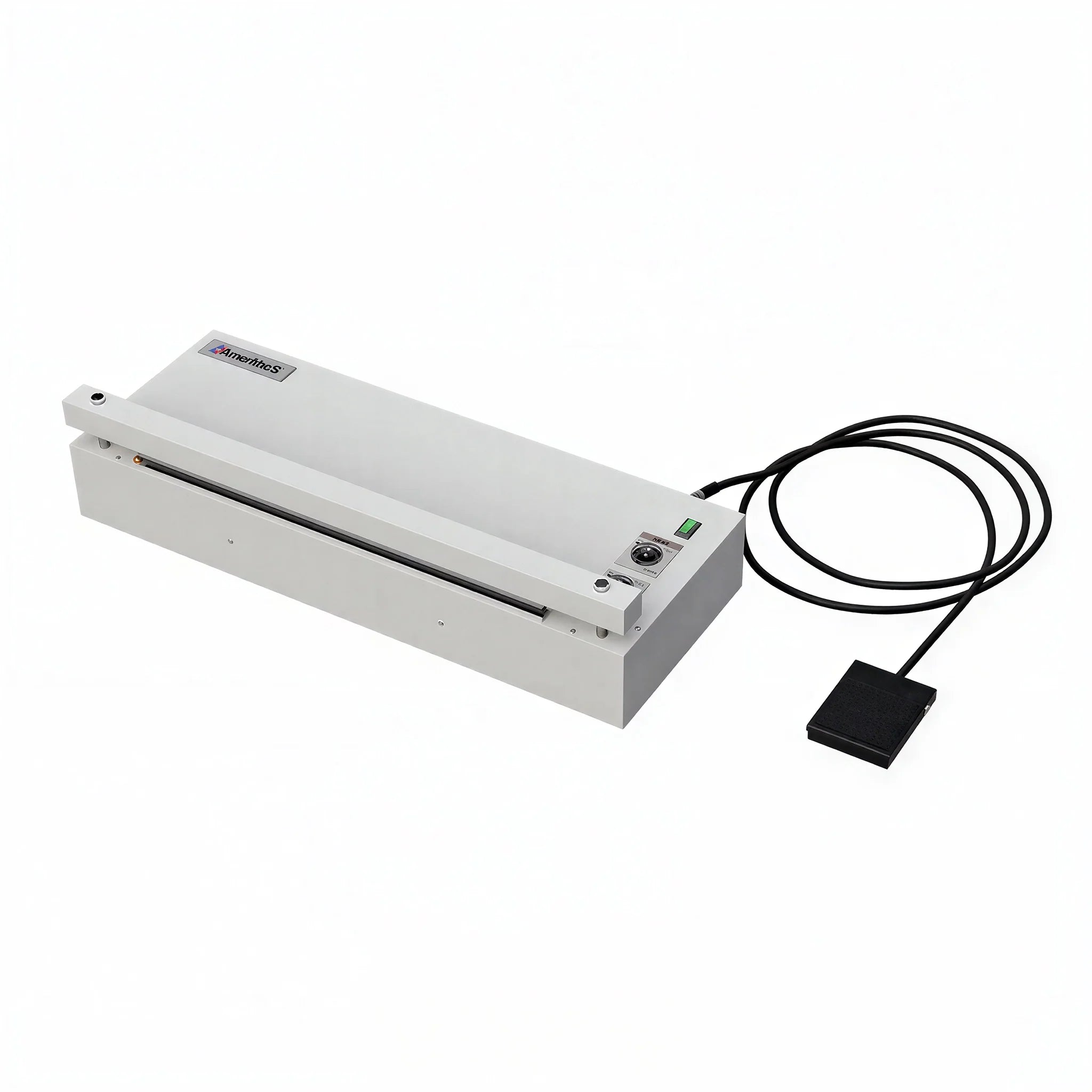

The AVP series was designed for heavy-duty applications. Form follows function, providing an expansive clear work surface to hold the product ready to be sealed. A one-tap steel-encased foot switch provides hands-free operation.
Note for AVP - 50: All AVP 50" standard models include the Low-Pressure Close (LPC) upgrade. The price of this upgrade is included in the cost of the standard machine.
Features & Benefits
AmeriVacS' AVP Series' side-mounted heat and cool timers, fittted to a powder coated steel chassis, regulate seal parameters that are critical to obtaining airtight and watertight seals.
Of key significance, like the AVN, AVS and CAV, the AVP will not fire an impulse until the upper and lower jaw completely meet, further ensuring operator safety and uncompromised seal integrity. The pressure bar is powder coated aluminum.
Made of professional grade components, the AVP is still lightweight enough (29 lbs.) to be moved effortlessly in your facility.
From its innovatively simple nozzle system to ultramodern safety features, the AVP continues AmeriVacS tradition of manufacturing efficient, dependable, easy to use vacuum sealers.
Air Compressor Requirements
All AmeriVacS sealers require an external air compressor: with the exception of CAVS & CAVN Models (which come stock-standard with internal air compressor)
Specifications
| Chamber Size (in) | N/A |
|---|---|
| Seal Length (in) | 20, 25, 30, 35, 50 |
| Seal Width (in) | 1/4 |
| Vacuum Flow (CFM) | N/A |
| Max Vacuum Pressure (inHg) | N/A |
| Air Requirements (CFM) | 1 |
| Amps @ 120 Volts A.C.* | 8, 9, 13, 15, 15 |
|---|---|
| Unit Size (in)* | (28, 33, 40, 45, 60) L x 10W x 7H |
| Unit Weight (lbs)* | 35, 41, 55, 62, 100 |
| Max Temperature** | 500°F |
| Ship Weight (lbs)* | 34, 41, 56, 69, 89 |
| Ship Dims (in)* | (37, 41, 47, 53, 67) L x 18W X 16H |
* By Seal length respectively
** Can be higher
| Brand | AmeriVacS |
|---|---|
| SKU | AVP-20 |
| Weight (lb.) | 34.0000 |
| Prop 65 | false |
| Height (in.) | |
| Width (in.) | |
| Length (in.) | |
| Warranty | 2 Year |
| Lead Time | This Product Ships in 5-7 Business Days |
| Hazardous Material | false |
| ETL Listed | No |
| UL Listed | No |
| Storage Product Type | Vacuum Sealers & Bags |
What does the AmeriVacS AVP Series Pneumatic Impulse Sealer, 20-inch, do?
The AmeriVacS AVP Series Pneumatic Impulse Sealer, 20-inch, creates airtight and watertight seals for heavy-duty applications. The sealer provides a 20-inch seal length and a 1/4-inch seal width.
Does the AmeriVacS AVP Series Pneumatic Impulse Sealer, 20-inch, require an air compressor?
The AmeriVacS AVP Series Pneumatic Impulse Sealer, 20-inch, requires an external air compressor. The air requirement is 1 CFM.
How does the AmeriVacS AVP Series Pneumatic Impulse Sealer, 20-inch, support hands-free sealing?
The AmeriVacS AVP Series Pneumatic Impulse Sealer, 20-inch, uses a one-tap, steel-encased foot switch for hands-free operation. The sealer also has a clear work surface for positioning products before sealing.
How does the AmeriVacS AVP Series Pneumatic Impulse Sealer, 20-inch, help produce consistent seals?
The AmeriVacS AVP Series Pneumatic Impulse Sealer, 20-inch, uses side-mounted heat and cool timers to regulate seal parameters. The sealer reaches a maximum temperature of 500°F.
What safety feature does the AmeriVacS AVP Series Pneumatic Impulse Sealer, 20-inch, provide during operation?
The AmeriVacS AVP Series Pneumatic Impulse Sealer, 20-inch, will not activate the impulse until the upper and lower jaws completely meet.
